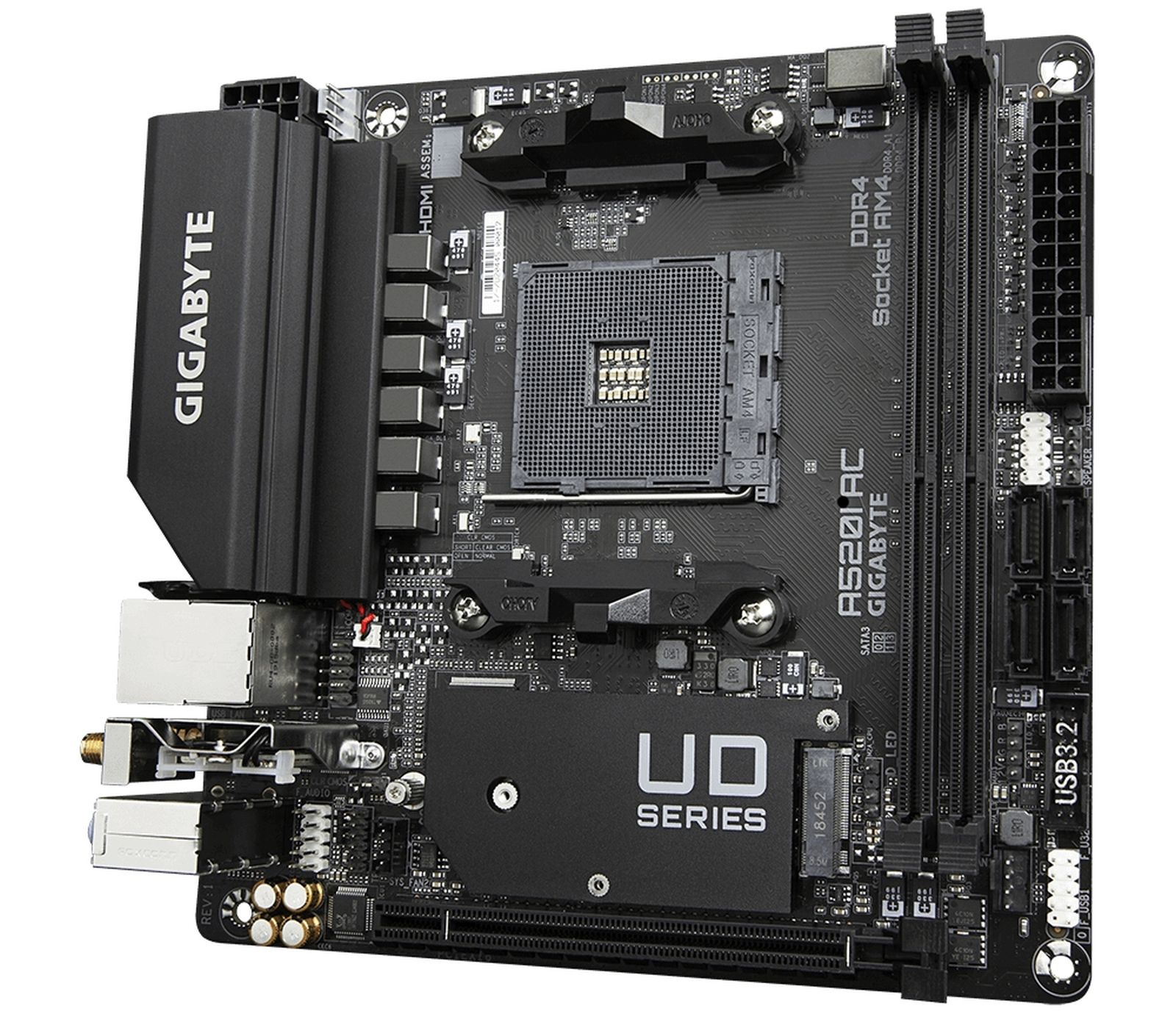

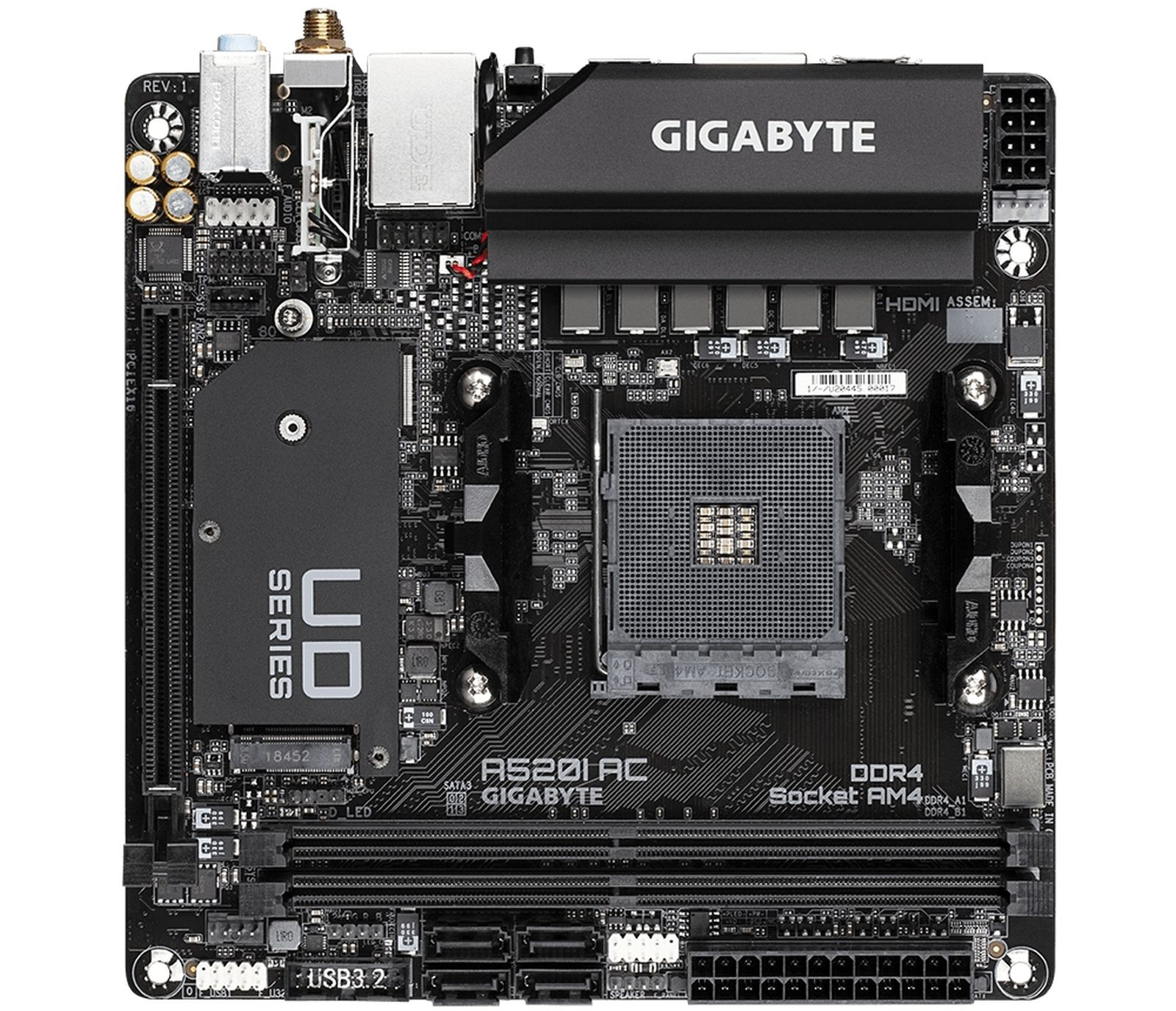

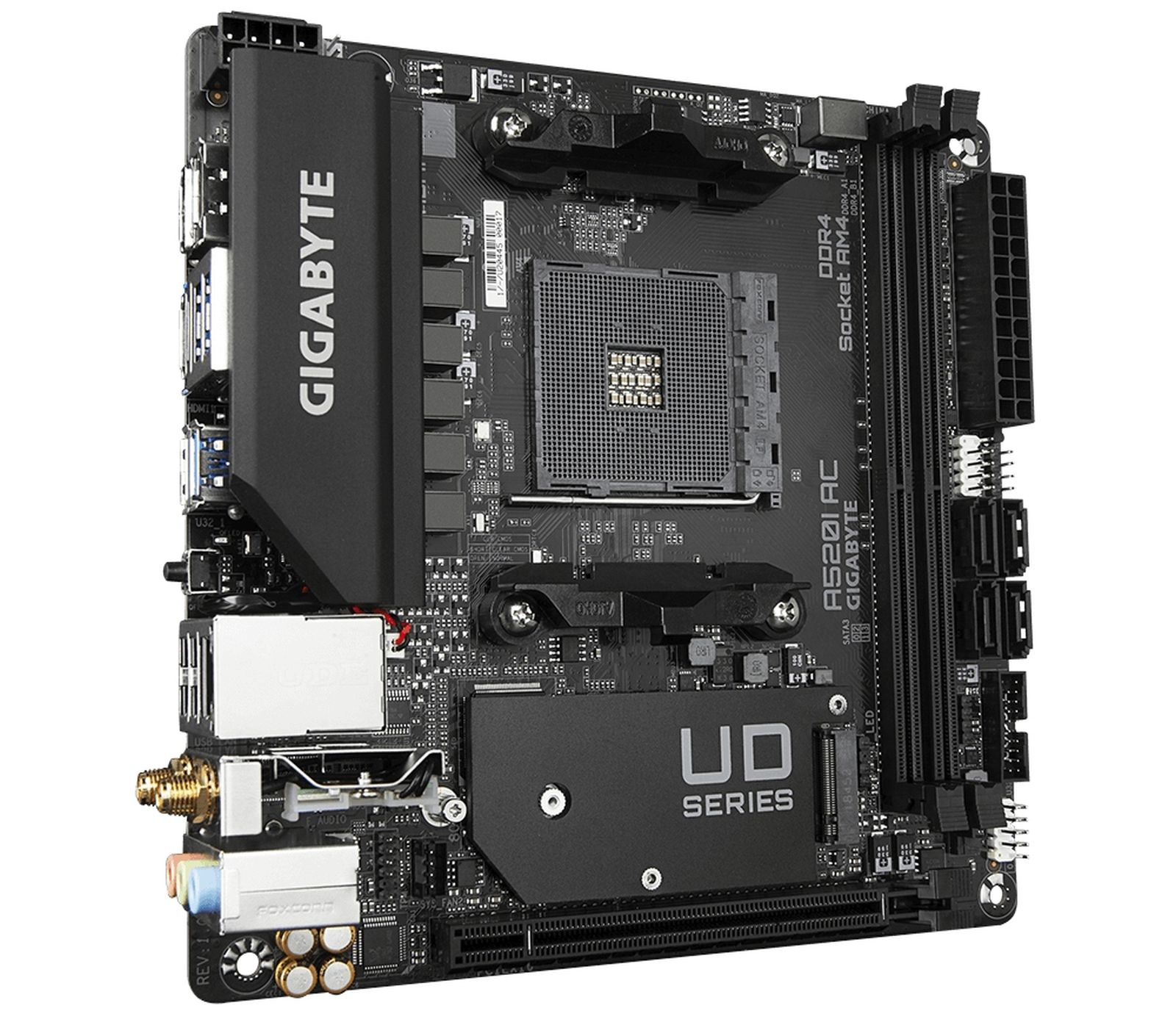

GIGABYTE A520I AC Motherboard

Motherboard

mini ITX

Socket AM4

AMD A520

ATX Power connector (24-pin),Audio connector,Connector for CPU cooler,EPS power connector (8-pin),Front audio panel connector,Front panel connector,Number of Parallel ATA connectors:0,Number of SATA connectors:0,Number of SATA II connectors:0,Number of SATA III connectors:4,Power supply fan connector,RGB LED connector rail,Serial port headers:1,Total number of SATA connectors:4,TPM connector,USB 2.0 connectors:1,USB 3.2 Gen 1 (3.1 Gen 1) connectors:1,USB 3.2 (3.1 Gen 2) connectors:0

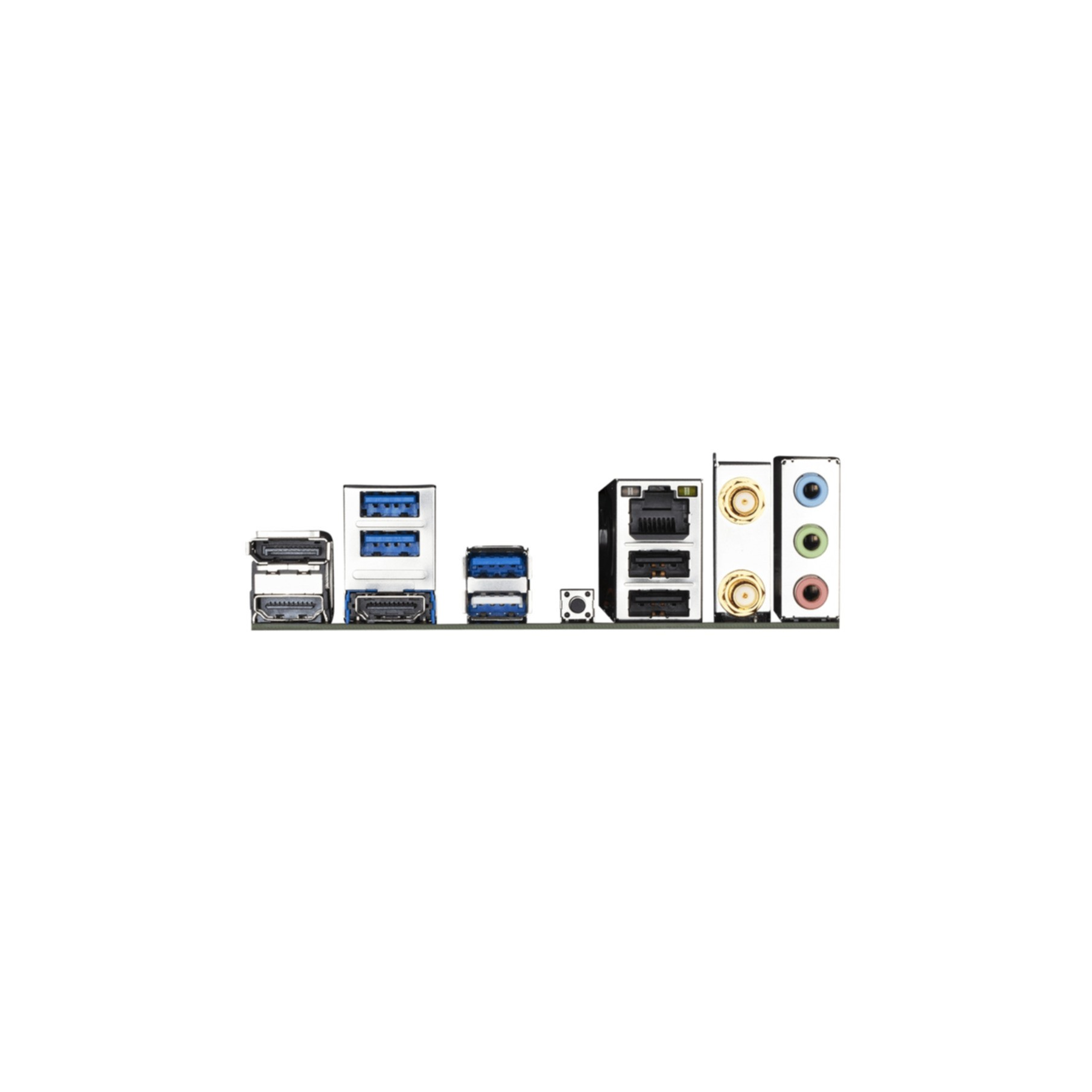

Number of DisplayPorts:1,DVI-D ports:0,Number of Ethernet LAN (RJ-45) ports:1,Number of HDMI ports:2,Headphone outputs:3,Number of USB 2.0 ports:2,Number of USB 3.2 Gen 1 (3.1 Gen 1) Type A ports:4,Number of portsUSB 3.2 Gen 1 (3.1 Gen 1) Type C:0,USB 3.2 connectors (3.1 Gen 2):0,Number of ports USB 3.2 Gen 2 (3.1 Gen 2) Type A:0,Number of ports USB 3.2 Gen 2 (3.1 Gen 2) Type C:0,VGA (D-Sub) port(s):0,WiFi AP antenna jack:2

64 GB

DDR4

2133;2400;2667;2933;3200;3333;3600;4000;4400;4600;4866;5000;5100;5200

-

2

AMD

3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9

DDR2

1x PCI Express x16,1x Number of M.2 (M)

Realtek ALC887

UEFI AMI

LAN,Gigabit Ethernet,Wi-Fi 5 (802.11ac),Bluetooth [4.2, de-DE:4.2;en-GB:4.2;nl-NL:4.2;it-IT:4.2;es-ES:4.2;de-AT:4.2;fr-BE:4.2;nl-BE:4.2;pl-PL:4.2;ll:4.2;ll-LL:4.2]

Windows

Support for parallel processing:Not supported

170 mm

35 mm

170 mm

Black

780 g

1x motherboard,manual

170 mm / 7.8 cm / 170 mm

2021

2021-01-12

unknown

PC
