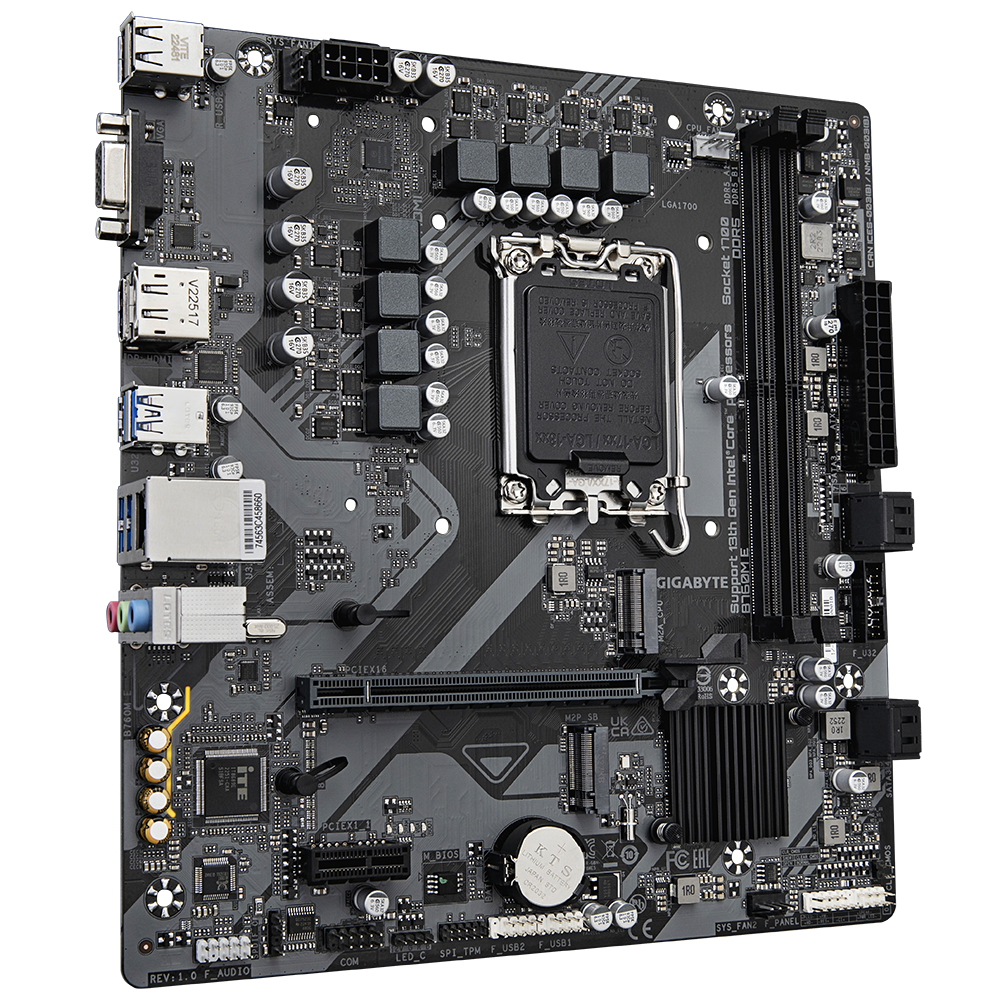

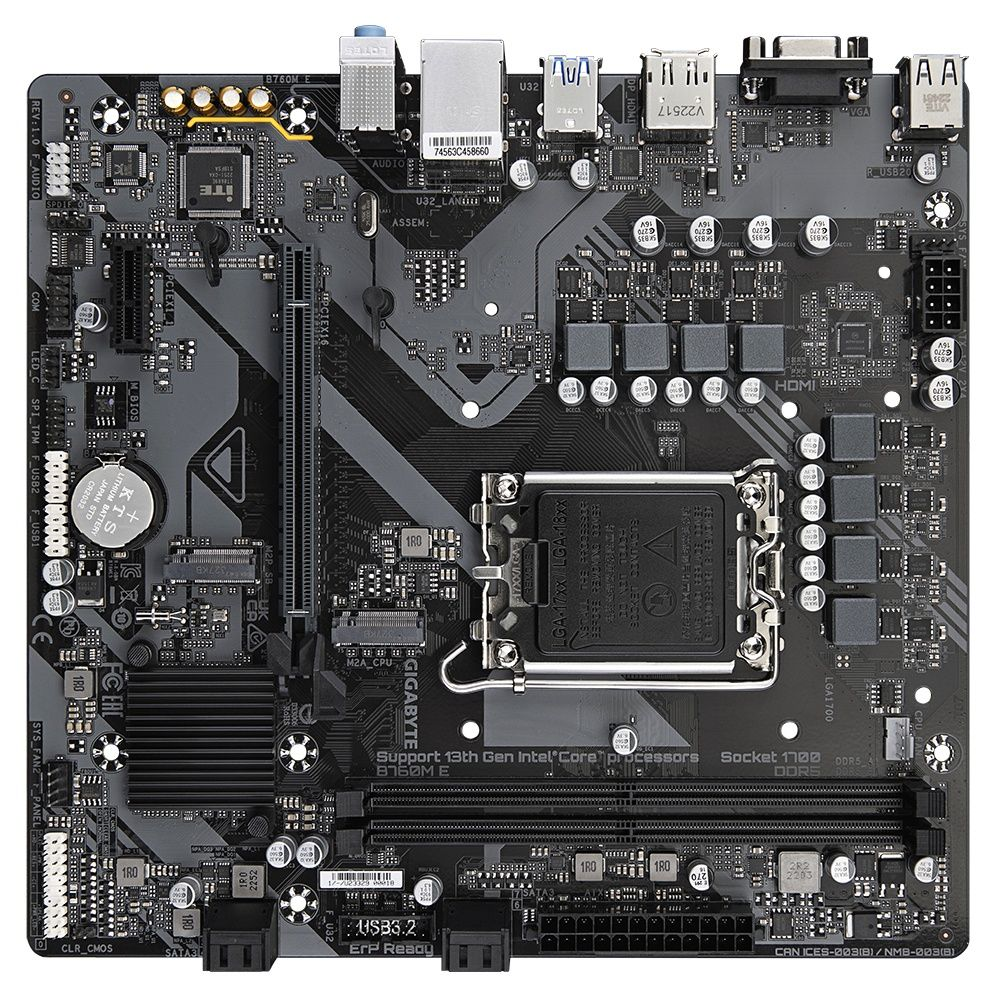

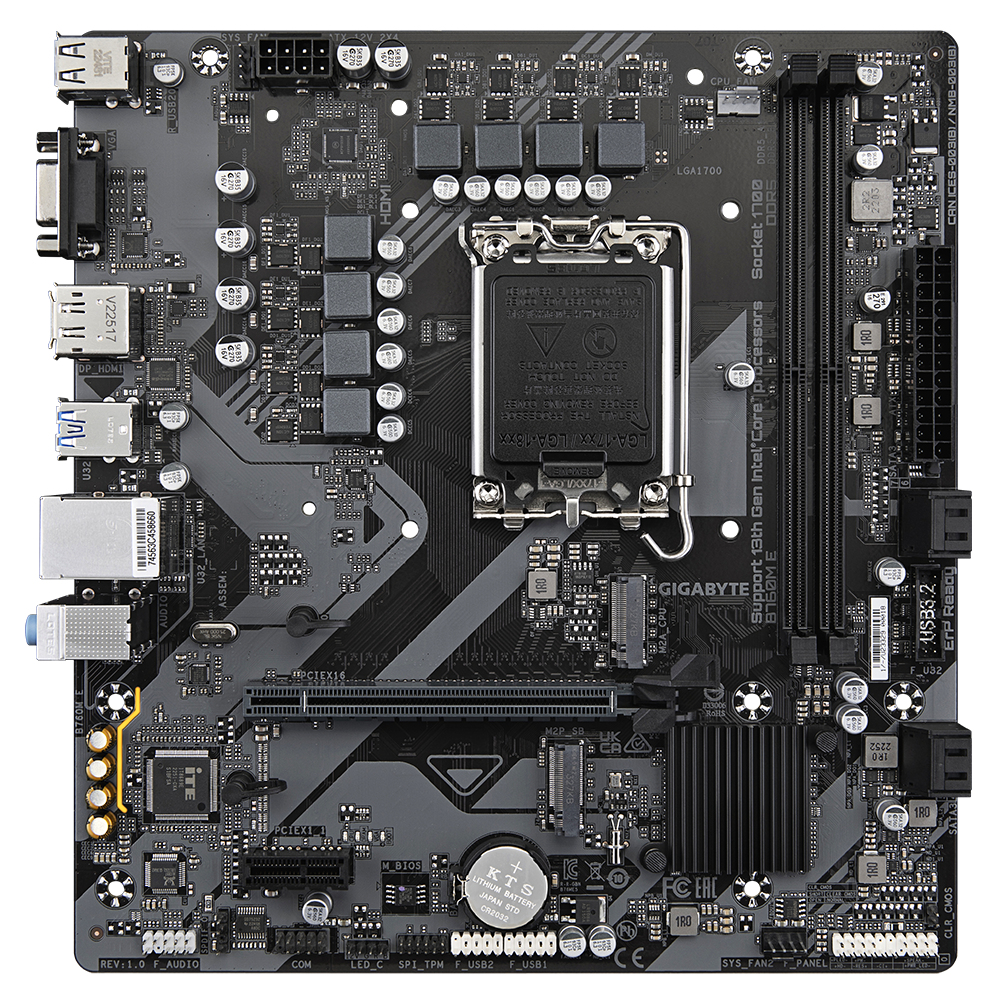

GIGABYTE B760M E Motherboard

Motherboard

Micro ATX

LGA 1700

Intel B760

12V power connector,ATX power connector (24-pin),CPU cooler connector,EPS power connector (8-pin),Front panel audio connector,Front panel connector,Chassis fan connectors:2,CPU fan connectors:1,EPS power connectors (8-pin):1,RGB LED pinheaders:1,SATA III connectors:4,RGB LED strip,S/PDIF output,Serial port headers:1,TPM connector,USB 2.0 connectors:2,USB 3.2 Gen 1 (3.1 Gen 1) connectors:1,USB 3.2 connectors (3.1 Gen 2):0

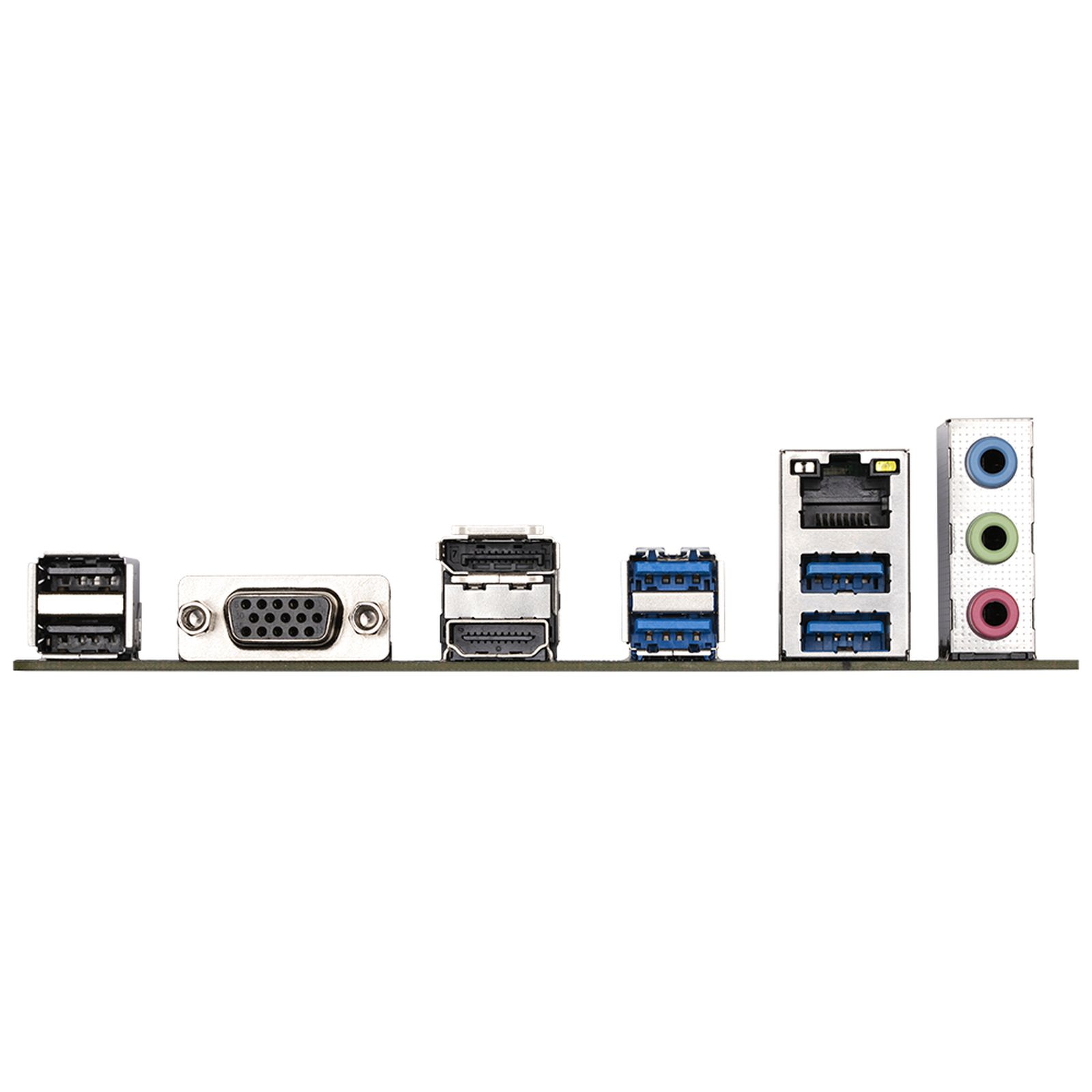

Number of DisplayPorts:1,DVI-D ports:0,Number of Ethernet LAN (RJ-45) ports:1,Number of HDMI ports:1,Headphone outputs:1,Line-in,Microphone, line-in input,Number of USB 2.0 ports:2,Number of USB 3.2 Gen 1 (3.1 Gen 1) Type A ports:4,Number of USB 3.2 Gen 1 (3.1 Gen 1) Type C ports:0,USB 3.2 connectors (3.1 Gen 2):0,Number of USB 3.2 Gen 2 (3.1 Gen 2) Type A ports:0,Number of USB 3.2 Gen 2 (3.1 Gen 2) Type C ports:0,VGA (D-Sub) port(s):1

128 GB

DDR5

DIMM

7200;7000;6800;6600;6400;6200;6000;5800;5600;5400;5200;4800;4000

-

2

GIGABYTE

Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th

Yes

1x PCI Express x1 (Gen 3.x),1x PCI Express x16 (Gen 4.x),2x Number of M.2 (M)

Realtek ALC897

UEFI AMI

128 Mbit

LAN,Gigabit Ethernet,Realtek RTL8111H

Windows

Parallel processing support: Not supported

230 mm

35 mm

215 mm

Dark brown

1x Motherboard,Included software: Norton® Internet Security (OEM version) LAN bandwidth management software,1x Batteries included,1x Screws included

26.5 cm / 5.4 cm / 26.5 cm

Yes

2025

2025-03-31

unknown

PC
