RESPEKTA KMCH7800I-45 Table fan - Built-in - Induction - Width 83 cm - Power adapter

Calima induction hob with extractor hood

The Calima induction hob with integrated extractor hood not only offers powerful cooking, but also effective air purification in your kitchen. With a range of innovative functions, it is a practical and space-saving solution.

Characteristics:

• Backdraft technology: The air is drawn in behind the kitchen where it is cleaned by an extremely powerful filter that removes odor particles, grease particles and moisture.
• Integrated extractor hood with recirculation: Ensures effective extraction of cooking fumes and odors.
• Partially guided recirculation: Maximizes the usable space in the base cabinet thanks to a shortened recirculation channel.
• Bridgezone: Makes it possible to connect the upper and lower cooking plates to form a larger cooking surface.
• Booster function for all cooking zones: For quickly heating food.
• Touch control with slider: Precise and user-friendly operation.

The Backdraft technology of the Calima induction hob with integrated extractor hood offers an effective solution for cleaning the air in your kitchen.

These are the main features of this technology:

• Air purification behind the kitchen: Backdraft technology sucks in the air to be purified and directs it behind the kitchen where it is purified.
• Effective filter: An extremely powerful filter completely purifies the air of odor and grease particles and at the same time removes moisture almost completely.
• Easy installation : To use the technology, simply open the back wall of the kitchen a little at the back. The top drawer then serves as a screen, while all other pull-out elements remain completely intact because no pipes are needed.

With these functions, Backdraft technology offers a practical and space-saving solution to effectively purify the air in your kitchen.

Features Induction hob:

• Glass ceramic / induction
• 9 power levels
• 4 cooking zones 185 x 215 mm / 1800 / 2500 W (booster), including 2 bridge zones (upper and lower cooking plates together)
• Residual heat indicator , Overheating protection, Automatic shutdown , Child lock , Timer, Keep warm function

Technical data extractor hood:

• Annual energy consumption (AEChood): 9,9 kWh
• Energy efficiency class: A++
• Fluid dynamic efficiency (FDE-hood): 23,9 (fluid dynamic efficiency class B)
• Grease separation capacity: 76,6% (grease separation capacity class C)
• Airflow at minimum/maximum speed in normal operation: 323,5-544,7 m³/h
• A-weighted airborne noise emission at minimum / maximum speed during normal operation: 51-68 dB (A)
• Power consumption in stand-by: 0,48 watt
• Voltage / frequency 220-240V or 400V / 50Hz
• Cable 150 cm without plug

Accessories (EAN):

• Incl. metal grease filter (washable): 1 x MIZ 2300 (4262421974186)
• Incl. carbon filter set: 1 x MIZ 7800 (4262421974193)
• Shaft system for hob hood Extractor hood is optionally available (4262421978214)

Dimensions:

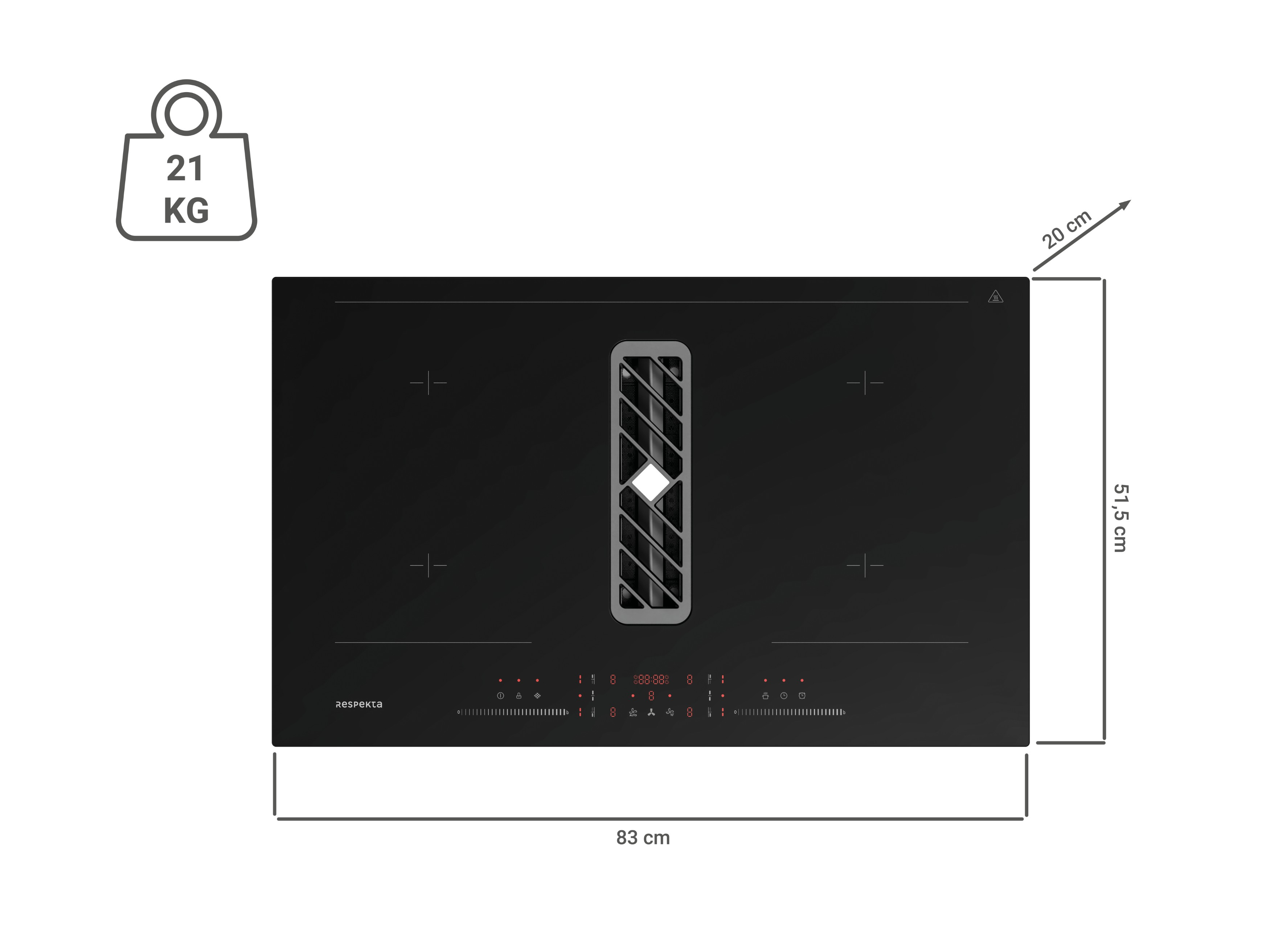

• Dimensions of appliance (H x W x D) / weight: 20 x 83 x 51,5 cm / 21 kg
• Dimensions hob (H x W x D) approx.: 76 x 49,6 cm
• Dimensions with packaging (H x W x D) / Weight: 33,4 x 96,5 x 65 cm / 27,6 kg
