XEDOR Dockr® Docking station

Xedor XR-Dockr-100: one docking station for three screens, one Gigabit connection, and one cable to your laptop. With 2× HDMI 4K/60Hz and 1× DisplayPort 1.4, you can connect up to three external monitors — without adapters, without compromises. The built-in 100W Power Delivery simultaneously keeps your laptop charged.

This 13-in-1 USB-C docking station is built for workplaces where more than one screen is not a luxury, but a necessity. Developers, photographers, video callers: everything runs through a single connection to your laptop.

Three screens, one connection

The combination of 2× HDMI 2.0 and 1× DisplayPort 1.4 allows you to use three external displays simultaneously at 4K resolution at 60Hz. Windows users benefit from true expansion across all three screens. This way, you can work with three code windows side-by-side, or conduct a video conference on one screen while documents are open on the other two.

Note: extending to multiple independent external displays via a single USB-C connection uses MST (Multi-Stream Transport). This feature is supported by Windows, provided the laptop's USB-C port supports DisplayPort Alt Mode. macOS does not support MST for multiple extended displays. On a MacBook, multiple monitors connected via this docking station may therefore display the same image (mirroring), or only one external display stream can be used.

100W Power Delivery — real, not just on paper

The USB-C PD 3.0 port delivers up to 100W and charges your laptop while all your peripherals are active. Connect a power adapter to the PD input, and your workstation runs at full power — without separate charging cables next to the station.

Gigabit Ethernet for a stable connection

The RJ45 Ethernet port supports 1000 Mbps. No more issues with fluctuating Wi-Fi signals during video conferences or large file transfers. The wired connection works immediately, without extra software.

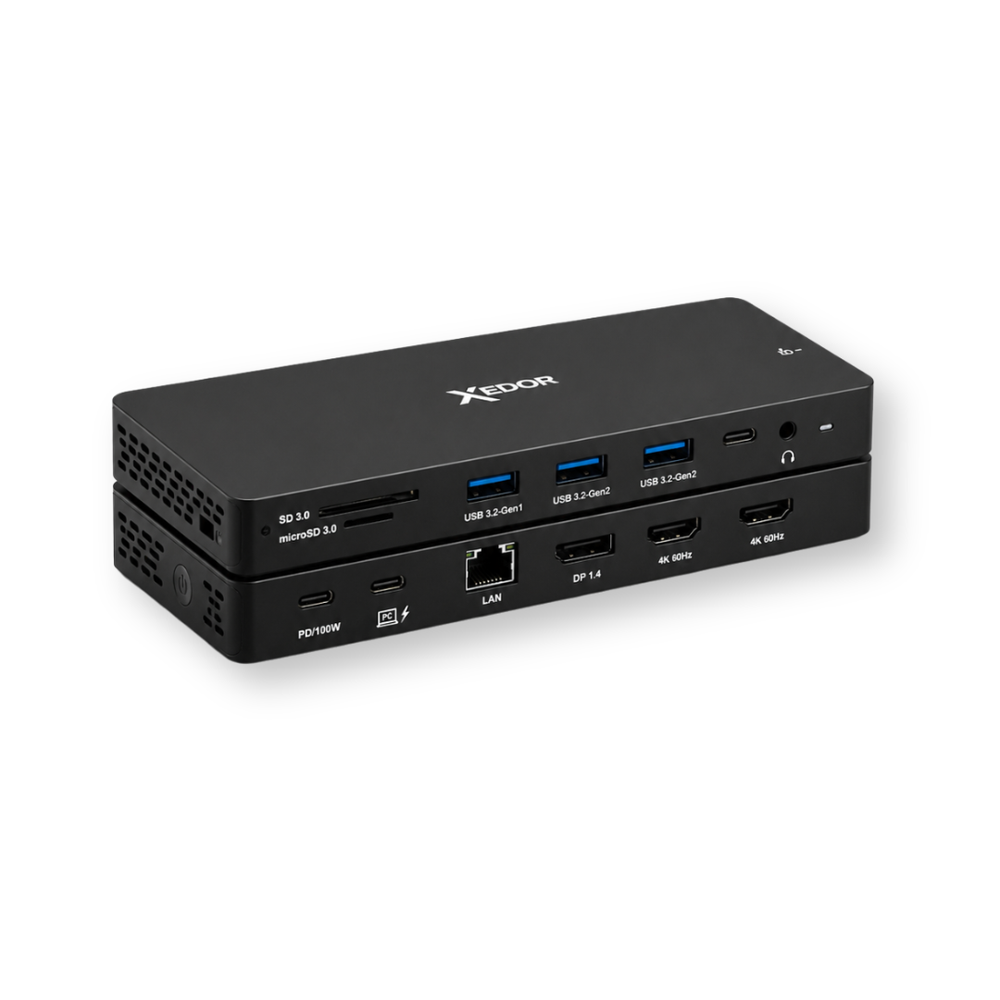

Full connectivity in one compact aluminum housing

• 2× HDMI 2.0 — 4K @ 60Hz per port

• 1× DisplayPort 1.4 — 4K @ 60Hz

• 1× USB-C PD — up to 100W charging power

• 2× USB 3.2 Gen 2 — up to 10Gbps data transfer

• 1× USB 3.2 Gen 1 — up to 5Gbps

• 1× USB-C data (Gen 2) — up to 10Gbps

• 1× SD card reader (SD 3.0) — up to 104 MB/s

• 1× microSD card reader (TF 3.0) — up to 104 MB/s

• 1× 3.5mm audio jack — headset and microphone

• 1× RJ45 Gigabit Ethernet — 1000Mbps

Plug-and-play — no drivers needed

Connect the station via USB-C, and it works immediately. No software to install, no reboots. Compatible with Windows, macOS, Linux, Android, iPad, and iPhone 15 (USB-C). Your USB-C port must support DisplayPort Alt Mode for video output.

Note: compatibility with macOS applies to the other docking functions and a supported external display connection. Extending the desktop to two or three independent external screens via this docking station is not supported by macOS due to the lack of MST support.

SD card reader for photographers and videographers

Import images directly from your SD or microSD card with read speeds up to 104 MB/s. No more separate card reader needed on your desk.

Sturdy aluminum housing — silent and reliable

The XR-Dockr-100 is made of aluminum and weighs approximately 250 grams. Dimensions: 150 × 62 × 18.5 mm. Compact enough for any desk, sturdy enough for daily use. The station operates silently and without interruptions.

Specifications

• Dimensions: 150 × 62 × 18.5 mm

• Weight: ±250 grams

• Material: aluminum housing

• Color: black

• Operating temperature: 0°C – 50°C

• Video chipset: RTD2186

• USB chipset: VL822 + GL3510

• Ethernet chipset: RTL8153

Contents of your order

• 1× Xedor XR-Dockr-100 docking station

• 1× USB-C connection cable (host)

Note: a power adapter for the PD input is not included. Use your own USB-C PD cable of 65W or higher for the best charging experience.

Complete workstation via one USB-C connection

The Xedor XR-Dockr-100 provides you with a complete, silent, and reliable workstation — from a single USB-C connection on your laptop.
