ASUS

Art.-Nr. 103240986

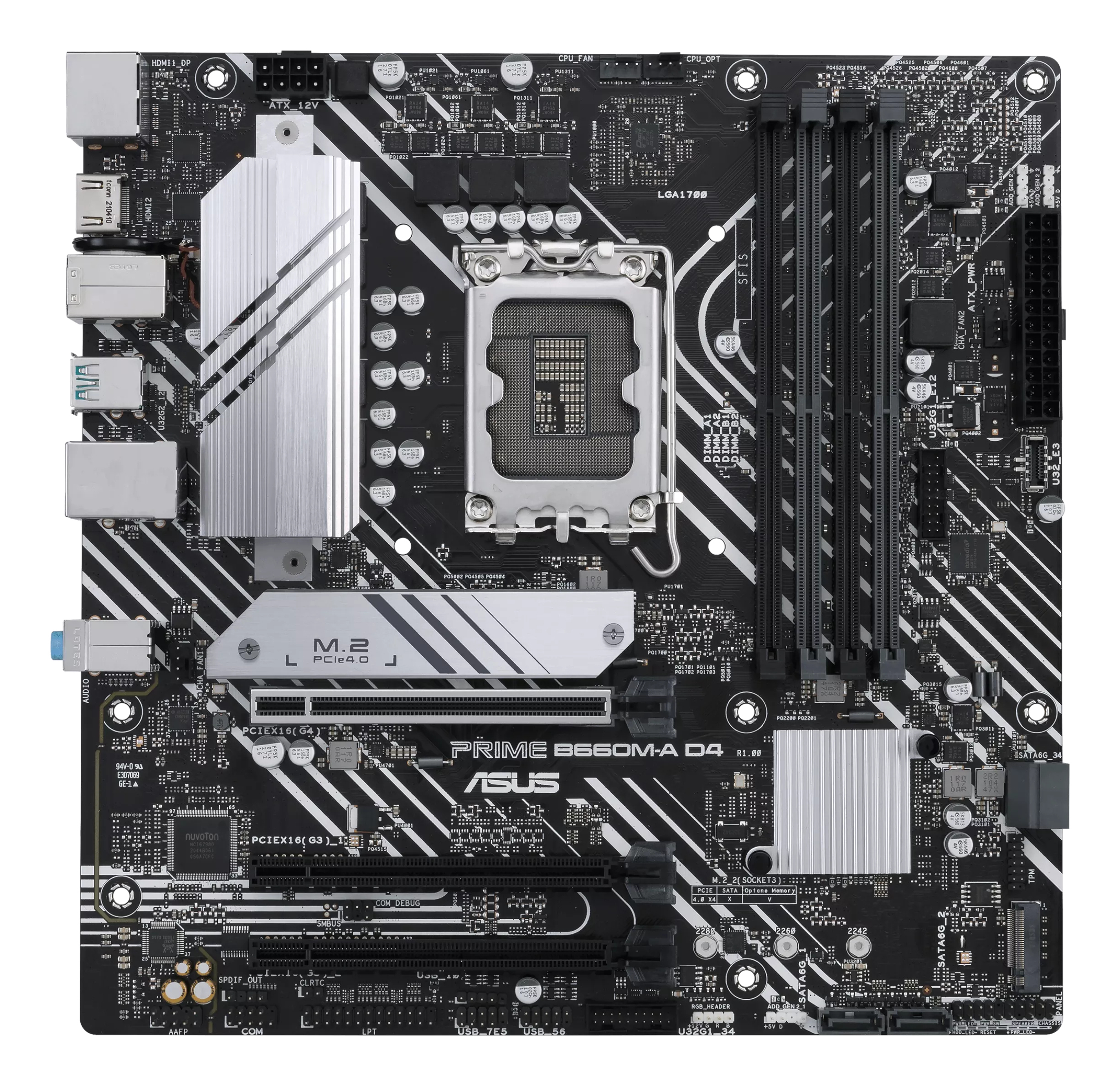

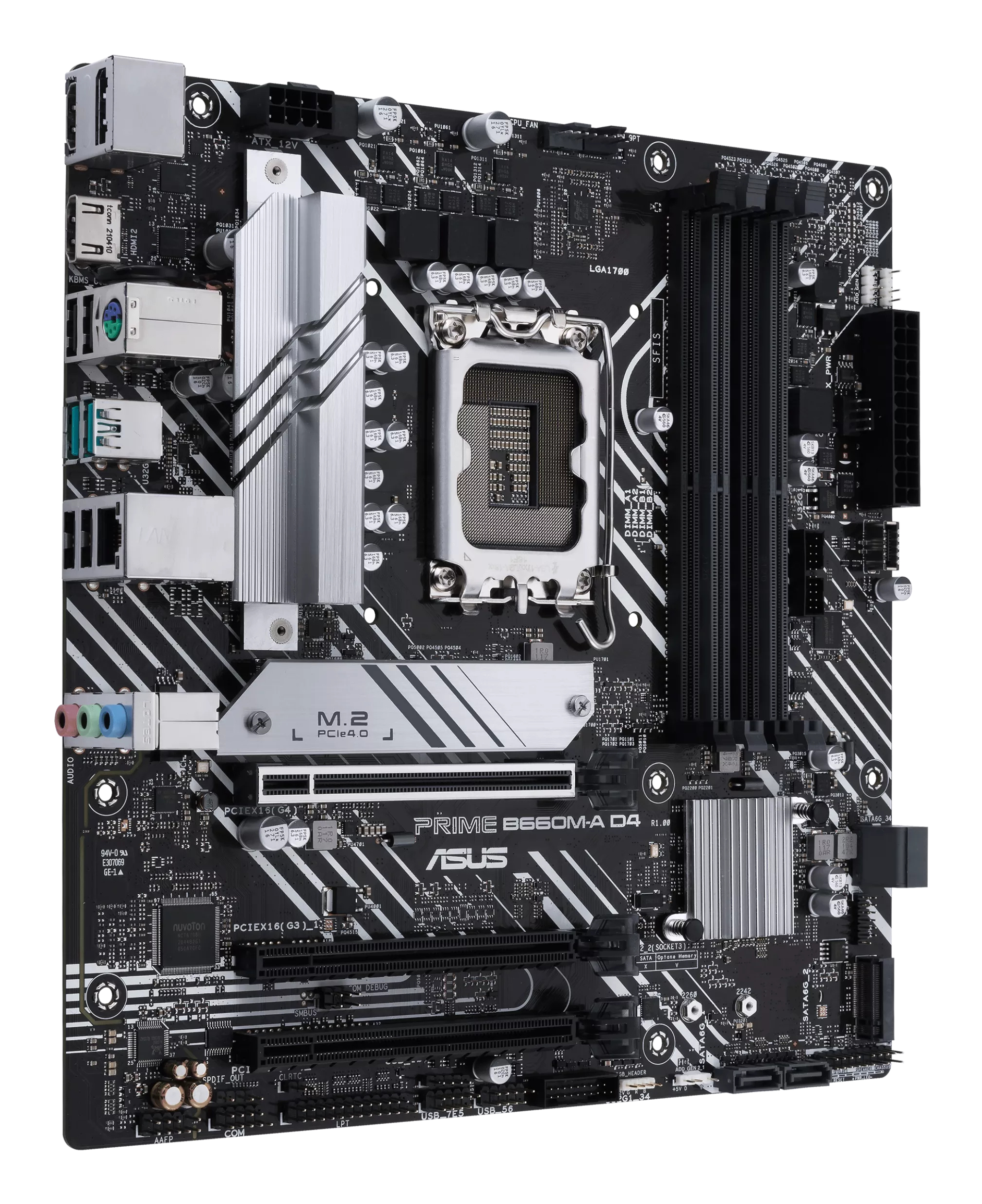

ASUS PRIME B660M-A D4-CSM Motherboard

ASUS

Art.-Nr. 103240986

To compare
To the technical data

Delivery to your home

Delivery 17-06-2026

+ € 0,–

To compare
ASUS PRIME B660M-A D4-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Memory types supported: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Storage drive interfaces supported: M.2, SATA III, Storage drive types supported: HDD & SSD, RAID types: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Features

Product type

Motherboard

Motherboard formfFactor

micro ATX

Processor base

LGA 1700

Chipset

Intel B660

Connections (internal)

ATX Power connector (24-pin),CPU cooler connector,EPS power connector (8-pin),Front audio panel connector,Enclosure fan connectors:2,Number of SATA III connectors:4,Power supply fan connector,RGB LED connector rail,S/PDIF output,TPM connector,USB 2.0 connectors:3,USB 3.2 Gen 1 (3.1 Gen 1) connectors:3

Connections (external)

Number of DisplayPorts:1,Number of Ethernet LAN (RJ-45) ports:1,Number of HDMI ports:2,PS/2 port(s):1,Number of USB 2.0 ports:4,Number of portsUSB 3.2 Gen 1 (3.1 Gen 1) Type C:2

Max. supported memory

128 GB

Supported memory type

DDR4

Supported Memory standards

2133;2400;2666;2800;2933;3000;3200;3333;3400;3466;3600;3733;4000;4266;4400;4600;4800;5000;5333

Material

-

Number of RAM sockets

4

Mainboard manufacturer

Intel

Supported processor models

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Slots

2x PCI Express x16 (Gen 3.x),1x PCI Express x16 (Gen 4.x),2x Number of M.2 (M)

Sound

Realtek ALC897

BIOS type

UEFI AMI

Network

LAN,Gigabit Ethernet

Compatible with operating system version

Windows

Width

244 mm

Height

53 mm

Depth

244 mm

Color (by manufacturer)

Multicolor

Weight

800 g

Scope of delivery

1x motherboard, manual

Packsize

244 mm / 10 cm / 244 mm
