ASUS
Art.-Nr. 136022383

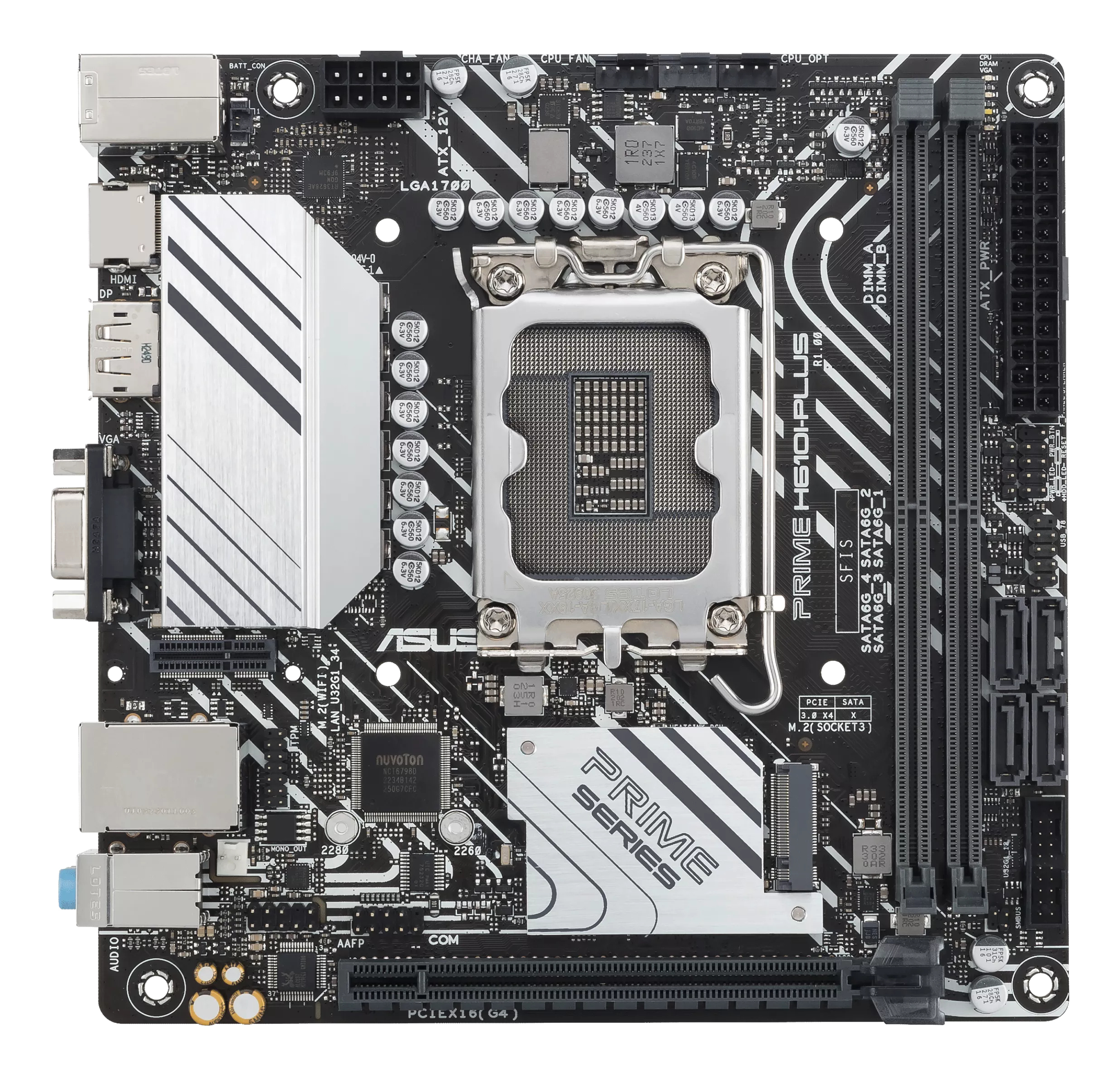

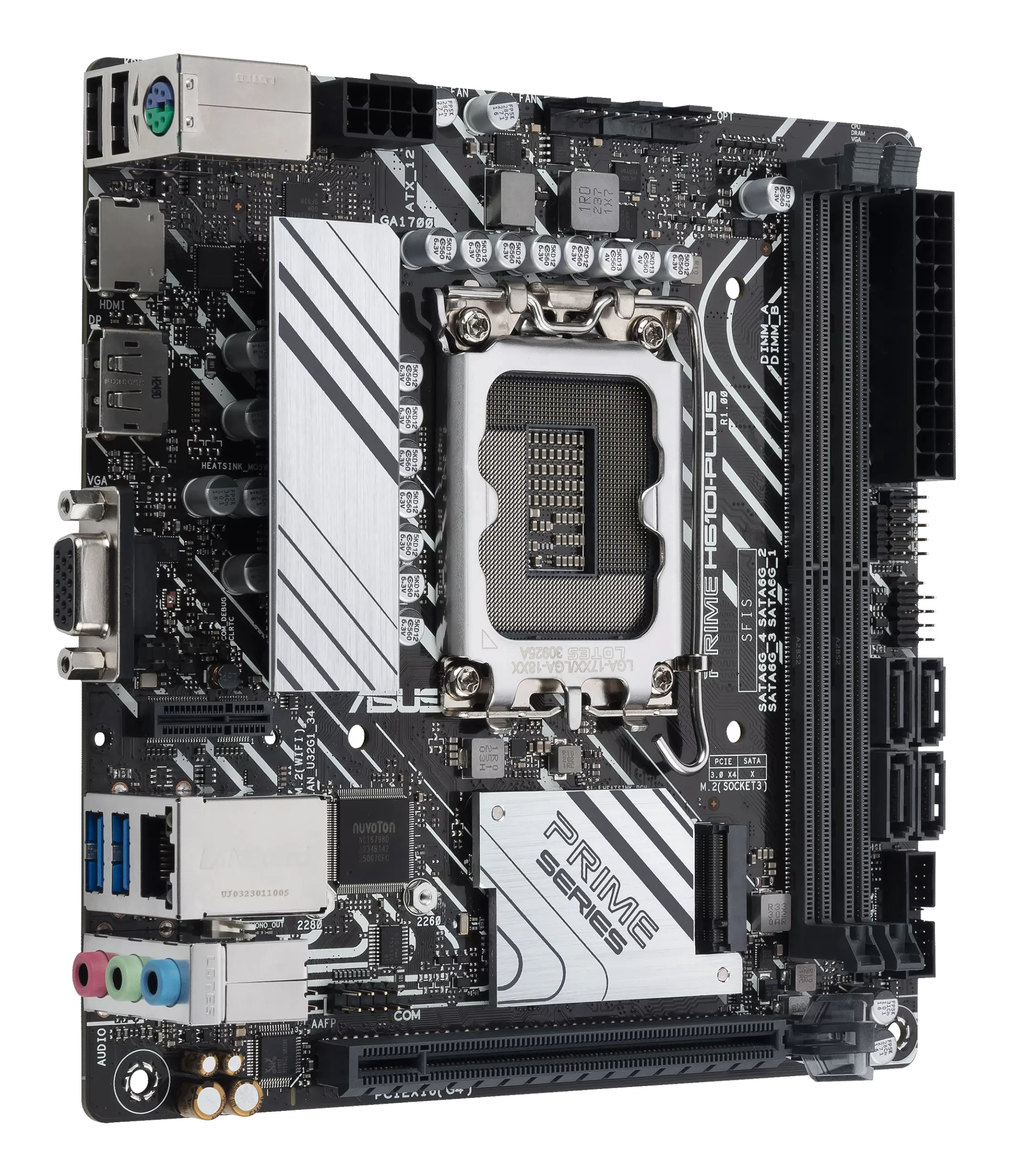

ASUS PRIME H610I-PLUS-CSM Motherboard
incl. VAT and free shipping above €50,-
Sold and shipped by HardwareXL by Informatique BE
Delivery to your home
Delivery 13-06-2026
+ € 0,–
Features | |
|---|---|
Product type | Motherboard |
Motherboard formfFactor | mini ITX |
Processor base | LGA 1700 |
Chipset | Intel H610 |
Connections (internal) | 12V power connector,ATX Power connector (24-pin),CPU cooler connector,EPS power connector (8-pin),Front audio panel connector,Enclosure fan connectors:1,COM connectors:1,Number of SATA III connectors:4,TPM connector,USB 2.0 connectors:1,USB 3.2 Gen 1 (3.1 Gen 1) connectors:1,USB 3.2 connectors (3.1 Gen 2):0 |
Connections (external) | Number of DisplayPorts:1,DVI-D ports:0,Number of Ethernet LAN (RJ-45) ports:1,Number of HDMI ports:1,Microphone, line-in input,PS/2 port(s):1,Number of USB 2.0 ports:2,Number of USB 3.2 Gen 1 (3.1 Gen 1) Type A:2,Number of ports USB 3.2 Gen 1 (3.1 Gen 1) Type C:0,USB 3.2 connectors (3.1 Gen 2):0,Number of ports USB 3.2 Gen 2 (3.1 Gen 2) Type A:0,Number of ports USB 3.2 Gen 2 (3.1 Gen 2) Type C:0,VGA (D-Sub) port(s):1 |
Max. supported memory | 96 GB |
Supported memory type | DDR5 |
Supported Memory standards | 4800,5000,5200,5400,5600 MHz |
Material | - |
Number of RAM sockets | 2 |
Mainboard manufacturer | Intel |
Supported processor models | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Slots | 1x PCI Express x16 (Gen 4.x),1x Number of M.2 (M) |
BIOS type | UEFI AMI |
Network | LAN,Gigabit Ethernet |
Compatible with operating system version | Windows |
Special features | Support for parallel processing:Not supported |
Width | 170.2 mm |
Height | 36.5 mm |
Depth | 170.2 mm |
Color (by manufacturer) | Multicolor |
Weight (according to the manufacturer) | 0.42 kg |
Weight | 420 g |
Scope of delivery | 1x motherboard,manual |
Packsize | 22.8 cm / 6.2 cm / 18.7 cm |
General Product Safety |
|---|
GTIN 4711387330500 |
Product type Motherboard |
Manufacturer |
|---|
Manufacturer ASUS |
Contact ASUS |
Website https://www.asus.com/support/Product/ContactUs/Services/questionform/?lang=de-de |
EU established Yes |
Address Harkortstrasse 21-23 |
City Ratingen |
Postcode 40880 |
Country Germany |
Address suffix Harkortstrasse 21-23 40880 Ratingen DE |
