GIGABYTE

Art.-Nr. 147178838

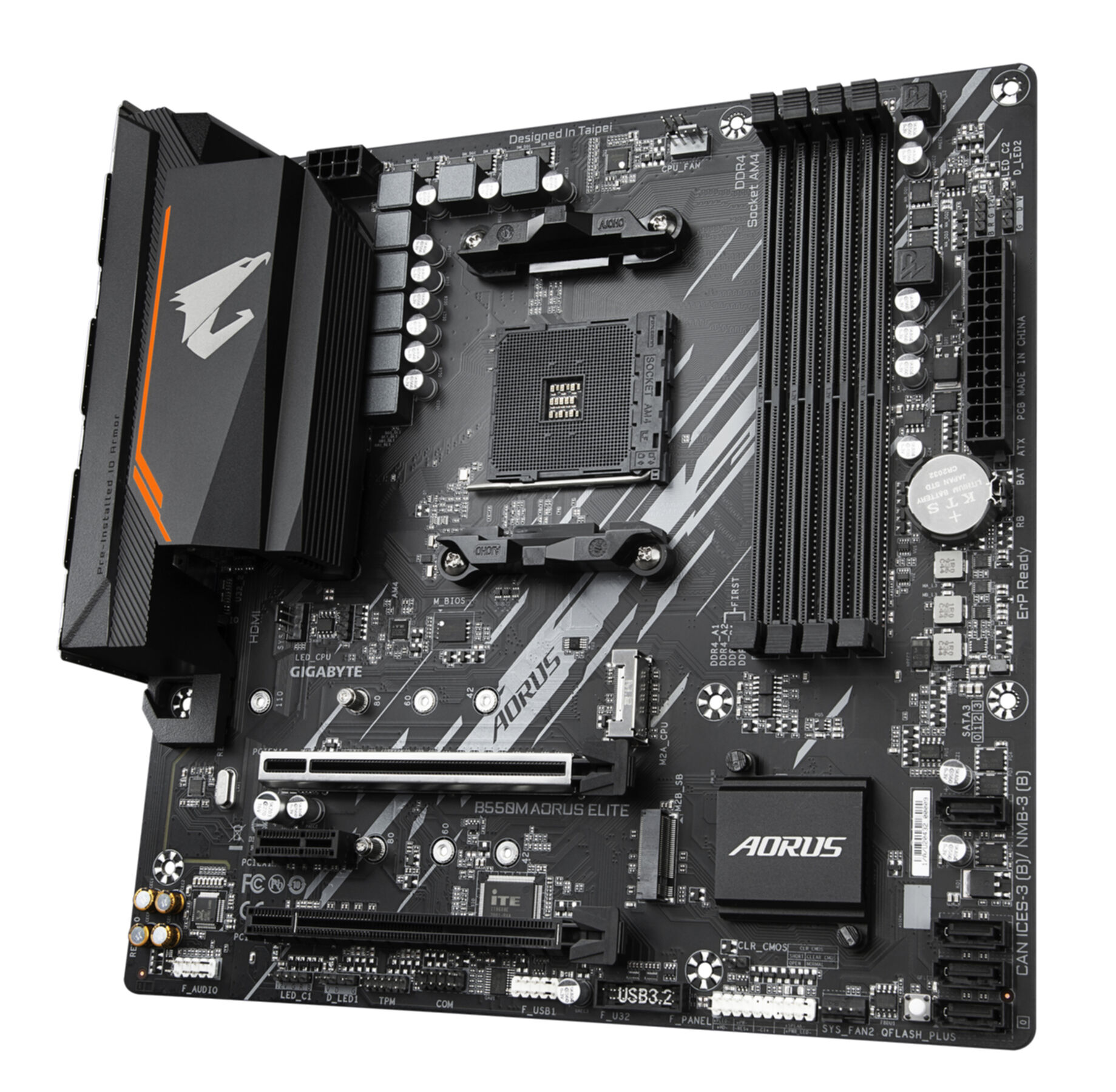

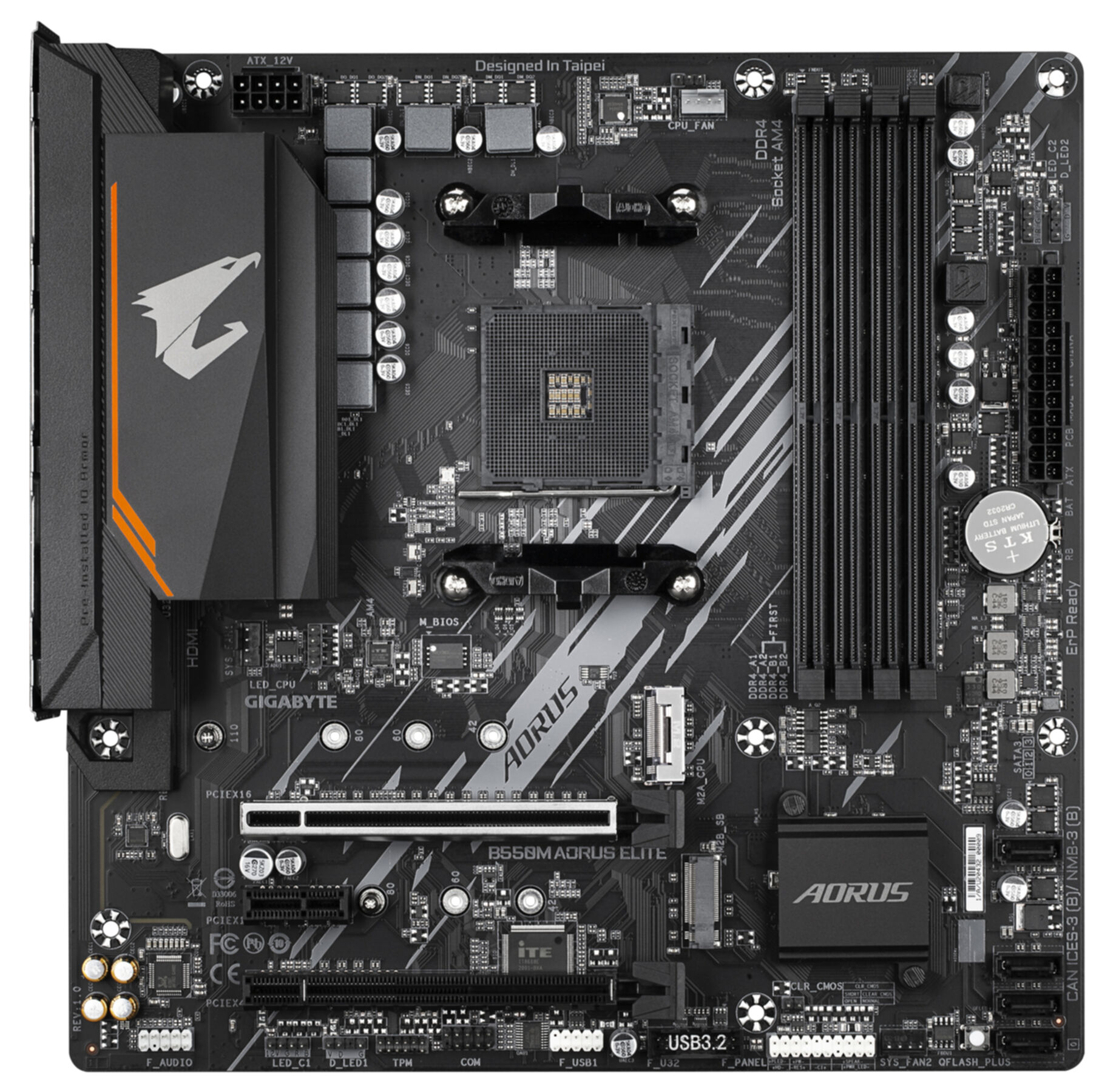

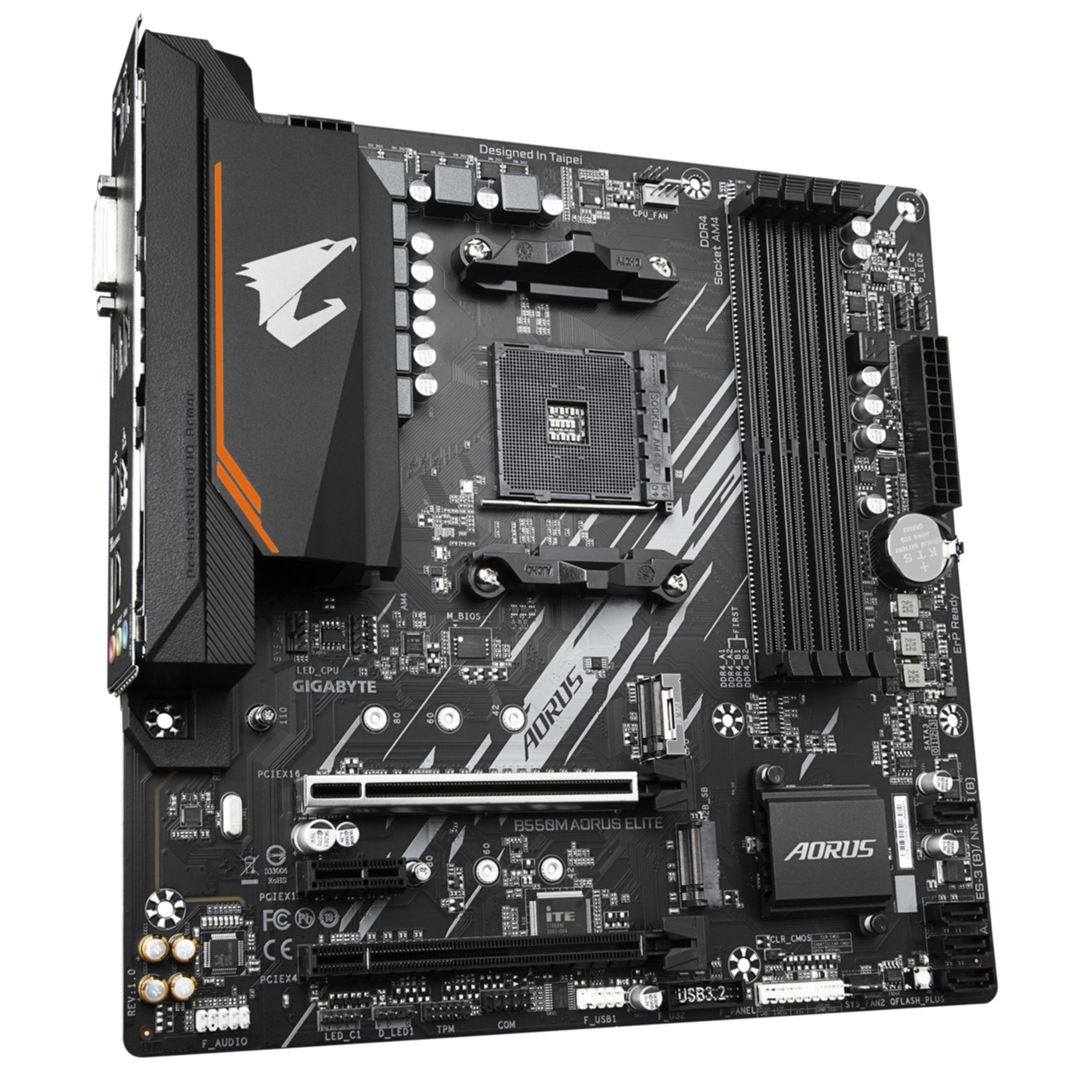

GIGABYTE B550M AORUS ELITE AX Motherboard

GIGABYTE

Art.-Nr. 147178838

€123.40

incl. VAT and free shipping above €50,-

Sold and shipped by HardwareXL by Informatique BE

To compare
Disposal instructions (appliances, batteries, etc.)
To the technical data

Delivery to your home

Delivery 09-06-2026

+ € 0,–

To compare
Disposal instructions (appliances, batteries, etc.)
GIGABYTE B550M AORUS ELITE AX. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processors: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 Pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Wifi standard: Wi-Fi 6E (802.11ax)

Features

Product type

Motherboard

Motherboard formfFactor

Micro ATX

Processor base

Sockel AM4

Chipset

AMD B550

Connections (internal)

12V power connector,ATX Power connector (24-pin),Connector for CPU cooler,EPS power connector (8-pin),Front audio panel connector,Front panel connector,Connections for case fans:2,Number of CPU fan connectors:1,Number of EPS power connectors (8-pin):1,Number of RGB LED pin headers:5,Number of SATA III connectors:4,Number of water pump connectors:2,RGB LED connector rail,Serial port headers:1,TPM connector,USB 2.0 connectors:1,USB 3.2 Gen 1 (3.1 Gen 1) connectors:1,USB 3.2 connectors (3.1 Gen 2):0

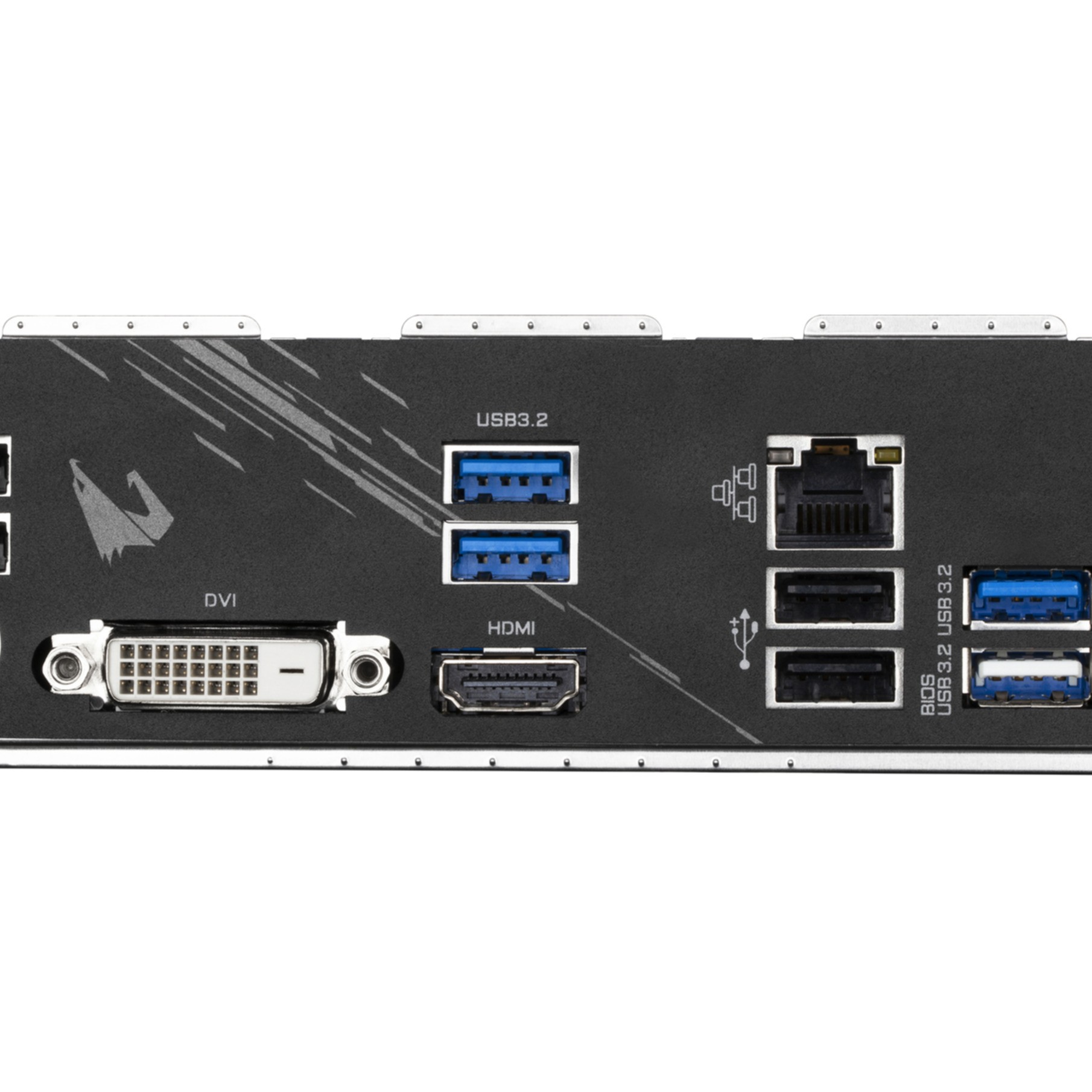

Connections (external)

DVI-D ports:1,Number of Ethernet LAN (RJ-45) ports:1,Number of HDMI ports:1,Headphone outputs:1,Line input,Microphone, line-in input,PS/2 port(s):1,Number of USB 2.0 ports:4,Number of USB 3.2 Gen 1 (3.1 Gen 1) Type A:4,Number of ports USB 3.2 Gen 1 (3.1 Gen 1) Type C:0,USB 3.2 connectors (3.1 Gen 2):0,Number of ports USB 3.2 Gen 2 (3.1 Gen 2) Type A:0,Number of ports USB 3.2 Gen 2 (3.1 Gen 2) Type C:0,VGA (D-Sub) port(s):0,WiFi AP antenna jack:2

Max. supported memory

128 GB

Supported memory type

DDR4

Supported Memory standards

4733;4600;4400;4266;4133;4000;3866;3733;3600;3466;3400;3200;2933;2667;2400;2133

Number of RAM sockets

4

Mainboard manufacturer

GIGABYTE

Supported processor models

AMD Ryzen 3000 Series,AMD Ryzen 4000 Series,AMD Ryzen 5000 Series

Slots

1x PCI Express x1 (Gen 3.x),1x PCI Express x16 (Gen 3.x),1x PCI Express x16 (Gen 4.x),2x Number of M.2 (M)

Sound

Realtek ALC897

BIOS type

UEFI AMI

Network

LAN,Gigabit Ethernet,Realtek RTL8111H,Wi-Fi 6E (802.11ax),Realtek RTL8852CE,Bluetooth [5.3, de-DE:5.3;en-GB:5.3;nl-NL:5.3;it-IT:5.3;es-ES:5.3;de-AT:5.3;fr-BE:5.3;nl-BE:5.3;pl-PL:5.3;ll:5.3;ll-LL:5.3]

Compatible with operating system version

Windows

Special features

Support for parallel processing:Not supported

Width

244 mm

Height

35 mm

Depth

244 mm

Color (by manufacturer)

Black

Weight

1.18 kg

Scope of delivery

1x Motherboards,Included software:Norton® Internet Security (OEM version) LAN bandwidth management software,1x Batteries included,1x Screws included,1x Antenna included

Packsize

26.5 cm / 6.5 cm / 26.5 cm
