GIGABYTE

Art.-Nr. 135561852

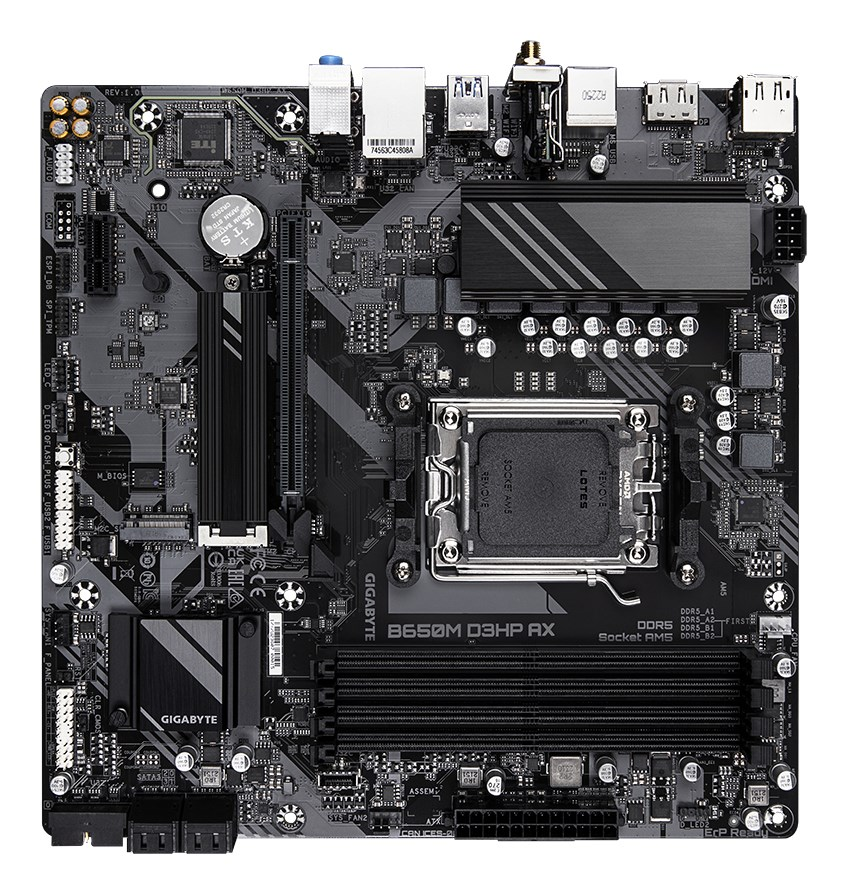

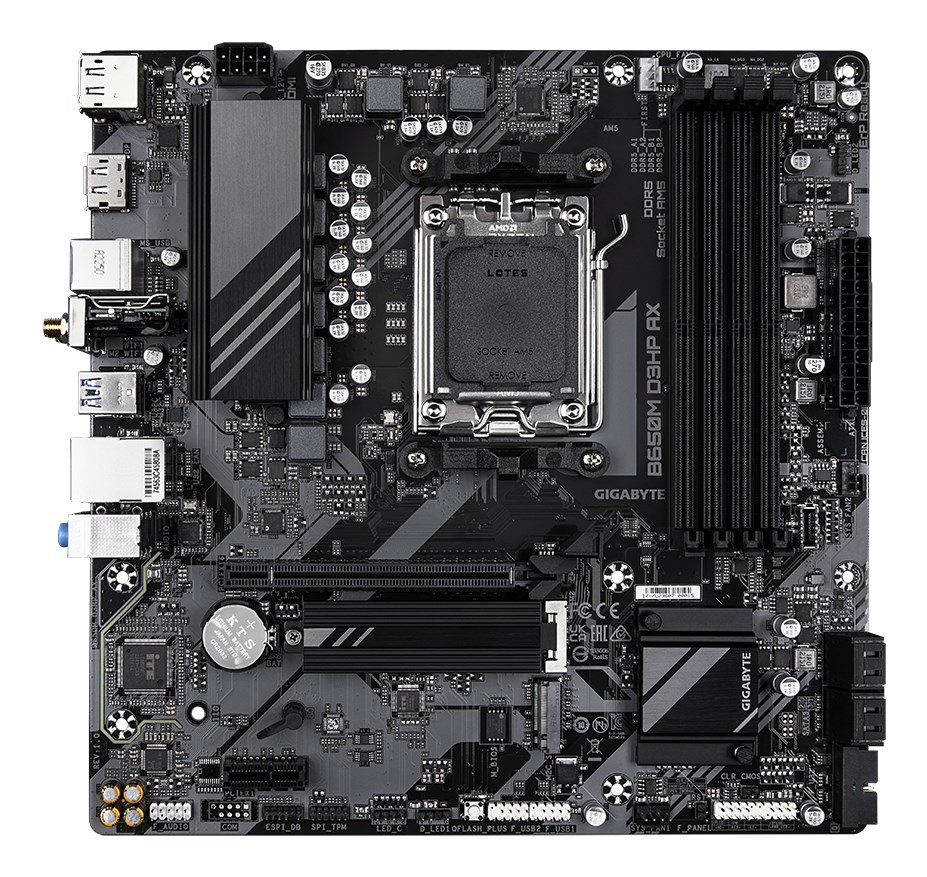

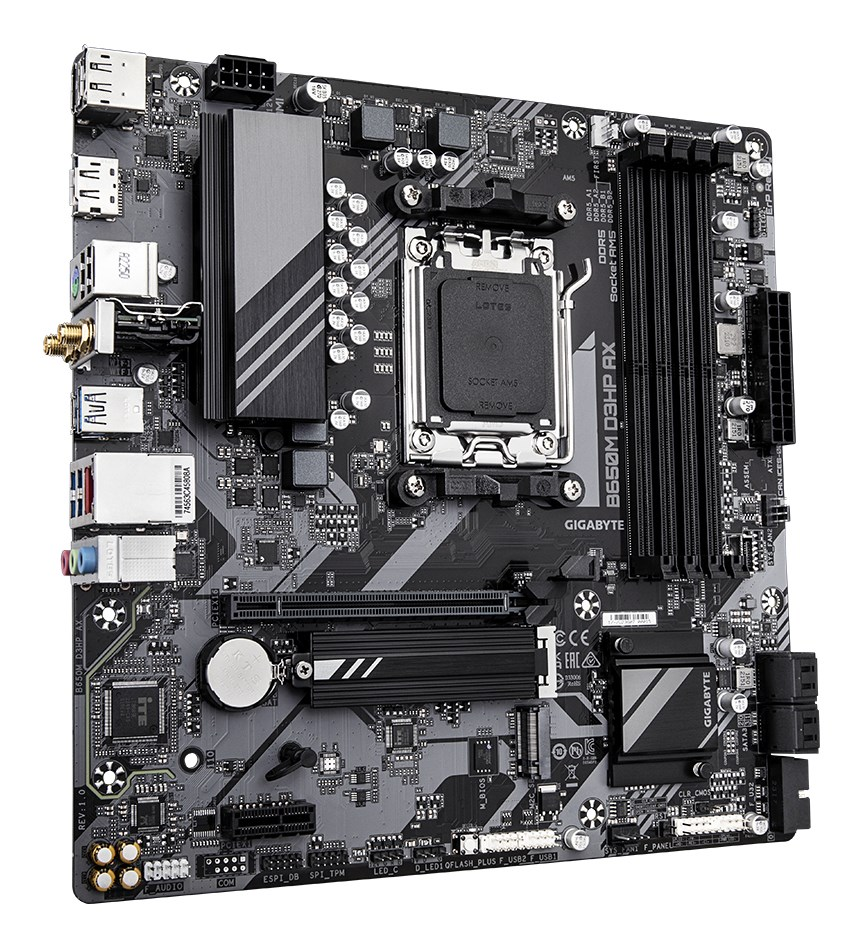

GIGABYTE B650M D3HP AX Motherboard

GIGABYTE

Art.-Nr. 135561852

€138.82
To compare
To the technical data

Delivery to your home

Delivery 10-06-2026 - 11-06-2026

+ € 0,–

To compare
Gigabyte B650M D3HP AX. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processors: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen. Memory types supported: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Storage drive interfaces supported: M.2, SATA III, Storage drive types supported: HDD & SSD, RAID types: 0, 1, 10. Maximum resolution: 4096 x 2160 Pixels. USB connector type: USB Type-A, USB Type-C

Features

Product type

Motherboard

Motherboard formfFactor

micro ATX

Processor base

Socket AM5

Chipset

AMD B650

Connections (internal)

USB Type-A, USB Type-C

Connections (external)

Number of DisplayPorts:2,DVI-D ports:0,Number of Ethernet LAN (RJ-45) ports:1,Number of HDMI ports:1,Headphone outputs:1,Line input,Microphone, line-in input,PS/2 port(s):1,Number of USB 2.0 ports:2,Number of ports USB 3.2 Gen 1 (3.1 Gen 1) Type A:3,Number of ports USB 3.2 Gen 1 (3.1 Gen 1) Type C:1,USB 3.2 connectors (3.1 Gen 2):0,Number of ports USB 3.2 Gen 2 (3.1 Gen 2) Type A:0,Number of ports USB 3.2 Gen 2 (3.1 Gen 2) Type C:0,VGA (D-Sub) port(s):0

Max. supported memory

256 GB

Supported memory type

DDR5

Supported Memory standards

8000;7800;7600;7200;7000;6800;6600;6400;6200;6000;5600;5200;4800

Material

-

Number of RAM sockets

4

Mainboard manufacturer

AMD

Supported processor models

AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen

Slots

1x PCI Express x1 (Gen 3.x),1x PCI Express x16 (Gen 4.x),2x Number of M.2 (M)

Sound

Realtek ALC897

BIOS type

UEFI AMI

Network

LAN,2.5 Gigabit Ethernet,Realtek RTL8125,Wi-Fi 6E (802.11ax),Realtek RTL8852CE,Bluetooth [5.3, de-DE:5.3;en-GB:5.3;nl-NL:5.3;it-IT:5.3;es-ES:5.3;de-AT:5.3;fr-BE:5.3;nl-BE:5.3;pl-PL:5.3;ll:5.3;ll-LL:5.3]

Compatible with operating system version

Windows

Special features

Support for parallel processing:Not supported

Width

244 mm

Height

35 mm

Depth

244 mm

Color (by manufacturer)

Brown

Weight

1.11 kg

Scope of delivery

1x motherboard, manual

Packsize

270 mm / 68 mm / 268 mm
