GIGABYTE
Art.-Nr. 149328065

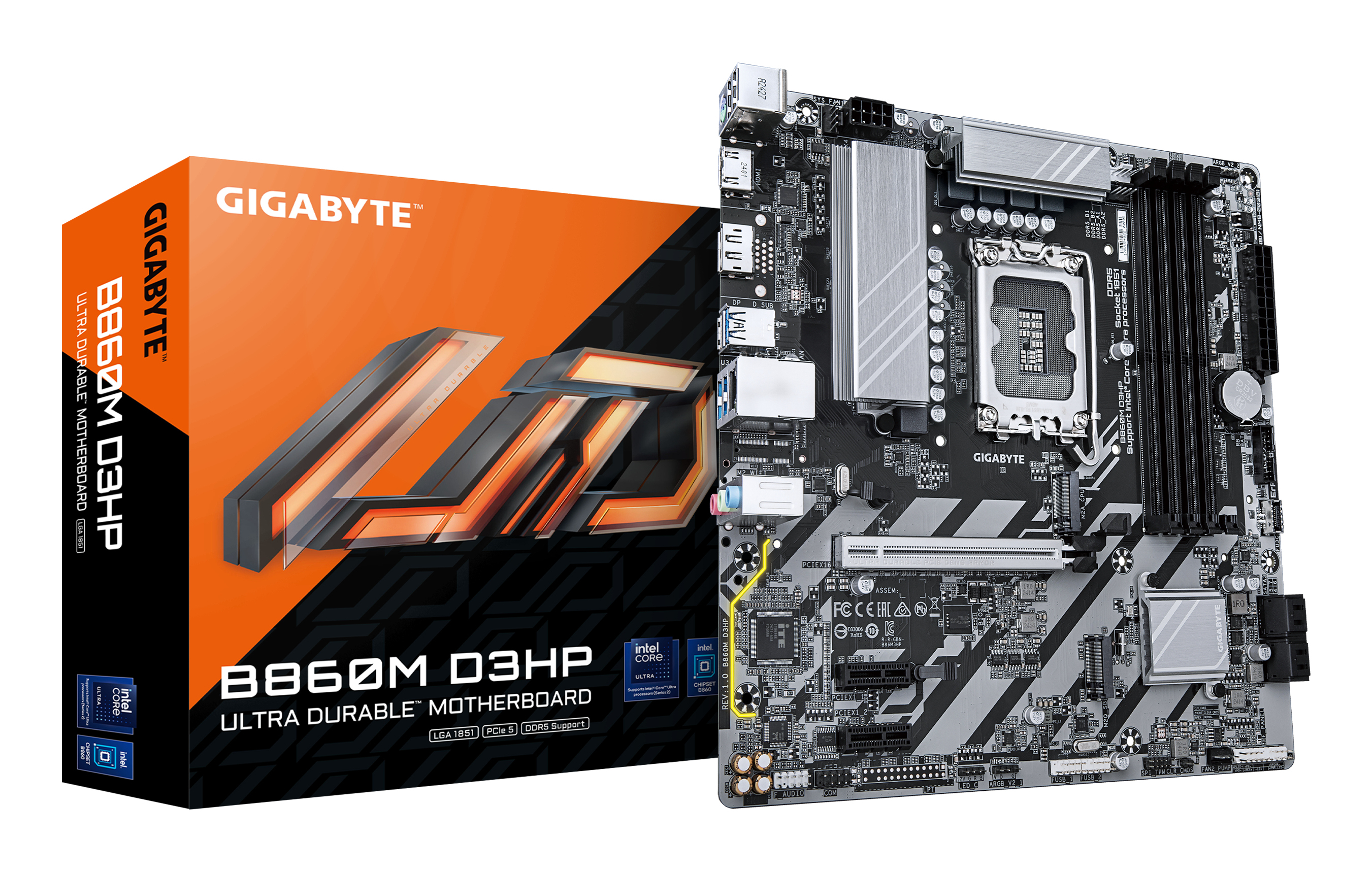

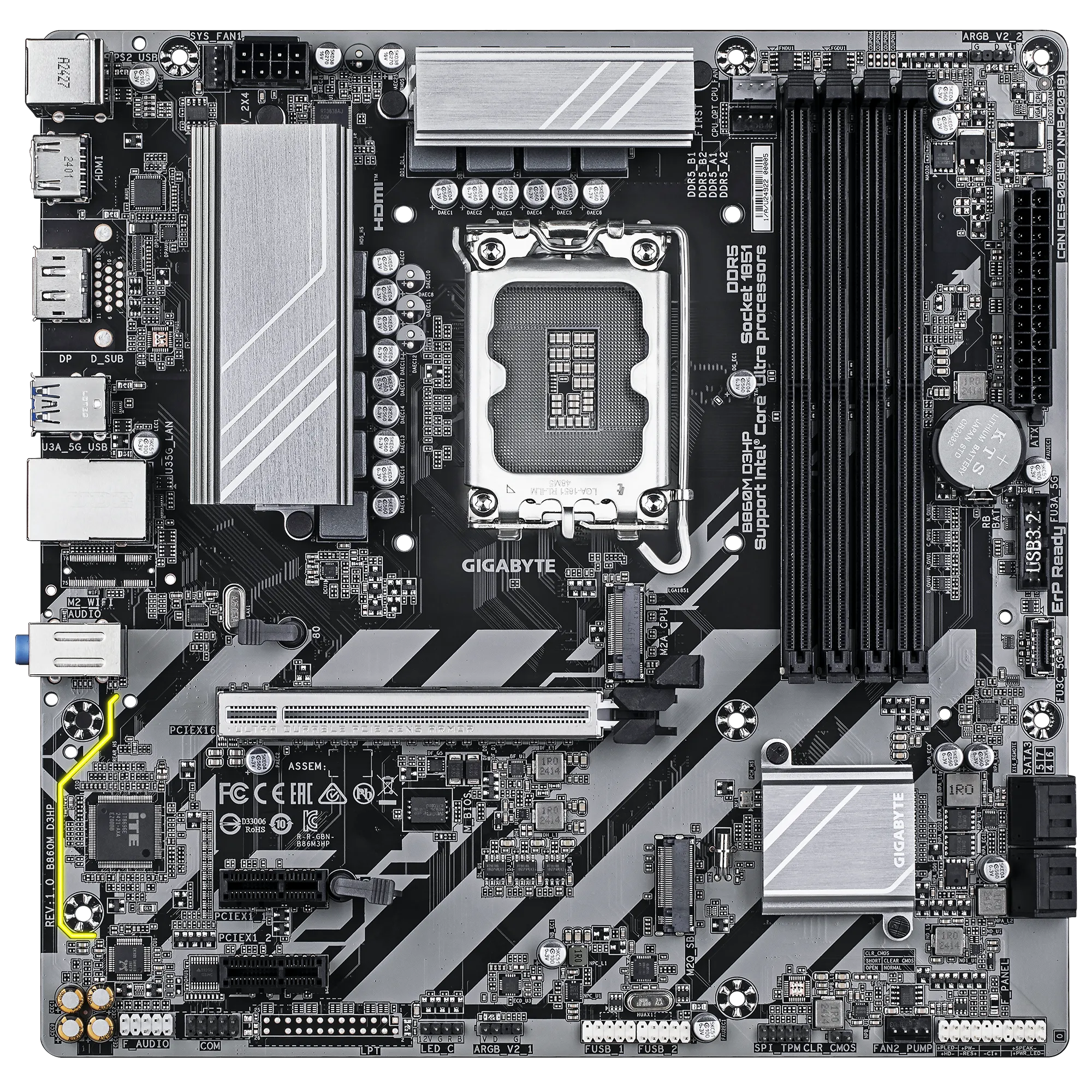

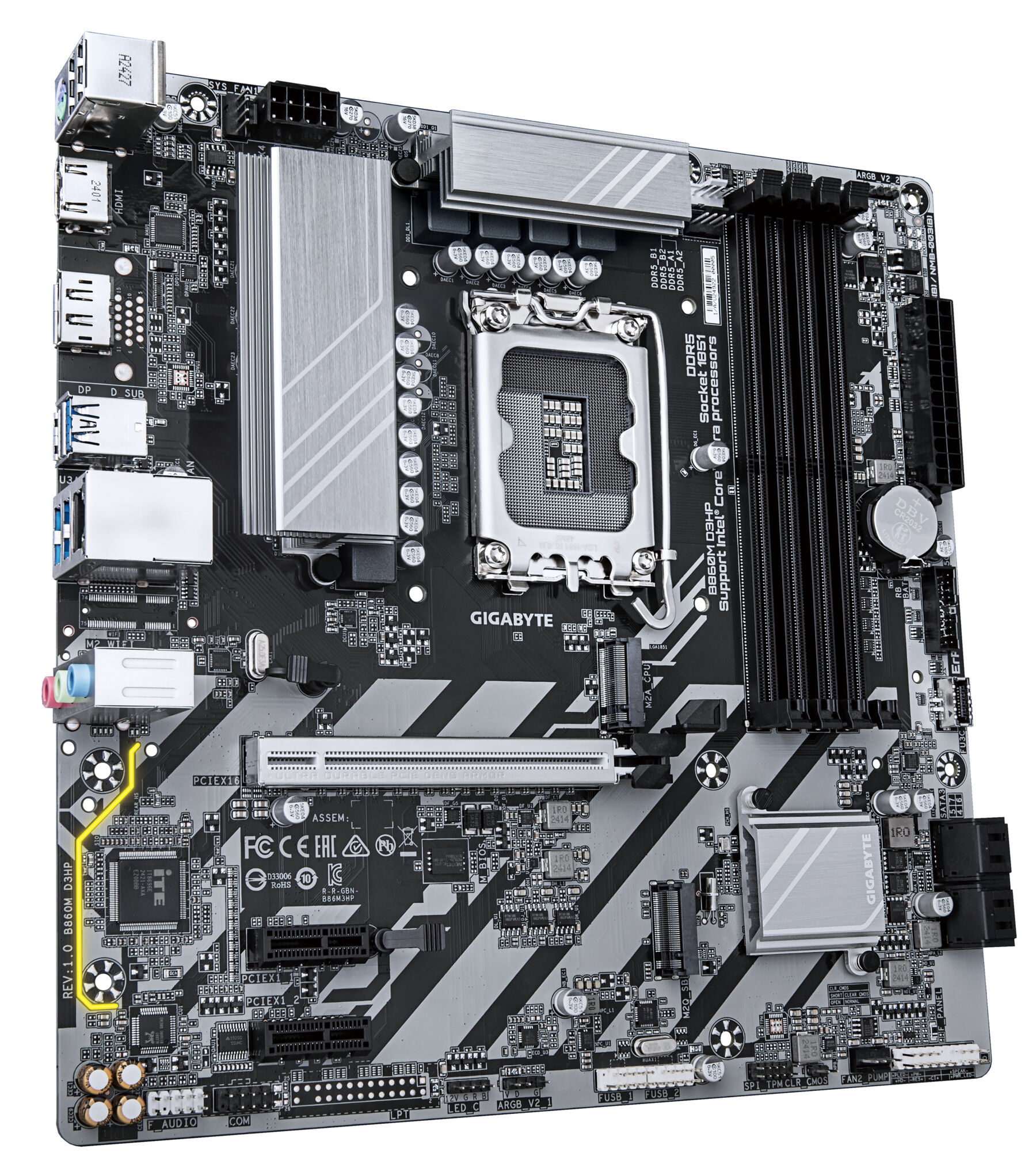

GIGABYTE B860M D3HP Motherboard
GIGABYTE
Art.-Nr. 149328065
incl. VAT and free shipping above €50,-
Sold and shipped by HardwareXL by Informatique BE
Delivery to your home
Delivery 09-06-2026
+ € 0,–
Features | |
|---|---|
Product type | Motherboard |
Motherboard formfFactor | micro ATX |
Processor base | LGA 1851 (Socket V1) |
Chipset | Intel B860 |
Connections (internal) | ATX Power connector (24-pin),CPU cooler connector,EPS power connector (8-pin),Front audio panel connector,Front panel connector,Enclosure fan connectors:2,Number of CPU fan connectors:2,Number of EPS power connectors (8-pin):1,Number of RGB LED pin headers:3,Number of SATA III connectors:4,Number of water pump connectors:2,RGB LED connector rail,Serial port headers:1,TPM connector,USB 2.0 connectors:2,USB 3.2 Gen 1 (3.1 Gen 1) connectors:2,USB 3.2 connectors (3.1 Gen 2):0 |

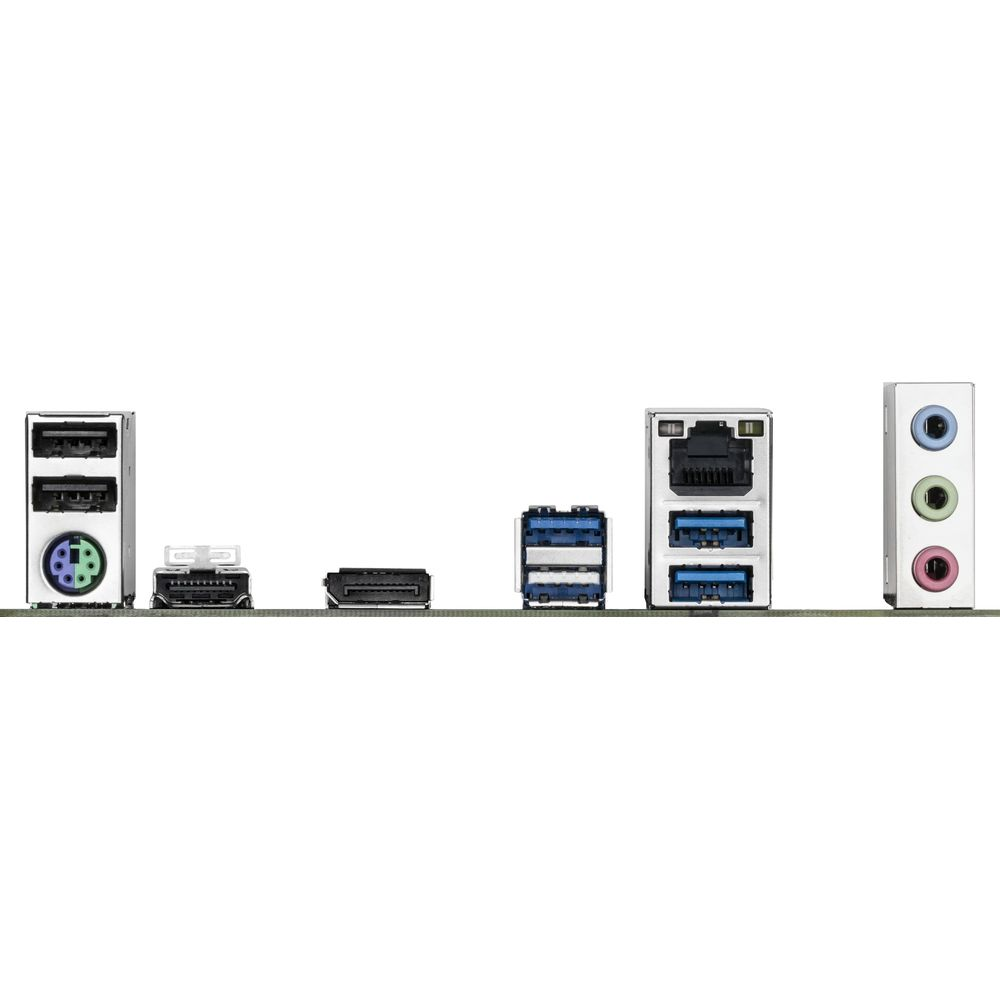

Connections (external) | Number of DisplayPorts:1,DVI-D ports:0,Number of Ethernet LAN (RJ-45) ports:1,Number of HDMI ports:1,Headphone outputs:1,Line input,PS/2 port(s):1,Number of USB 2.0 ports:3,Number of USB 3.2 Gen 1 (3.1 Gen 1) Type A:3,Number of ports USB 3.2 Gen 1 (3.1 Gen 1) Type C:0,USB 3.2 connectors (3.1 Gen 2):0,Number of ports USB 3.2 Gen 2 (3.1 Gen 2) Type A:0,Number of ports USB 3.2 Gen 2 (3.1 Gen 2) Type C:0,VGA (D-Sub) port(s):0 |
Max. supported memory | 256 GB |
Supported memory type | DDR5 |
Supported Memory standards | 5600,6400,9066 MHz |
Material | - |
Number of RAM sockets | 4 |
Mainboard manufacturer | Gigabyte |
Supported processor models | Intel Core Ultra (Series 1), Intel Core Ultra (Series 2) |
Slots | 2x PCI Express x1 (Gen 3.x),1x PCI Express x16 (Gen 5.x),2x Number of M.2 (M) |
Sound | Realtek ALC897 |
BIOS type | UEFI AMI |
Network | LAN,Gigabit Ethernet,Realtek RTL8111H |
Compatible with operating system version | Windows |
Special features | Support for parallel processing:Not supported |
Width | 244 mm |
Height | 35 mm |
Depth | 244 mm |
Color (by manufacturer) | Brown |
Weight (according to the manufacturer) | 1.1 kg |
Weight | 1.1 kg |
Scope of delivery | Motherboard,accessories |
Packsize | 10 cm / 10 cm / 10 cm |
