KÖNNER & SÖHNEN KS 24VM-DC Power generator

• Ideal for charging batteries in 24V systems: solar panels, video surveillance, security systems, maintenance of vehicle batteries.
• AUTO mode: The generator starts automatically when the voltage drops and stops as soon as the battery is fully charged.
• MANUAL/EXTERNAL mode: Manual start or remote control via dry contacts and control terminal.
• Robust, sound-insulating metal housing - reduces noise and protects against dust, moisture and mechanical damage.
• Economical 4-stroke petrol engine - powerful, efficient and low-emission according to the EURO 5 standard.

The 24-27.5V 60A DC generator from Könner & Söhne® is a powerful and reliable emergency charger for 24V batteries. Direct charging with direct current is efficient and requires no voltage conversion. Saves fuel compared to alternating current generators. AUTO mode for automatic charging, MANUAL/EXTERNAL for manual or external operation. Low-noise metal housing with monitoring system.

• High power (60 A): Supplies power to multiple devices simultaneously.
• Extensive operation: Voltmeter and ammeter for safety.
• Flexible start: Manual or automatic.
• Engine protection: Oil sensor prevents overheating.
• Safety: Protection against overload and overheating.
• Quiet operation: Ideal for construction sites and residential areas.
• Economical and durable: EURO-5 fuel-saving engine.

Specifications

• Operating voltage, V: 24-27,5
• Nominal power, kW: 1,6
• Maximum current per phase cable, A: 60
• Fuel tank capacity, l: 8
• LED display: Voltage, current
• Sound level Lpa (7m)/Lwa, dB: 69/93
• Engine type: Petrol, 4-stroke
• Engine power, hp: 2,5
• Engine oil capacity, l: 0,4
• Cylinder capacity, cm3: 79,7
• Starter motor: automatic, manual
• Protection class: IP23M

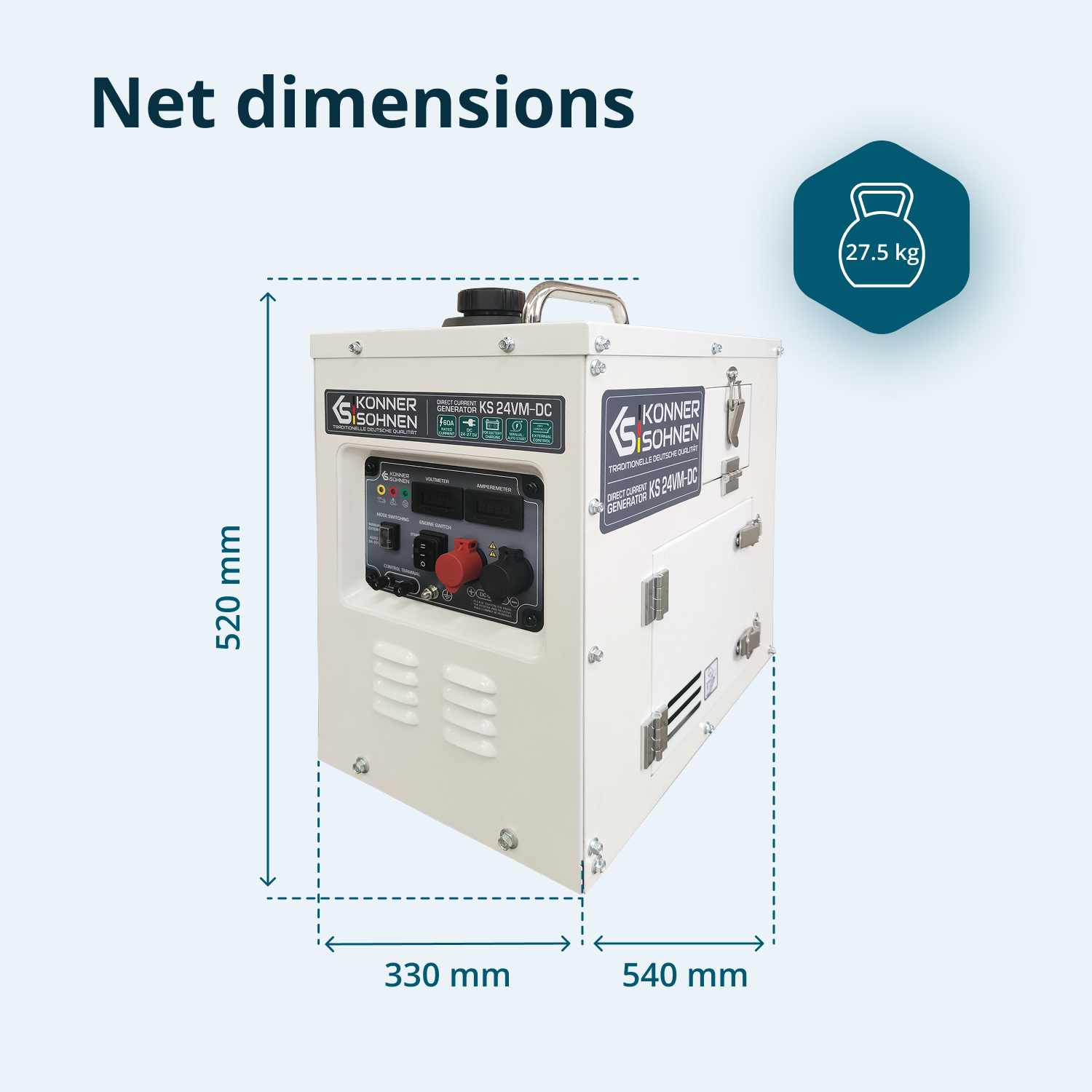

• Net dimensions (LxWxH), mm: 520 x 330 x 540
• Gross Dimensions (LxWxH), mm: 595 x 350 x 565
• Net weight, kg: 27,5
• Gross weight, kg: 30
