MSI
Art.-Nr. 141774009

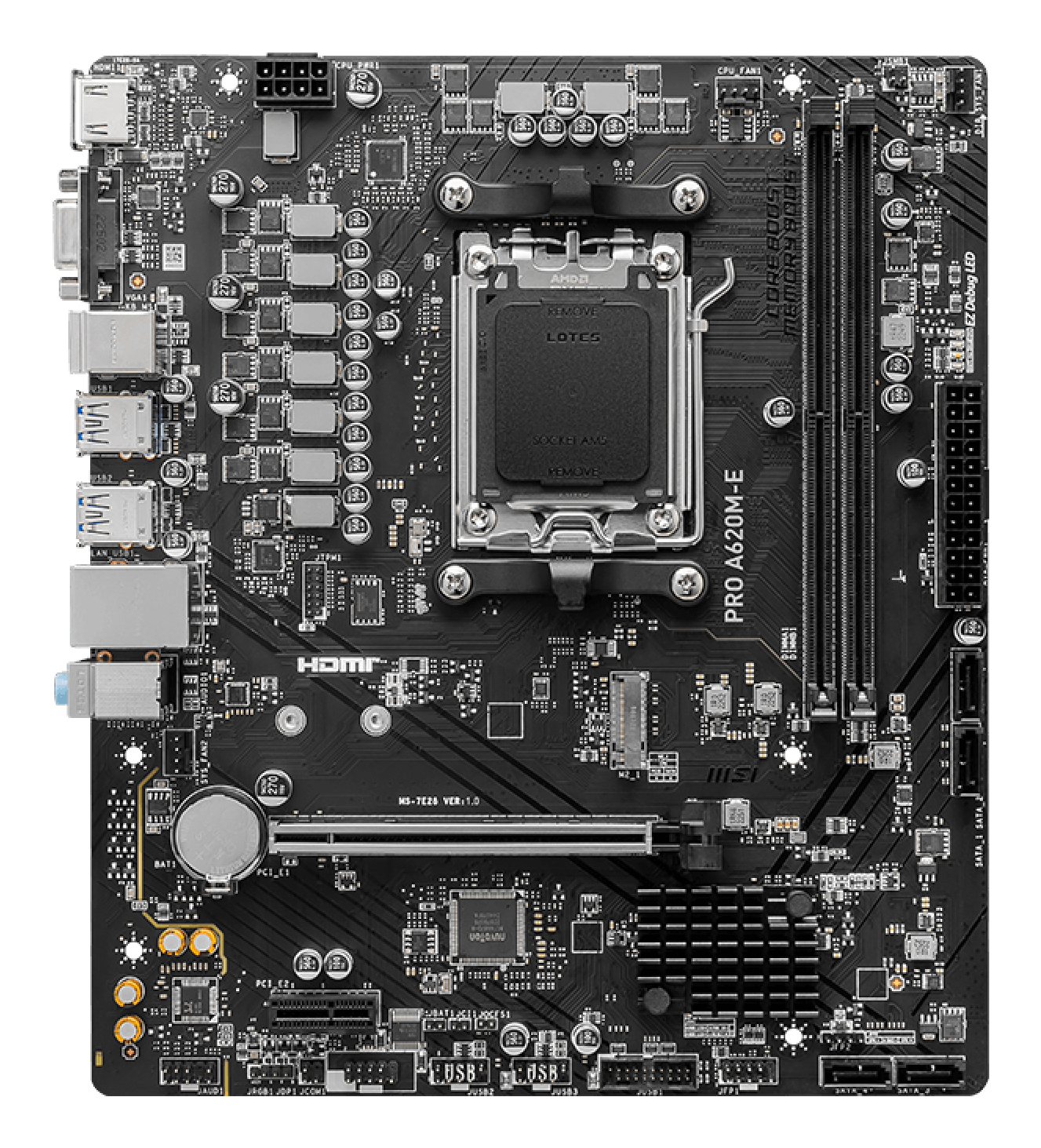

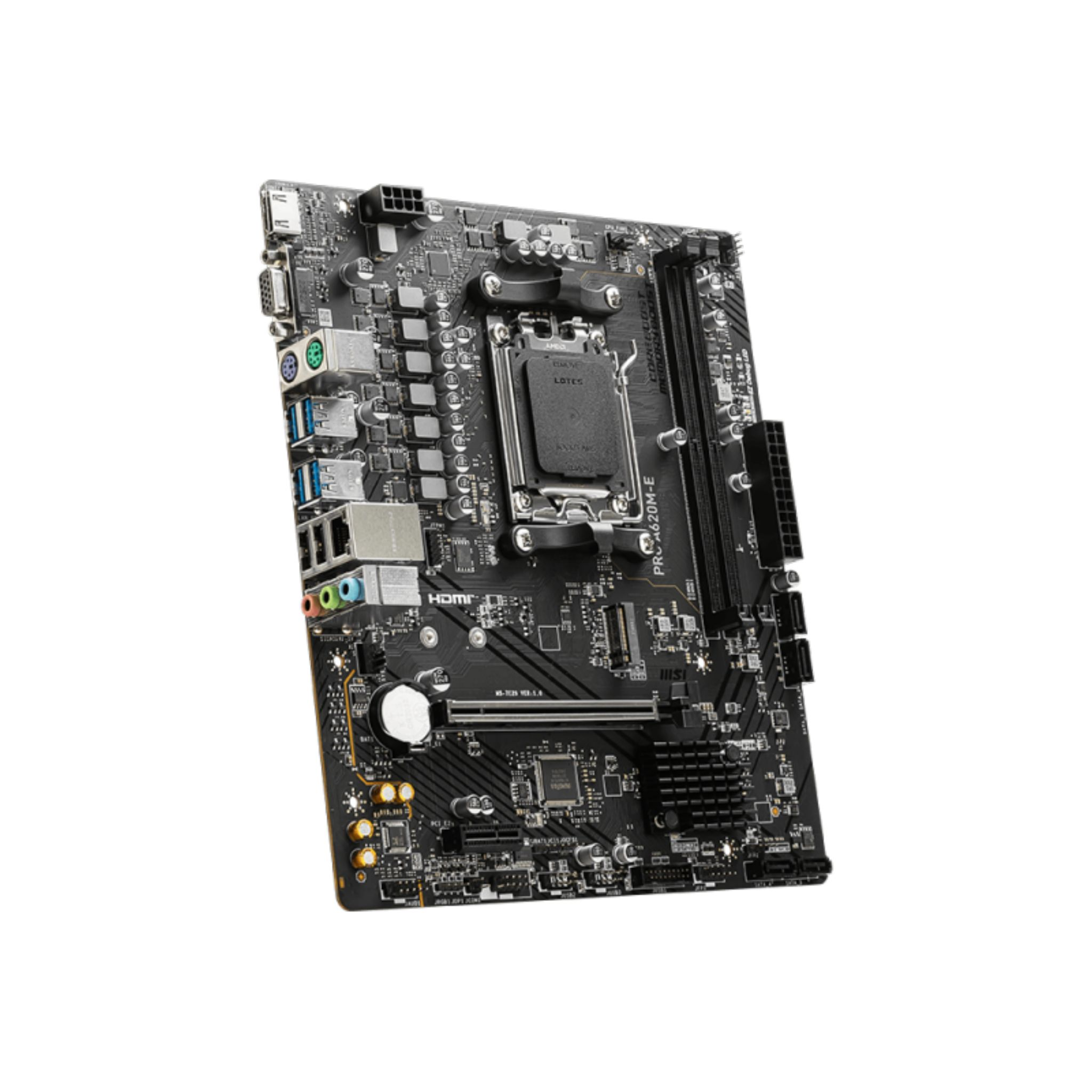

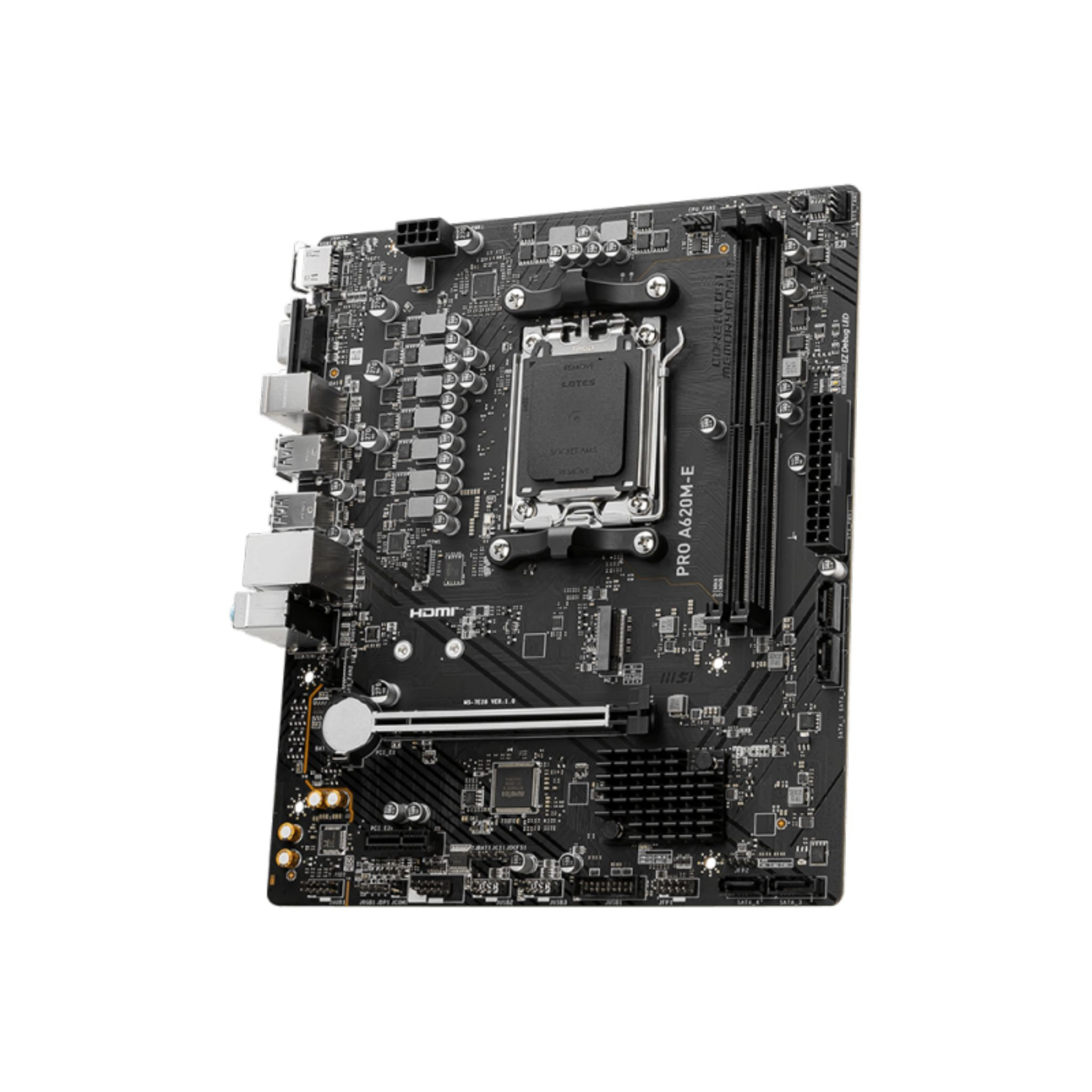

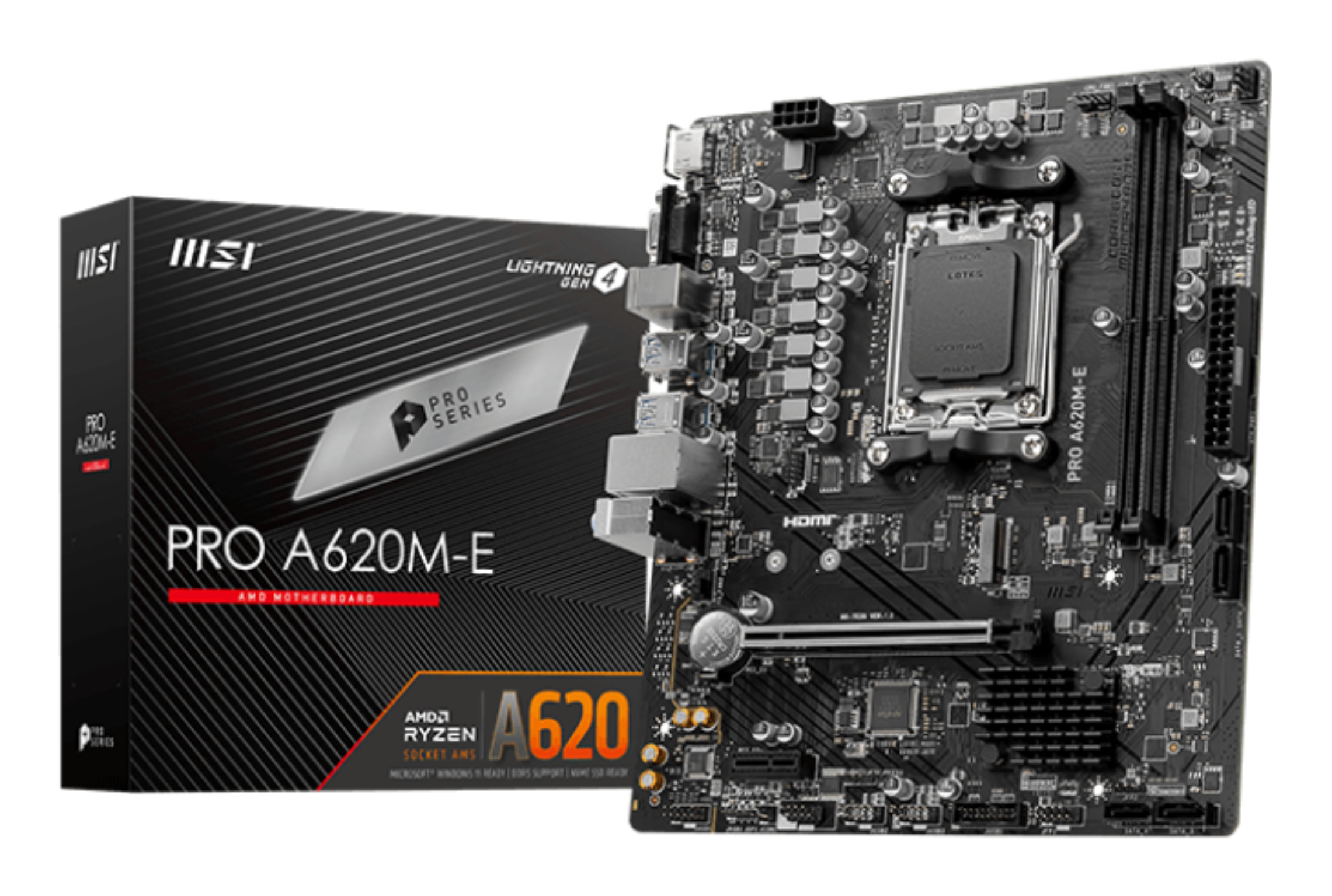

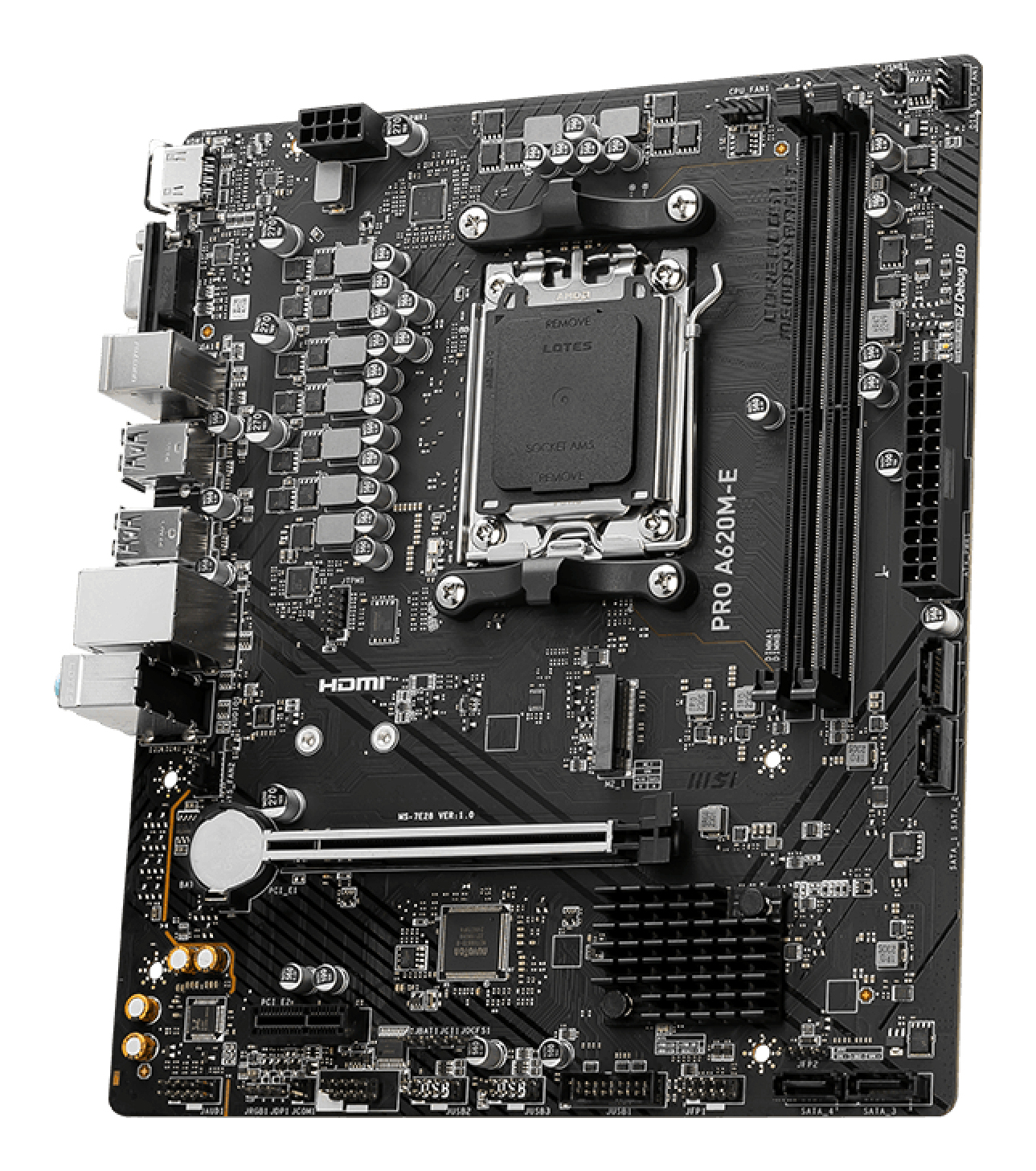

MSI 7E28-001R Motherboard
MSI
Art.-Nr. 141774009
incl. VAT and free shipping above €50,-
Sold and shipped by HardwareXL by Informatique BE
Delivery to your home
Delivery 12-06-2026
+ € 0,–
Features | |
|---|---|
Product type | Motherboard |
Motherboard formfFactor | micro ATX |
Processor base | Sockel AM5 |
Chipset | AMD A620 |
Connections (internal) | ATX Power connector (24-pin),Chassis intrusion connector,CPU cooler connector,Enclosure fan connectors:1,COM connectors:1,Number of SATA connectors:0,Number of SATA II connectors:0,Number of SATA III connectors:4,Power supply fan connector,RGB LED connector rail,Total number of SATA connectors:4,TPM connector,USB 2.0 connectors:6,USB 3.2 Gen 1 (3.1 Gen 1) connectors:6,USB 3.2 connectors (3.1 Gen 2):0 |
Connections (external) | Number of COM ports:1,Number of Ethernet LAN (RJ-45) ports:1,Number of HDMI ports:1,Headphone outputs:1,Line input,Microphone, line-in input,PS/2 port(s):2,Number of USB 2.0 ports:6,Number of USB 3.2 Gen 1 (3.1 Gen 1) Type A ports:6,USB 3.2 connectors (3.1 Gen 2):0,USB connector type:USB Type-A,VGA (D-Sub) port(s):1 |
Max. supported memory | 96 GB |
Supported memory type | DDR5 |
Memory architecture | DIMM |
Supported Memory standards | 6000 MHz |
Material | - |
Number of RAM sockets | 2 |
Mainboard manufacturer | MSI |
Supported processor models | AMD Ryzen™ 7 |
Slots | 1x PCI Express x1,1x PCI Express x1 (Gen 3.x),1x PCI Express x16,1x PCI Express x16 (Gen 4.x),1x Number of M.2 (M) |
Sound | Realtek ALC897 |
Network | LAN,Gigabit Ethernet,Realtek RTL8111H |
Compatible with operating system version | Windows,Mac,Linux |
Width | 211 mm |
Height | 56 mm |
Depth | 243.8 mm |
Color (by manufacturer) | Black |
Weight | 0.810 kg |
Scope of delivery | Motherboard Accessories |
Packsize | 231 mm / 14 mm / 2458 mm |
WLAN | Yes |
Refurbished | No |
General Product Safety |
|---|
GTIN 0824142322406 |
Product type Motherboard |
Manufacturer |
|---|
Manufacturer MSI |
Contact MSI |
Website https://de.msi.com/page/formular |
EU established Yes |
Address Science Parkt Eindhoven 5706 |
City Eindhoven |
Postcode 5692 |
Country Netherlands |
Address suffix 5692 ER Son 5706 Eindhoven NL |
