MSI
Art.-Nr. 92609007

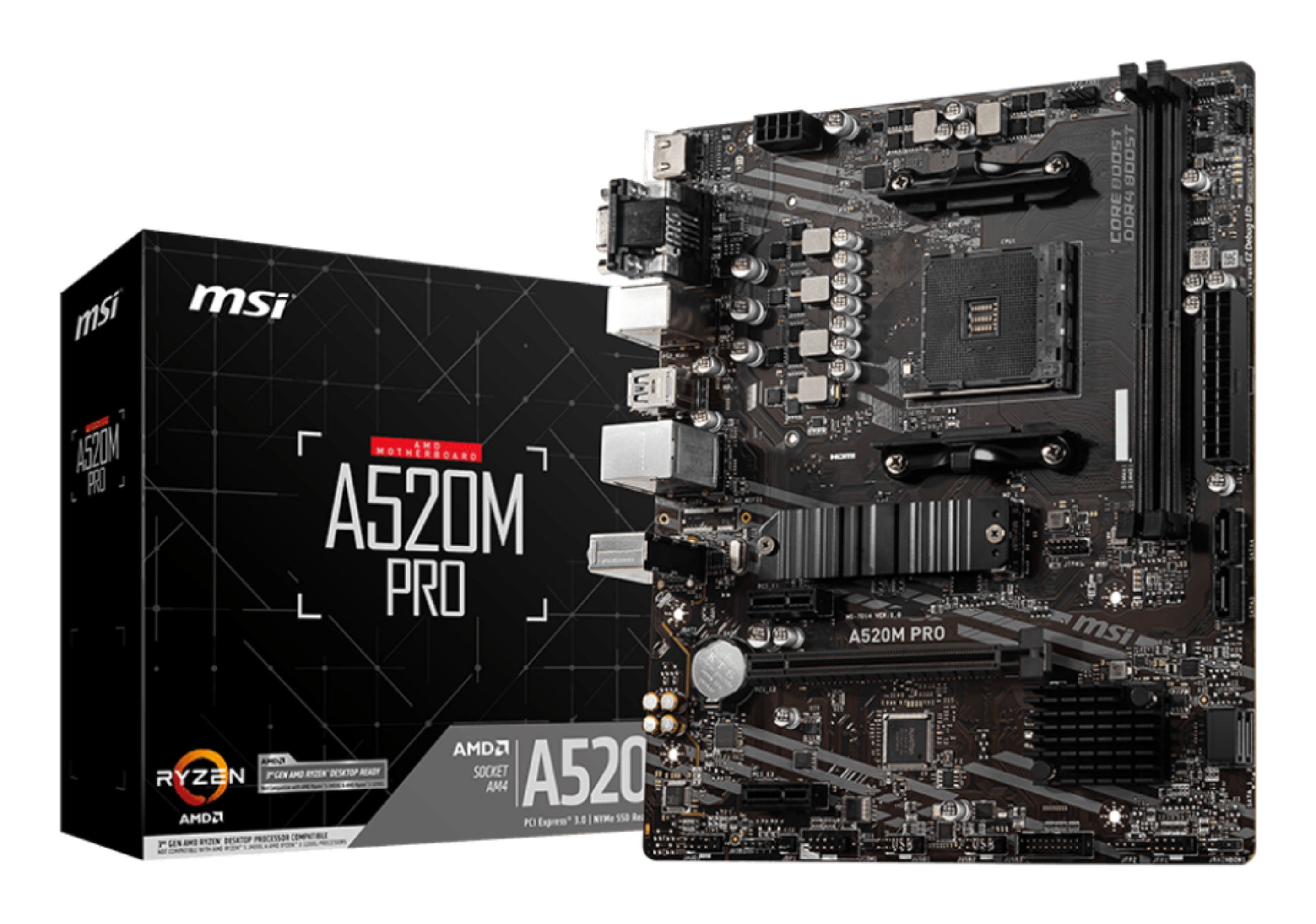

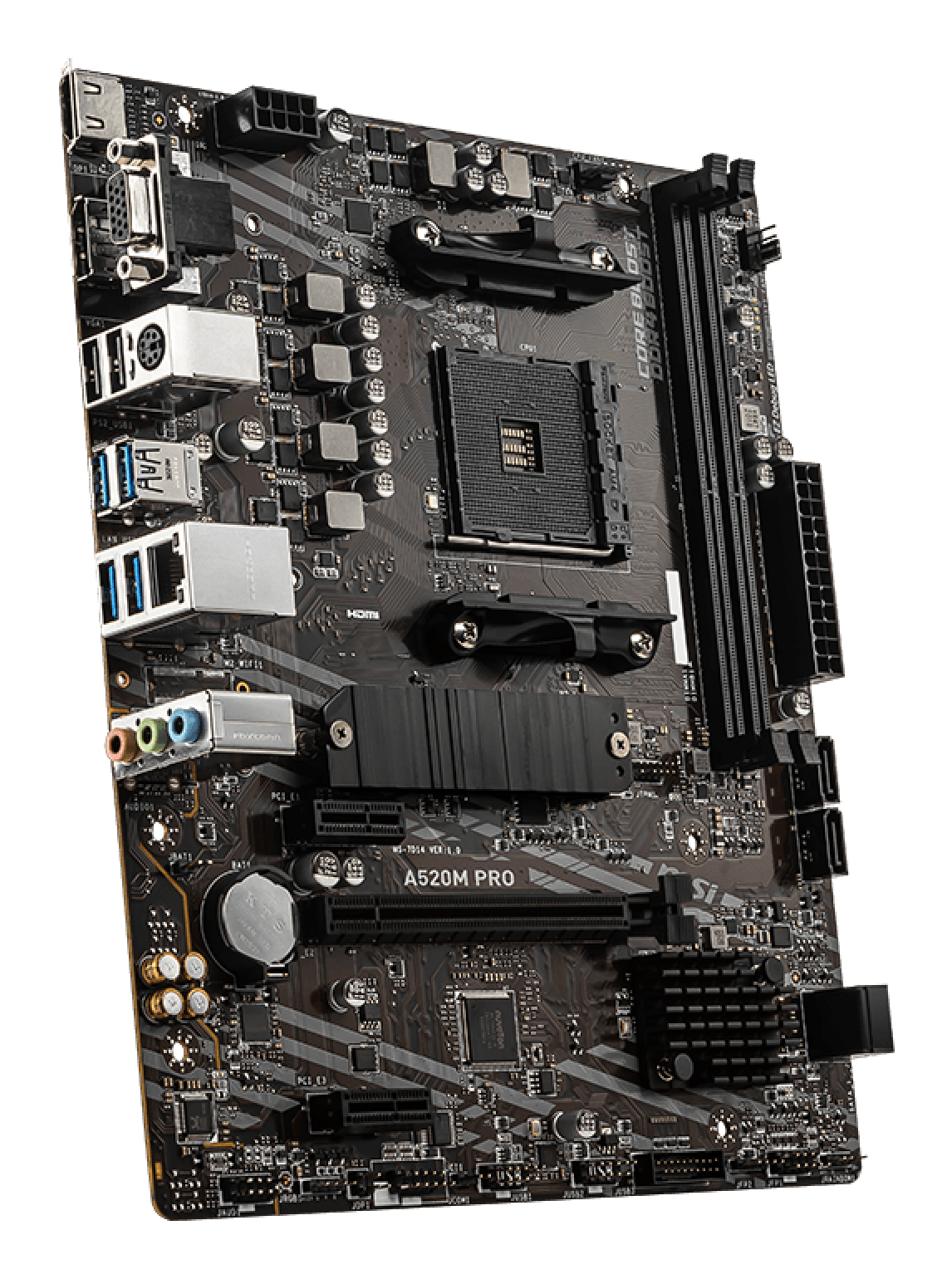

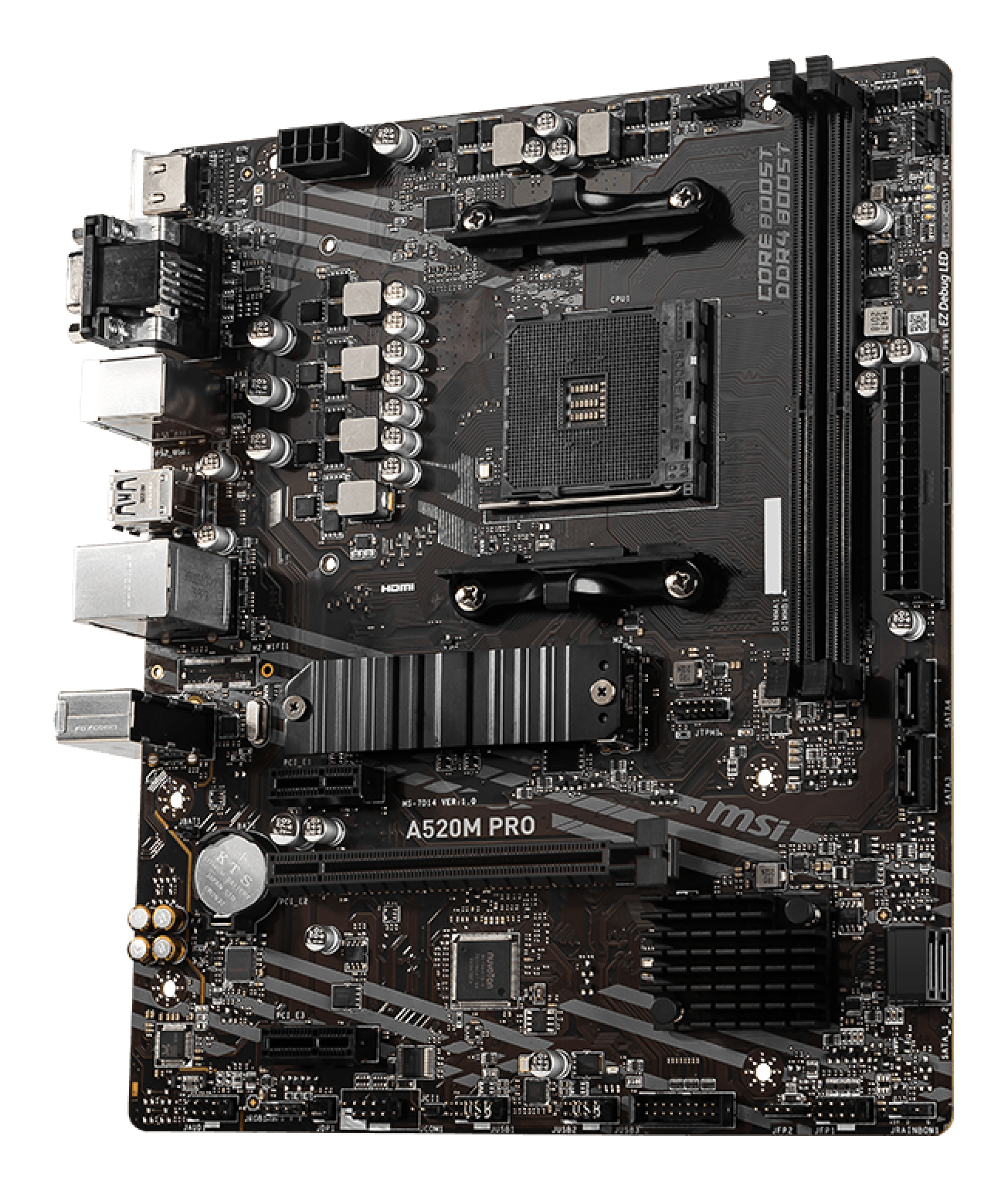

MSI A520M PRO Motherboard
incl. VAT and free shipping above €50,-
Sold and shipped by NEXOC STORE BE
Delivery to your home
Delivery 10-06-2026 - 11-06-2026
+ € 0,–
Features | |
|---|---|
Product type | Motherboard |
Motherboard formfFactor | micro ATX |
Processor base | Socket AM4 |
Chipset | AMD A520 |
Connections (internal) | ATX Power connector (24-pin),Chassis intrusion connector,CPU cooler connector,Front audio panel connector,Front panel connector,Enclosure fan connectors:1,Number of Parallel ATA connectors:0,Number of SATA II connectors:0,Number of SATA III connectors:4,Total number of SATA connectors:4,USB 2.0 connectors:2,USB 3.2 Gen 1 (3.1 Gen 1) connectors:1,USB 3.2 connectors (3.1 Gen 2):0 |
Connections (external) | Number of DisplayPorts:1,DVI-D ports:0,Number of eSATA ports:0,Number of Ethernet LAN (RJ-45) ports:1,Number of HDMI ports:1,Microphone, line-in input,PS/2 port(s):1,Number of USB 2.0 ports:2,Number of USB 3.2 Gen 1 (3.1 Gen 1) Type A:4,Number of ports USB 3.2 Gen 1 (3.1 Gen 1) Type C:0,USB 3.2 connectors (3.1 Gen 2):0,Number of ports USB 3.2 Gen 2 (3.1 Gen 2) Type A:0,Number of ports USB 3.2 Gen 2 (3.1 Gen 2) Type C:0,VGA (D-Sub) port(s):1 |
Max. supported memory | 64 GB |
Supported memory type | DDR4 |
Supported Memory standards | 1866;2133;2400;2667;2800;2933;3000;3066;3200;3466;3600;3733;3866;4000;4133;4266;4400;4466 |
Material | - |
Number of RAM sockets | 2 |
Mainboard manufacturer | AMD |
Supported processor models | 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
Graphics memory type | DDR4 |
Slots | 2x PCI Express x1 (Gen 3.x),1x PCI Express x16,1x Number of M.2 (M) |
Sound | Realtek ALC892 |
Network | LAN,Gigabit Ethernet,Realtek 8111H |
Compatible with operating system version | Windows,Mac,Linux |
Width | 244 mm |
Height | 65 mm |
Depth | 210 mm |
Color (by manufacturer) | Multicolor |
Weight (according to the manufacturer) | 0.698 kg |
Weight | 698 g |
Scope of delivery | 1x motherboard,manual |
Packsize | 244 mm / 65 mm / 210 mm |
Refurbished | No |
