RESPEKTA
Art.-Nr. 94948146

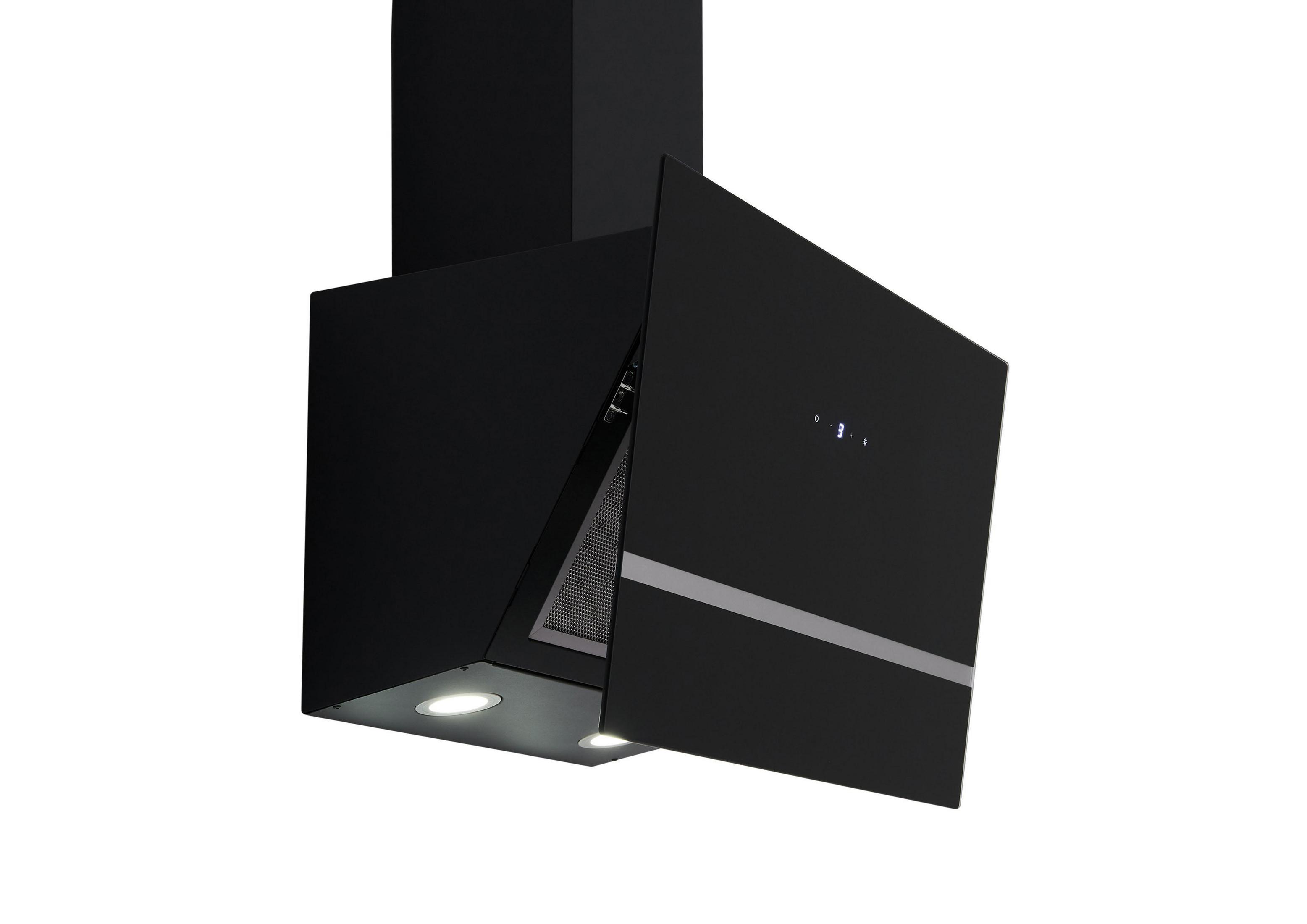

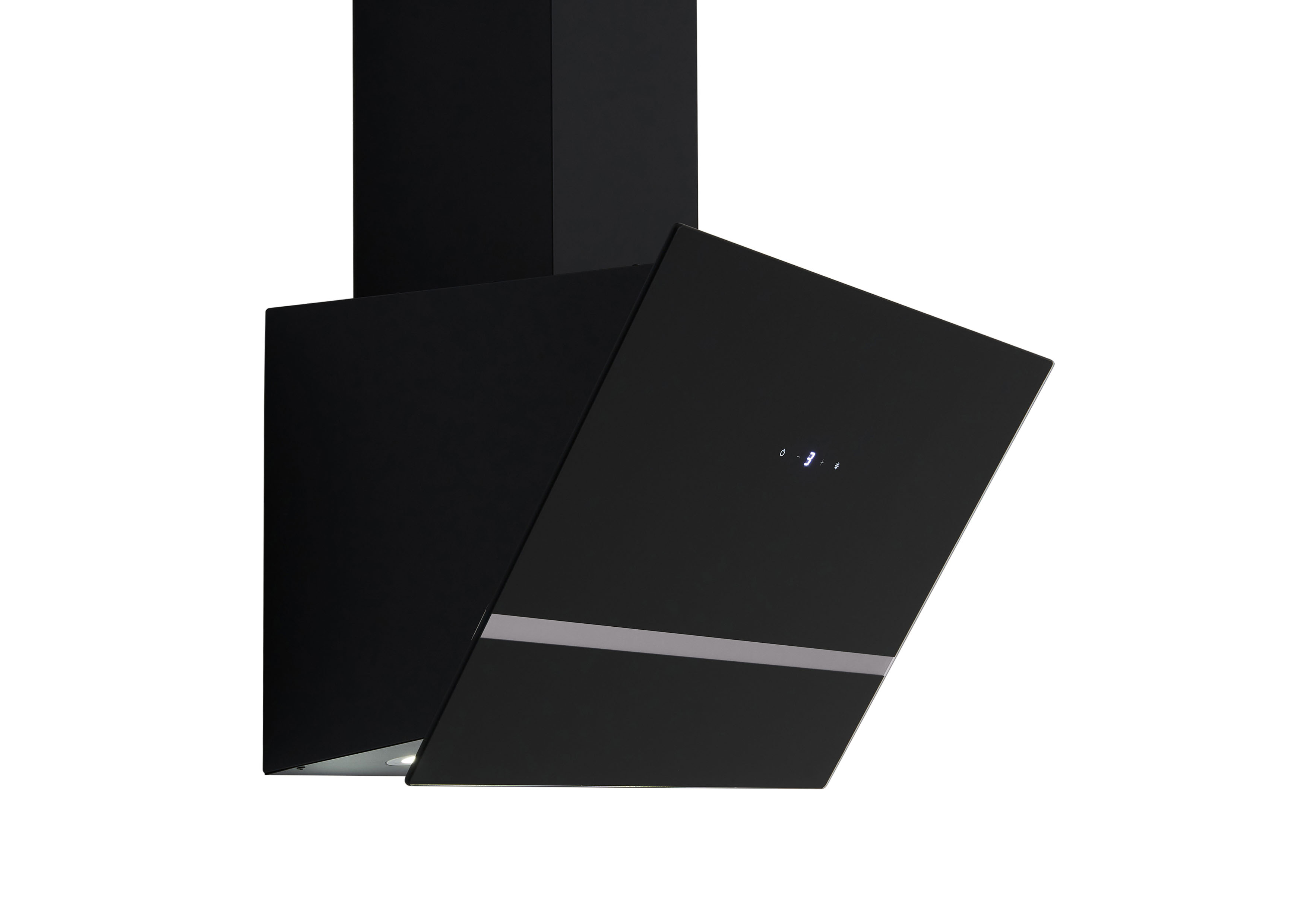

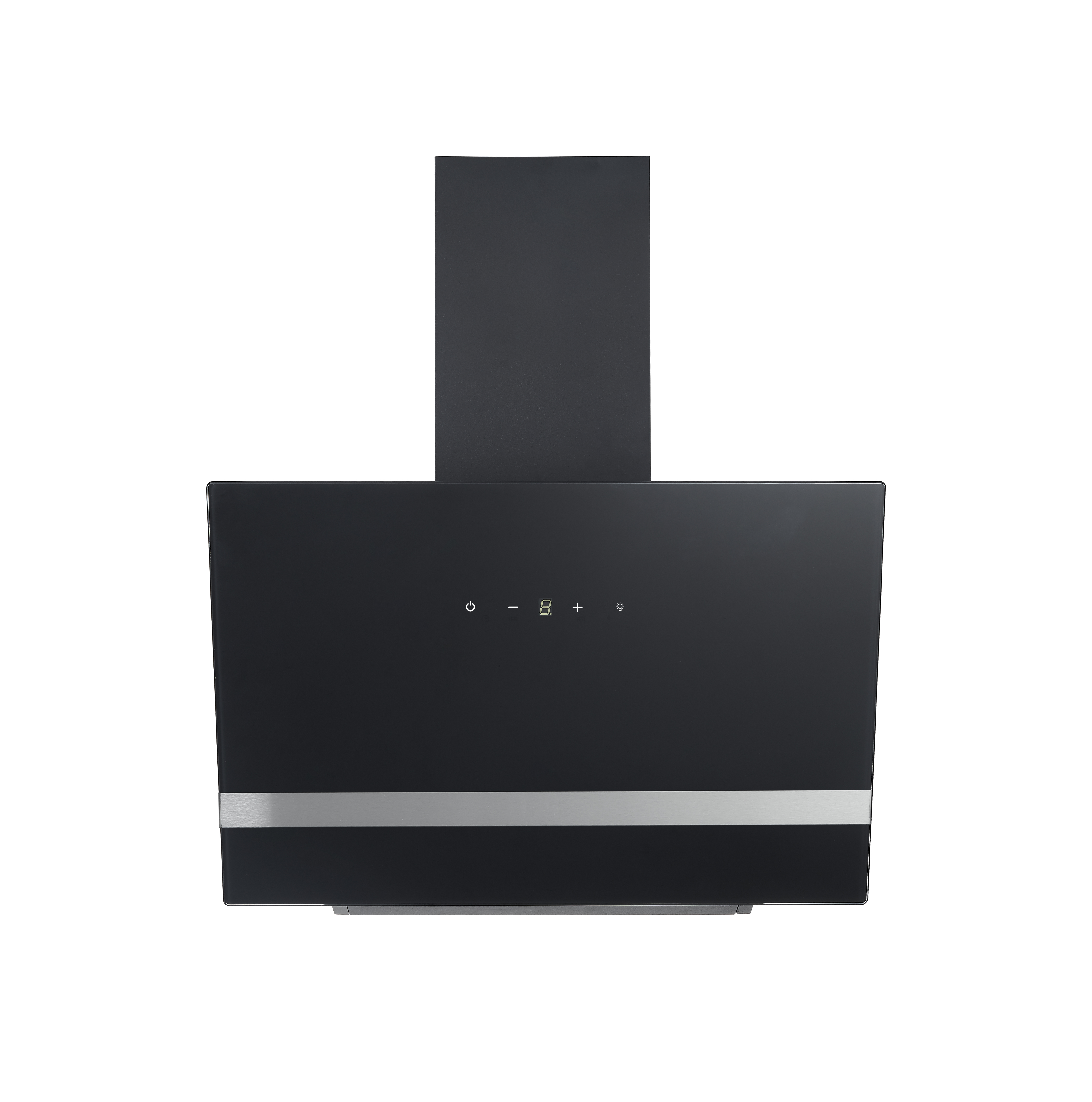

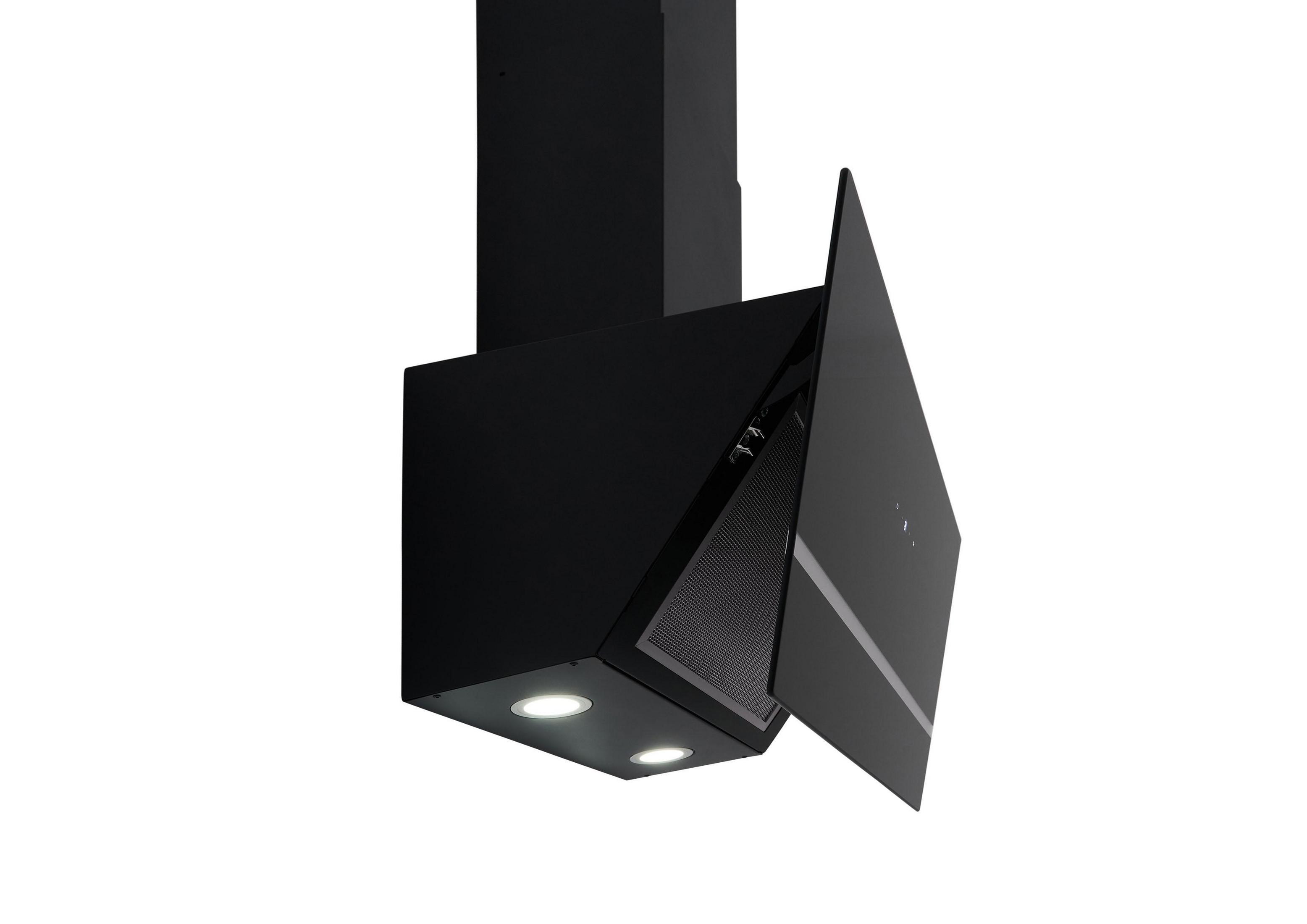

RESPEKTA CH 24060 SAM head free dome - Width 595 mm - 587 m³/h - 54 dB(A)
Delivery to your home
Delivery 12-06-2026 - 13-06-2026
+ € 0,–
Operating characteristics/technical data
Annual energy consumption: 38 kW/h Energy efficiency class: A Fluid dynamic efficiency: A Lighting efficiency: A Grease separation efficiency: C Airflow at min/max speed: 375 / 587 m³/h A-weighted airborne noise emission at min/max speed: 54 db / 68 dBEquipment features
Touch operation Housing and shaft (color): black With glass hood in black Speed levels: 3 Lighting max: 2 x 1.5 watt LED Tube connection (diameter): 150 mm Voltage / frequency: 220-240 V / 50 Hz Connected load: 203 watt Incl. metal grease filter (washable) Active carbon filter for recirculation mode optionally availableDevice dimensions
Device dimensions (H x W x D) / Weight: 74.2-109.2 x 59.5 x 38.5 cm / 12.6 kg With packaging (H x W x D) / Weight: 48.5 x 62 x 42.5 cm / 15.2 kgTechnical features | |
|---|---|
Product type | Angled extractor hood |
Construction shape | head free dome |
Discharge system | Exhaust/Convection convertable (material for converting not in scope of delivery) |
Maximum outgoing air flow rate | 587 m³/h |
Total power motor | 200 W |
Number of motors | 1 |
Fan levels | 3 |
Intensity level | No |
Fan position | Internal motor in the housing |
AI Functions | None |
Artificial Intelligence | None |
Equipment | |
|---|---|
Filter system | Exhaust and recirculation system |
Backflow flap | Yes |
Air circulation | 275 m³/h / 700 m³/h |
Type of control | electronic |
Indication replace grease filter | No |
Remote control | No |
Light | |
|---|---|
Lamp type | LED lights |
Total lamp power | 3 W |
Power supply | |
|---|---|
Input voltage | 220-240 V |
Frequency | 50/60 Hz |
