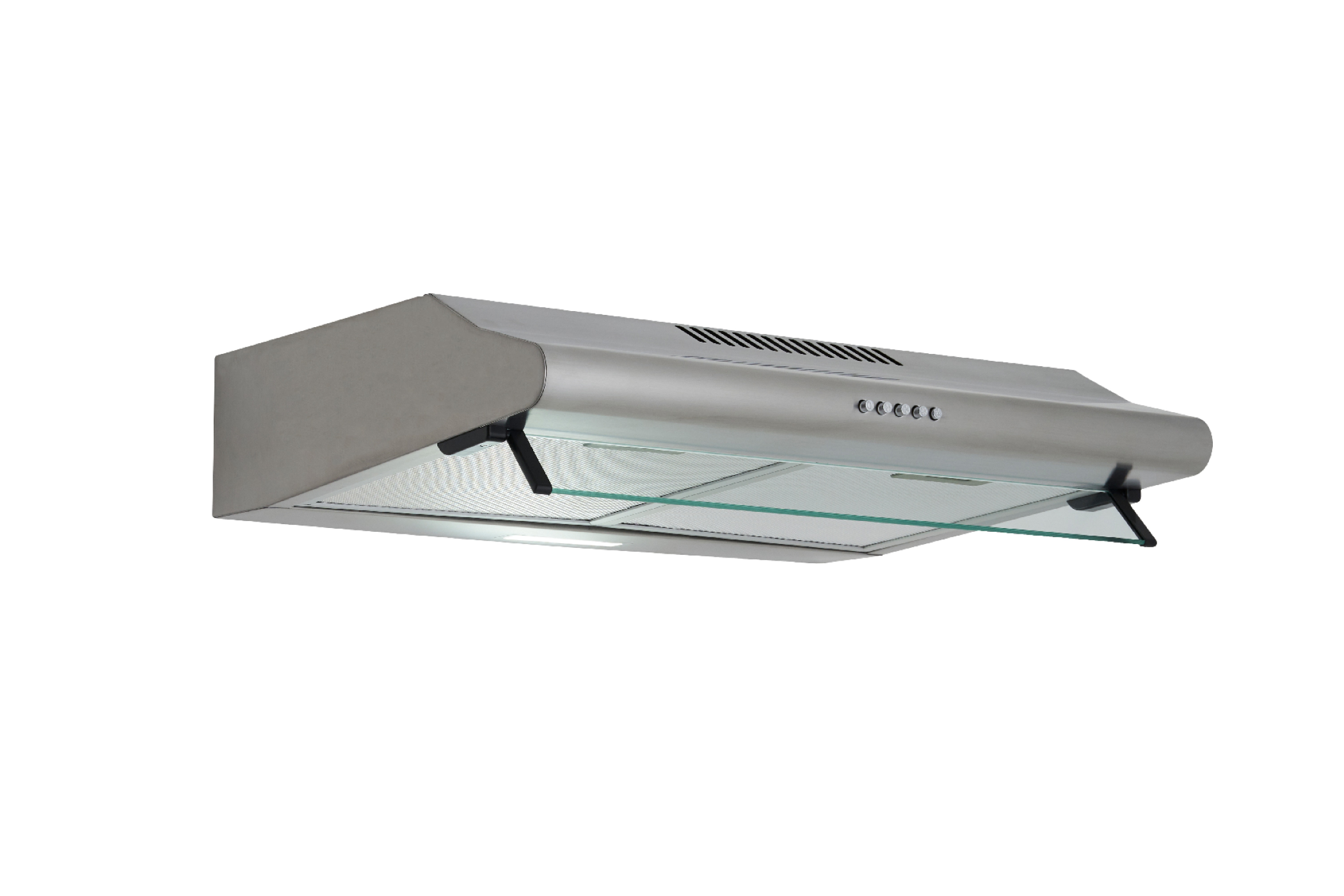

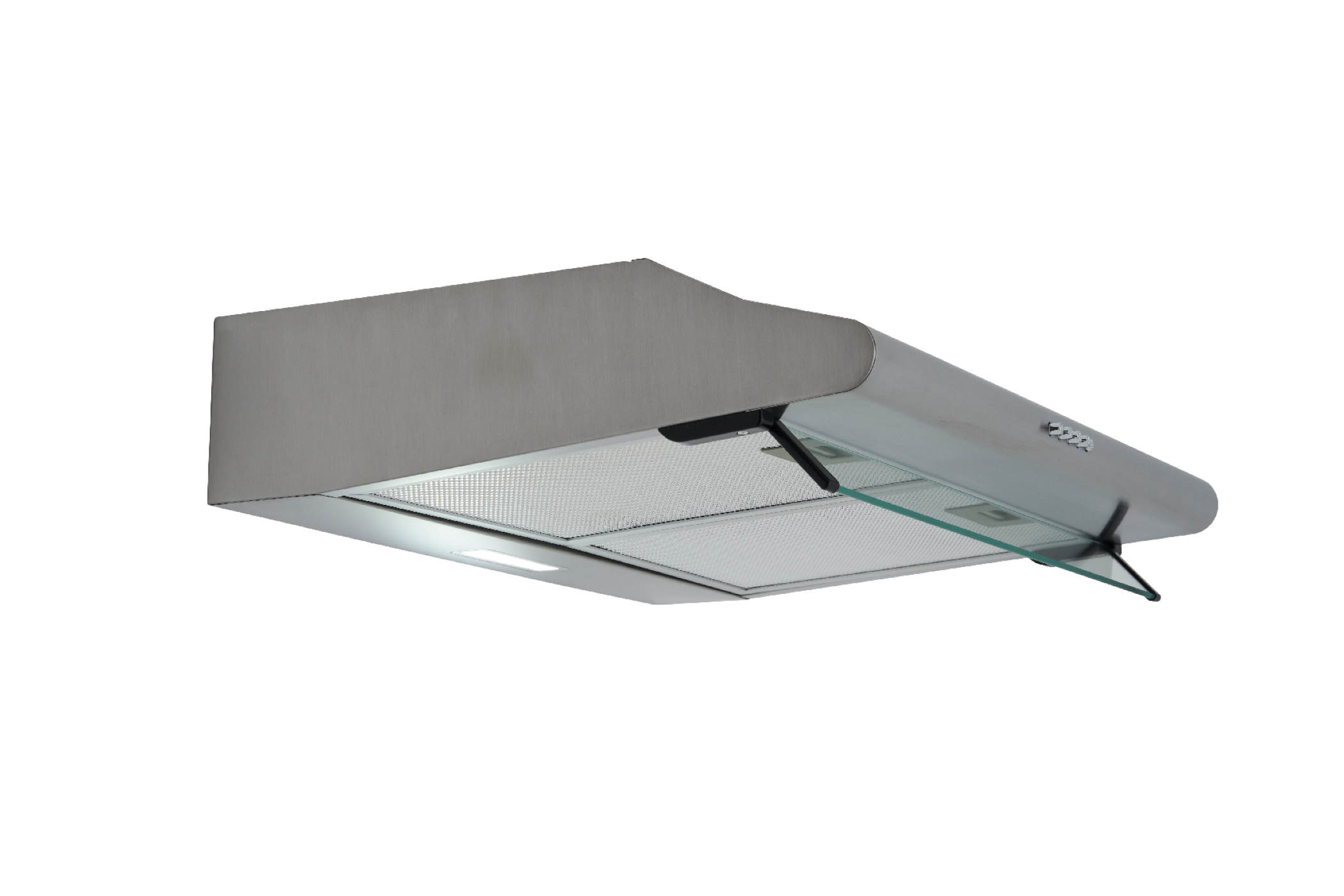

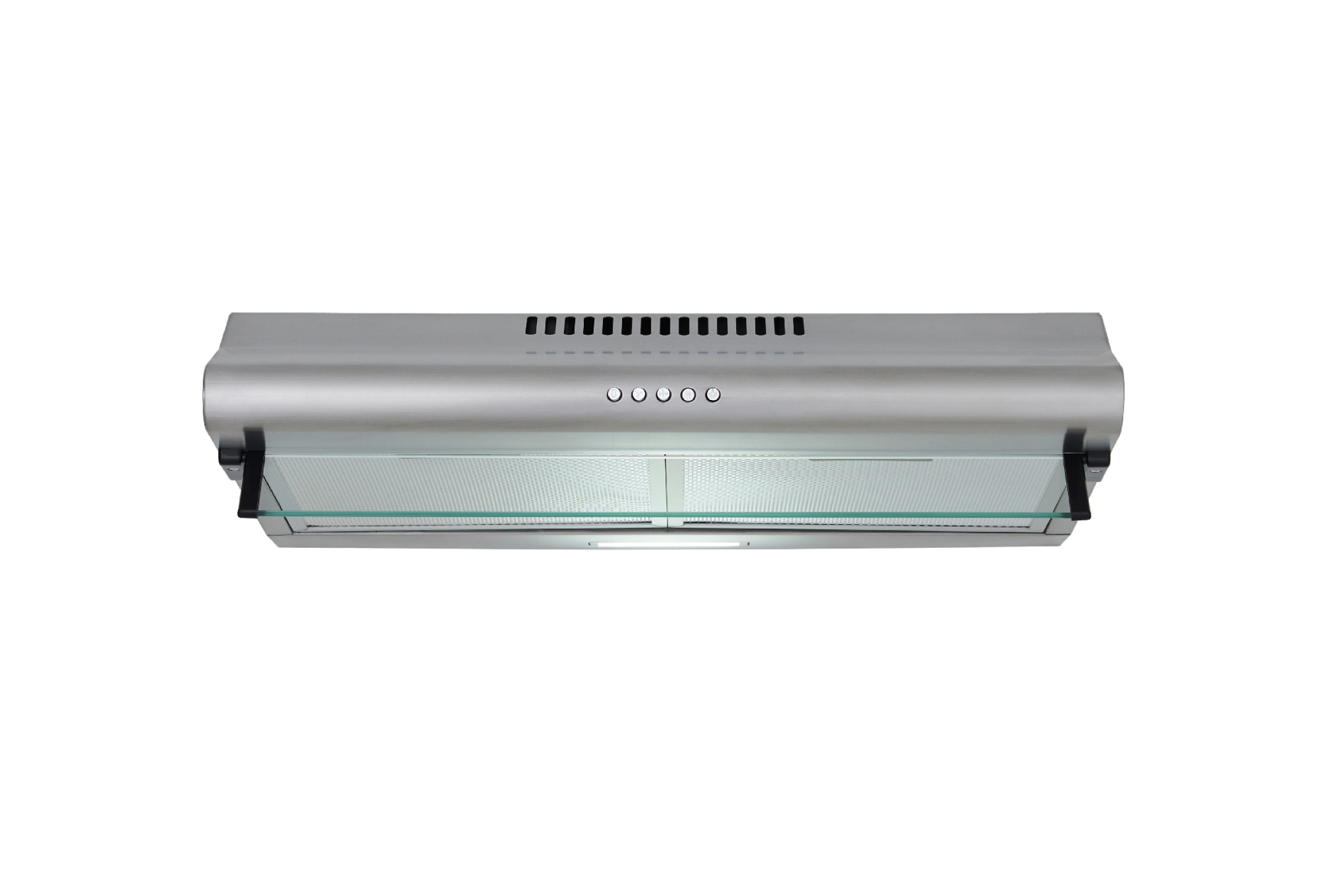

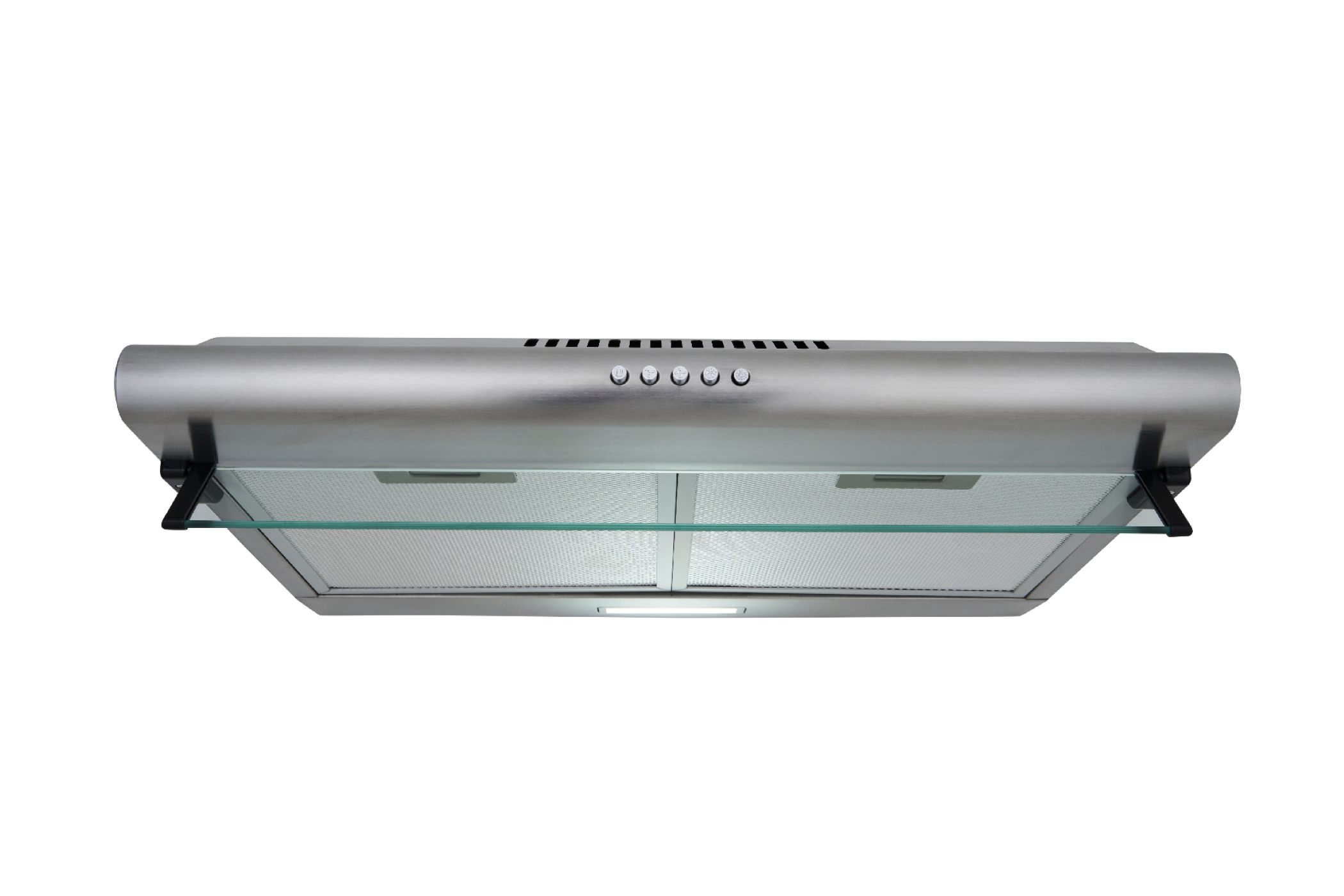

Respekta® CH1259IXCN headless angled hood and matching activated carbon filter for recirculation mode are included in delivery.
Operating characteristics/technical data:
Annual energy consumption: 31 kWh/year.
Energy efficiency class: B
Fluid dynamic efficiency: D
Lighting efficiency: A
Grease separation efficiency: C
Airflow at min/max speed: 121 m³h / 216 m³h
A-weighted airborne noise emission at min/max speed: 61 dB / 69 dB
Equipment features:
Push-button operation
Housing: stainless steel
With glass hood
Speed levels: 3
Lighting max: 1 x 2 watt LED
Tube connection (diameter): Ø 120 mm
Voltage / frequency: 220-240 V / 50 Hz
Connected load: 72 watt

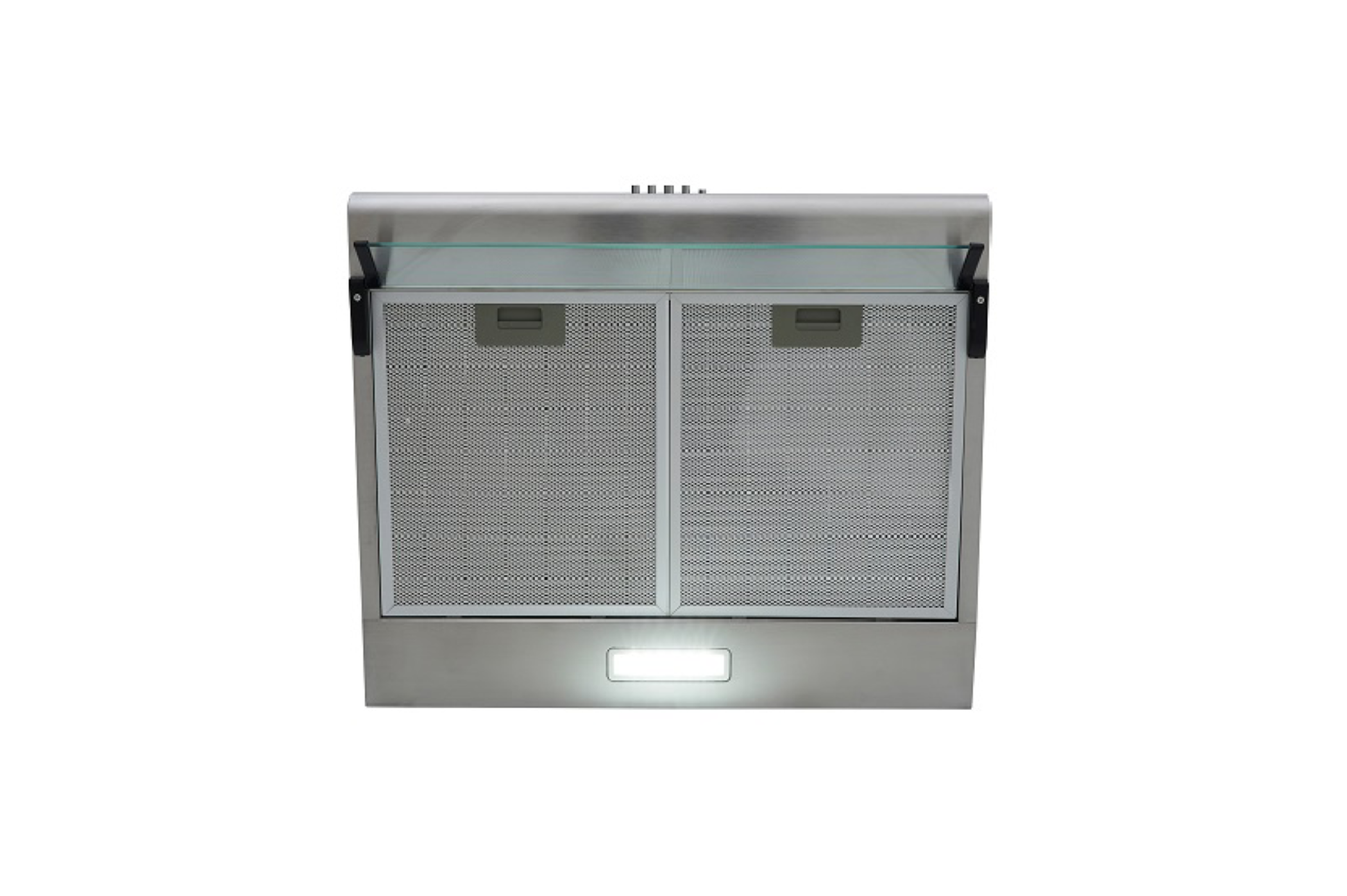

incl. metal grease filter (washable) 2 x
Active carbon filter for recirculation mode 2 x
Dimensions:
Unit dimensions (H x W x D) / Weight: 13 x 60.0 x 50 cm / 4.85 kg
With packaging (H x W x D) / Weight: 17.5 x 65.5 x 55.5 cm / 6 kg
