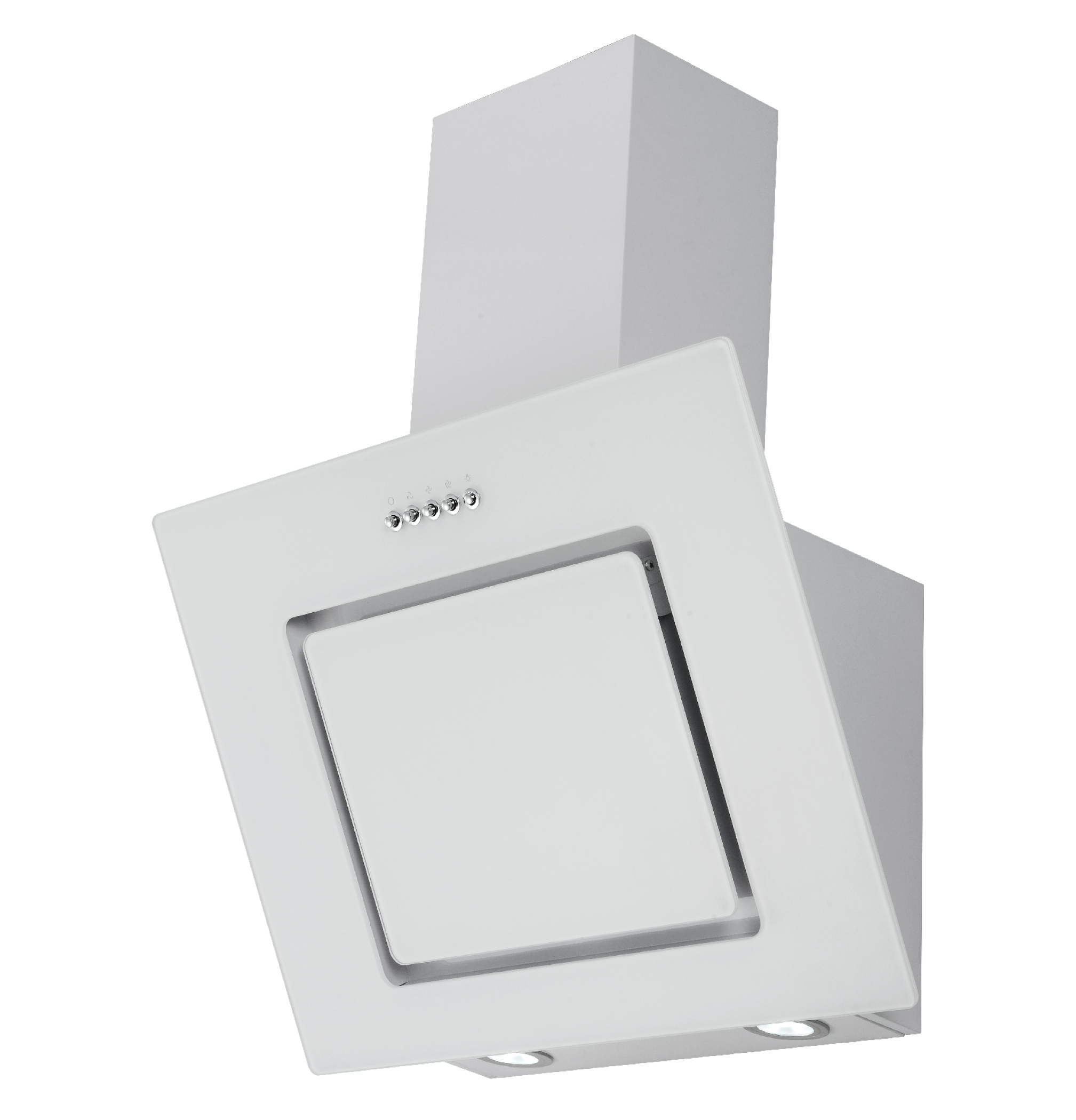

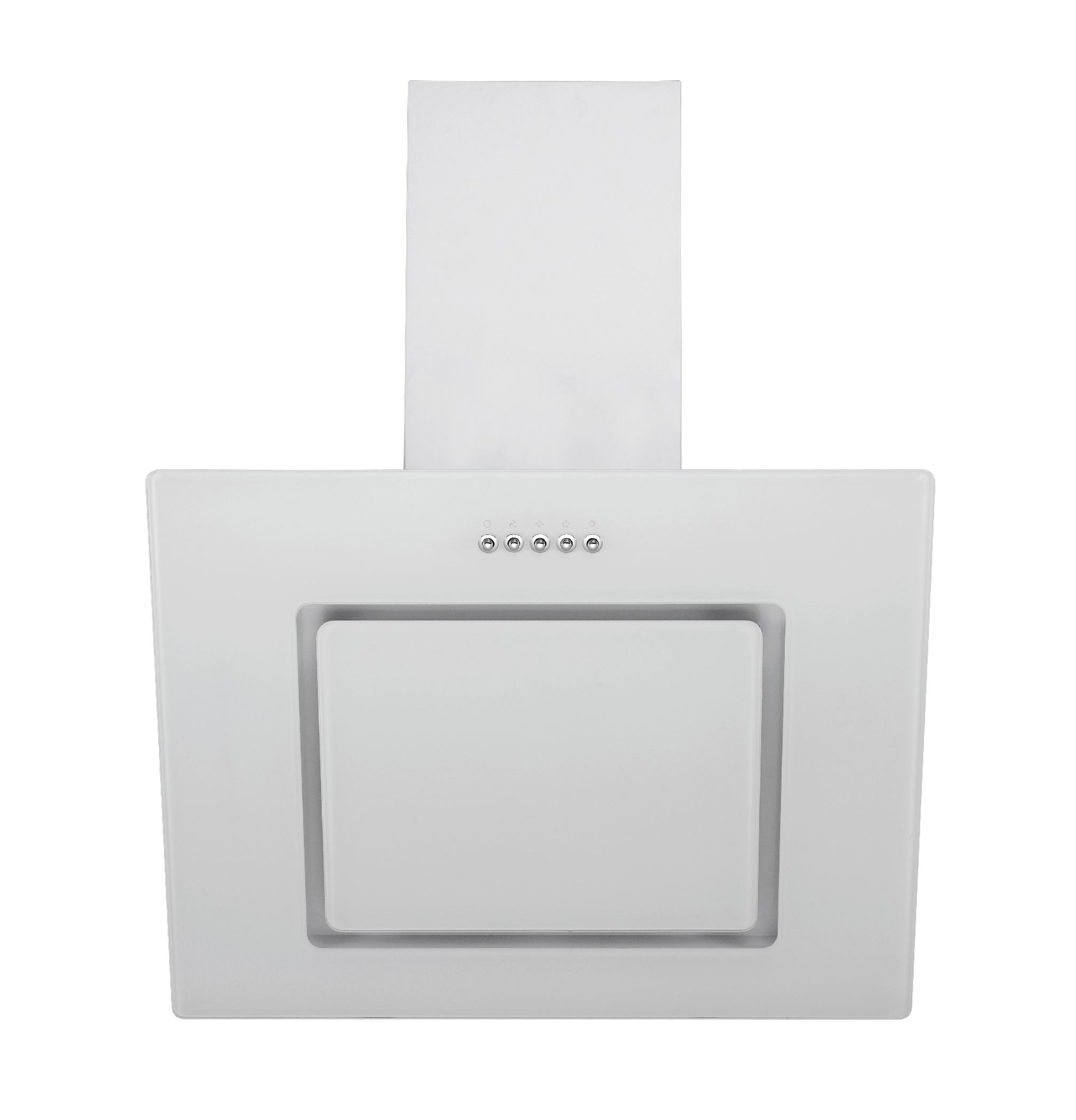

RESPEKTA Umluftset CH22010WBZ head free dome - Width 600 mm - 54 dB(A)

Operating characteristics/technical data:

Annual energy consumption: 35.2 kW/h Energy efficiency class: B Fluid dynamic efficiency: D Lighting efficiency: A Grease separation efficiency: D Airflow at min/max speed: 213 m³/h / 377 m³/h A-weighted airborne noise emission at min/max speed: 54 dB / 62 dB

Equipment features:

Operation via push buttons Glass panel: white Housing and shaft (color): white Speed levels: 3 Lighting max: 2 x 1.0 watt LED Tube connection (diameter): 150 mm Voltage / frequency: 220-240 V / 50 Hz Connected power: 70 watts incl. metal grease filter (washable) 1 x Active carbon filter for recirculation mode 1 x

Device dimensions

Device dimensions (H x W x D) / weight: 73.9 - 119.9 x 60 x 34 cm / 9.8 kg With packaging (H x W x D) / Weight: 39.2 x 64.8 x 46.2 cm / 11.7 kg

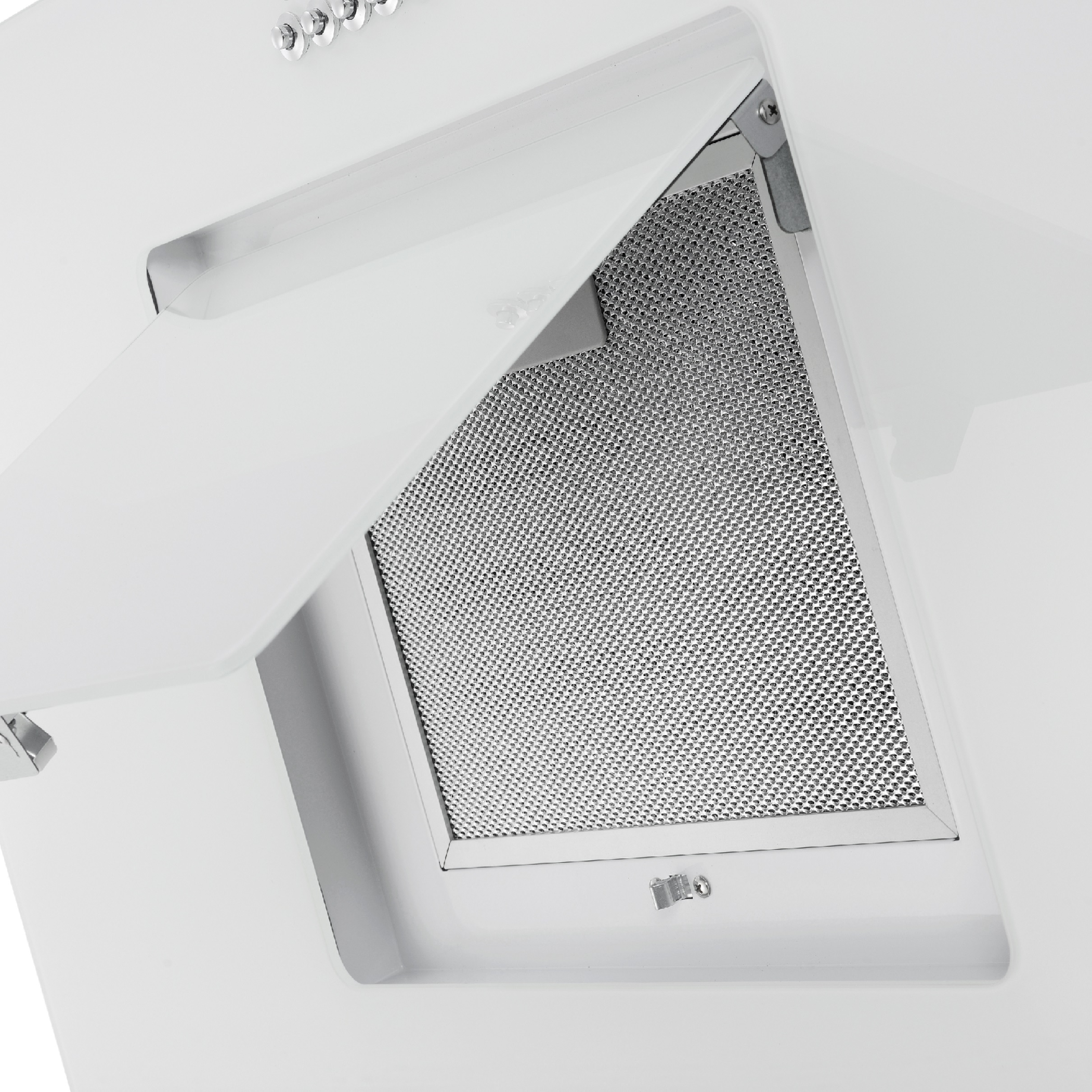

Two filters are included

To be placed to the left and right of the motor when the cooktop is in recirculation mode Activated carbon filters must be replaced every 3 months, regardless of cooking habits
