RESPEKTA Umluftset CH89060S head free dome - Width 595 mm - 479 m³/h - 39 dB(A)

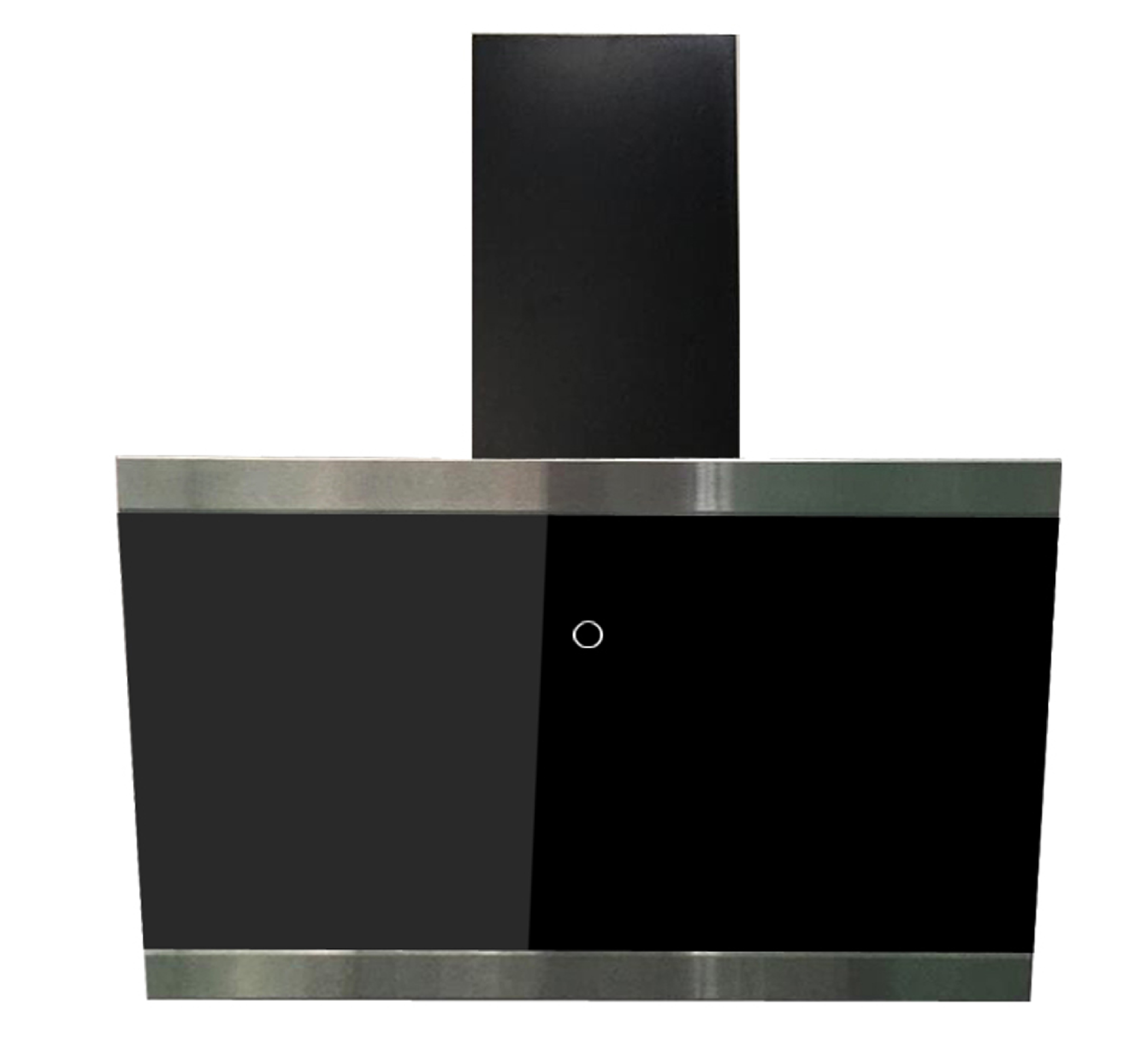

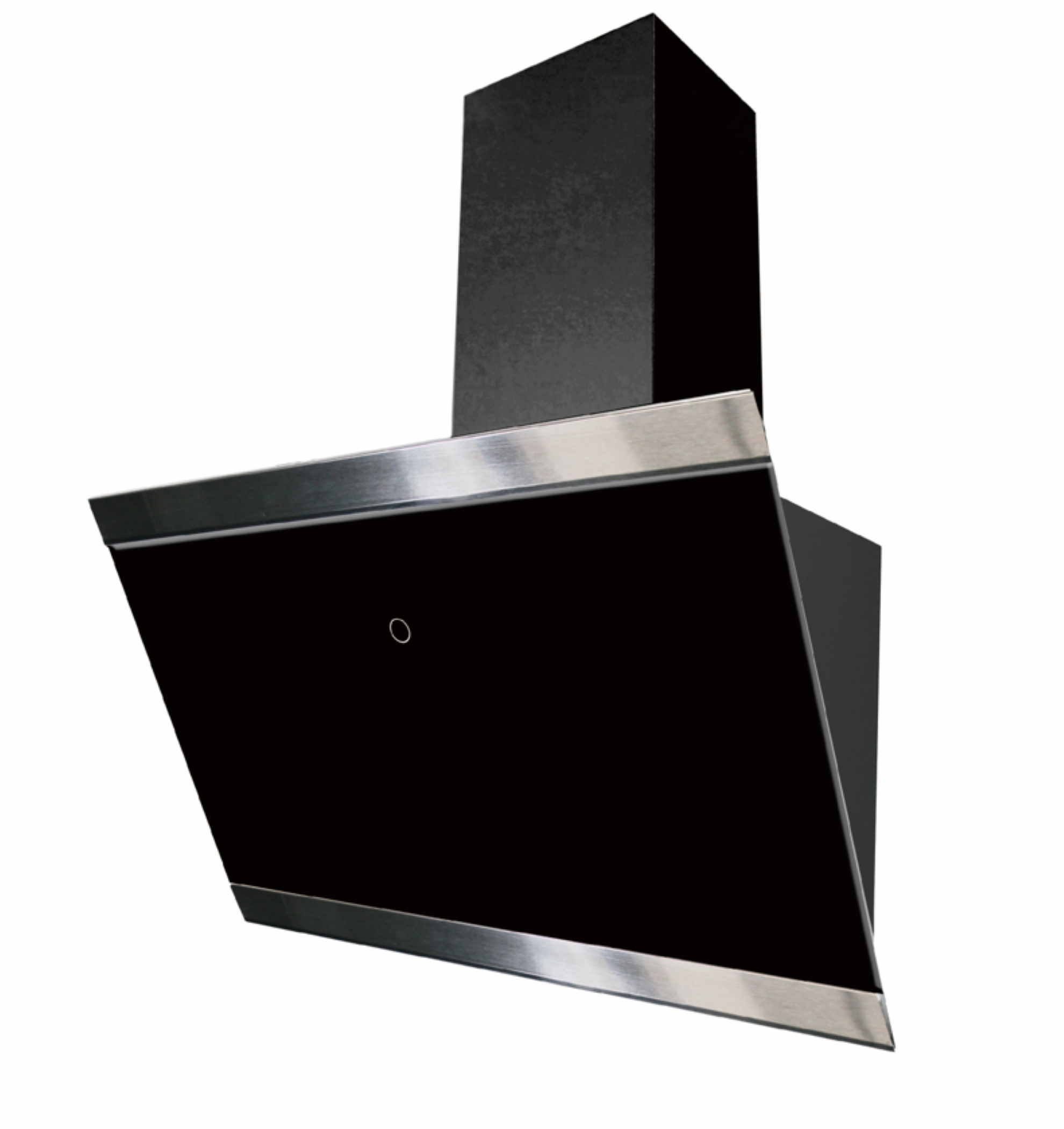

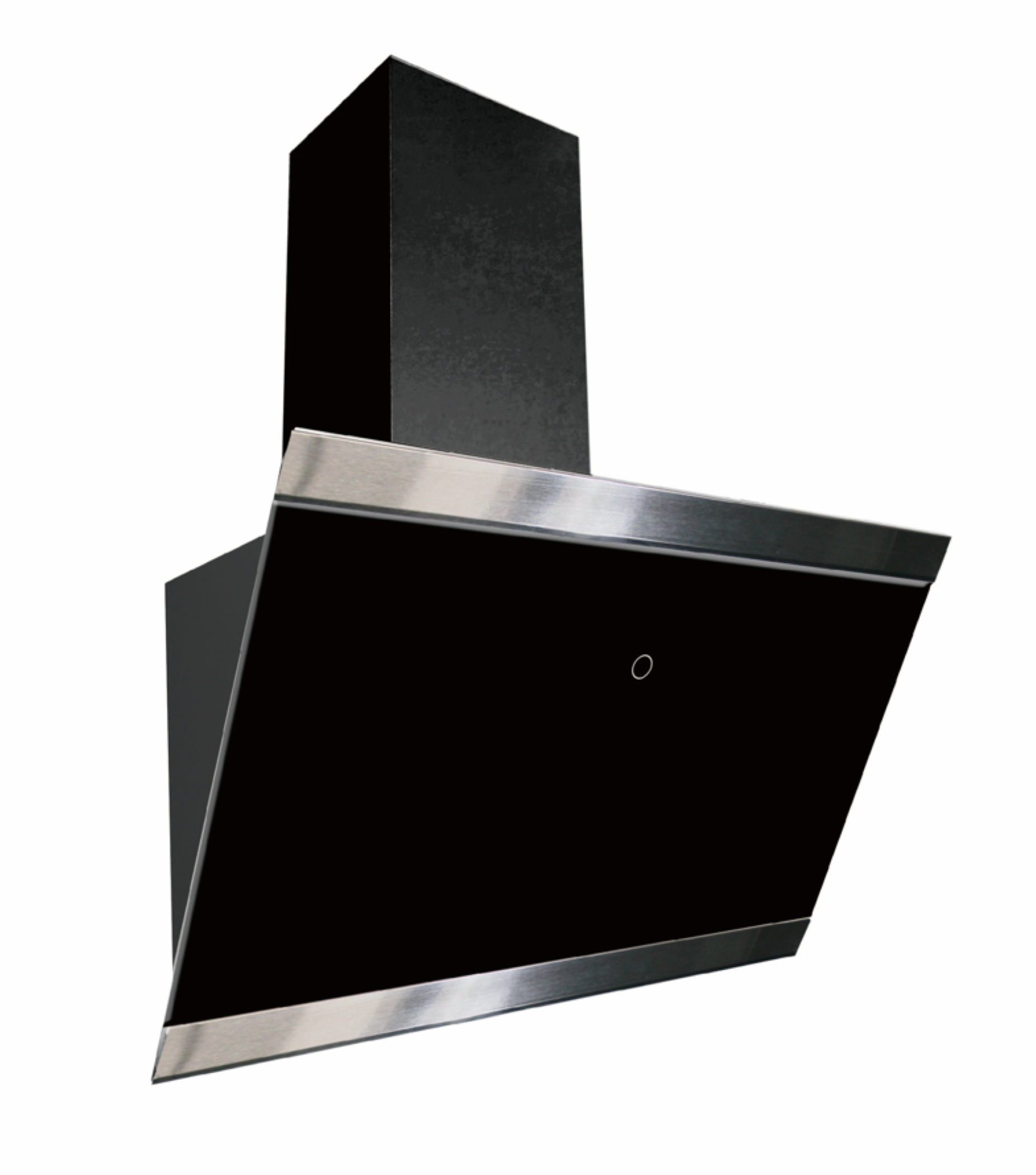

Delivery includes the tilted hood Respekta® CH89060S and the matching activated carbon filter for recirculation mode.

Operating characteristics/technical data:

Annual energy consumption: 11.1 kW/h Energy efficiency class: A++ Fluid dynamic efficiency: A Lighting efficiency: A Grease separation efficiency: C Airflow at min/max speed: 207 m³/h / 479 m³/h A-weighted airborne noise emission at min/max speed: 39 dB / 59 dB

Equipment features

Touch operation Housing and shaft (color): black With glass hood in black Speed levels: 9 Lighting max: 2 x 1.5 watt LED Tube connection (diameter): 150 mm Voltage / frequency: 220-240 V / 50 Hz Connected load: 73 watt incl. metal grease filter (washable) 1 x incl. active carbon filter 2x

Dimensions

: Device dimensions (H x W x D) / Weight: 73.5-106.5 x 59.5 x 37.8 cm / 11.5 kg With packaging (H x W x D) / Weight: 48.5 x 62 x 42.5 cm / 14 kg

Item features Filter:

Diameter: 18.7 cm Height: 2.5 cm Weight: 0.3 kg Two filters are included To be placed to the left and right of the motor when the cooktop is in recirculation mode Activated carbon filters must be replaced every 3 months, regardless of cooking habits
