RESPEKTA Umluftset DH540IXL base hood - Width 500 mm - 52 dB(A)
RESPEKTA
Art.-Nr. 95893132
Delivery to your home
Delivery 12-06-2026 - 13-06-2026
+ € 0,–

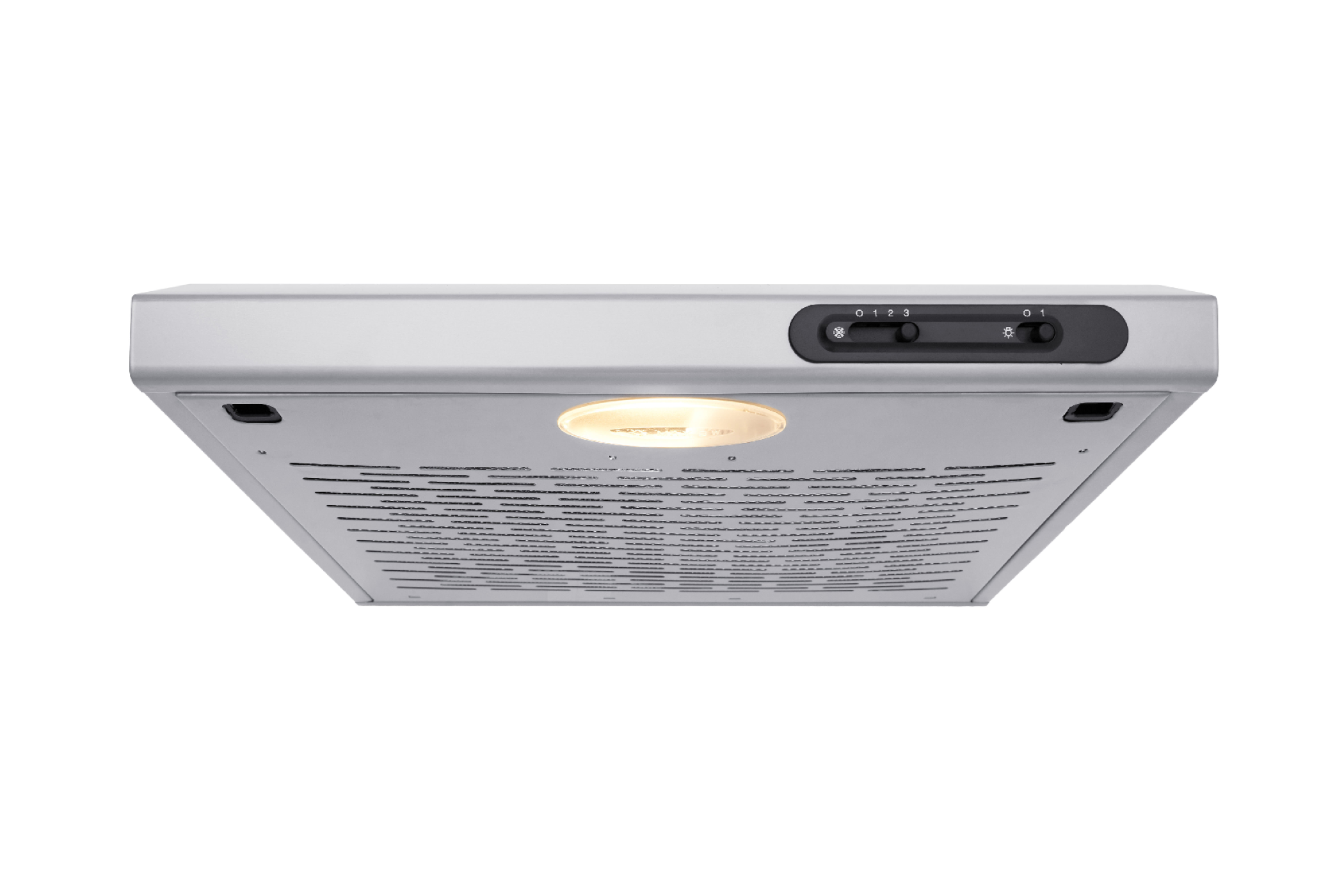

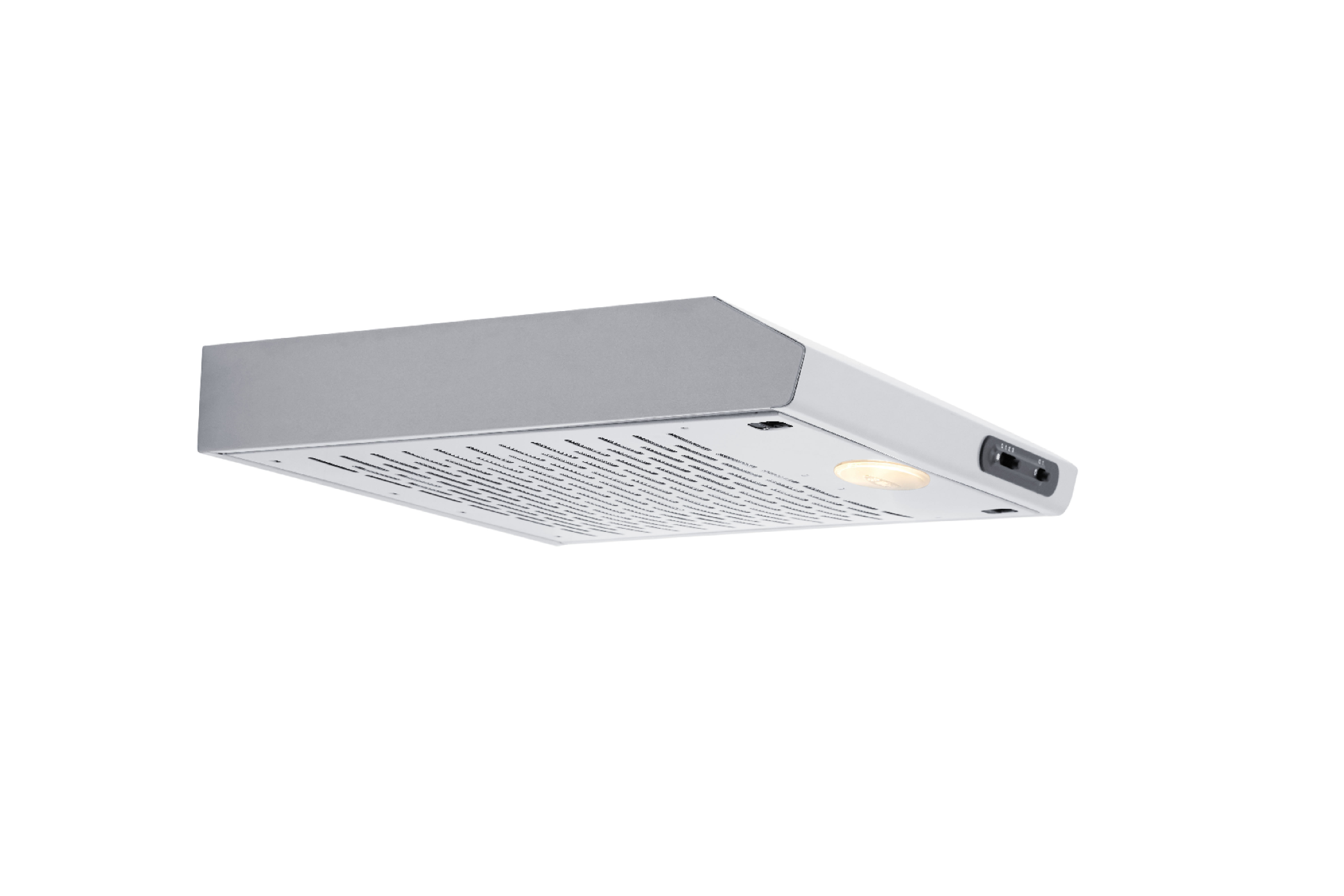

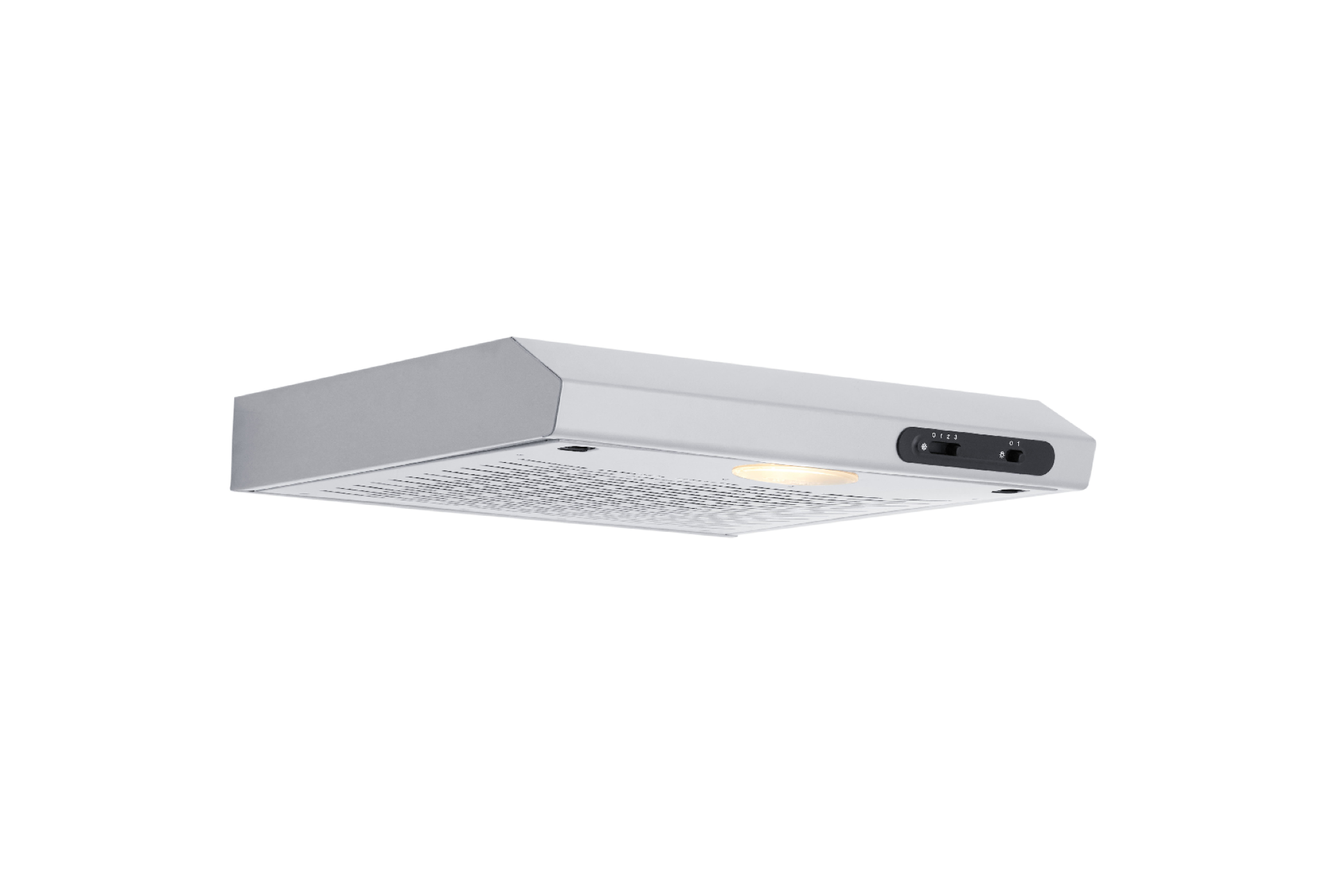

The under-cabinet hood Respekta® DH 540 IXL and the matching activated carbon filter mat for recirculation mode are included in the delivery.
Technical data & equipment features:

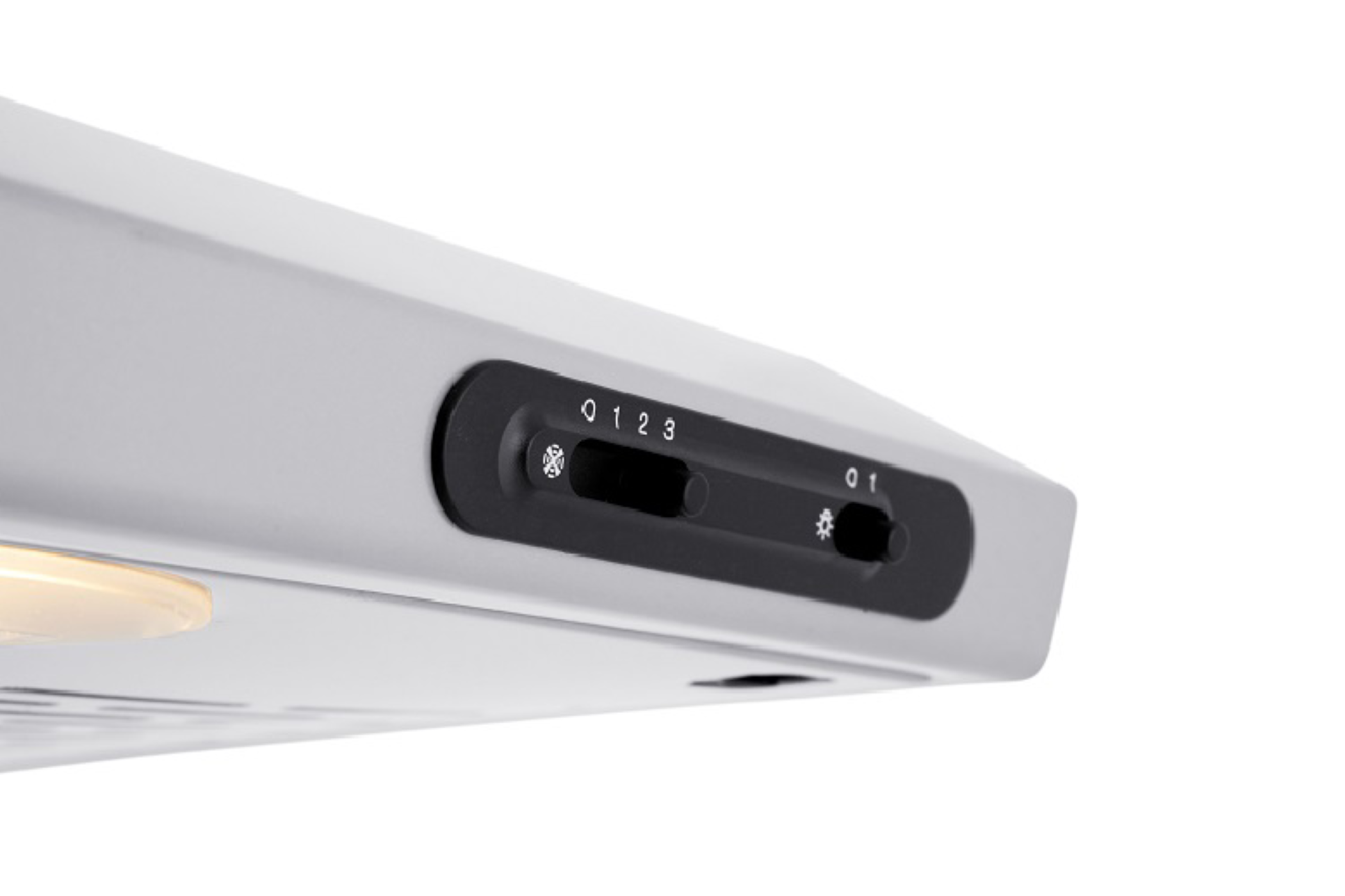

Annual energy consumption: 35 kWh/year. Energy efficiency class: C Fluid dynamic efficiency: E Lighting efficiency: B Grease separation efficiency: E Air flow at min/max speed: 110 m³h / 205 m³h A-weighted airborne noise emission at min/max speed: 52 dB / 68 dB Control by slide switch Material/color: Painted sheet steel Speed levels: 3 Lighting max: 1 x 3 watt LED Tube connection (diameter): Ø 125 mm Voltage / frequency: 220-240 V / 50 Hz Connected load: 53 watts incl. grease filter mat 1 x incl. active carbon filter for recirculation mode 2 xDimensions of the extractor hood:
Device dimensions (H x W x D) / Weight: 7.6 x 50 x 47 cm / 4.05 kg With packaging (H x W x D) / Weight: 12.5 x 55 x 53 cm / 4.65 kgItem features Filter:
2 filter mats are included Item dimensions (HxWxD): 0.8 x 27 x 40.7 cm To be used when hood is in recirculation mode Activated carbon filter mat must be replaced every 3 months, regardless of cooking habitsTechnical features | |
|---|---|
Product type | Under-cabinet exhaust hoods Recirculation set |
Construction shape | base hood |
Discharge system | Exhaust/Convection convertable (material for converting in scope of delivery) |
Equipment | |
|---|---|
Filter system | Recirculated air |
General features | |
|---|---|
Case material | stainless steel |
Stainless steel casing | Yes |
Diameter of outgoing air hose | 150 mm |
Width | 500 mm |
Depth | 470 mm |
Color (by manufacturer) | silver |
Weight (according to the manufacturer) | 4.05 kg |
Weight | 4.05 kg |
Scope of delivery | Extractor hood + 2 recirculation filters |
Packsize | 550 mm / 125 mm / 530 mm |
Energy consumption data | |
|---|---|
Energy efficiency class (EU 2010/30) | C |
Fluid dynamic Efficiency | 8.5 |
Fluid dynamic Efficiency class | E |
Lightning Efficiency | 20.1 lx/W |
Lightning Efficiency class | B |
Grease filtering | 55.1 % |
Grease filtering Efficiency class | E |
Air flow at minimum speed in normal use | 110 m³/h |
Air flow at maximum speed in normal use | 205 m³/h |
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 52 dB(A) |
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 68 dB(A) |
Generic Energy Class EU | 6 |
EU Color Code Energy Class | RGB - 236 102 8 |
EU Energy Efficiency Scale | A+++ to D |
