ROLINE

Art.-Nr. 143331045

ROLINE HDMI 4x1 QUAD Multi-Viewer Switch, naadloos schakelen IR amplifier

ROLINE

Art.-Nr. 143331045

To compare
To the technical data

Unfortunately no delivery possible

This product is not available

By clicking on "Notify me", you agree to be notified as soon as this product is available again. You can deactivate the notification at any time by clicking on this button again. The product will also be added to your wishlist. You can find more information in the privacy policy.

To compare

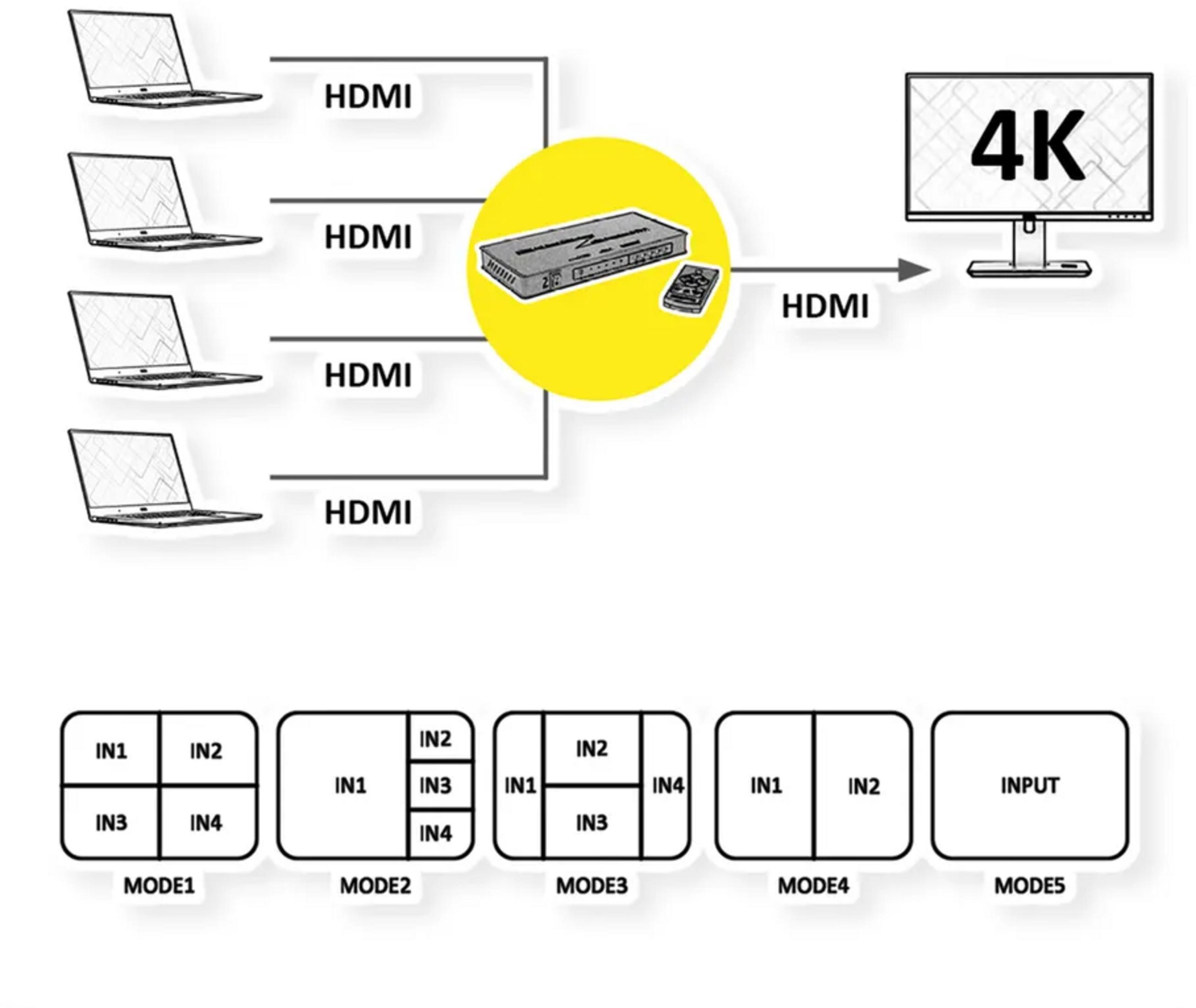

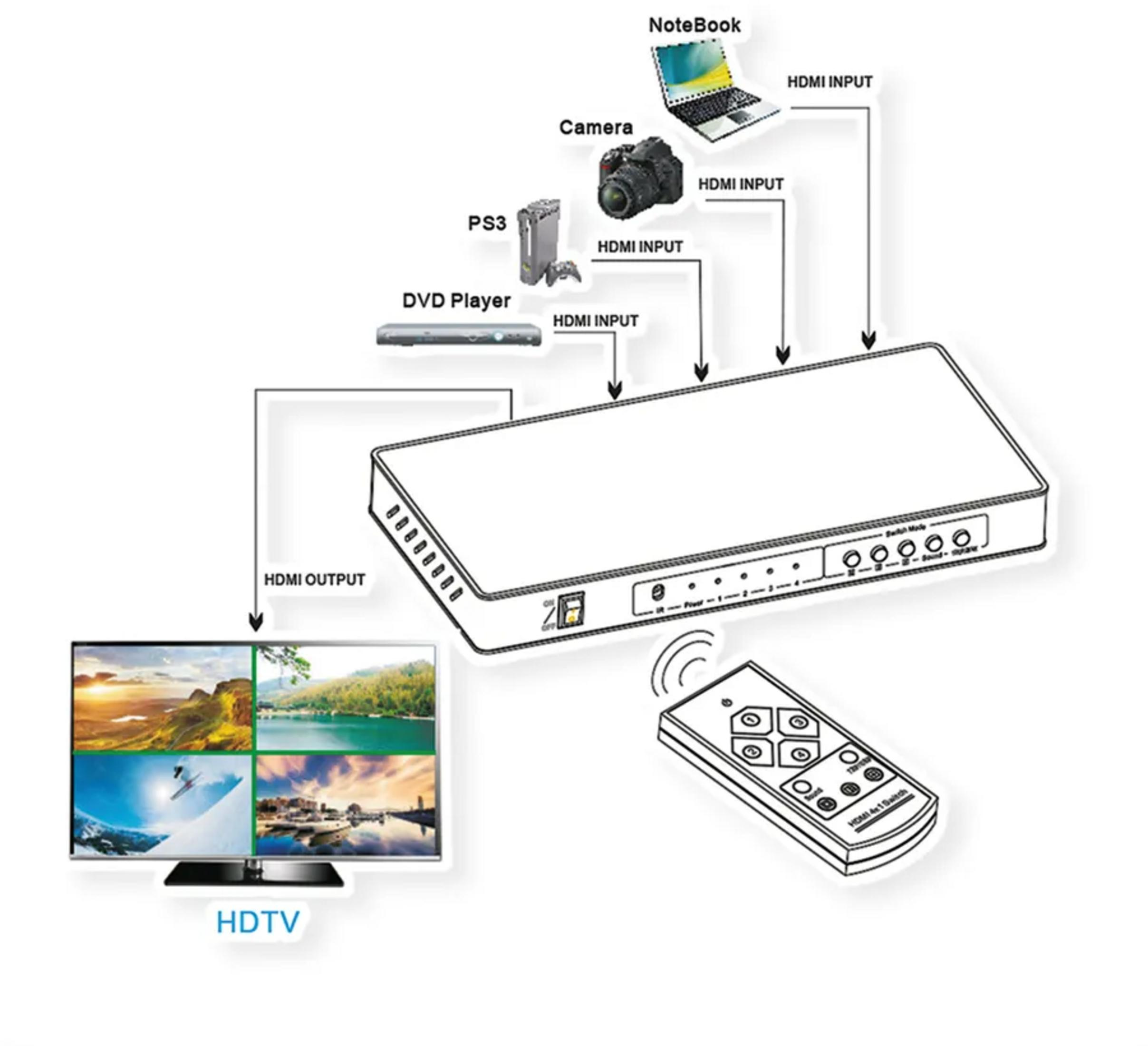

Displays video output from up to 4 HDMI sources on one monitor or projector. You can choose different views to view content from up to four sources simultaneously.... Application example: a display device (monitor/TV/beamer) is powered by multiple HDMI sources such as BluRay players. With one push of a button, the desired source can be selected for the single display or for up to four sources simultaneously - in different display variants. If only one source is active, the switch automatically switches to that source.... . Switching between PCs is done with buttons on the switch or via remote control. Supports 3840x2160@30Hz. Installation can be done without software - only the HDMI cables need to be connected to the QUAD Multi-Viewer Switch.... Slim, black metal casing. Includes remote control and IR receiver. 12VDC power supply included. . Technical Specifications:. Input: 4x HDMI A female. Output: 1x HDMI A female.

Features

Product type

IR amplifier

Special features

Switching with buttons on the switch/remote control; Supports 3840x2160@30Hz; Installation can be done without software; Flat, black metal casing; Remote control and IR receiver included

Color (by manufacturer)

black

Weight (according to the manufacturer)

965 g

Weight

965 g

Scope of delivery

HDMI Switch, power supply, IR remote control, button cell (CR2025), user manual

Width

250 mm

Height

27 mm

Depth

120 mm

Packsize

300 mm / 70 mm / 230 mm

General Product Safety

GTIN

7630049632660

Product type

IR amplifier

Manufacturer

Manufacturer

SECOMP Electronic Components GmbH

Contact

SECOMP Electronic Components GmbH

E-mail

[email protected]

Address suffix

Einsteinstrasse 17-23, 76275 Ettlingen, Germany

Responsible person in the EU

Manufacturer

SECOMP Electronic Components GmbH

Contact

SECOMP Electronic Components GmbH

E-mail

[email protected]

Address suffix

Einsteinstrasse 17-23, 76275 Ettlingen, Germany
