ANKER Solarbank 4 E5000 Pro Portable charging stations

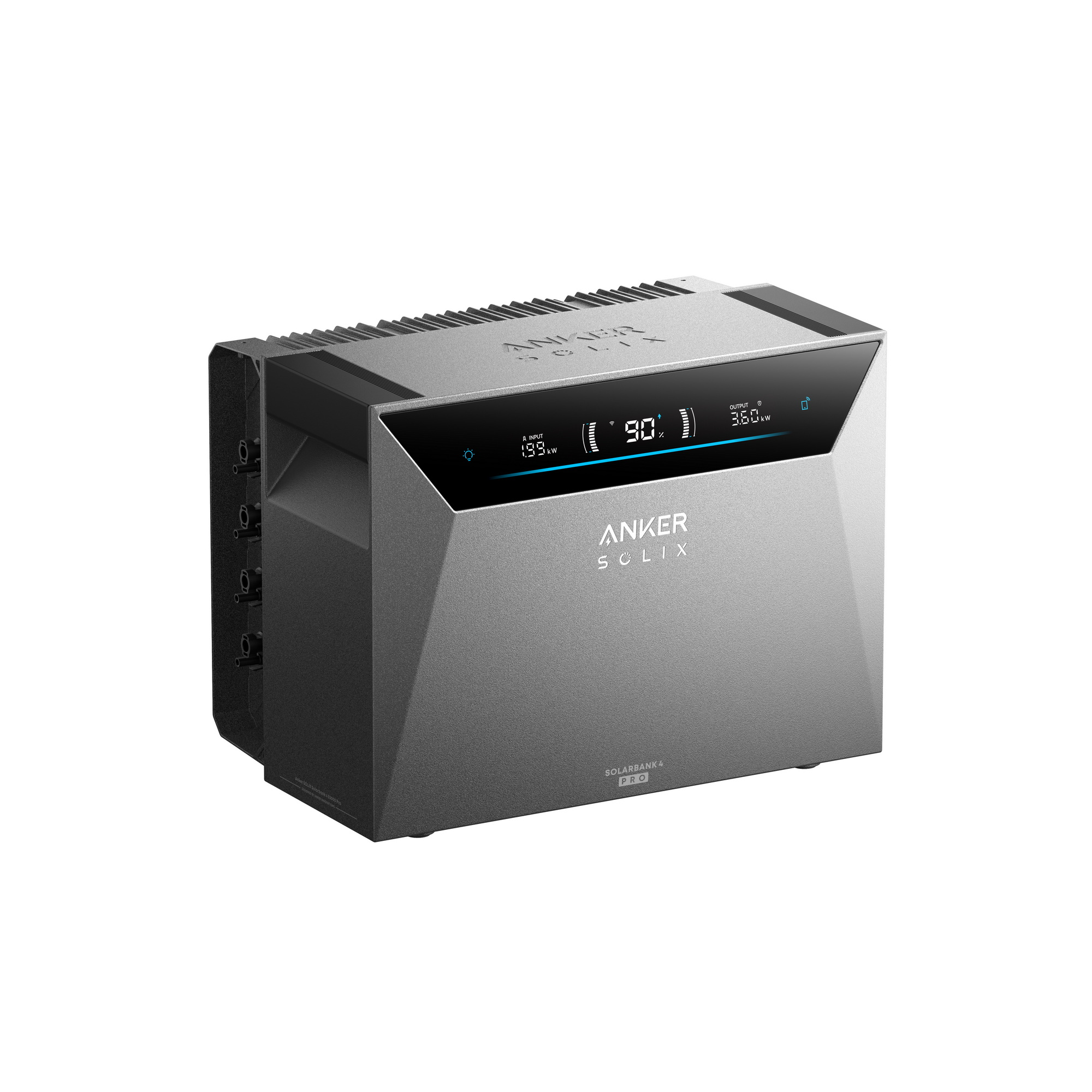

Anker SOLIX Solarbank 4 E5000 Pro Home Battery and Energy Storage System

Product Overview

The Anker SOLIX Solarbank 4 E5000 Pro is a modular home energy storage system designed for balcony solar panels and other residential solar energy applications. It combines a 5kWh LiFePO4 battery, a high-efficiency hybrid inverter, and intelligent energy management to optimize solar energy self-consumption, emergency power supply, and grid interaction.

The system supports plug-and-play installation, intelligent load distribution, and modular expansion to large-capacity energy storage configurations. It is designed for both grid-connected use and islanding operation, especially for emergency power during outages.

Key Features

• Base capacity of 5kWh, expandable to 30kWh with BP5000 modules
• PV input power up to 5000W with 4 independent MPPT trackers
• 800W grid feed-in mode for balcony solar panel installations
• AC output in island mode up to 2500W via PluginPower 2.0
• Hybrid inverter with intelligent energy management (Anker Power OS)
• UPS function with a switchover time of approximately 10ms
• IP66 protection for outdoor use
• Wi-Fi connectivity (2.4GHz) and Bluetooth
• Smart control via app and energy monitoring
• Coverage of up to 95% of household electricity consumption during normal use

Technical Specifications

Battery System

• Battery chemistry: LiFePO4
• Nominal capacity: 5024Wh (approx. 5.02kWh)
• Expandable capacity: up to 30kWh with BP5000 modules
• Lifespan: up to 10000 cycles
• Warranty: up to 10 years

PV Input and Charging

• Maximum PV input power: 5000W
• MPPT trackers: 4 independent channels
• MPPT voltage range: 16–50V DC
• Maximum PV current: 36A (4 × 4A DC)
• Maximum AC charging power: 2500W

AC Output

• Grid-connected output: 800W in socket mode
• Output in island mode: up to 2500W via a dedicated connection
• Maximum AC bypass output power: 3600W
• Switchover time in UPS mode: approximately 10ms

Connectivity

• Wi-Fi: 2.4GHz
• Bluetooth: Yes
• App: Anker SOLIX App

Environmental and Mechanical Specifications

• Dimensions: 460 × 305 × 355mm
• Weight: 50kg
• Operating temperature: -20°C to 55°C
• Protection class: IP66
• Battery type: LiFePO4

System Functions

• Intelligent energy consumption optimization
• Automatic coordination between PV generation, battery, and grid
• Time-shifting of energy usage: store during the day and consume at night
• Emergency power supply during grid failure
• Expandable modular architecture
• Real-time monitoring via the mobile app

Installation

• All-in-one design for easy installation
• Plug-and-play installation in approximately 5 minutes
• Suitable for connection to a socket or a professional electrical installation
• Compatible with Smart Meter Gen 2 for advanced monitoring

Package Contents

• 1 × Anker SOLIX Solarbank 4 E5000 Pro main unit
• 1 × installation and user manual
• 1 × quick start guide
• 1 × safety documentation
• Mounting and connection accessories, depending on configuration

Frequently Asked Questions

Q: Is the system expandable?
A: Yes. It supports up to 5 BP5000 modules, with a total capacity of approximately 30kWh.

Q: Does the system work during a power outage?
A: Yes. It features a UPS function with a switchover time of approximately 10ms and an output in island mode up to 2500W.

Q: Can it feed power back into the household grid?
A: Yes, up to 800W, depending on local regulations.

Q: What solar panels are compatible?
A: The system supports a maximum of 5000W PV input power via 4 MPPT channels.

Q: Is the installation complicated?
A: No. Plug-and-play installation takes about 5 minutes.

Q: Is it suitable for outdoor use?
A: Yes. The IP66 protection class provides protection against dust and water.
