CIARRA
Art.-Nr. 91456573
CIARRA CBCS6906D pull-out hoods - Width 599 mm - 370 m³/h - 49 dB(A)
Delivery to your home
Delivery 11-06-2026 - 12-06-2026
+ € 0,–

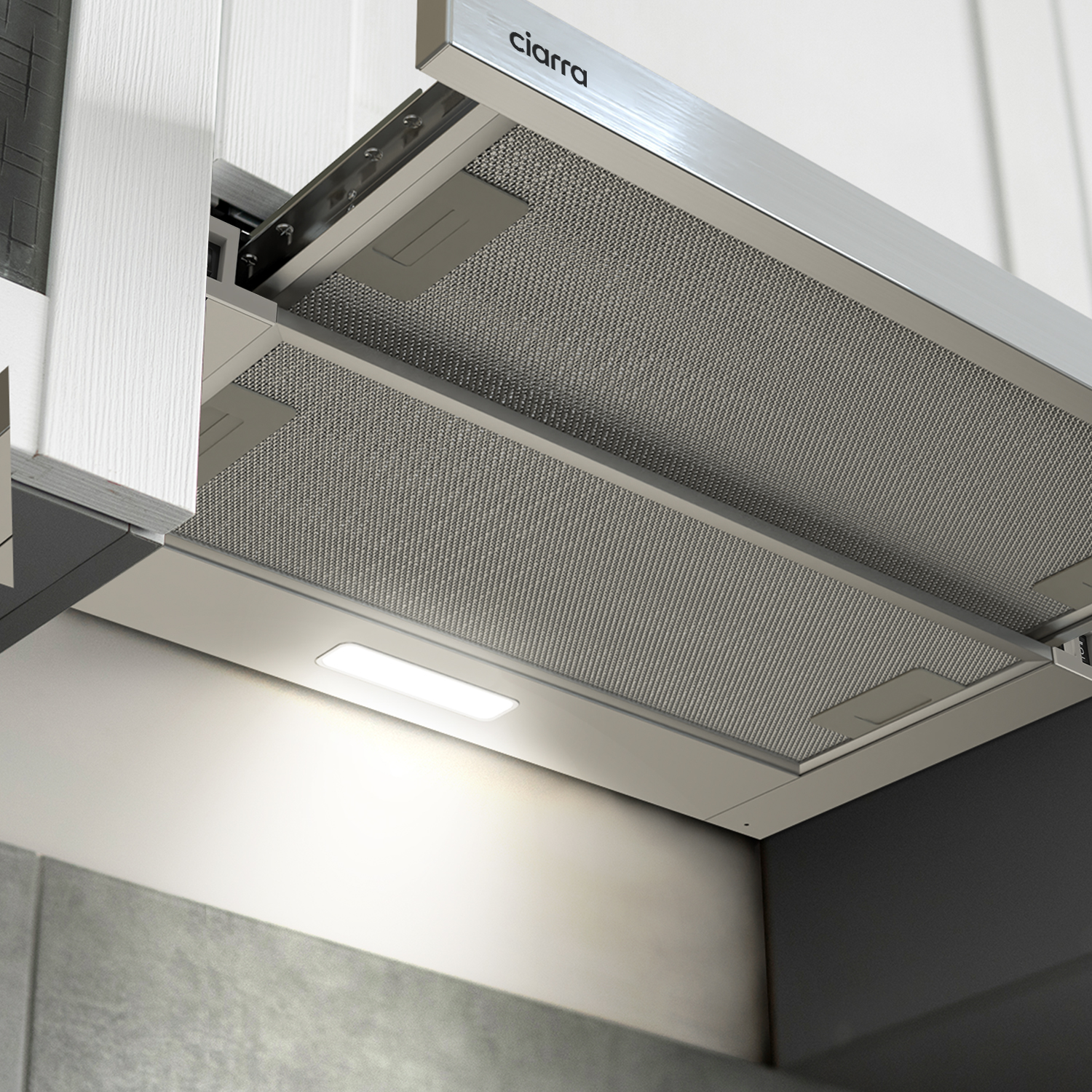

CIARRA A++ Hood 60 cm flat screen, integrated built-in hood with recirculation, 370 m³/h, stainless steel, CBCS6906D
Energy efficiency class A++
Extraction and recirculation mode
2 speed settings
Extraction power: 370 m³/h
Noise level: 61 dB(A)
LED lighting
Mechanical toggle switch
Product details
Material: Grey lacquered steel
Width: 60 cm
Motor power: 40 W
Net weight: 7.4 kg
Product dimensions (width x depth x height): 599 mm * 298~453 mm*200 mm
Voltage/Frequency: 220V-240V/50Hz
Activated carbon filter: CBCF002X2

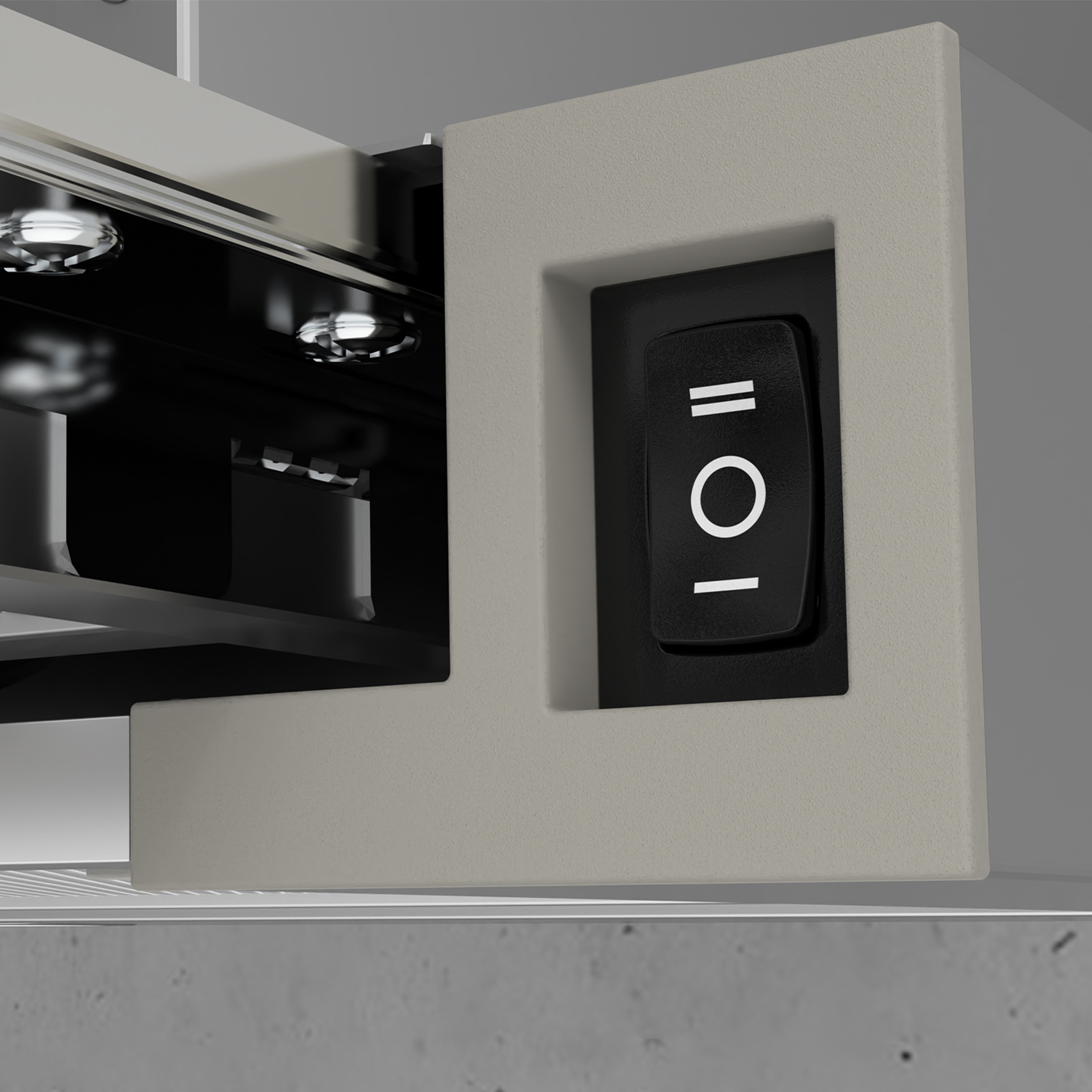

Mechanical toggle switch
Light button: On the left side of the hood.
Speed button: On the right side of the hood.
"=": High speed.
"-": Low speed.
"O": Off

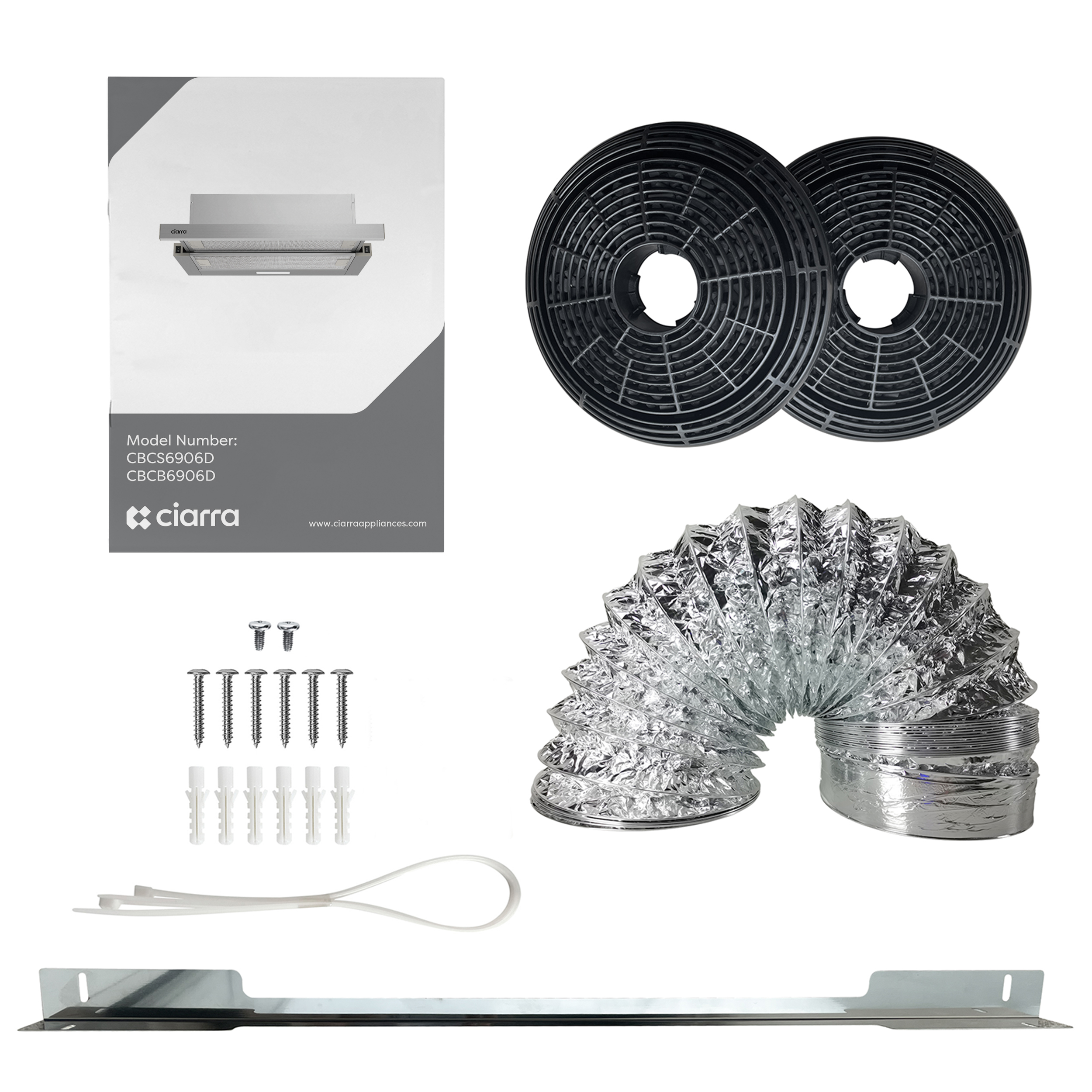

Scope of delivery
PART 1: 1 x CIARRA hood
PART 2: 1 x Screws (in bag)
PART 3: 1 x Aluminum exhaust pipe
PART 4: Cable ties x 2
PART 5: Installation manual x 1
PART 6: 1:1 Installation diagram x 1
PART 7: Hood housing x 1
PART 8: Rear bracket x 1
PART 9: Activated carbon filter x 2 (CBCF002×2)
YOU NEED THE FOLLOWING TOOLS FOR INSTALLATION:1. Protective gloves
2. Spirit level
3. Measuring tape
4. Double-sided tape or adhesive tape
5. Phillips head screwdriver set
6. Drill and 8 mm drill bit
Technical features | |
|---|---|
Product type | Hood |
Construction shape | pull-out hoods |
Discharge system | Exhaust/Convection changeable |
Maximum outgoing air flow rate | 370 m³/h |
Max. recirculation capacity | 370 m³/h |
Total power motor | 40 W |
Number of motors | 1 |
Fan levels | 2 |
Volumetric air flow | 370 m³/h |
Equipment | |
|---|---|
Filter system | Aluminum grease filter |
Odour filter | Yes |
Grease filter type | Aluminum |
Grease filter material | Aluminum |
Air circulation | 370 m³/h |
Type of control | mechanical |
Control elements | Mechanical toggle switch |
Remote control | No |
Compatible with app | No |
Light | |
|---|---|
Lamp type | LED lights |
Number of integrated lights | 1 |
Total lamp power | 1.5 W |
General Product Safety |
|---|
GTIN 6973222250291 |
Product type Hood |
Manufacturer |
|---|
Manufacturer GUANGDONG ARCAIR APPLIANCE CO.,LTD |
Contact CET PRODUCT SERVICE LTD. |
EU established No |
Address Daliang,Shunde,Foshan,Guangdong |
City Foshan,Guangdong |
Postcode 528300 |
Country China |
Address suffix No. 37 Shunxiang Road,Fengxiang Industrial Park |
Responsible person in the EU |
|---|
Manufacturer GUANGDONG ARCAIR APPLIANCE CO.,LTD |
Contact CET PRODUCT SERVICE LTD. |
City Ludwigsburg |
Postcode 71636 |
Country Germany |
Address suffix Osterholzallee 144 |
