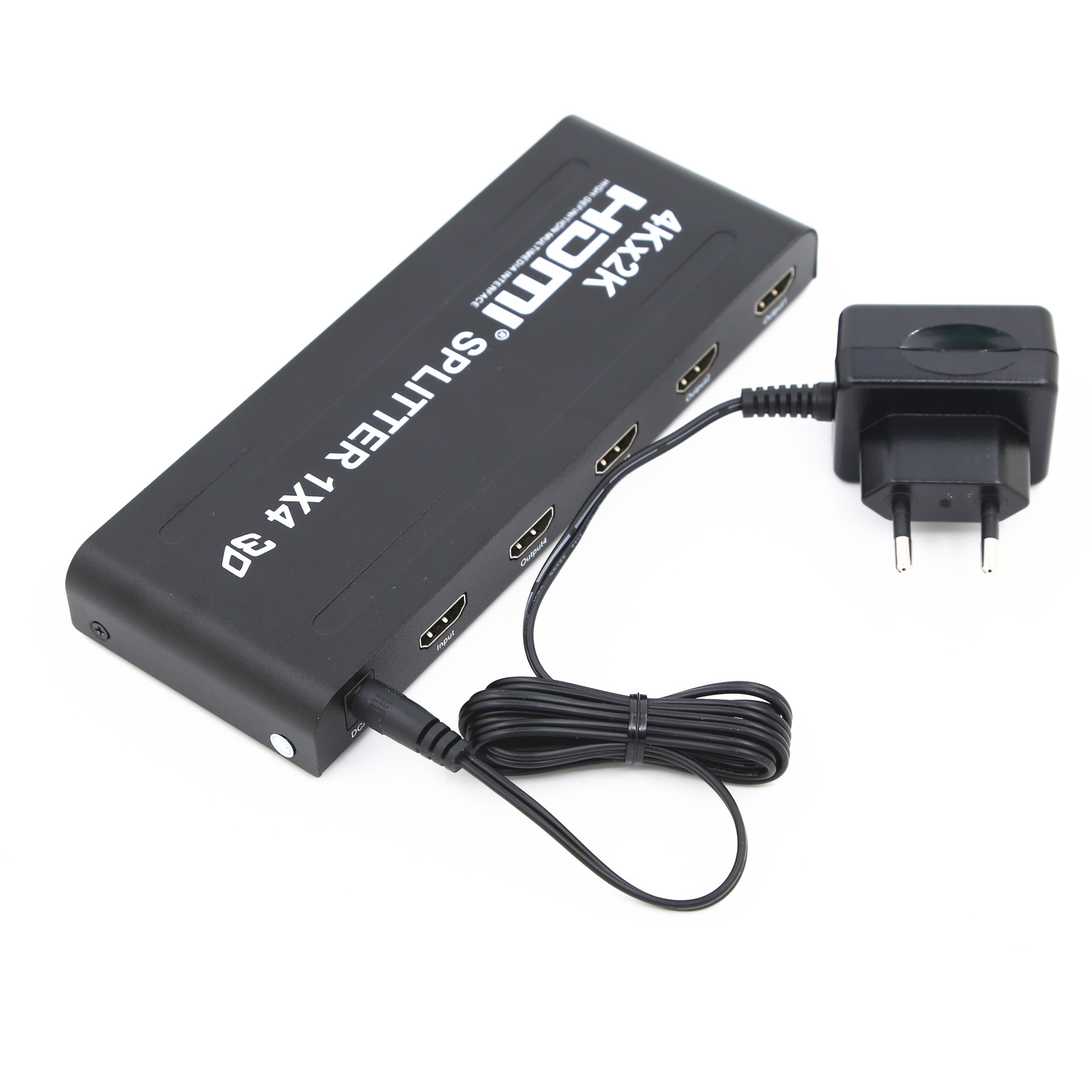

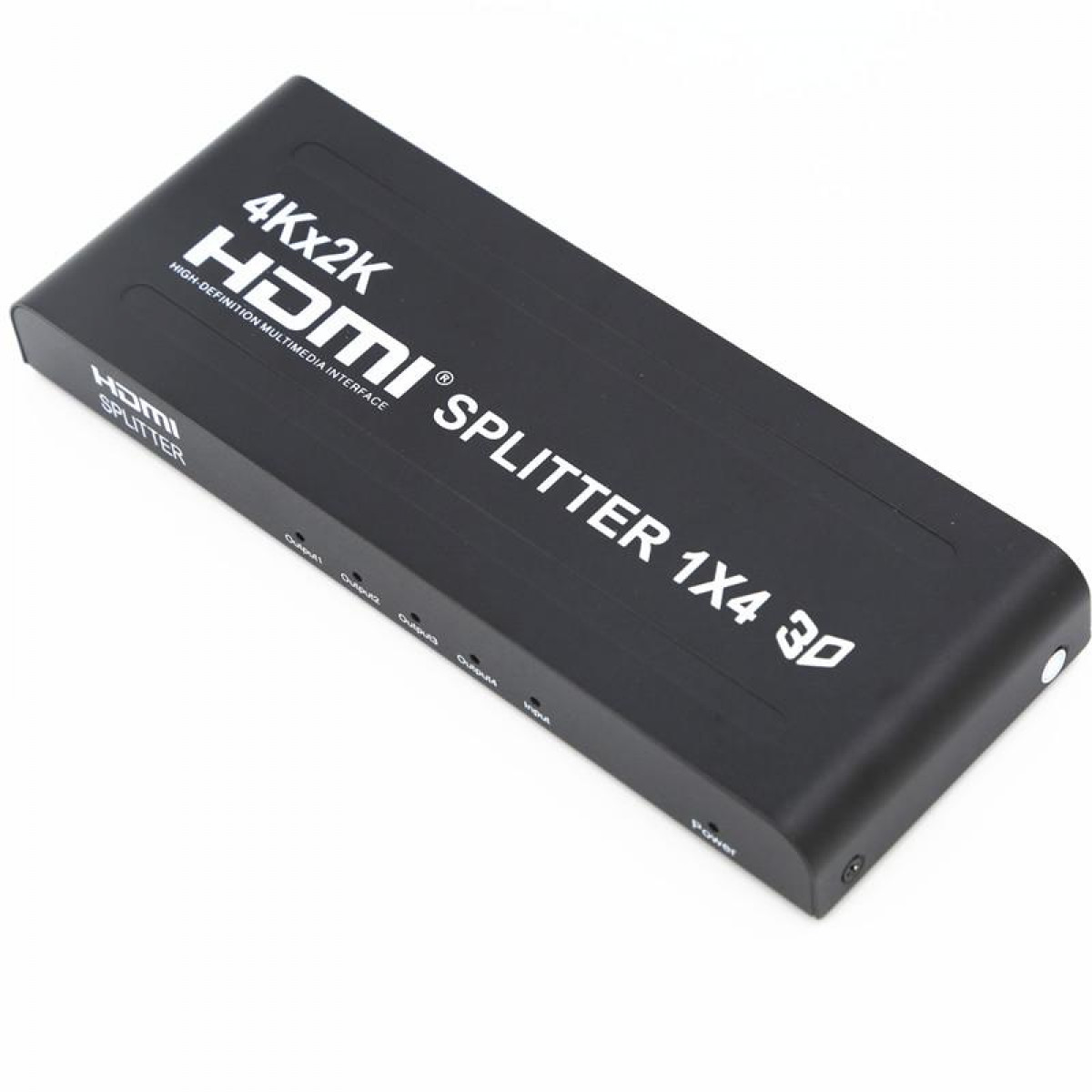

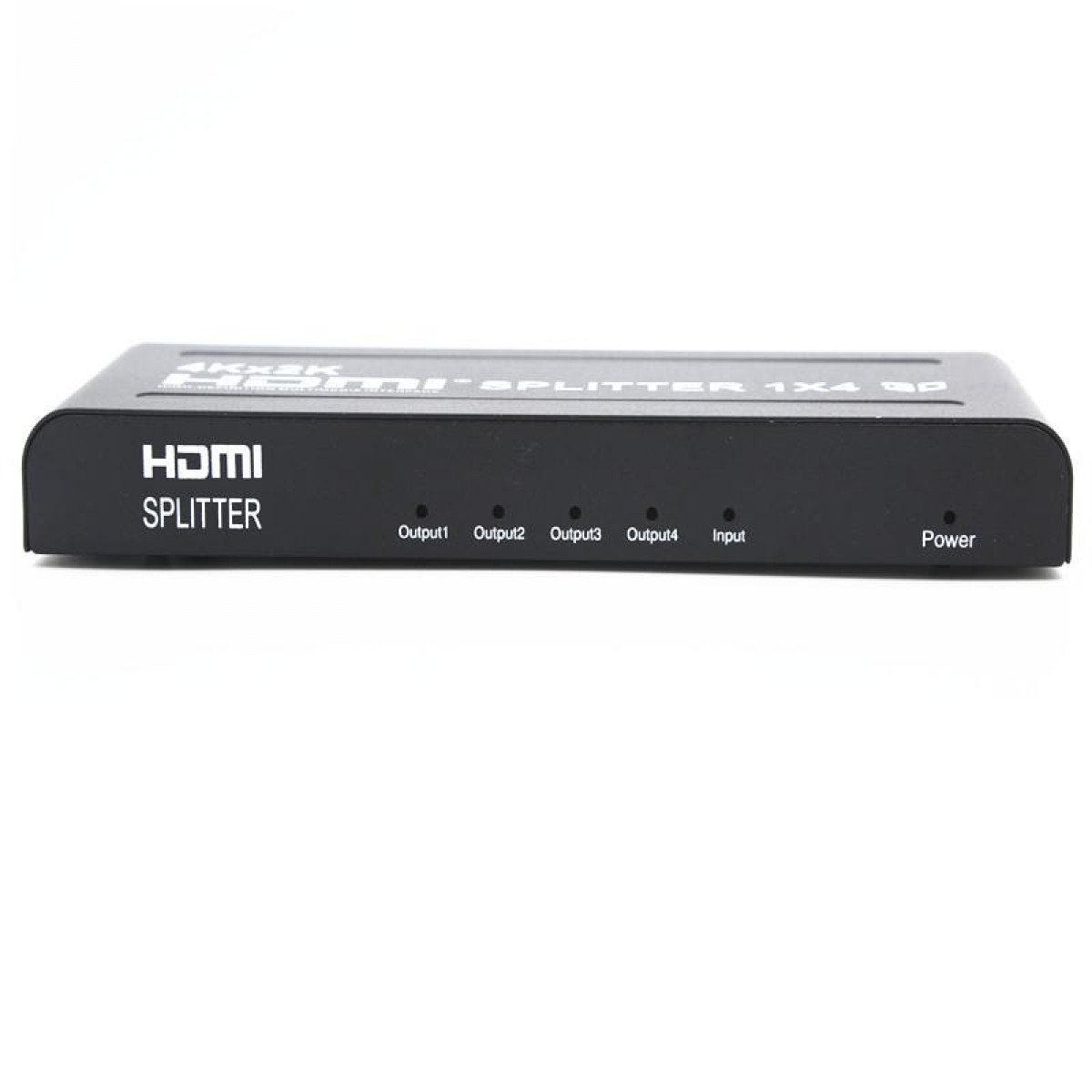

INF HDSP4-11 HDMI splitter

1x4 HDMI splitter for 4 monitors: use a single HDMI source and distribute the signal to multiple HDMI monitors. The splitter makes it easy to divide one HDMI device into four HDMI-compatible monitors or projectors. The splitter can also be placed at the end of a long HDMI cable to amplify the HDMI signal.

Standard AWG2 and h6 cables: input transmission distance is up to 15 meters and transmission distance is up to 15 meters (resolution 1080P and below).

Works for a variety of HDMI sources: simply connect the desired high-resolution signal source, e.g. DVD player, A/V receiver, digital box or computer, and mirror the content on 4 screens.



Specifications:
HDMI 1.4b
3D video format
Support HDCP
Maximum resolution up to 3840x2160 / 30Hz (4K)
TMDS 320 MHz at 3.2 G
8/10/12 bites deep color
In: 1 x HDMI
Out: 4 x HDMI
Color: black
Product dimensions: 178x67x23 mm

How to use:
1. Connect the HDMI source to the splitter (IN) with an HDMI cable
2. Connect the HDMI (UT) ports of the splitter to the monitors with 4 HMDI cables
3. Connect the 5V / 2A AC adapter to the splitter


The package contains:

1 x HDMI splitter
1 x power cable
