RESPEKTA

Art.-Nr. 94557833

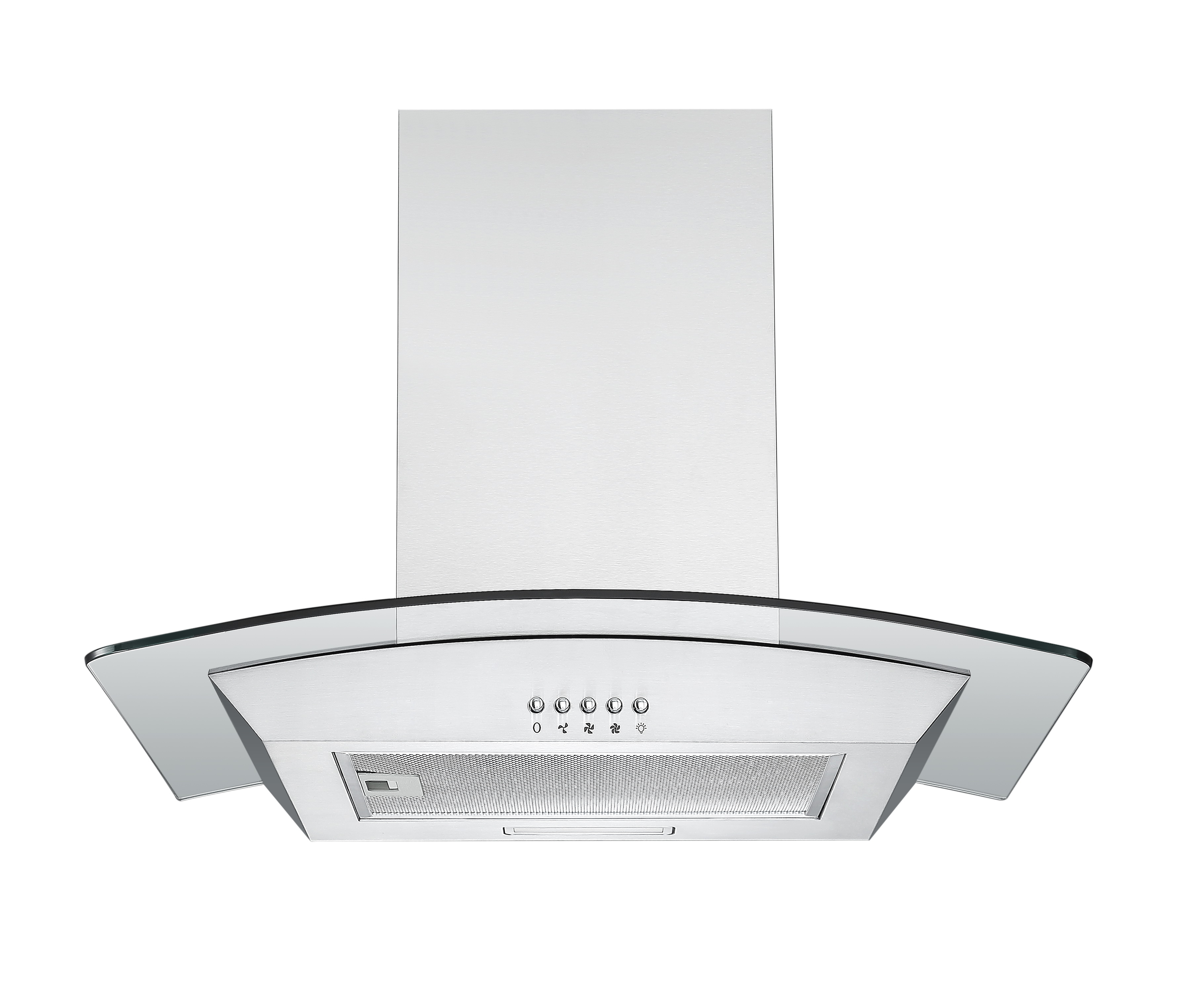

RESPEKTA CH 0160 IXB wall-mounted hood - Width 600 mm - 307 m³/h - 58 dB(A)

RESPEKTA

Art.-Nr. 94557833

Product data sheet

RRP €325.00

€169.90

incl. VAT and free shipping above €50,-

Sold and shipped by Kitchcom België

To compare
Disposal instructions (appliances, batteries, etc.)
To the technical data

Delivery to your home

Delivery 12-06-2026 - 13-06-2026

+ € 0,–

To compare
Disposal instructions (appliances, batteries, etc.)

Operating characteristics/technical data

Annual energy consumption: 27 kW/h Energy efficiency class: B Fluid dynamic efficiency: D Lighting efficiency: A Grease separation efficiency: D Airflow at min/max speed: 215.9 m³/h / 306.3 m³/h A-weighted airborne noise emission at min/max speed: 58 dB / 62 dB

Equipment features

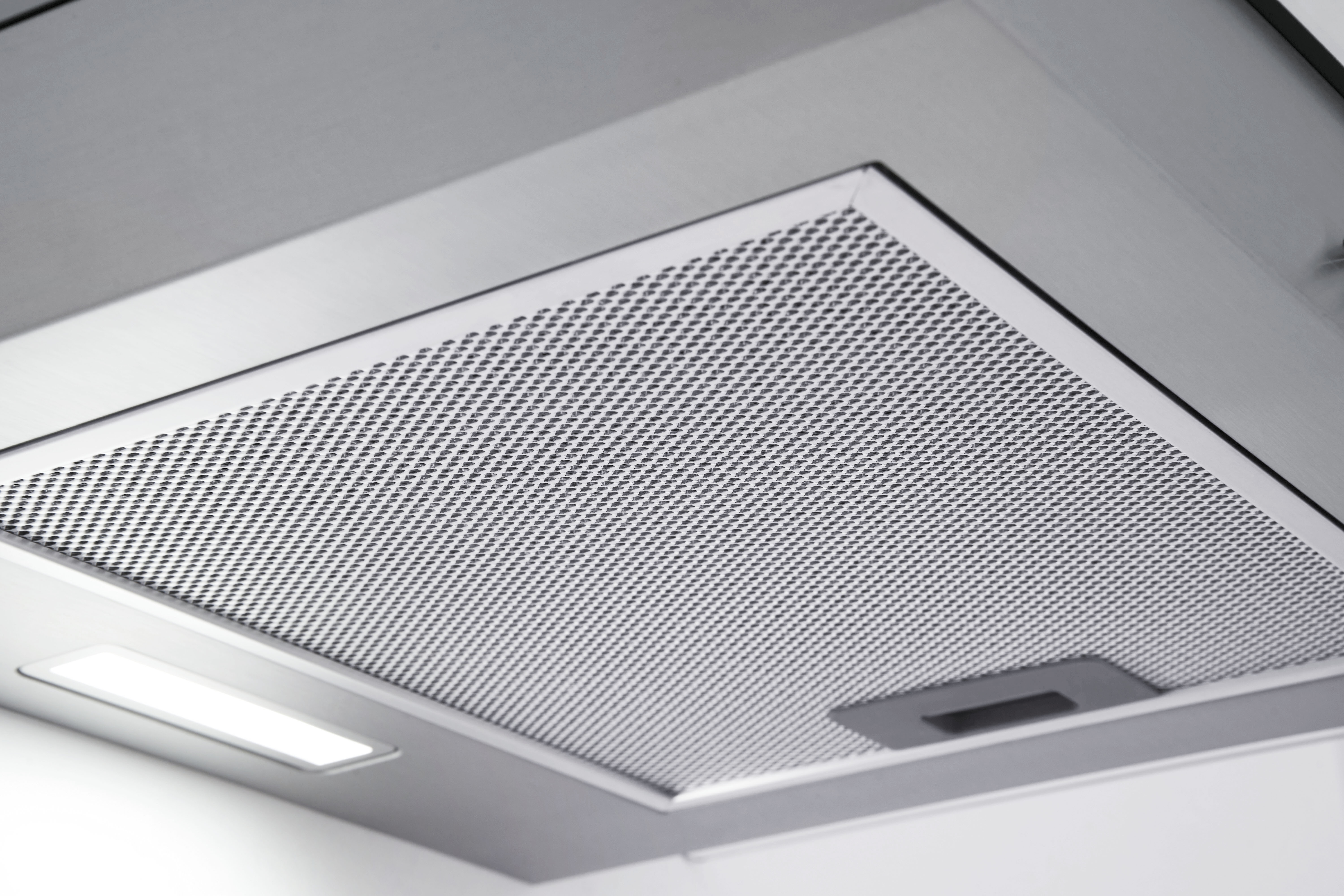

Operation via push buttons Housing and shaft (color): Stainless steel Speed levels: 3 Lighting max: 1 x 2.5 watt LED Tube connection (diameter): 150 mm Voltage / frequency: 220-240 V / 50 Hz Connected power: 67.5 watts incl. metal grease filter (washable) 1 x Active carbon filter for recirculation mode optionally available

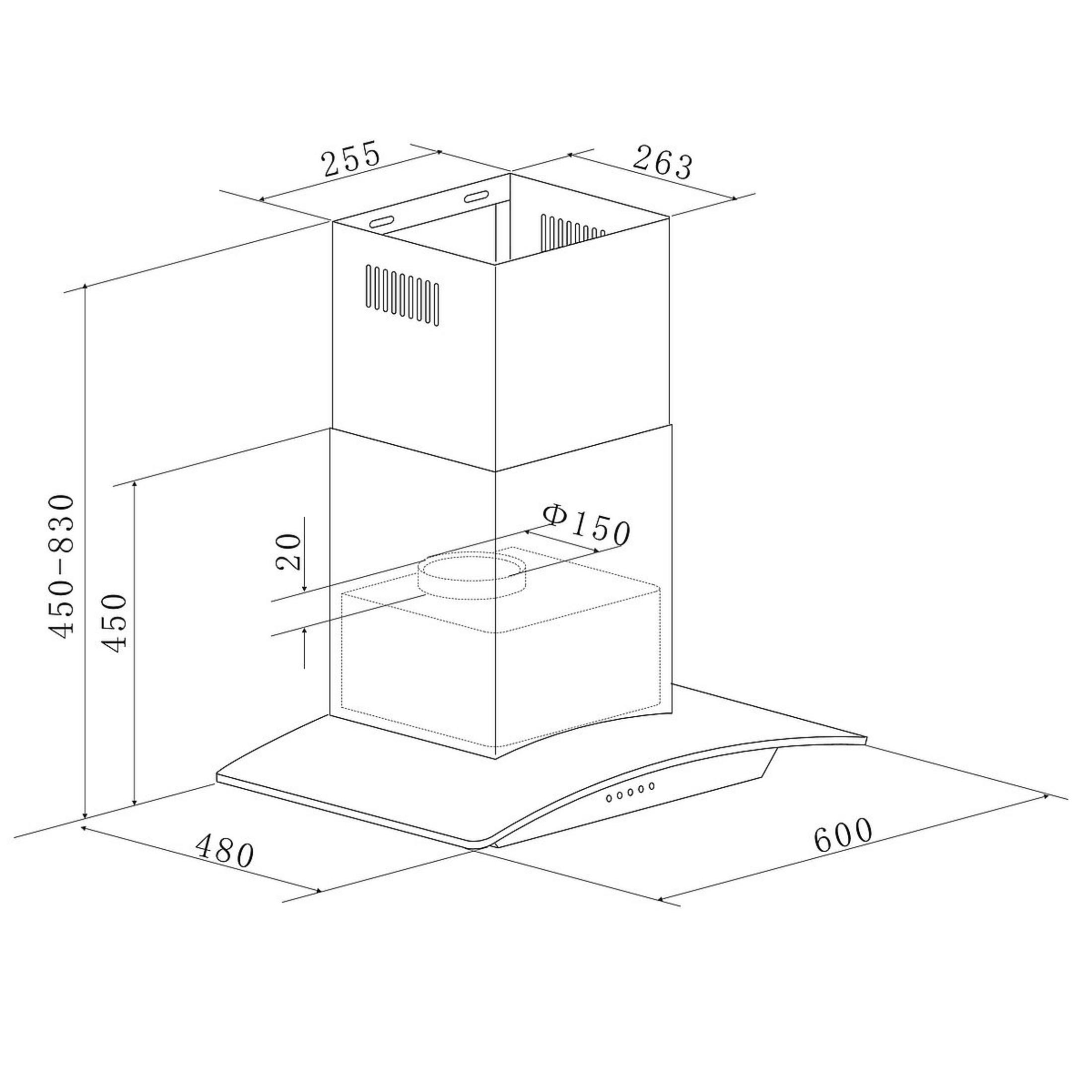

Device dimensions

Unit dimensions (H x W x D) / Weight: 45-83 x 60 x 48 cm / 10.5 kg With packaging (H x W x D) / Weight: 53.5 x 66 x 26.5 cm / 12.5 kg

Technical features

Product type

Glass hood

Construction shape

wall-mounted hood

Discharge system

Exhaust/Convection convertable (material for converting not in scope of delivery)

Maximum outgoing air flow rate

307 m³/h

Number of motors

1

Fan levels

3

Intensity level

Yes

Equipment

Filter system

Exhaust and recirculation system

Type of control

mechanical

Light

Lamp type

LED lights

Total lamp power

2 W

Total luminous intensity

32 lx

Power supply

Input voltage

220 - 240 V

Frequency

50 Hz

General features

Case material

Stainless steel

Diameter of outgoing air hose

15 cm

Niche height, minimum

45 cm

Niche height, maximum

83 cm

Width

600 mm

Max. flue height

830 mm

Min. flue height

450 mm

Depth

480 mm

Color (by manufacturer)

silver

Weight

10.5 kg

Power cable included

Yes

Packsize

660 mm / 535 mm / 265 mm

Manufacturer guarantee

0 Year

General Product Safety

GTIN

4260515330320

Product type

Glass hood

Manufacturer

Manufacturer

NEG Novex GmbH

Contact

NEG Novex GmbH

Website

www.respekta.de

E-mail

[email protected]

EU established

Yes

Address

Chenover Straße 5

City

Limburgerhof

Postcode

67117

Country

Germany

Address suffix

Chenover Straße 5
