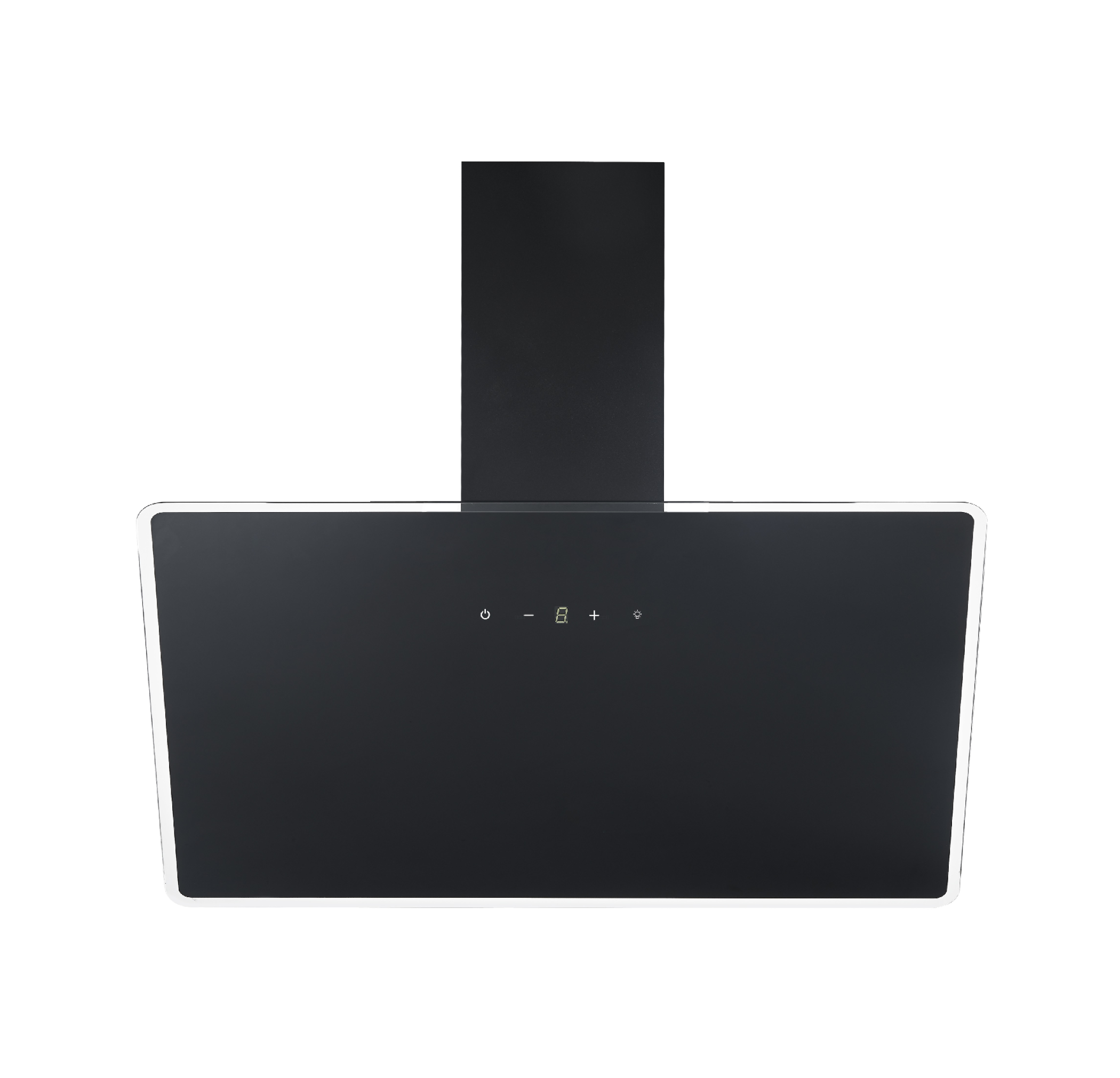

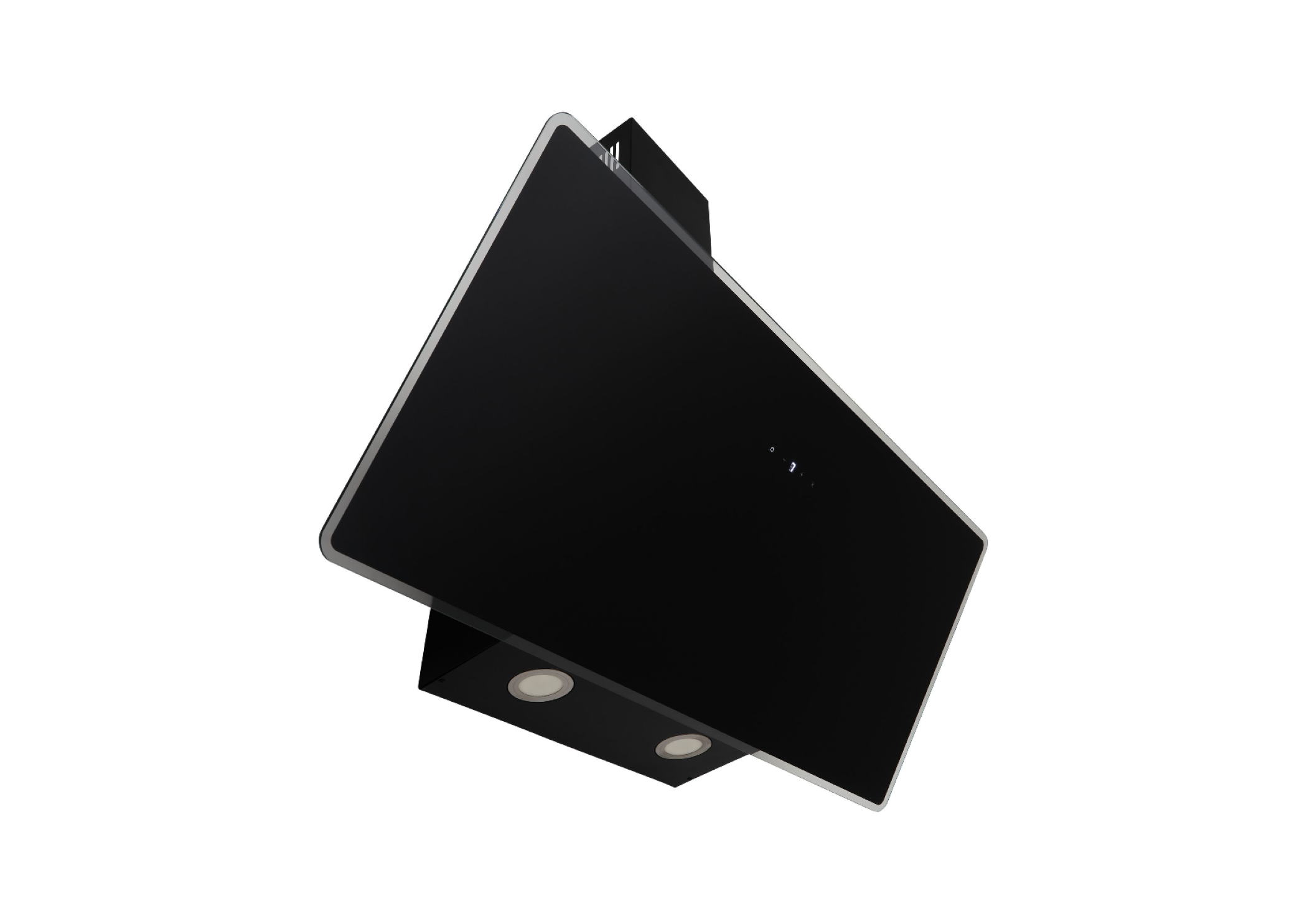

RESPEKTA CH 112090 S head free dome - Width 895 mm - 479.8 m³/h - 39 dB(A)

Operating characteristics/technical data:

Annual energy consumption: 11.1 kW/h Energy efficiency class: A++ Fluid dynamic efficiency: 29.5 Fluid dynamic efficiency class: A Lighting efficiency: 29.3 lux/watt Lighting efficiency class: A Grease separation efficiency: 76.1 Grease separation efficiency class: C Airflow at min/max speed: 207.2 m³/h / 479.8 m³/h A-weighted airborne noise emission at min/max speed: 39 dB / 59 dB

Equipment features:

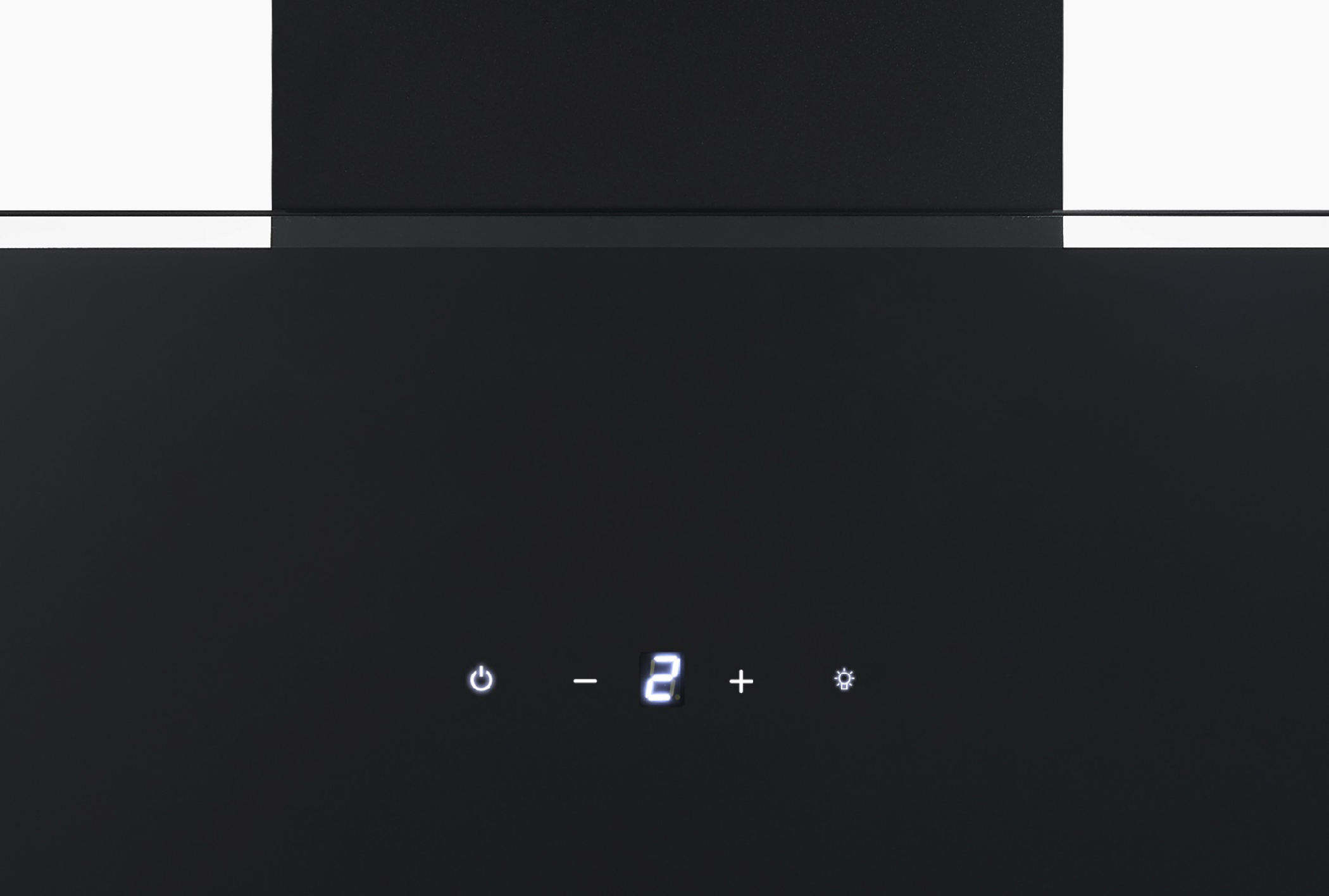

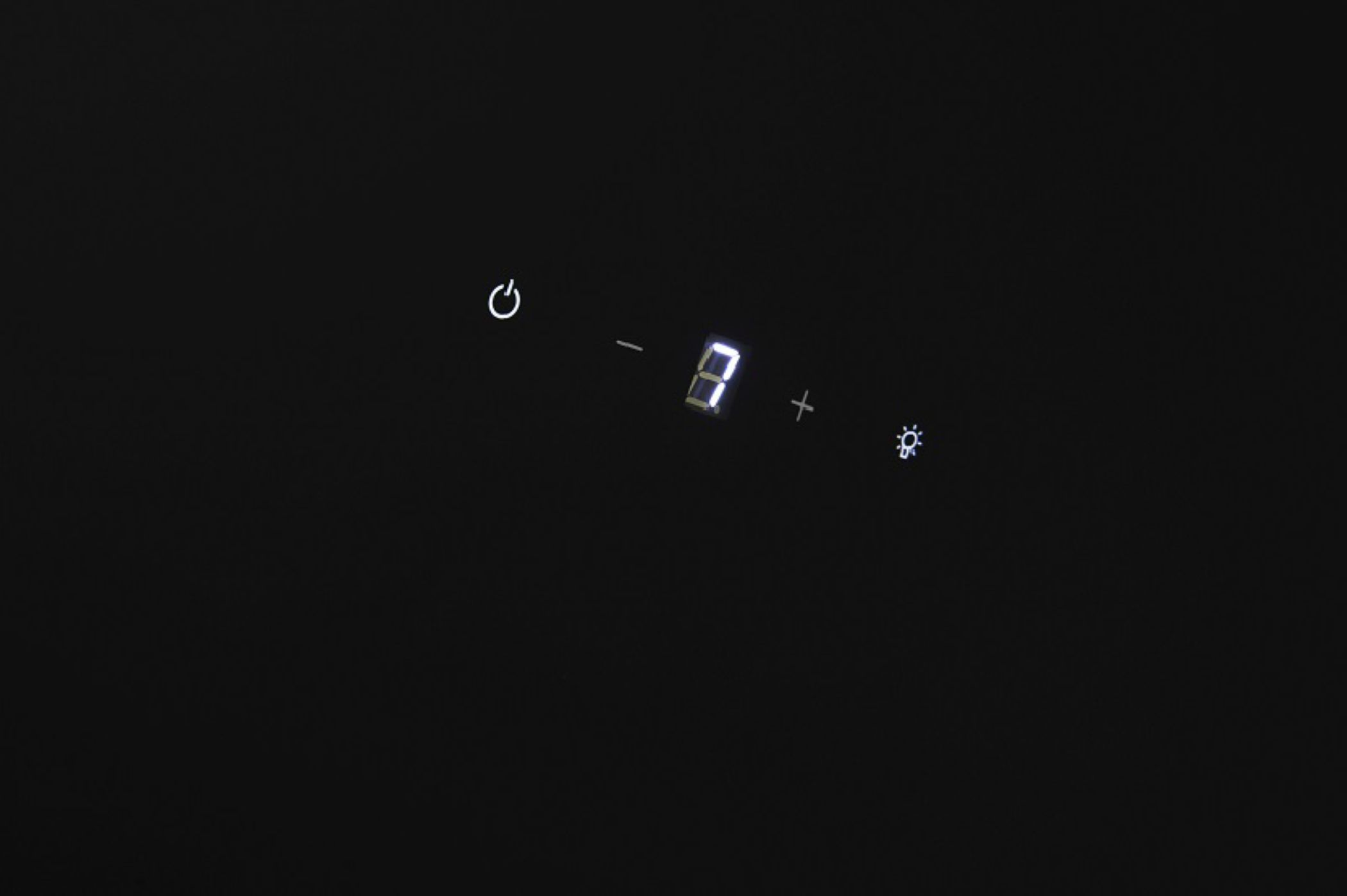

Operation via touch control Housing and shaft (color): black With glass cover in black with transparent edge Power levels: 3 Lighting max: 2 x 1.5 watt LED Tube connection (diameter): 150 mm Voltage / frequency: 220-240 V / 50 Hz Connected power: 73 watt Cable length: 1200 mm incl. metal grease filter (washable) Active carbon filter for recirculation mode optionally available

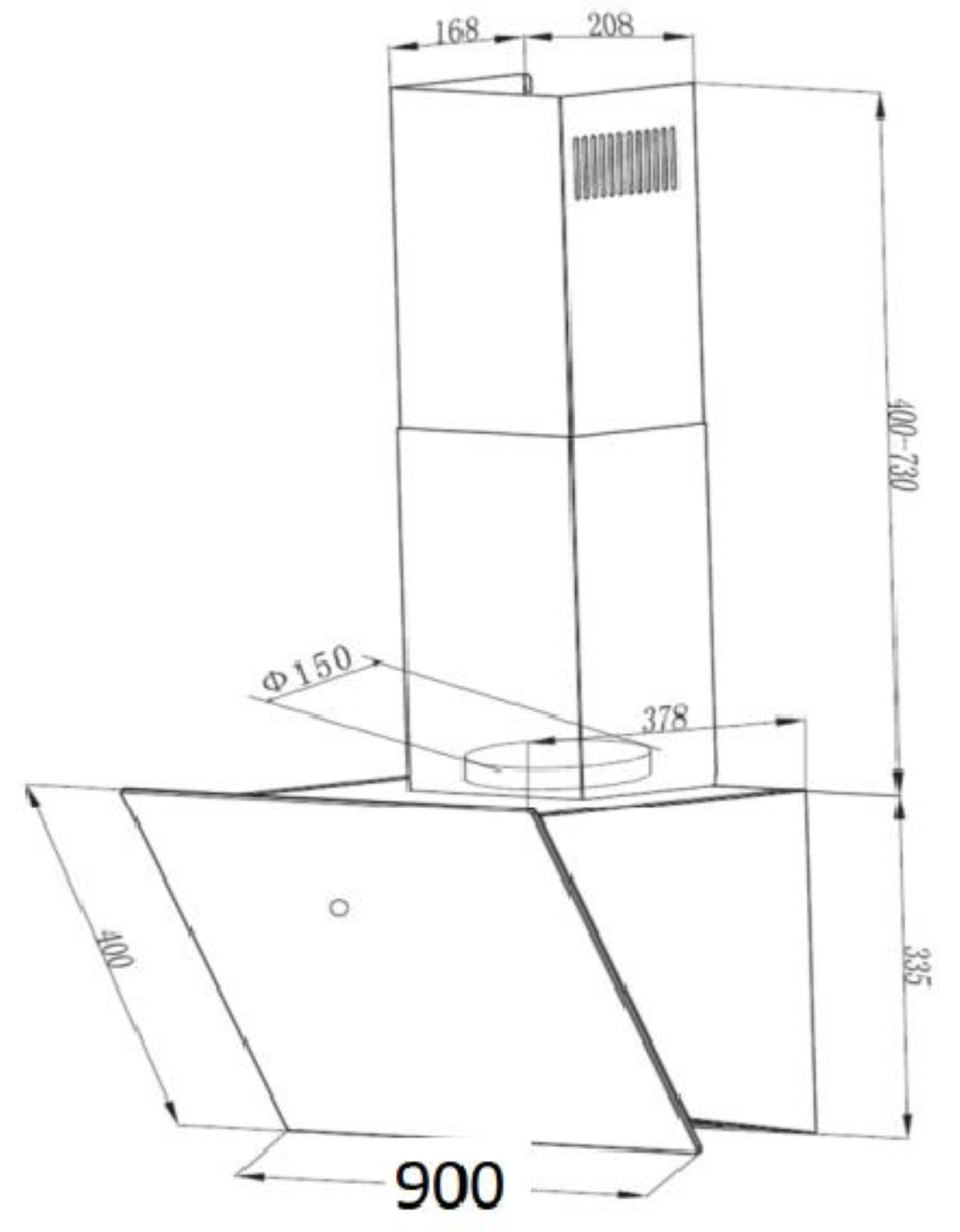

Dimensions

: Unit dimensions (H x W x D) / Weight: 74.8 - 109.8 x 89.5 x 38.5 cm / 11.6 kg With packaging (H x W x D) / Weight: 44 x 91.5 x 41.5 cm / 15.2 kg
