RESPEKTA
Art.-Nr. 101562735

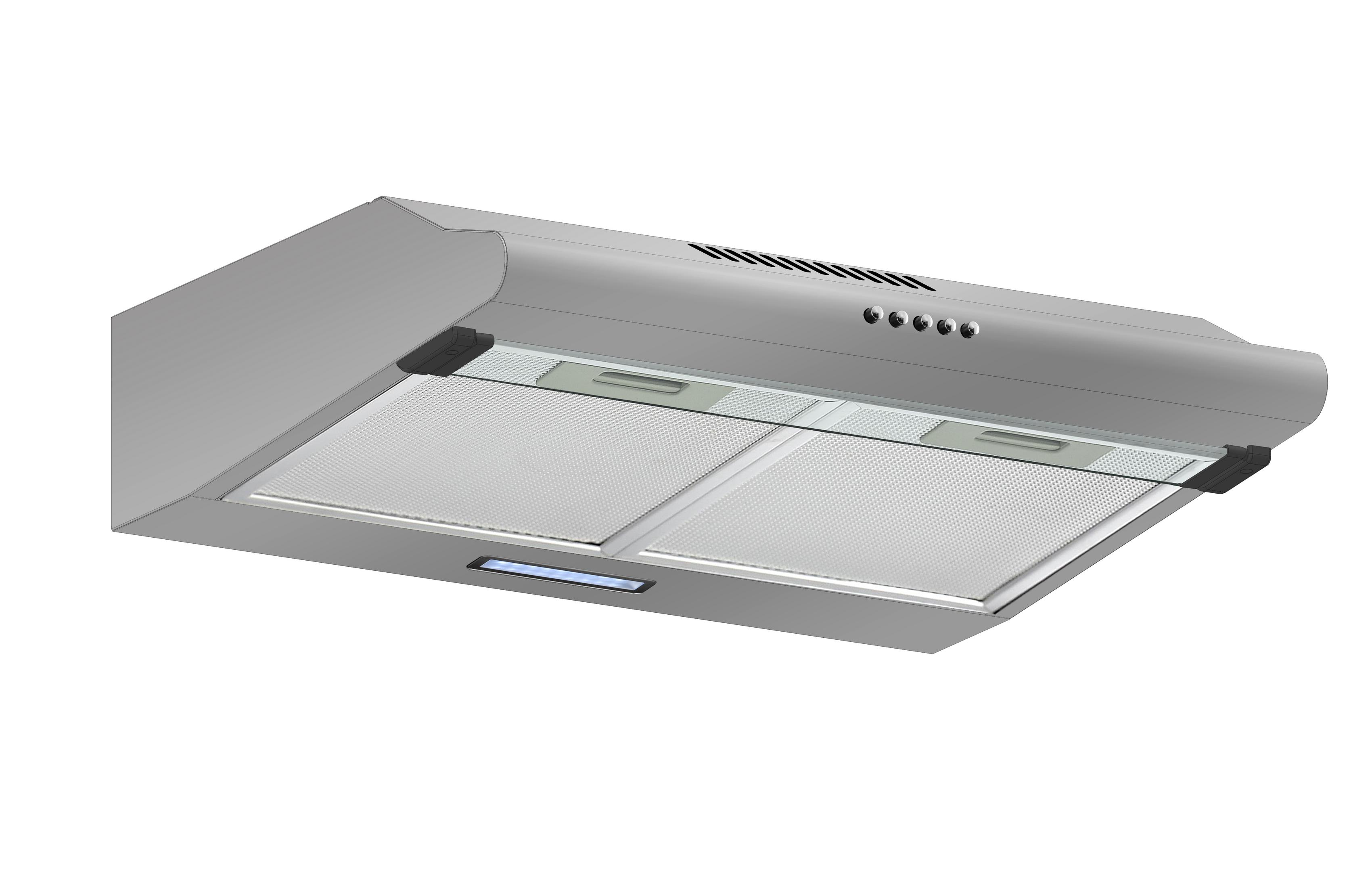

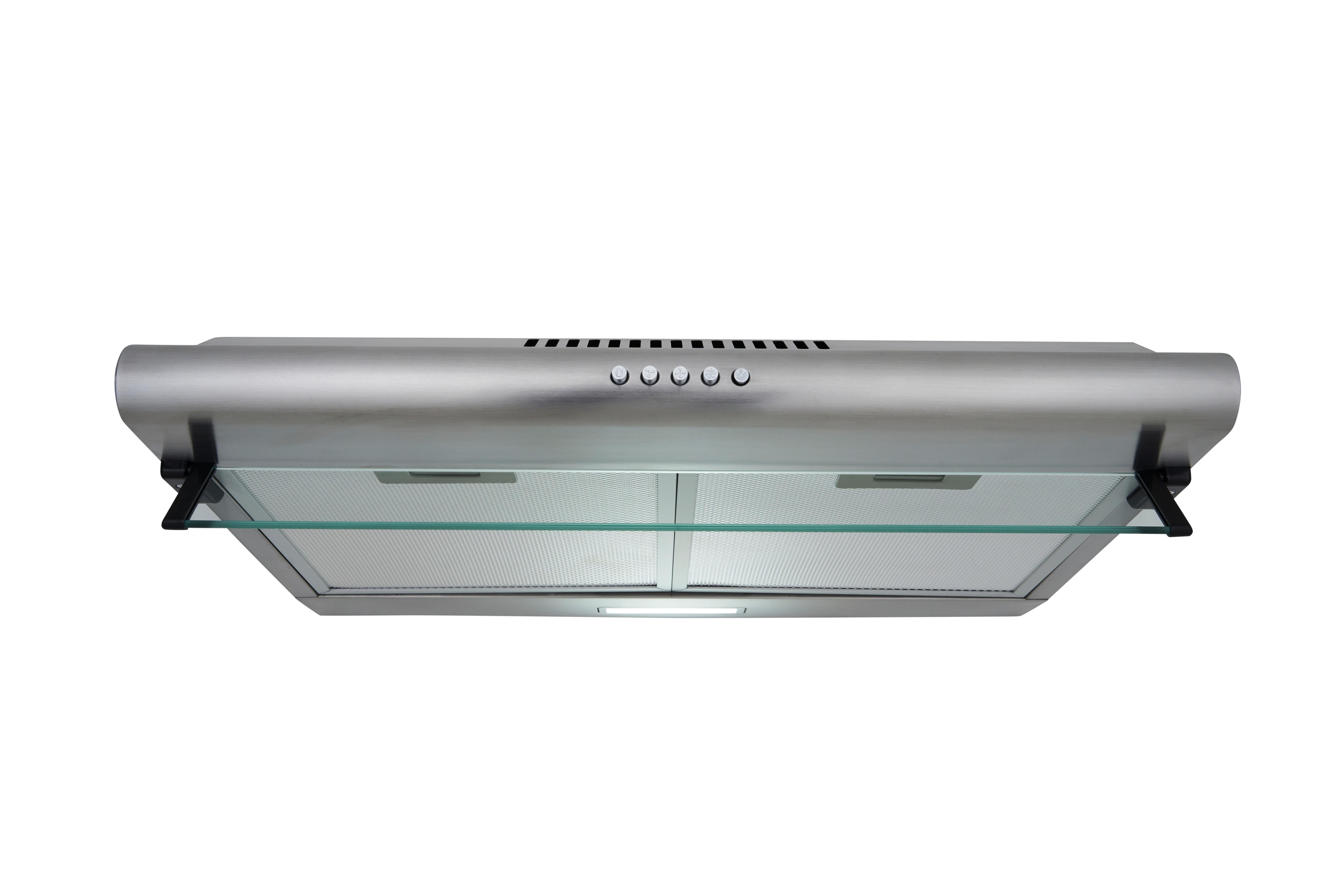

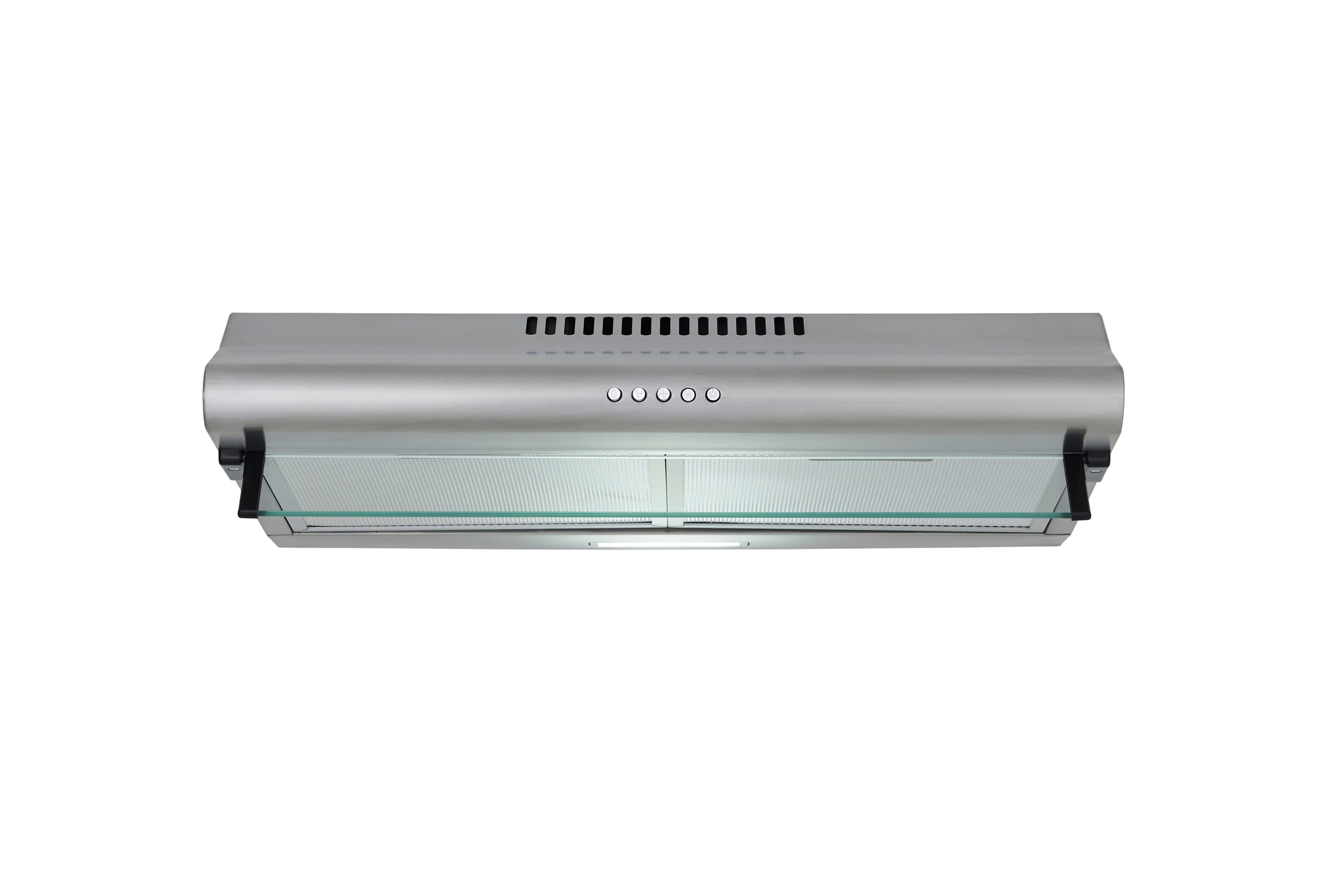

RESPEKTA CH 1259 IXCN base hood - Width 600 mm - 204.6 m³/h - 45 dB(A)
Delivery to your home
Delivery 12-06-2026 - 13-06-2026
+ € 0,–
Operating characteristics/technical data:
Annual energy consumption: 27 kWh/year Energy efficiency class: B Fluid dynamic efficiency: D Lighting efficiency: A Grease separation efficiency: E Air flow at min/max speed: 112.3 m³h / 204.6 m³h A-weighted airborne noise emission at min/max speed: 45 dB / 61 dBEquipment features:

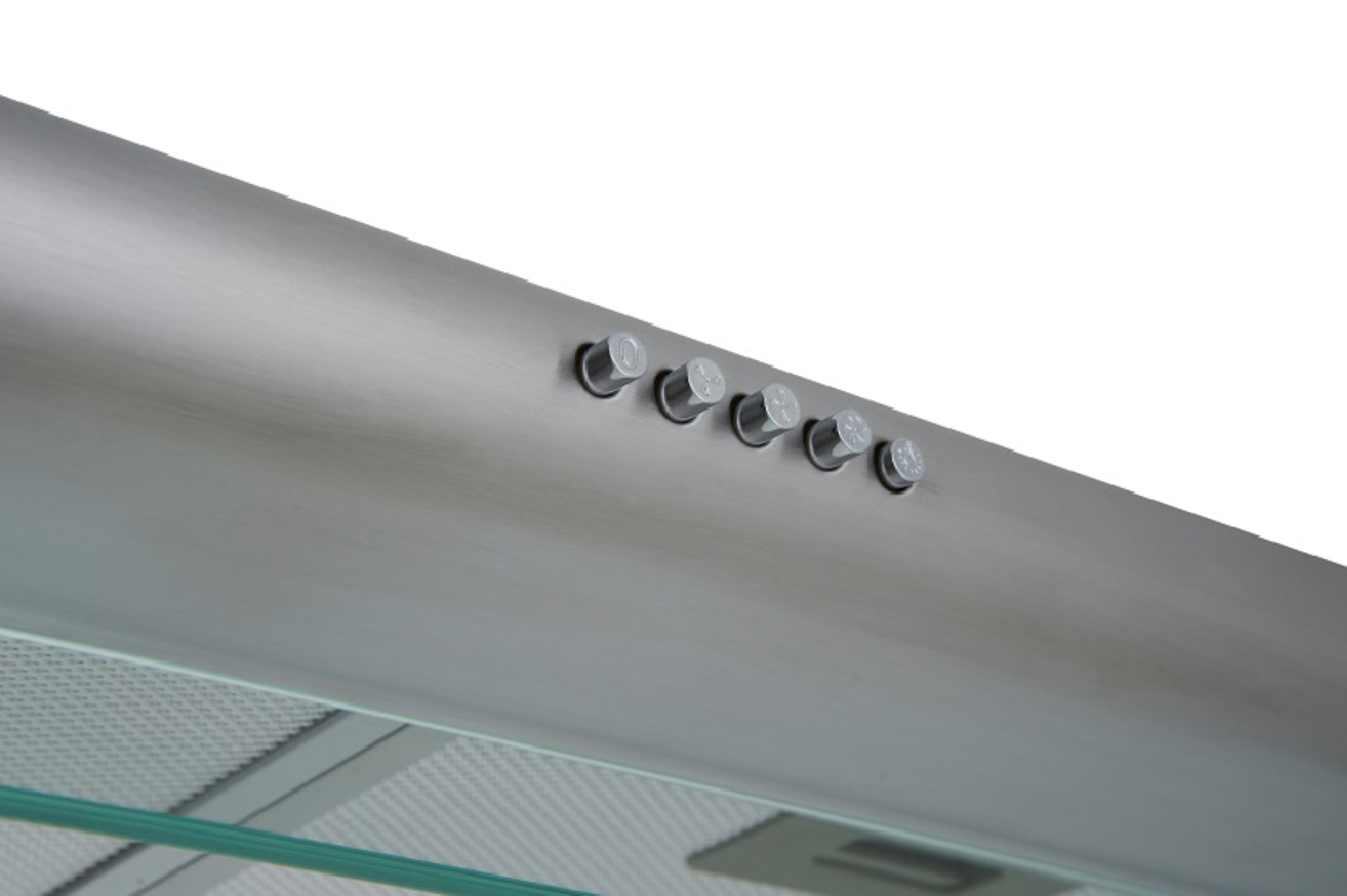

Push-button operation Housing: stainless steel With glass screen Speed levels: 3 Lighting max: 1 x 2 watt LED Pipe connection (diameter): Ø 120 mm Voltage / frequency: 220-240 V / 50 Hz Connected power: 72 watts Cable length: 135 cm incl. metal grease filter (washable) 2 x MIZ1259IXCN Active carbon filter for recirculation mode optionally availableDimensions

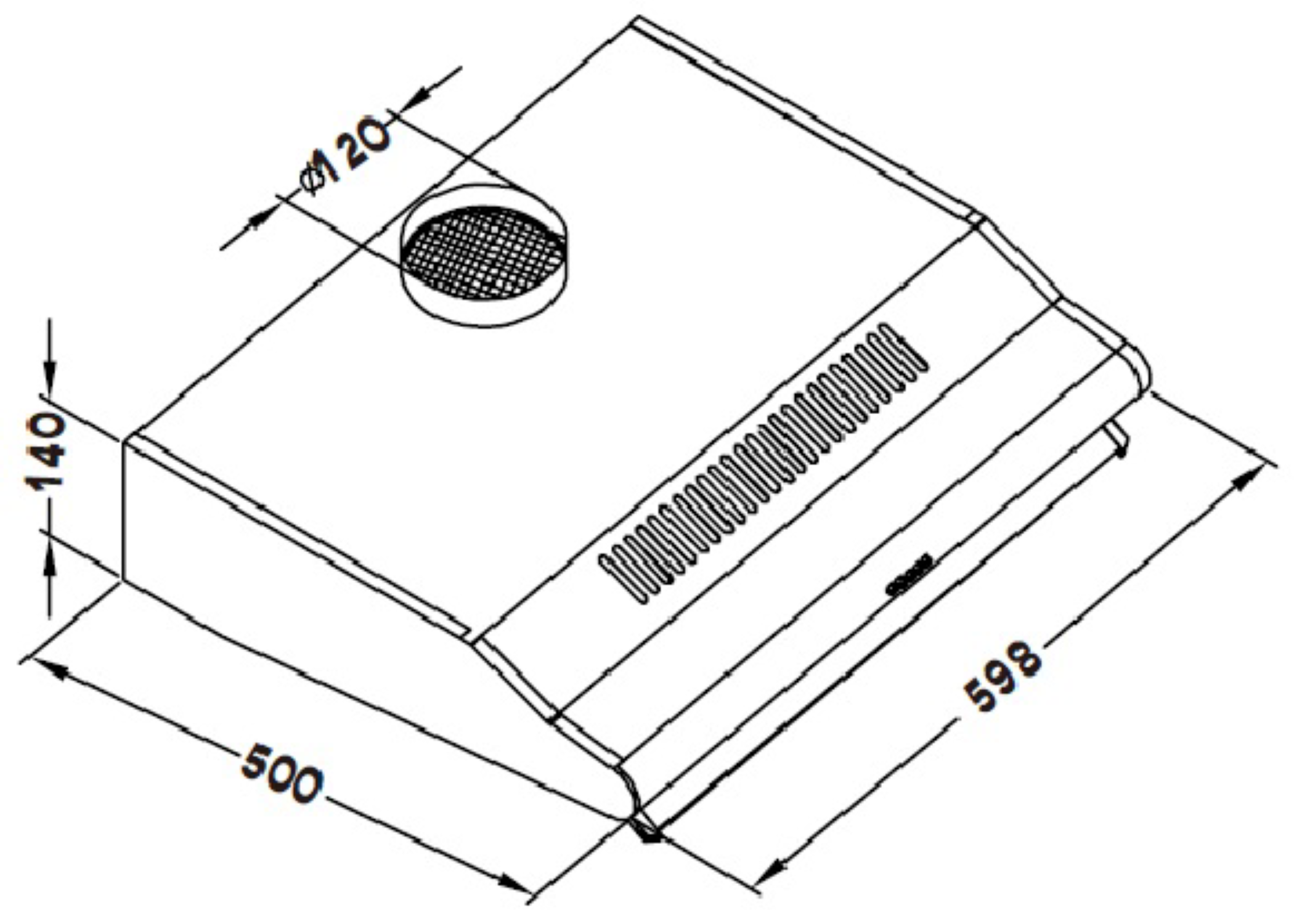

: Unit dimensions (H x W x D) / weight: 14 x 59.8 x 50 cm / 5.2 kg With packaging (H x W x D) / Weight: 18.5 x 65 x 56.5 cm / 6.3 kgTechnical features | |
|---|---|
Product type | Engine cover for under cabinet |
Construction shape | base hood |
Discharge system | Exhaust/Convection convertable (material for converting not in scope of delivery) |
Maximum outgoing air flow rate | 204.6 m³/h |
Total power motor | 70 W |
Decorable | not applicable |
Fan levels | 3 |
Intensity level | No |
Equipment | |
|---|---|
Filter system | Exhaust air |
Odour filter | No |
Grease filter material | Metall |
Type of control | mechanical |
Indication replace grease filter | No |
Remote control | No |
Compatible with app | No |
Light | |
|---|---|
Lamp type | LED lights |
Number of integrated lights | 1 |
Total lamp power | 2 W |
Power supply | |
|---|---|
Input voltage | 220-240 V |
Frequency | 50 Hz |
General Product Safety |
|---|
GTIN 4260515336957 |
Product type Engine cover for under cabinet |
Manufacturer |
|---|
Manufacturer NEG Novex GmbH |
Contact NEG Novex GmbH |
Website www.respekta.de |
EU established Yes |
Address Chenover Straße 5 |
City Limburgerhof |
Postcode 67117 |
Country Germany |
Address suffix Chenover Straße 5 |
