RESPEKTA

Art.-Nr. 94557887

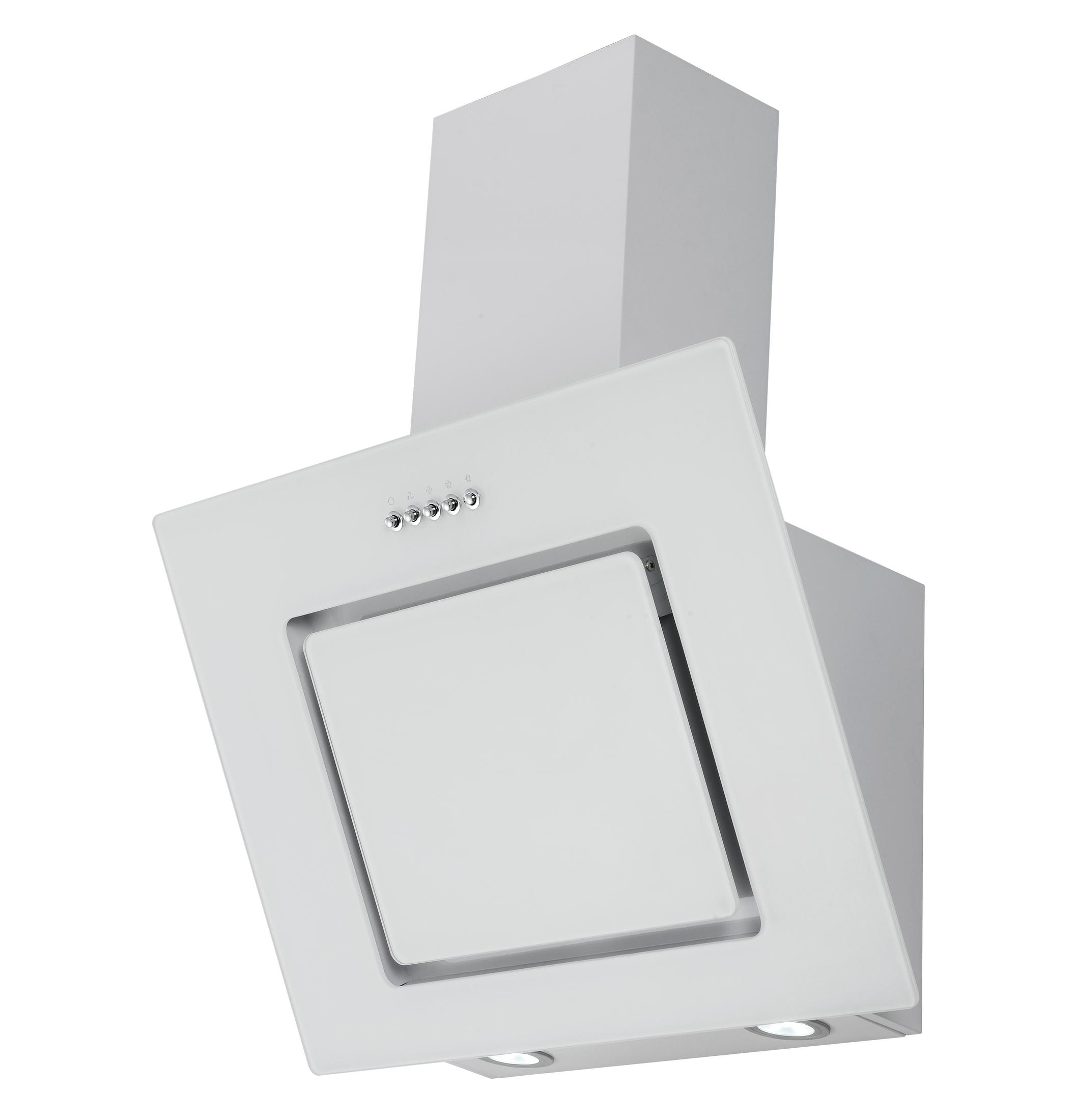

RESPEKTA CH 22010 WBZ head free dome - Width 60 cm - 377 m³/h - 54 dB(A)

RESPEKTA

Art.-Nr. 94557887

Product data sheet

RRP €415.00

€195.90

incl. VAT and free shipping above €50,-

Sold and shipped by Kitchcom België

To compare
Disposal instructions (appliances, batteries, etc.)
To the technical data

Delivery to your home

Delivery 12-06-2026 - 13-06-2026

+ € 0,–

To compare
Disposal instructions (appliances, batteries, etc.)

Operating characteristics/technical data

Annual energy consumption: 35.2 kW/h Energy efficiency class: B Fluid dynamic efficiency: D Lighting efficiency: A Grease separation efficiency: D Airflow at min/max speed: 213 m³/h / 377 m³/h A-weighted airborne noise emission at min/max speed: 54 dB / 62 dB

Equipment features

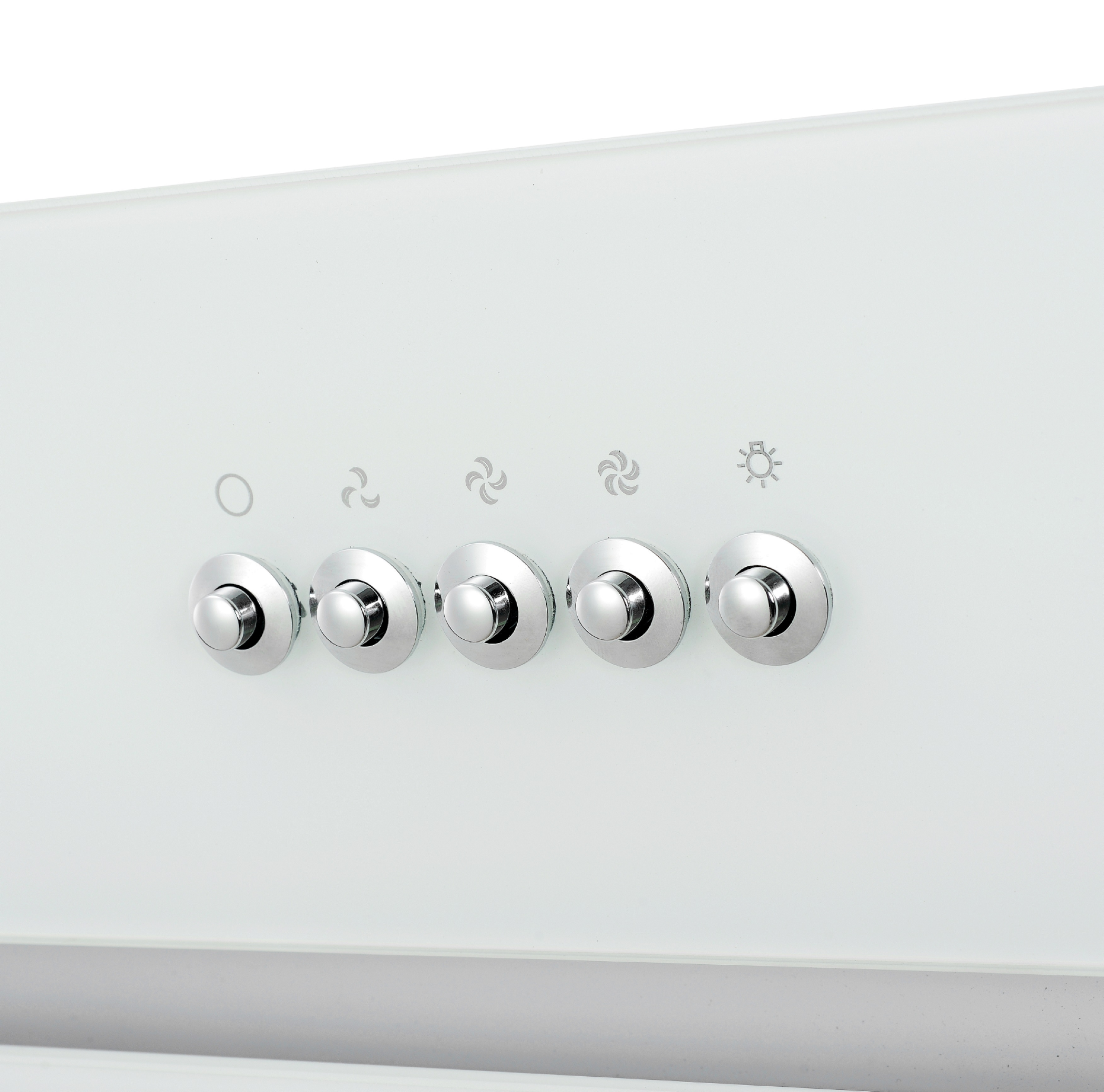

Push button operation Glass panel: white Body and shaft (color): white Speed levels: 3 Lighting max: 2 x 1.0 watt LED Tube connection (diameter): 150 mm Voltage / frequency: 220-240 V / 50 Hz Connected power: 70 watts incl. metal grease filter (washable) 1 x Active carbon filter required 1 x (optionally available)

Device dimensions

Device dimensions (H x W x D) / Weight: 73.9 - 119.9 x 60 x 34 cm / 9.8 kg With packaging (H x W x D) / Weight: 39.2 x 64.8 x 46.2 cm / 11.7 kg

Technical features

Product type

Angled extractor hood

Construction shape

head free dome

Discharge system

Exhaust/Convection convertable (material for converting not in scope of delivery)

Maximum outgoing air flow rate

377 m³/h

Number of motors

1

Decorable

not applicable

Fan levels

3

Intensity level

No

Fan position

Internal motor in the housing

Volumetric air flow

377 m³/h

Equipment

Filter system

Exhaust and recirculation system

Odour filter

No

Backflow flap

No

Brushless motor

No

Type of control

mechanical

Indication replace grease filter

No

Remote control

No

Compatible with app

No

Light

Lamp type

LED lights

Total lamp power

2 W

General Product Safety

GTIN

4260683870376

Product type

Angled extractor hood

Manufacturer

Manufacturer

NEG Novex GmbH

Contact

NEG Novex GmbH

Website

www.respekta.de

E-mail

[email protected]

EU established

Yes

Address

Chenover Straße 5

City

Limburgerhof

Postcode

67117

Country

Germany

Address suffix

Chenover Straße 5
