RESPEKTA
Art.-Nr. 94586486
RESPEKTA CH 4138 IXC base hood - Width 60 cm - 53 dB(A)
RESPEKTA
Art.-Nr. 94586486
Delivery 23-06-2026 - 24-06-2026
+ € 0,–
Operating characteristics/technical data
Annual energy consumption: 32 kWh / year Energy efficiency class: C Fluid dynamic efficiency: E Lighting efficiency: A Grease separation efficiency: F Airflow at min/max speed: 124 m³/h - 213 m³/h A-weighted airborne noise emission at min/max speed: 53 dB / 64 dBEquipment features
Operation via rocker switch Material: Painted sheet steel Speed levels: 3 Lighting max: 1 x 2 watt LED Tube connection (diameter): 120 mm Voltage / frequency: 230 V / 50 Hz Connected load: 62 watts Incl. metal grease filter 1x (already included and washable) Active carbon filter mat for recirculation mode 1x optionally availableDevice dimensions

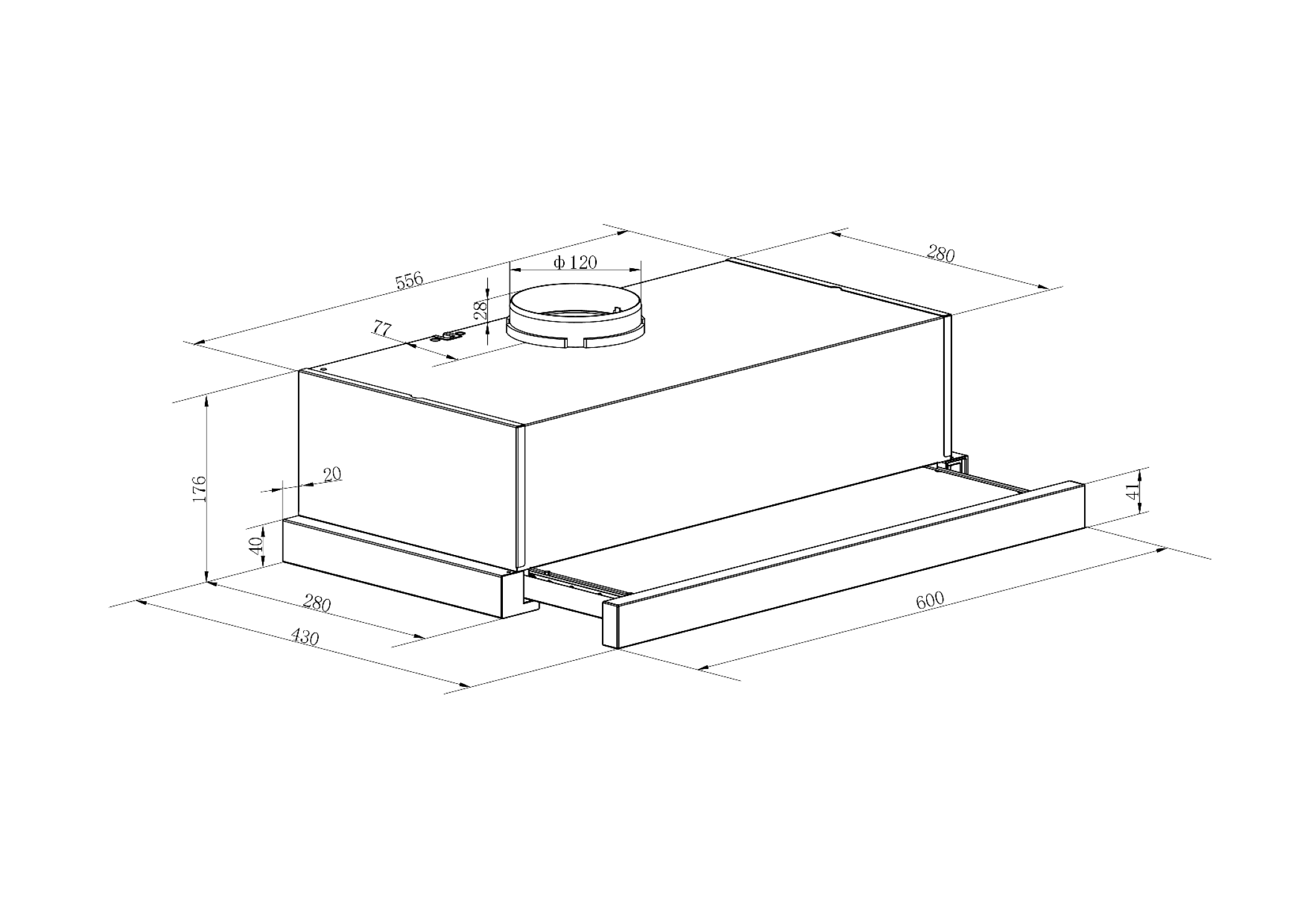

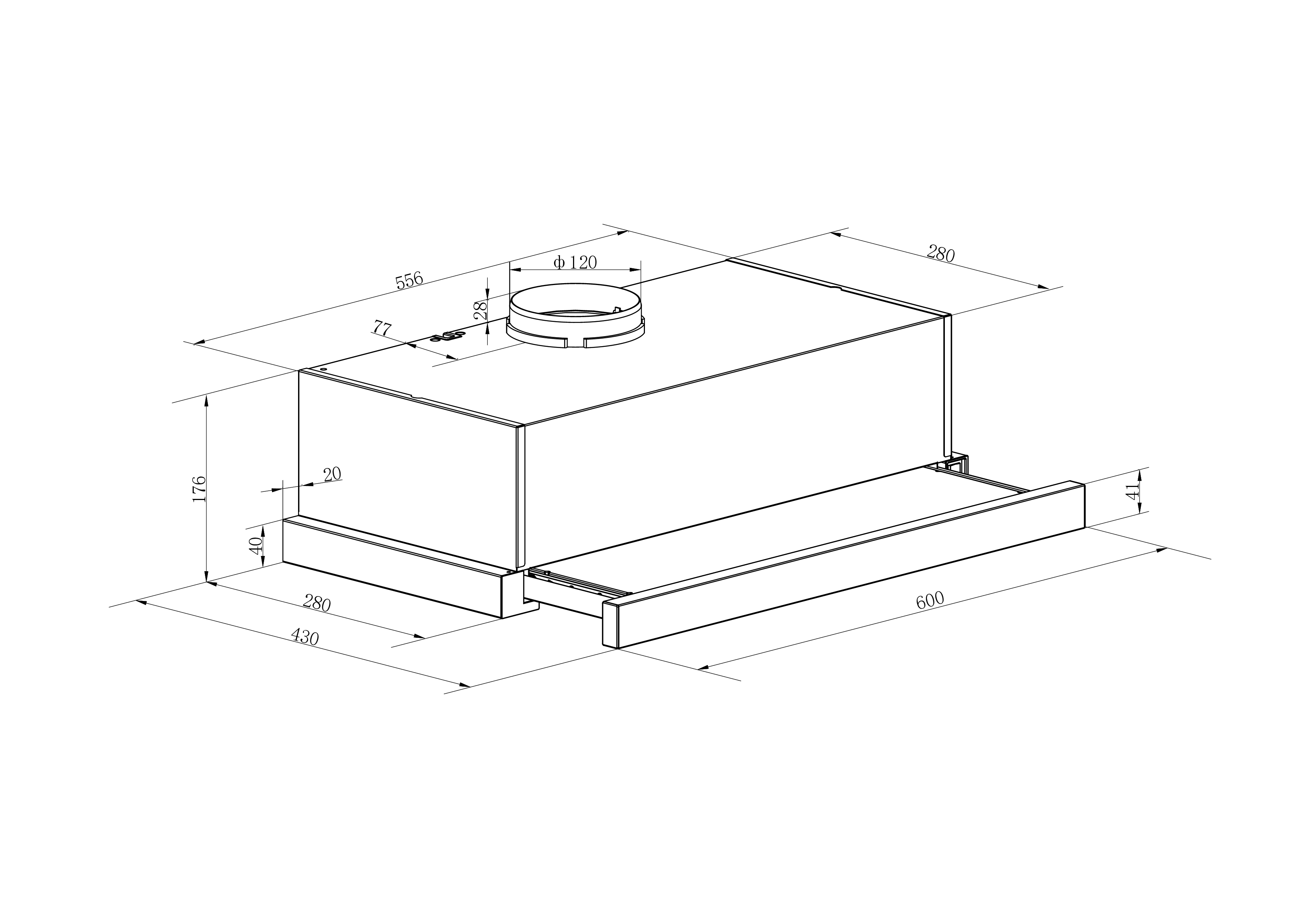

Device dimensions (H x W x D) / weight: 19.9 x 60 x 28-43 cm / 5.8 kg With packaging (H x W x D) / Weight: 33.5 x 66.5 x 22.5 cm / 6.7 kgTechnical features | |
|---|---|
Product type | Under-cabinet exhaust hood |
Construction shape | base hood |
Discharge system | Exhaust/Convection convertable (material for converting not in scope of delivery) |
Intensity level | Yes |
Equipment | |
|---|---|
Filter system | Exhaust and recirculation system |
Light | |
|---|---|
Lamp type | LED lights |
General features | |
|---|---|
Case material | Stainless steel |
Diameter of outgoing air hose | 150 mm |
Width | 60 cm |
Depth | 43 cm |
Color (by manufacturer) | silver |
Power cable included | Yes |
Energy consumption data | |
|---|---|
Energy efficiency class (EU 2010/30) | C |
Fluid dynamic Efficiency | 11.9 |
Fluid dynamic Efficiency class | E |
Lightning Efficiency | 41.5 lx/W |
Lightning Efficiency class | A |
Grease filtering | 53.5 % |
Grease filtering Efficiency class | F |
Air flow at minimum speed in normal use | 124 m³/h |
Air flow at maximum speed in normal use | 213 m³/h |
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 53 dB(A) |
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 64 dB(A) |
Generic Energy Class EU | 6 |
EU Color Code Energy Class | RGB - 236 102 8 |
EU Energy Efficiency Scale | A+++ to D |
General Product Safety |
|---|
GTIN 4260515339385 |
Product type Under-cabinet exhaust hood |
Manufacturer |
|---|
Manufacturer NEG Novex GmbH |
Contact NEG Novex GmbH |
Website www.respekta.de |
EU established Yes |
Address Chenover Straße 5 |
City Limburgerhof |
Postcode 67117 |
Country Germany |
Address suffix Chenover Straße 5 |
