RESPEKTA

Art.-Nr. 94557781

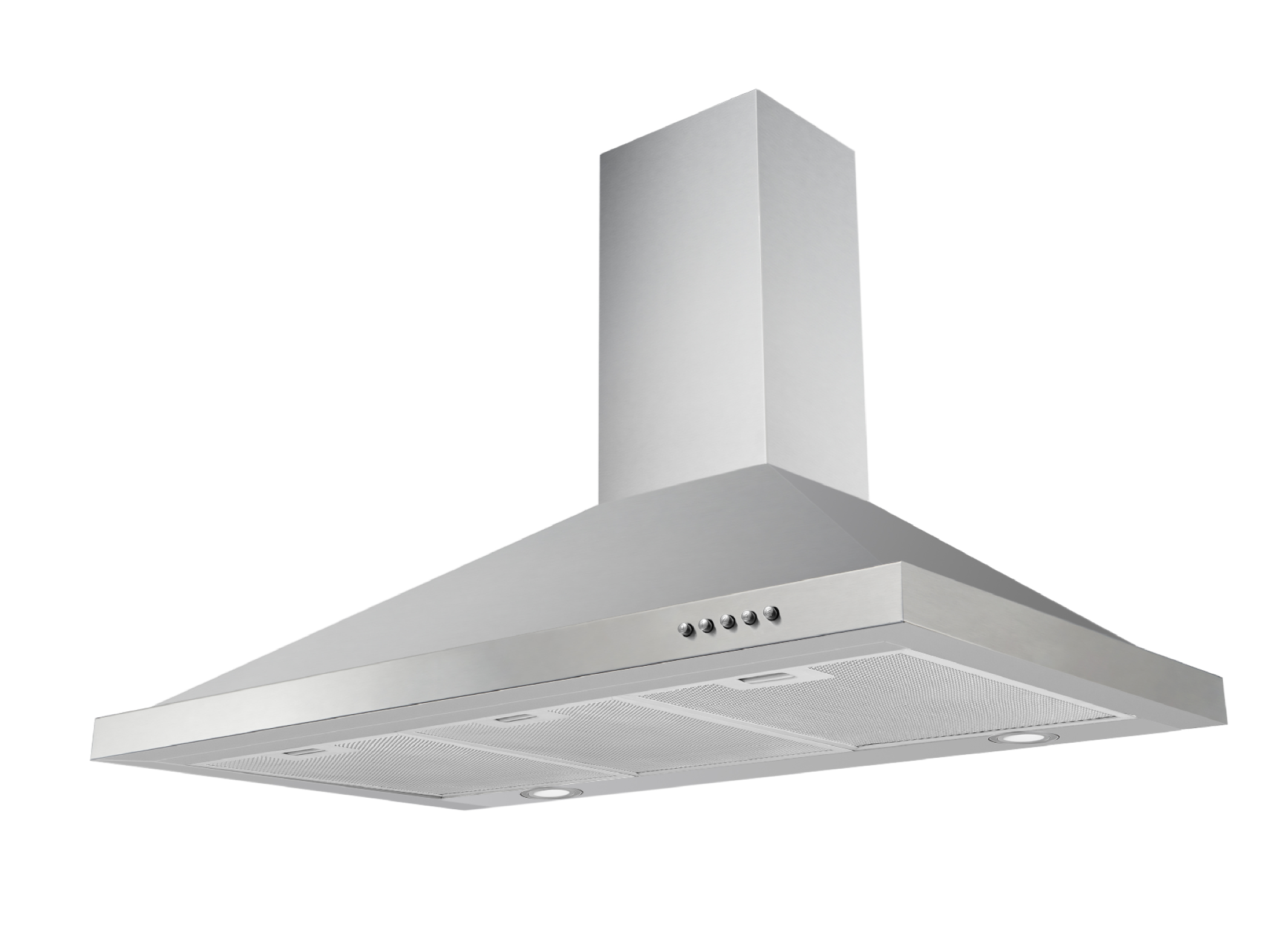

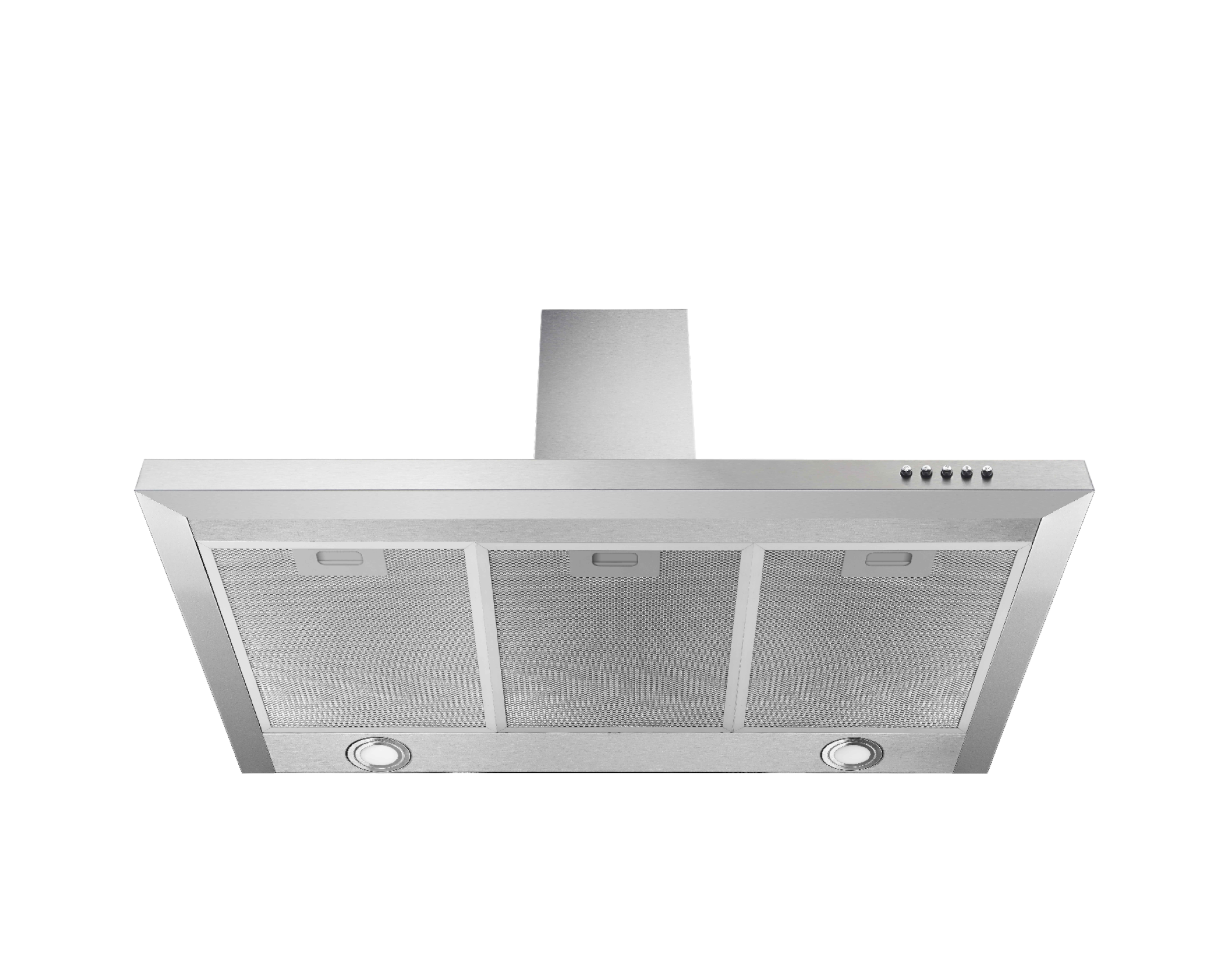

RESPEKTA CH 44068-90 IXA wall-mounted hood - Width 900 mm - 592.3 m³/h - 68 dB(A)

RESPEKTA

Art.-Nr. 94557781

RRP €465.00

€229.90
To compare
To the technical data

Delivery to your home

Delivery 12-06-2026 - 13-06-2026

+ € 0,–

To compare

Operating characteristics/technical data

Annual energy consumption: 38 kW/h Energy efficiency class: A Fluid dynamic efficiency: A Lighting efficiency: A Grease separation efficiency: C Airflow at min/max speed: 413 m³/h / 621 m³/h A-weighted airborne noise emission at min/max speed: 68 dB / 72 dB

Equipment features:

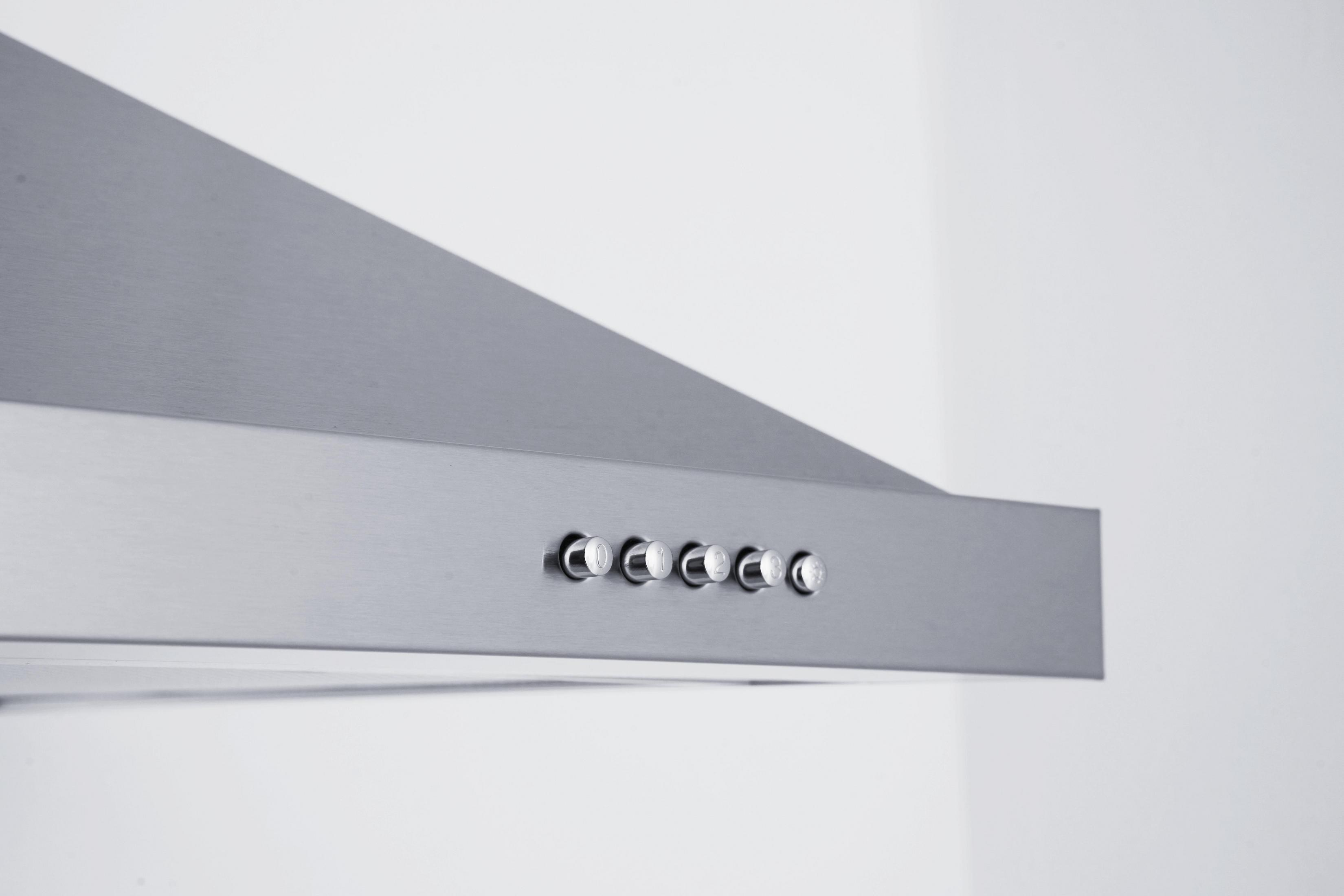

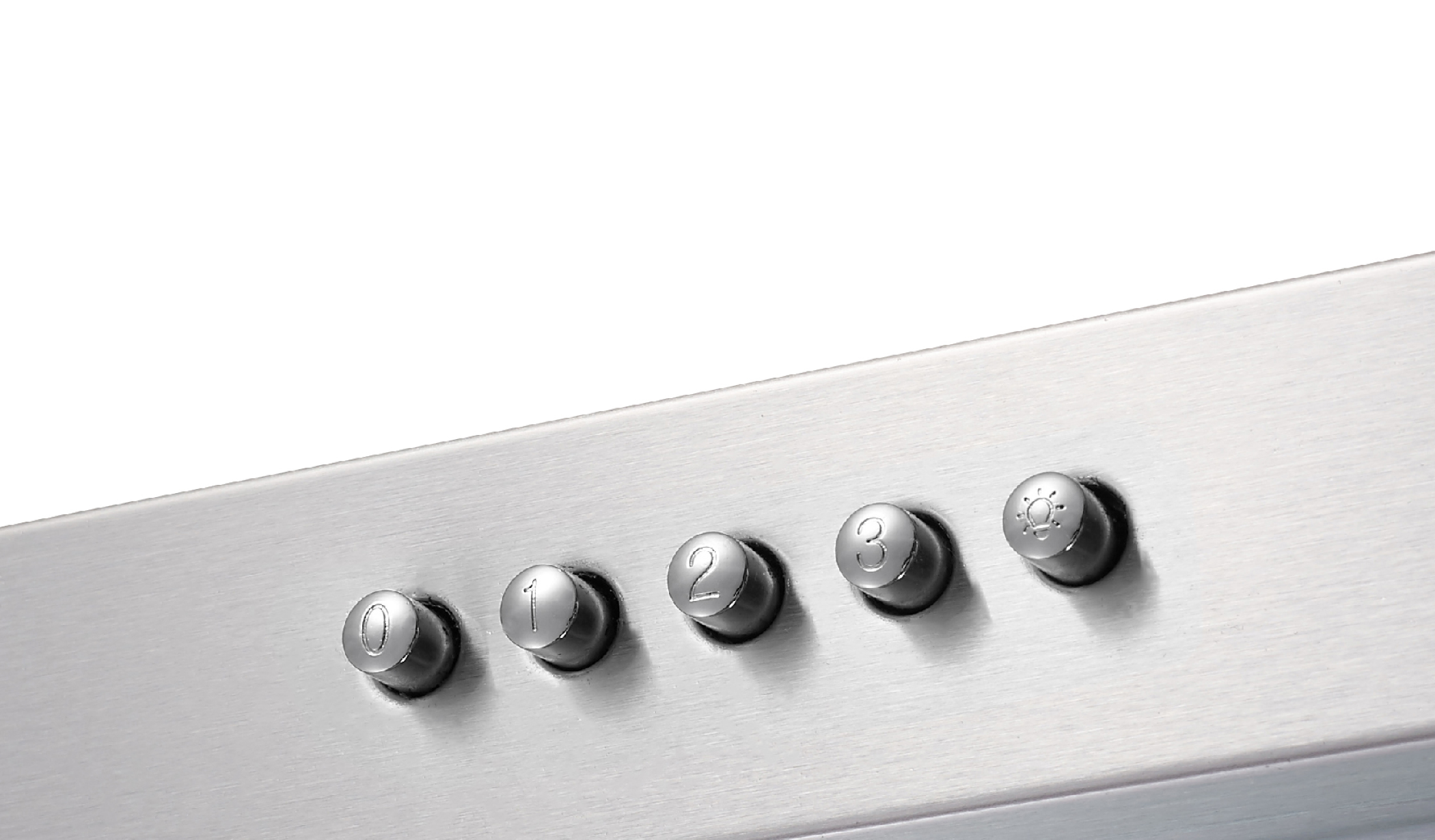

Operation via push buttons Housing and shaft: Stainless steel Speed levels: 3 Lighting max: 2 x 0.5 watt LED Tube connection (diameter): 150 mm Voltage / frequency: 220-240 V / 50 Hz Connected load: 166 watts Incl. metal grease filter (washable) Active charcoal filter for recirculation mode optionally available

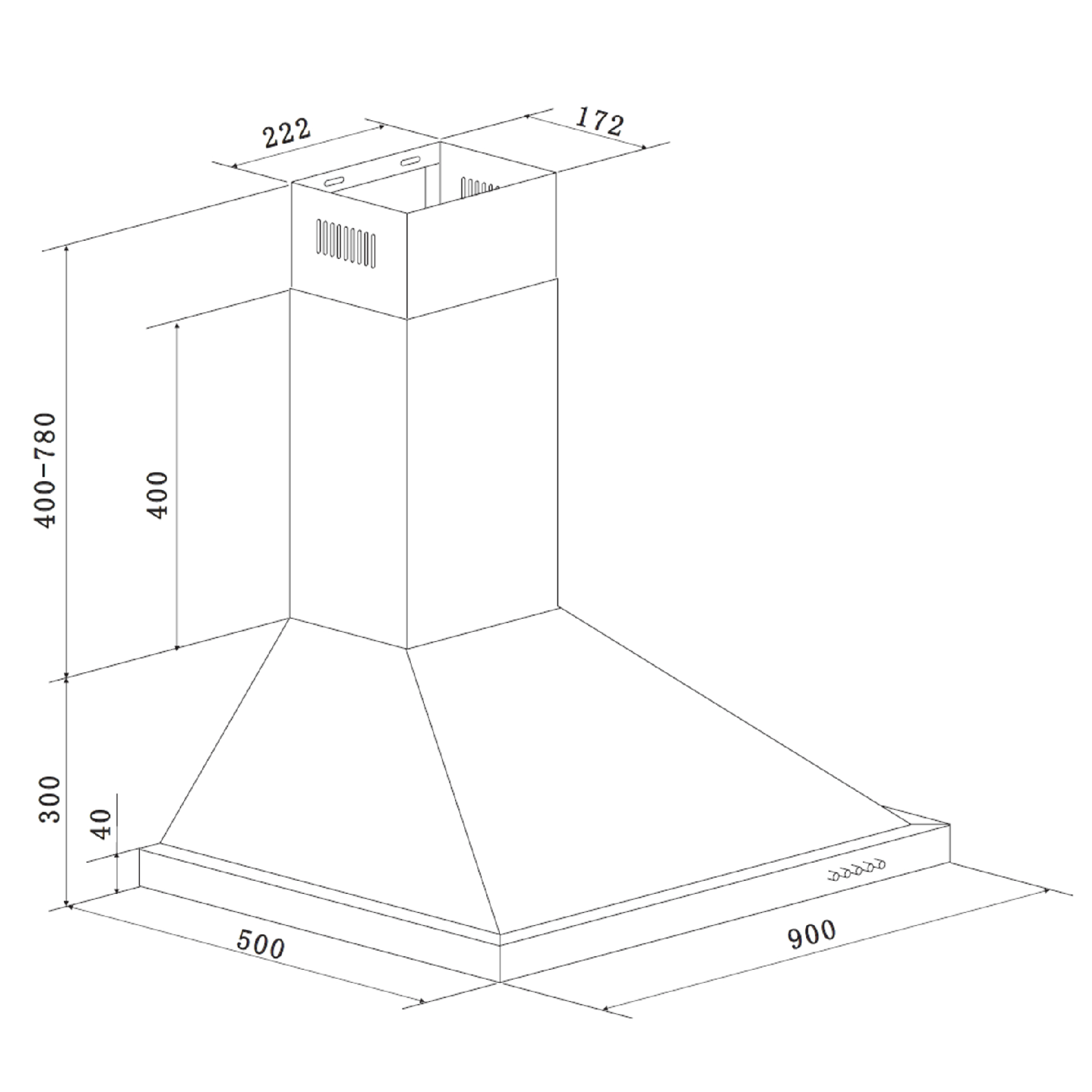

Dimensions

: Unit dimensions (H x W x D) / Weight: 63.5-102.5 x 90 x 50 cm / 10.8 kg With packaging (H x W x D) / Weight: 56 x 95.5 x 32 cm / 12.9 kg

Technical features

Product type

Chimney exhaust hood

Construction shape

wall-mounted hood

Discharge system

Exhaust/Convection convertable (material for converting not in scope of delivery)

Maximum outgoing air flow rate

592.3 m³/h

Number of motors

1

Fan levels

3

Intensity level

No

Fan position

Internal motor in the housing

Equipment

Filter system

Exhaust and recirculation system

Backflow flap

Yes

Air circulation

610.7 m³/h

Type of control

mechanical

Indication replace grease filter

No

Remote control

No

Light

Lamp type

LED lights

Power supply

Input voltage

220-240 V

Frequency

50 Hz

General features

Case material

stainless steel

Diameter of outgoing air hose

150 mm

Width

900 mm

Max. flue height

1000 mm

Min. flue height

548 mm

Depth

500 mm

Color (by manufacturer)

silver

Weight

9.3 kg

Power cable included

Yes

Packsize

95.5 cm / 56 cm / 32 cm

Manufacturer guarantee

0 Year

General Product Safety

GTIN

4260458240137

Product type

Chimney exhaust hood

Manufacturer

Manufacturer

NEG Novex GmbH

Contact

NEG Novex GmbH

Website

www.respekta.de

E-mail

[email protected]

EU established

Yes

Address

Chenover Straße 5

City

Limburgerhof

Postcode

67117

Country

Germany

Address suffix

Chenover Straße 5
