RESPEKTA
Art.-Nr. 94557860

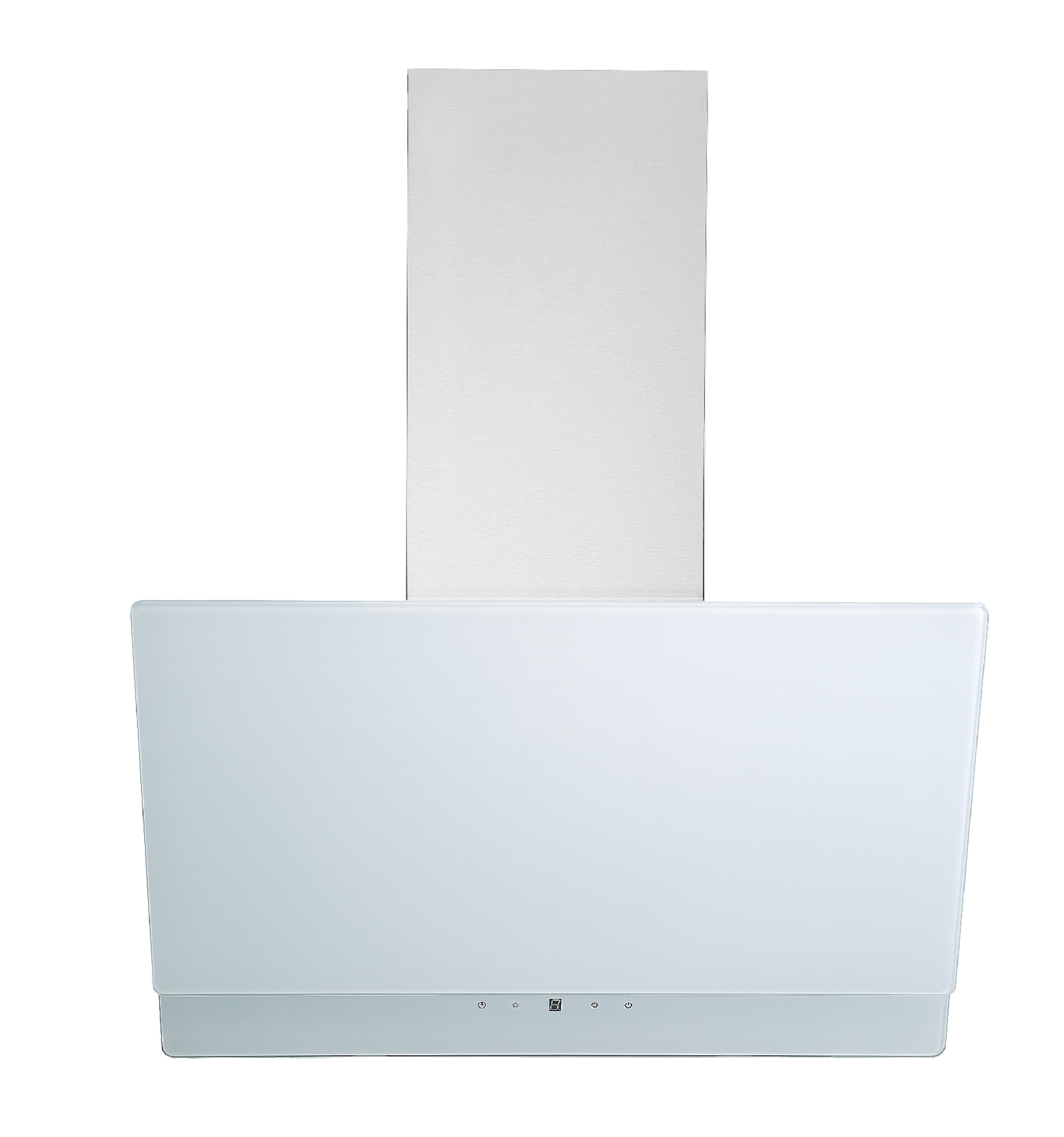

RESPEKTA CH 77060 WA wall-mounted hood - Width 600 mm - 405 m³/h - 52 dB(A)
RESPEKTA
Art.-Nr. 94557860
Delivery to your home
Delivery 12-06-2026 - 13-06-2026
+ € 0,–
- %0a
- Operating characteristics/technical data %0a
- An annual energy consumption: 22.3 kW/h %0a
- Energy efficiency class: A %0a
- Air dynamic efficiency: C %0a
- Lighting efficiency: A %0a
- Grass separation efficiency: D %0a
- Air flow at min./max. speed: 158 m³h / 305.4 m³h %0a
- A-weighted air noise emission at min./max. speed: 158 m³h / 305.4 m³h %0a
- A-weighted air noise emission at min. velocity: 53 db / 66 dB %0a
- %0a
- Equipment features %0a

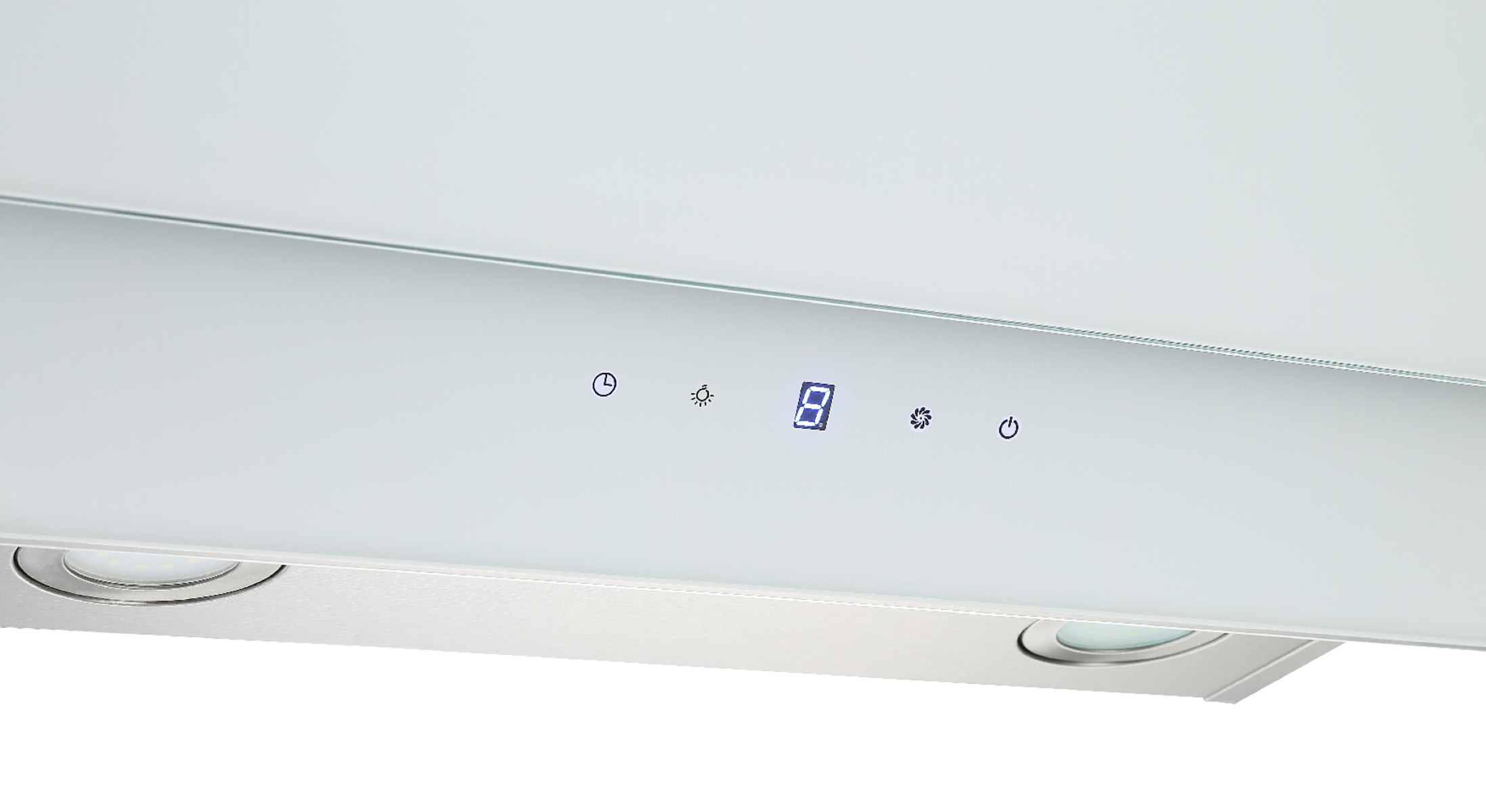

- Operation via touch controls %0a
- Corpus &; shaft: Stainless steel %0a
- With glass hood in white %0a
- Speed settings: 3 %0a
- Lighting max.: 2 x 1.5 Watt LED %0a
- Pipe connection (diameter): 150 mm %0a
- Voltage / frequency: 220-240 V / 50 Hz %0a
- Connecting power: 63 Watt %0a
- Incl. Metal grease filter (washable) 1 x %0a
- Active charcoal filter for recirculation mode 1 x optionally available
%0a %0a - Dimensions %0a

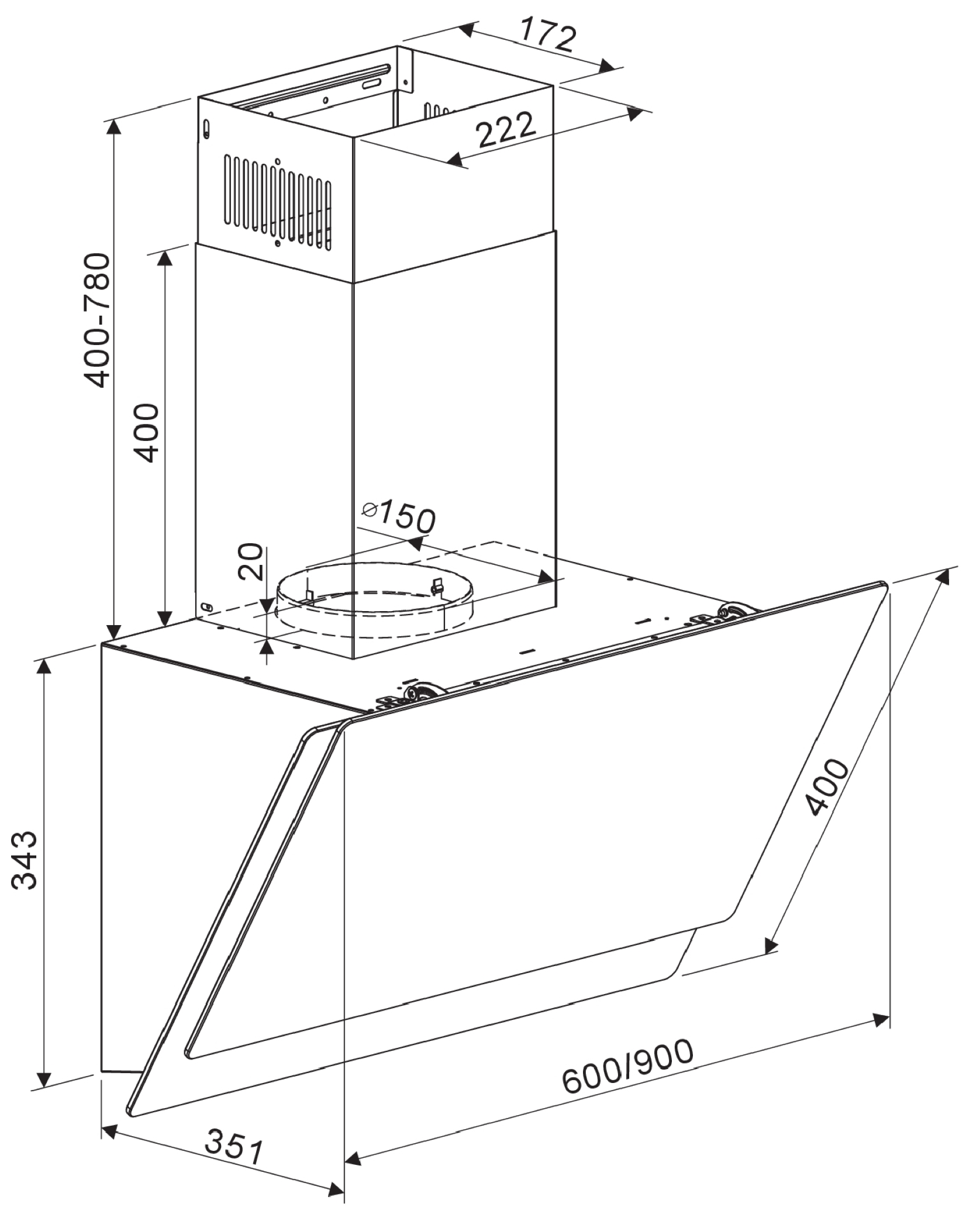

- Dimensions appliance (H x W x D) / weight: 78-108 x 60 x 31.3 cm / 11.4 kg %0a
- With packaging (H x W x D) / Weight: 44 x 66 x 41 cm / 14.1 kg %0a
Technical features | |
|---|---|
Product type | Sloped hood |
Construction shape | wall-mounted hood |
Discharge system | Exhaust/Convection convertable (material for converting not in scope of delivery) |
Maximum outgoing air flow rate | 405 m³/h |
Number of motors | 1 |
Fan levels | 3 |
Intensity level | Yes |
Equipment | |
|---|---|
Filter system | Exhaust and recirculation system |
Type of control | electronic |
Light | |
|---|---|
Lamp type | LED lights |
Total lamp power | 1 W |
Power supply | |
|---|---|
Input voltage | 220 - 240 V |
Frequency | 50 Hz |
General features | |
|---|---|
Case material | stainless steel |
Stainless steel casing | Yes |
Diameter of outgoing air hose | 150 mm |
Width | 600 mm |
Depth | 351 mm |
Color (by manufacturer) | White |
Weight (according to the manufacturer) | 14.1 kg |
Weight | 13.6 kg |
Power cable included | Yes |
Scope of delivery | Range hood |
Packsize | 660 mm / 440 mm / 410 mm |
General Product Safety |
|---|
GTIN 4260641224807 |
Product type Sloped hood |
Manufacturer |
|---|
Manufacturer NEG Novex GmbH |
Contact NEG Novex GmbH |
Website www.respekta.de |
EU established Yes |
Address Chenover Straße 5 |
City Limburgerhof |
Postcode 67117 |
Country Germany |
Address suffix Chenover Straße 5 |
