RESPEKTA
Art.-Nr. 108292730

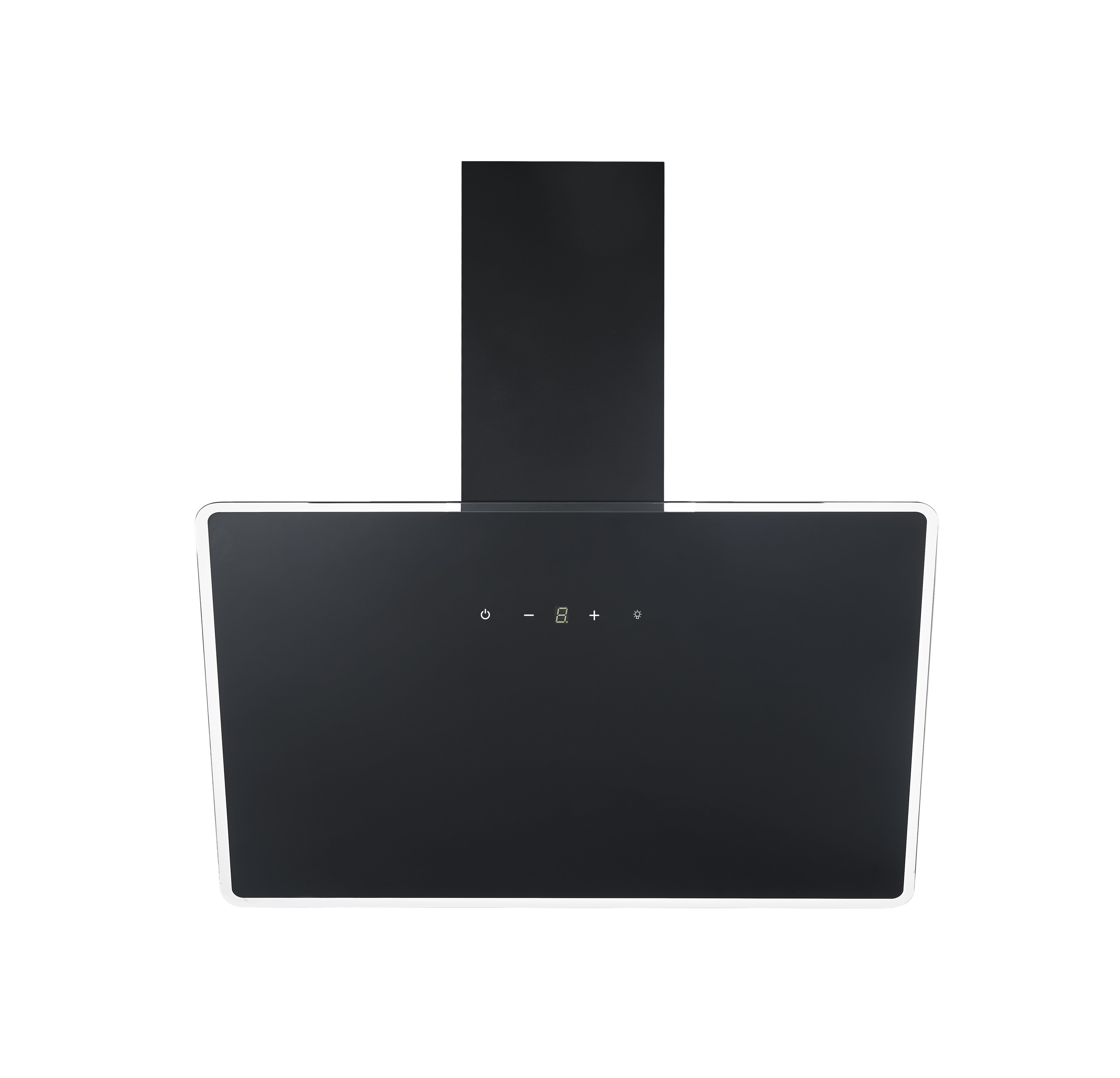

RESPEKTA CH112080S pull-out hoods - Width 79.5 cm - 490.6 m³/h - 39 dB(A)
RESPEKTA
Art.-Nr. 108292730
Delivery to your home
Delivery 12-06-2026 - 13-06-2026
+ € 0,–
Operating characteristics/technical data:
Annual energy consumption: 11.2 kWh Energy efficiency class: A++ Fluid dynamic efficiency: 30.2 Fluid dynamic efficiency class: A Lighting efficiency: 23 lux/watt Lighting efficiency class: B Grease separation efficiency: 65.7 Grease separation efficiency class: D Airflow at min/max speed: 210.6 m³/h / 490.6 m³/h A-weighted airborne noise emission at min/max speed: 39 dB / 61 dBEquipment features:

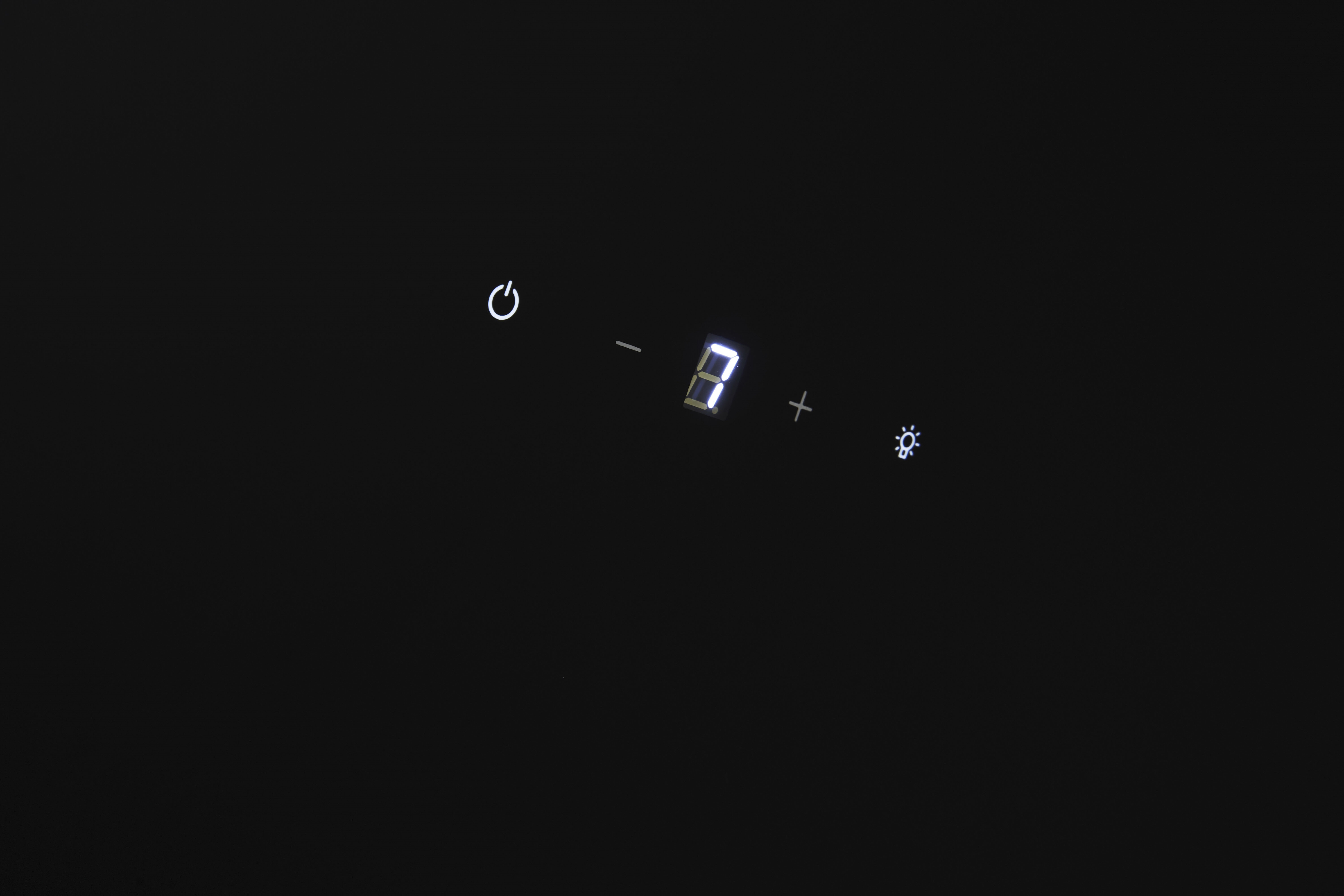

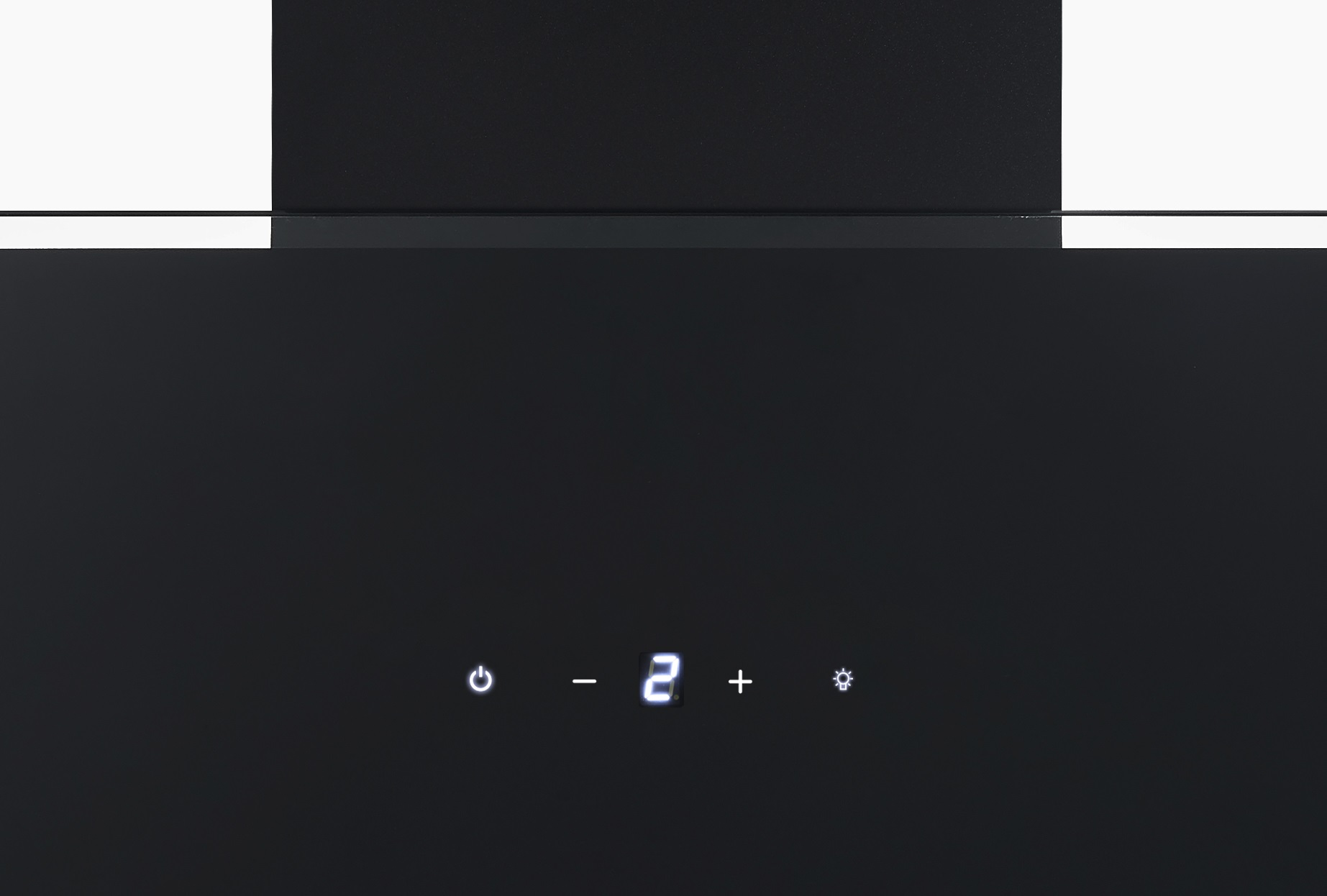

Operation via touch control Housing and shaft (color): black With glass hood in black with transparent edge Power levels: 3 Lighting max: 2 x 1.5 watt LED Tube connection (diameter): 150 mm Voltage / frequency: 220-240 V / 50 Hz Connected power: 73 watts Cable length: 1650 mm incl. metal grease filter (washable) Active carbon filter for recirculation mode optionally availableDimensions:
Unit dimensions (H x W x D) / Weight: 77.9 - 112.9 x 79.5 x 38.6 cm / 12.8 kg With packaging (H x W x D) / Weight: 44 x 91 x 41.5 cm / 15 kgTechnical features | |
|---|---|
Product type | Sloping hood |
Construction shape | pull-out hoods |
Discharge system | Exhaust/Convection convertable (material for converting not in scope of delivery) |
Maximum outgoing air flow rate | 490.6 m³/h |
Fan levels | 3 |
Intensity level | Yes |
Equipment | |
|---|---|
Filter system | Exhaust and recirculation system |
Grease filter material | Metall |
Type of control | electronic |
Light | |
|---|---|

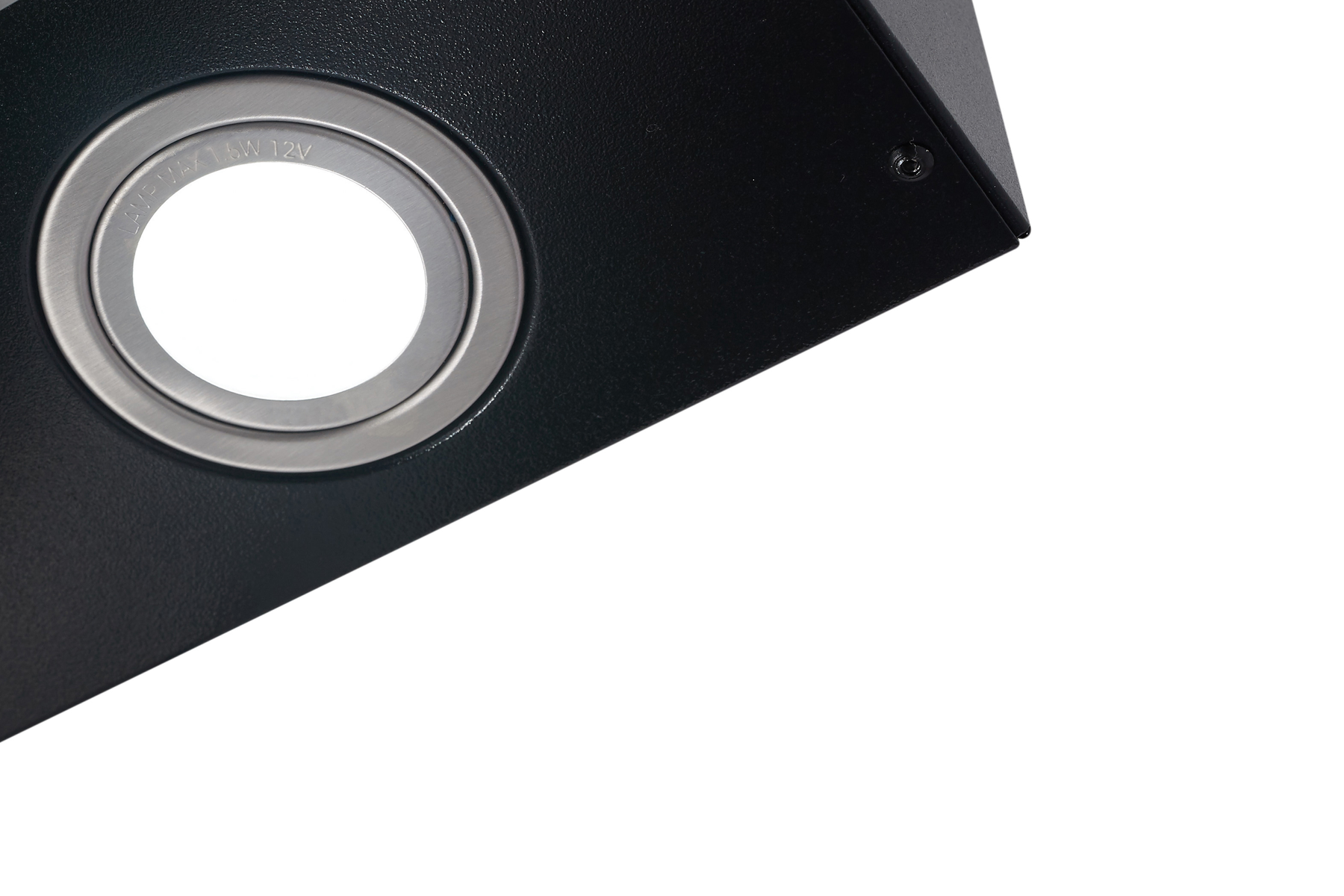

Lamp type | LED lights |
Number of integrated lights | 2 |
Total lamp power | 3 W |
Power supply | |
|---|---|
Frequency | 50 Hz |
General features | |
|---|---|
Case material | Painted sheet steel |
Stainless steel casing | No |
Diameter of outgoing air hose | 150 mm |
Length of power cable | 1650 mm |
Width | 79.5 cm |
Depth | 38.6 cm |
Color (by manufacturer) | black |
Weight (according to the manufacturer) | 12.8 kg |
Weight | 12.8 kg |
Power cable included | Yes |
Scope of delivery | Extractor hood, metal grease filter, mounting hardware |
Packsize | 910 mm / 440 mm / 415 mm |
