RESPEKTA
Art.-Nr. 108809564
RESPEKTA CH12060IX-21 base hood - Width 598 mm - 406 m³/h - 55 dB(A)
Delivery to your home
Delivery 12-06-2026 - 13-06-2026
+ € 0,–
Operating characteristics/technical data:
Annual energy consumption: 13.6 kWh/year Energy efficiency class: A+ Fluid dynamic efficiency: 21.8 Fluid dynamic efficiency class: C Lighting efficiency: 33 lux/watt Lighting efficiency class: A Grease separation efficiency: 69.5 Grease separation efficiency class: D Airflow at min/max speed: 277.1 m³h / 406 m³h A-weighted airborne noise emission at min/max speed: 55 dB / 64 dBEquipment features:
Touch control Housing: stainless steel With glass panel in black Power levels: 6 Lighting max: 2 x 1.5 watt LED Pipe connection (diameter): Ø 150 mm Voltage / frequency: 220-240 V / 50 Hz Connected load: 59 watt Incl. metal grease filter (washable) Active carbon filter for recirculation mode optionally availableDimensions

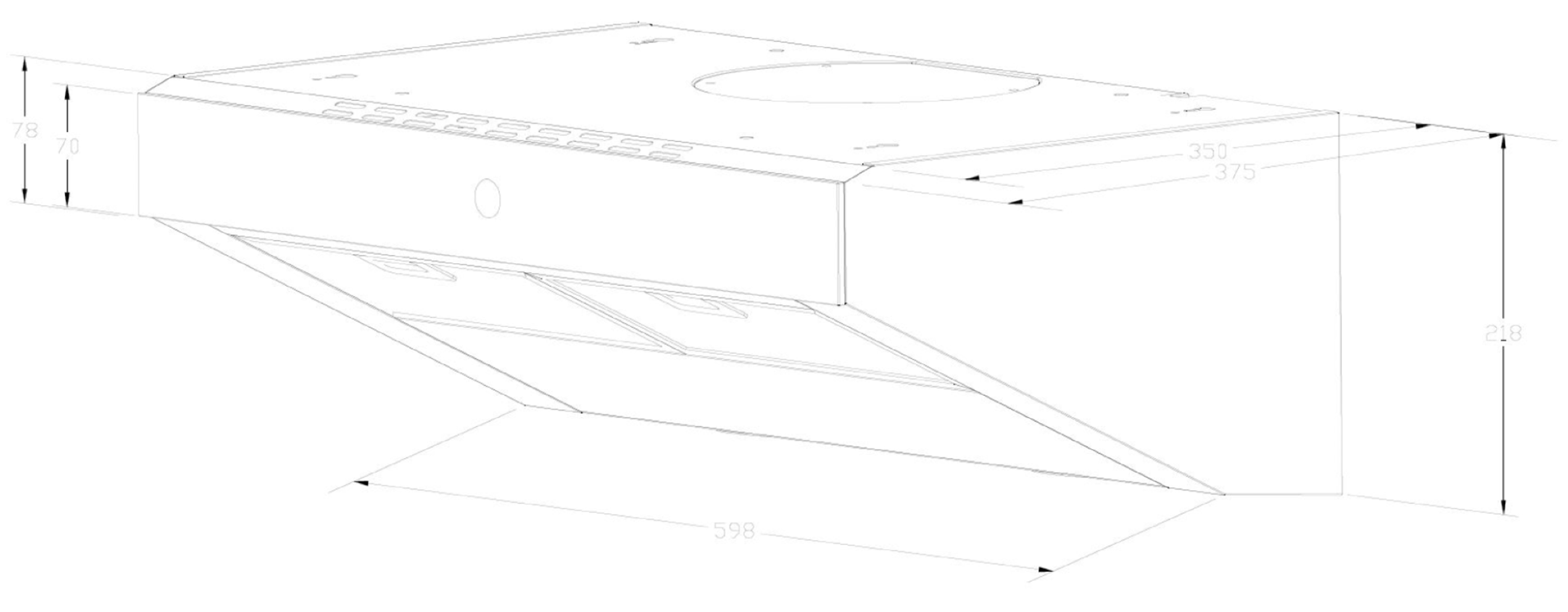

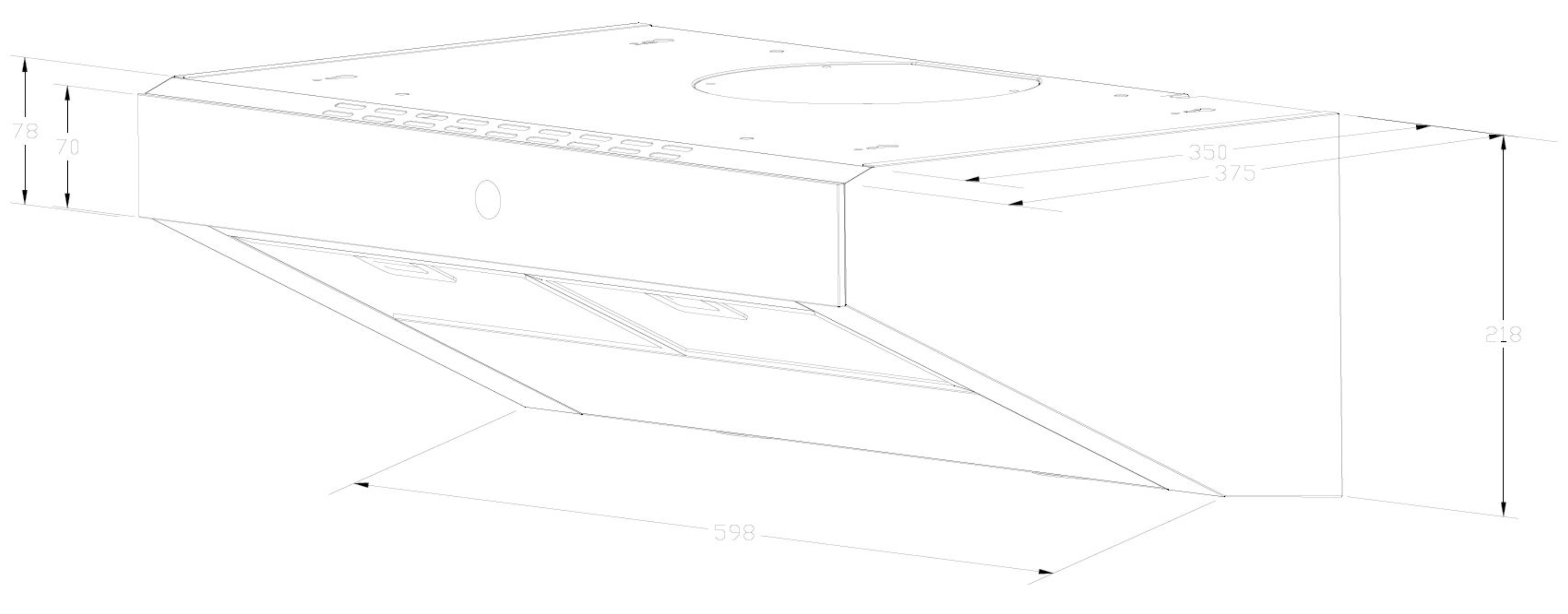

: Unit dimensions (H x W x D) / Weight: 21.8 x 59.8 x 37.5 cm / 6.3 kg With packaging (H x W x D) / Weight: 43 x 64.6 x 26.5 cm / 7.3 kgTechnical features | |
|---|---|
Product type | Engine cover without head under cabinet |
Construction shape | base hood |
Discharge system | Exhaust/Convection convertable (material for converting not in scope of delivery) |
Maximum outgoing air flow rate | 406 m³/h |
Fan levels | 6 |
Equipment | |
|---|---|
Filter system | Exhaust air |
Odour filter | No |
Grease filter material | Metallfettfilter |
Type of control | electronic |
Special features | Headless hood |
Light | |
|---|---|
Lamp type | LED lights |
Number of integrated lights | 2 |
Total lamp power | 3 W |
Total luminous intensity | 33 lx |
Power supply | |
|---|---|
Input voltage | 240 V |
General features | |
|---|---|
Case material | stainless steel |
Stainless steel casing | Yes |
Diameter of outgoing air hose | 150 mm |
Length of power cable | 1200 mm |
Width | 598 mm |
Depth | 375 mm |
Color (by manufacturer) | stainless steel |
Weight (according to the manufacturer) | 6.3 kg |
Weight | 6.3 kg |
Scope of delivery | Extractor hood, metal grease filter, mounting hardware |
Packsize | 646 mm / 430 mm / 265 mm |
