RESPEKTA
Art.-Nr. 95893139

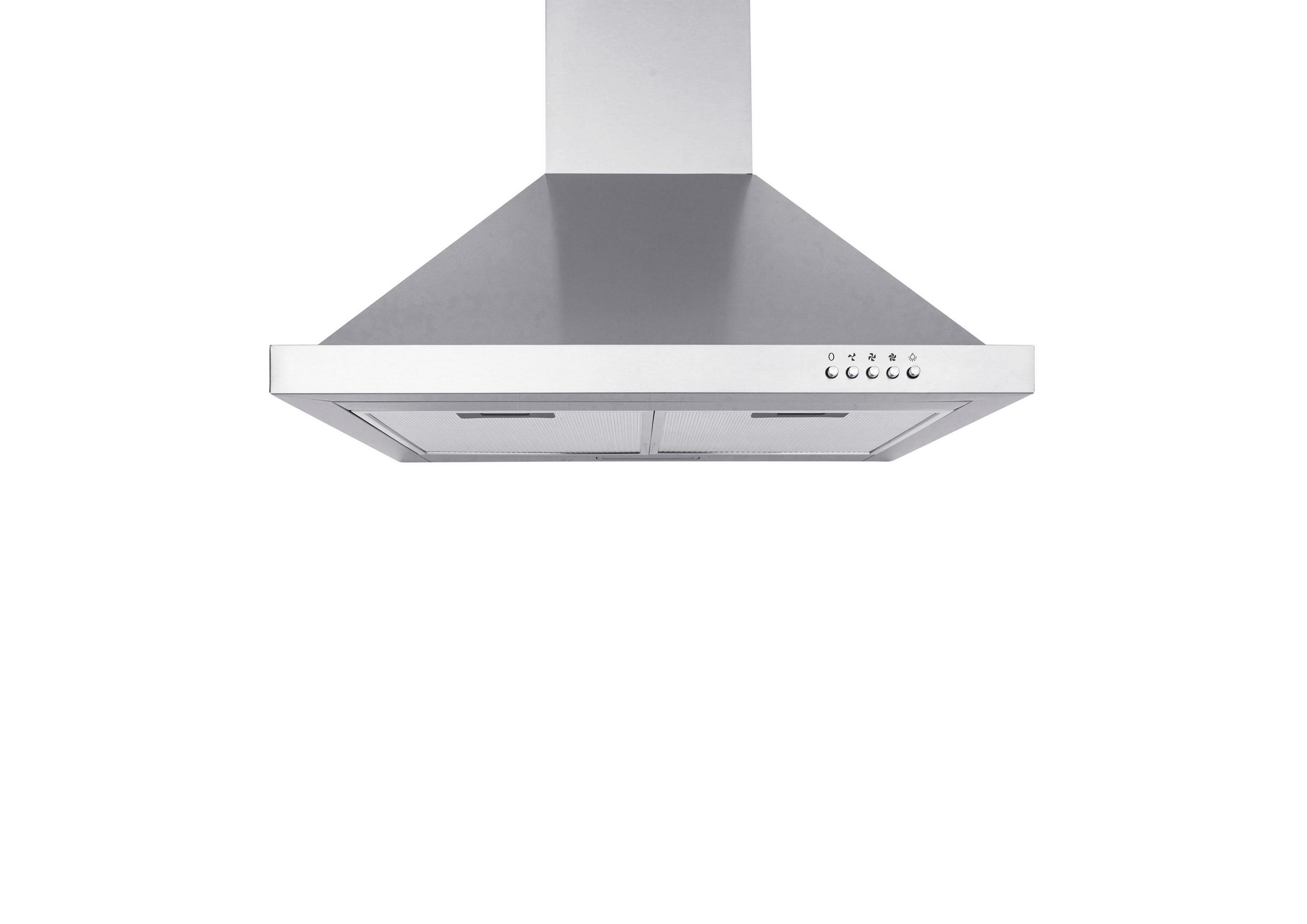

RESPEKTA CH22078IXB wall-mounted hood - Width 600 mm - 59 dB(A)
RESPEKTA
Art.-Nr. 95893139
Delivery to your home
Delivery 12-06-2026 - 13-06-2026
+ € 0,–
Operating characteristics/technical data:
Annual energy consumption: 28.4 kWh Energy efficiency class: B Fluid dynamic efficiency: 14.9 Fluid dynamic efficiency class: D Lighting efficiency: B Grease separation efficiency: 77.3 Grease separation efficiency class: C Airflow at minimum / maximum speed in normal operation: 216.9 m³/h / 330.1 m³/h Airborne noise emission at minimum / maximum speed in normal operation: 57 dB / 64 dBEquipment features:
Operation via push buttons Stainless steel housing and shaft Speed levels: 3 Lighting max. 1 x 2.5 W LED Tube connection (diameter): 150 mm Voltage / frequency: 220-240V / 50 Hz Connected power: 67.5 W Metal grease filter 2 xDimensions:

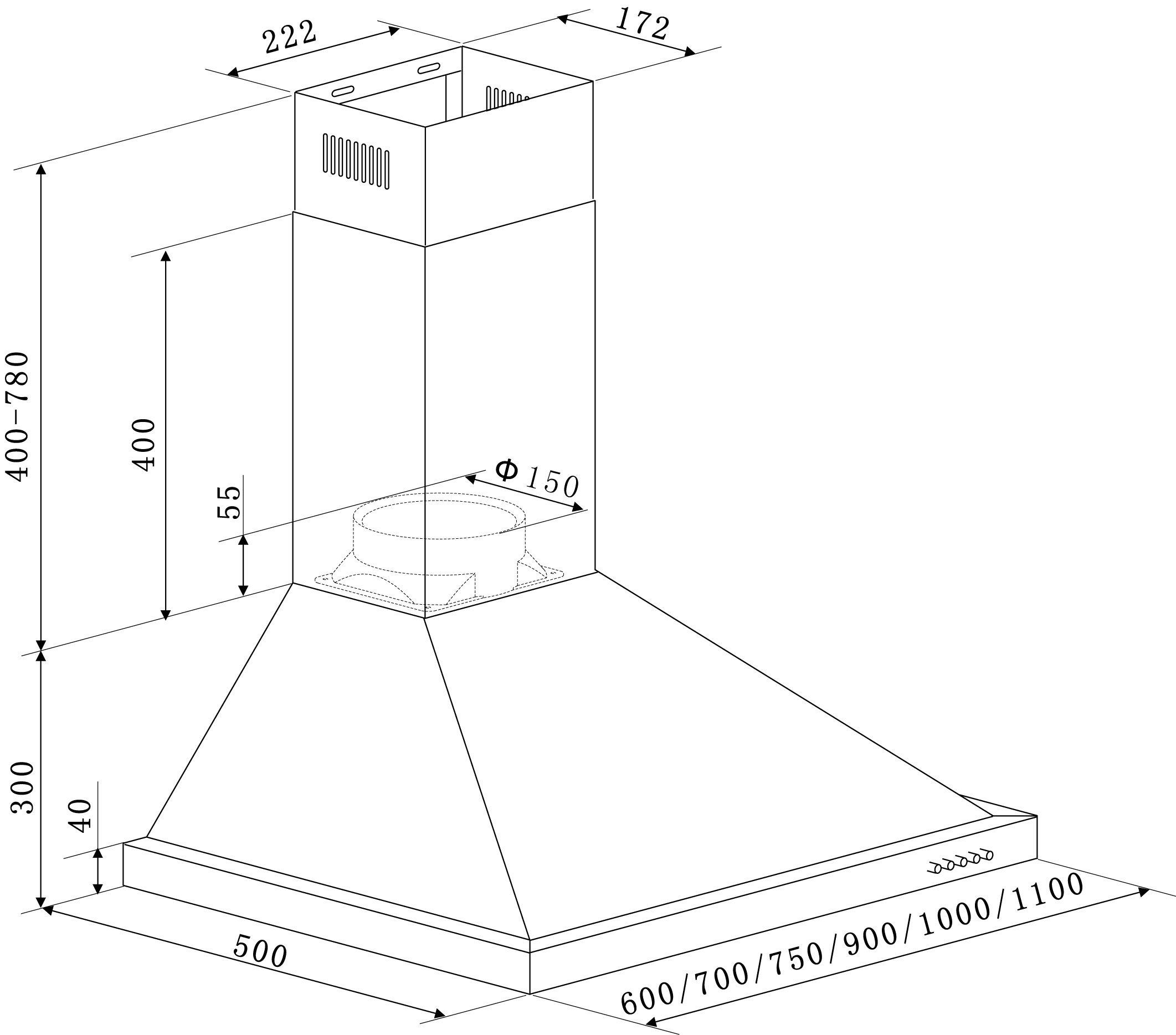

Device dimensions in cm (H x W x D) / weight in kg: 58-96 x 60 x 47.5 / 6.7 With packaging (H x W x D) / Weight in kg: 52 x 65 x 24.2 / 8.7Technical features | |
|---|---|
Product type | Oblique exhaust hood |
Construction shape | wall-mounted hood |
Discharge system | Exhaust/Convection convertable (material for converting not in scope of delivery) |
Fan levels | 3 |
Intensity level | No |
Equipment | |
|---|---|
Filter system | Exhaust air |
Type of control | mechanical |
Light | |
|---|---|
Lamp type | LED lights |
Total lamp power | 1x 2.5 W |
Power supply | |
|---|---|
Input voltage | 220-240 V |
General features | |
|---|---|
Case material | stainless steel |
Stainless steel casing | Yes |
Diameter of outgoing air hose | 150 mm |
Width | 600 mm |
Max. flue height | 1080 mm |
Min. flue height | 700 mm |
Depth | 500 mm |
Color (by manufacturer) | silver |
Weight (according to the manufacturer) | 6.7 kg |
Weight | 8 kg |
Power cable included | Yes |
Scope of delivery | Extractor hood + 2 metal grease filters |
Packsize | 66 cm / 57 cm / 37 cm |
Manufacturer guarantee | 0 Year |
General Product Safety |
|---|
GTIN 4260458247389 |
Product type Oblique exhaust hood |
Manufacturer |
|---|
Manufacturer NEG Novex GmbH |
Contact NEG Novex GmbH |
Website www.respekta.de |
EU established Yes |
Address Chenover Straße 5 |
City Limburgerhof |
Postcode 67117 |
Country Germany |
Address suffix Chenover Straße 5 |
