RESPEKTA

Art.-Nr. 95943504

RESPEKTA CH22098IXB wall-mounted hood - Width 600 mm - 59 dB(A)

RESPEKTA

Art.-Nr. 95943504

Product data sheet

RRP €400.00

€195.90

incl. VAT and free shipping above €50,-

Sold and shipped by Kitchcom België

To compare
Disposal instructions (appliances, batteries, etc.)
To the technical data

Delivery to your home

Delivery 12-06-2026 - 13-06-2026

+ € 0,–

To compare
Disposal instructions (appliances, batteries, etc.)

Operating characteristics/technical data

Annual energy consumption: 56.8 kW/h Energy efficiency class: B Fluid dynamic efficiency: B Lighting efficiency: A Grease separation efficiency: C Airflow at min/max speed: 352 m³/h / 593 m³/h A-weighted airborne noise emission at min/max speed: 62 dB / 68 dB

Equipment features:

Operation via push buttons Housing and shaft: Stainless steel Speed levels: 3 Lighting max: 2 x 2 watt LED Tube connection (diameter): 150 mm Voltage / frequency: 220-240 V / 50 Hz Connected load: 194 watts incl. metal grease filter (washable) 2 x Active carbon filter for recirculation mode 2 x optionally available

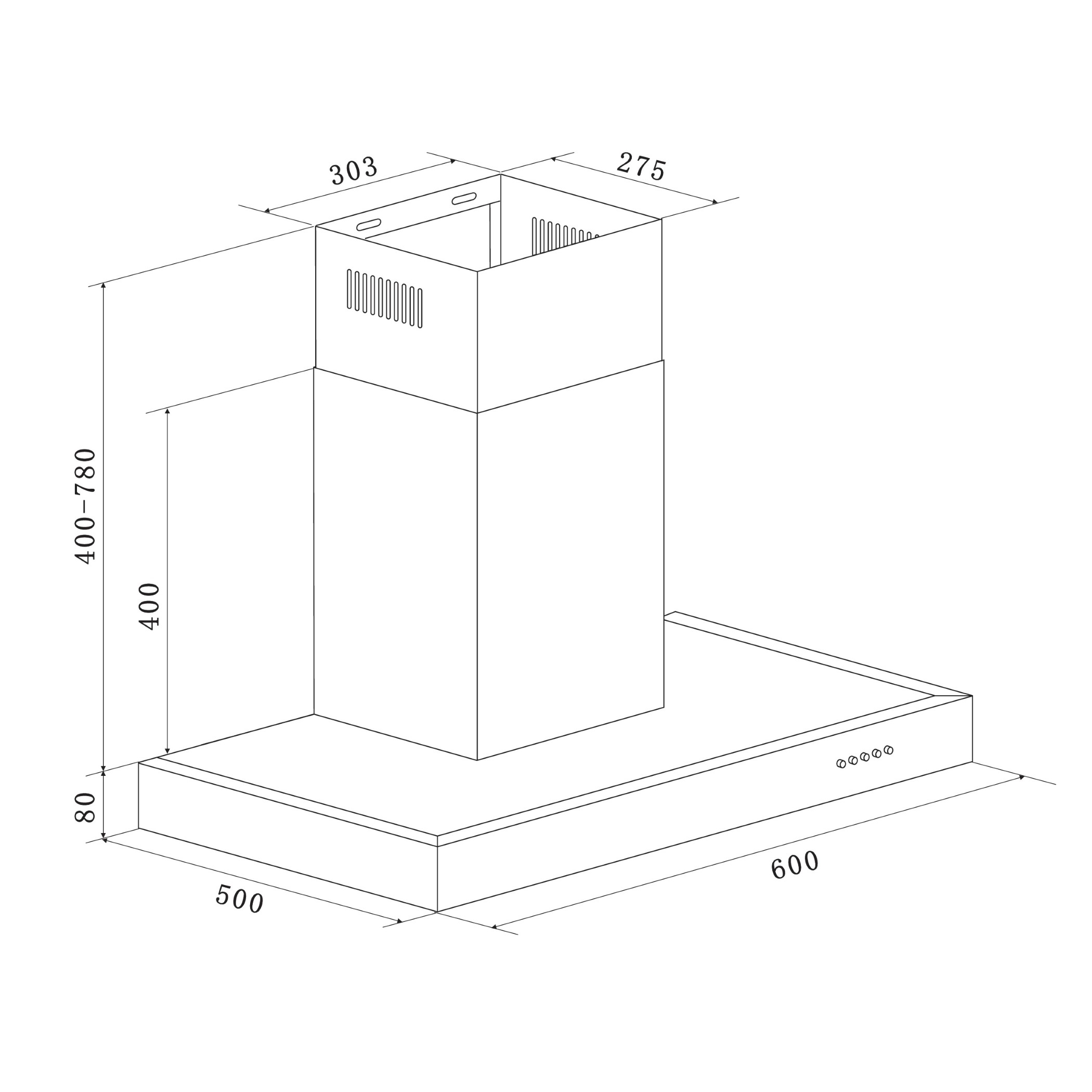

Dimensions:

Unit dimensions (H x W x D) / weight: 48 - 86 x 60 x 50 cm / 7.9 kg With packaging (H x W x D) / Weight: 49.5 x 63 x 26.5 cm / 9.4 kg

Additional accessories, available at extra cost:

Active carbon filter

Technical features

Product type

Chimney extractor

Construction shape

wall-mounted hood

Discharge system

Exhaust

Fan levels

3

Intensity level

Yes

Equipment

Filter system

Exhaust air and recirculated air

Type of control

mechanical

Light

Lamp type

LED lights

Total lamp power

2x 2 W

Power supply

Input voltage

220-240 V

Frequency

50 Hz

General features

Case material

stainless steel

Stainless steel casing

Yes

Diameter of outgoing air hose

150 mm

Width

600 mm

Max. flue height

860 mm

Min. flue height

480 mm

Depth

500 mm

Color (by manufacturer)

silver

Weight (according to the manufacturer)

7,9 kg

Weight

13.5 kg

Scope of delivery

Extractor hood + 2 metal grease filters

Packsize

63 cm / 49.5 cm / 26.5 cm

Manufacturer guarantee

0 Year

General Product Safety

GTIN

4260458241677

Product type

Chimney extractor

Manufacturer

Manufacturer

NEG Novex GmbH

Contact

NEG Novex GmbH

Website

www.respekta.de

E-mail

[email protected]

EU established

Yes

Address

Chenover Straße 5

City

Limburgerhof

Postcode

67117

Country

Germany

Address suffix

Chenover Straße 5
