RESPEKTA
Art.-Nr. 95893111
RESPEKTA CH44078-60IXA wall-mounted hood - Width 600 mm - 301 m³/h - 68 dB(A)
Delivery to your home
Delivery 12-06-2026 - 13-06-2026
+ € 0,–
Operating characteristics/technical data:
Annual energy consumption: 43.5 kW/h Energy efficiency class: A Fluid dynamic efficiency: A Lighting efficiency: C Grease separation efficiency: C Air flow at min/max speed: 401 m³/h / 591.5 m³/h A-weighted airborne noise emission at min/max speed: 61 dB / 69 dBEquipment features:
Operation via push buttons Housing and shaft: Stainless steel Speed levels: 3 Lighting max: 2 x 1.5 watt LED Tube connection (diameter): 150 mm Voltage / frequency: 220-240 V / 50 Hz Connected load: 168 watts incl. metal grease filter (washable) 2 x Active carbon filter for recirculation mode (2 pieces) optionally availableDimensions:

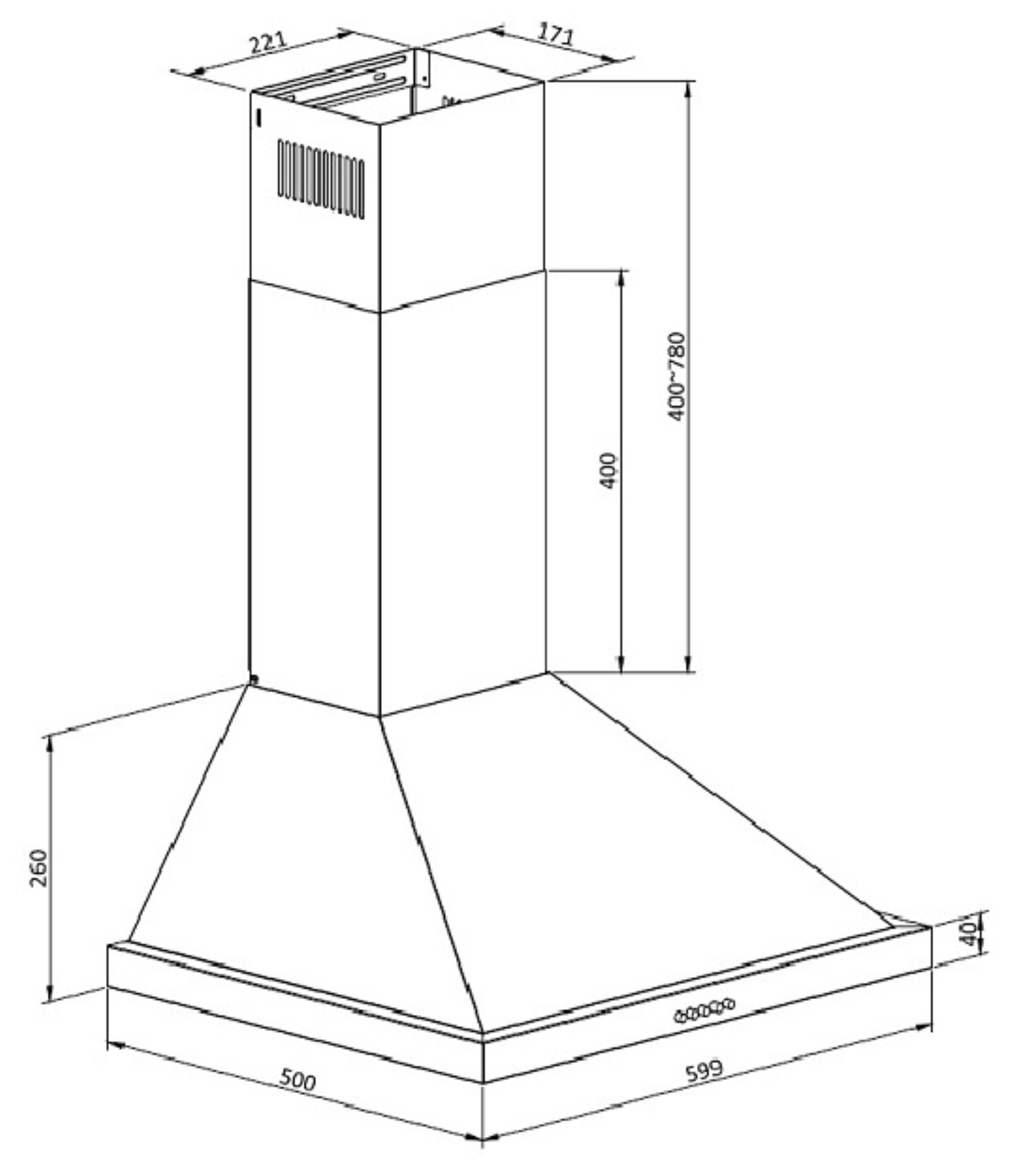

Unit dimensions (H x W x D) / Weight: 54.8 - 100 x 60 x 50 cm / 10.4 kg With packaging (H x W x D) / Weight: 55 x 65 x 32.5 cm / 12.4 kgTechnical features | |
|---|---|
Product type | Chimney extractor |
Construction shape | wall-mounted hood |
Discharge system | Exhaust/Convection convertable (material for converting not in scope of delivery) |
Maximum outgoing air flow rate | 301 m³/h |
Number of motors | 1 |
Fan levels | 3 |
Intensity level | No |
Equipment | |
|---|---|
Filter system | Exhaust air |
Backflow flap | Yes |
Air circulation | 158 m³/h / 301 m³/h |
Type of control | mechanical |
Indication replace grease filter | No |
Remote control | No |
Light | |
|---|---|
Lamp type | LED lights |
Total lamp power | 2x 2 W |
Power supply | |
|---|---|
Input voltage | 220-240 V |
Frequency | 50 Hz |
General features | |
|---|---|
Scope of SmartHome | Ventilation |
Case material | Stainless Steel |
Stainless steel casing | Yes |
Diameter of outgoing air hose | 150 mm |
Width | 600 mm |
Max. flue height | 1025 mm |
Min. flue height | 635 mm |
Depth | 500 mm |
Color (by manufacturer) | silver |
Weight (according to the manufacturer) | 10.4 kg |
Weight | 8.3 kg |
Power cable included | Yes |
Scope of delivery | Extractor hood + 2 metal grease filters |
Packsize | 65 cm / 56 cm / 32 cm |
Manufacturer guarantee | 0 Year |
General Product Safety |
|---|
GTIN 4260458240144 |
Product type Chimney extractor |
Manufacturer |
|---|
Manufacturer NEG Novex GmbH |
Contact NEG Novex GmbH |
Website www.respekta.de |
EU established Yes |
Address Chenover Straße 5 |
City Limburgerhof |
Postcode 67117 |
Country Germany |
Address suffix Chenover Straße 5 |
