RESPEKTA
Art.-Nr. 94586518

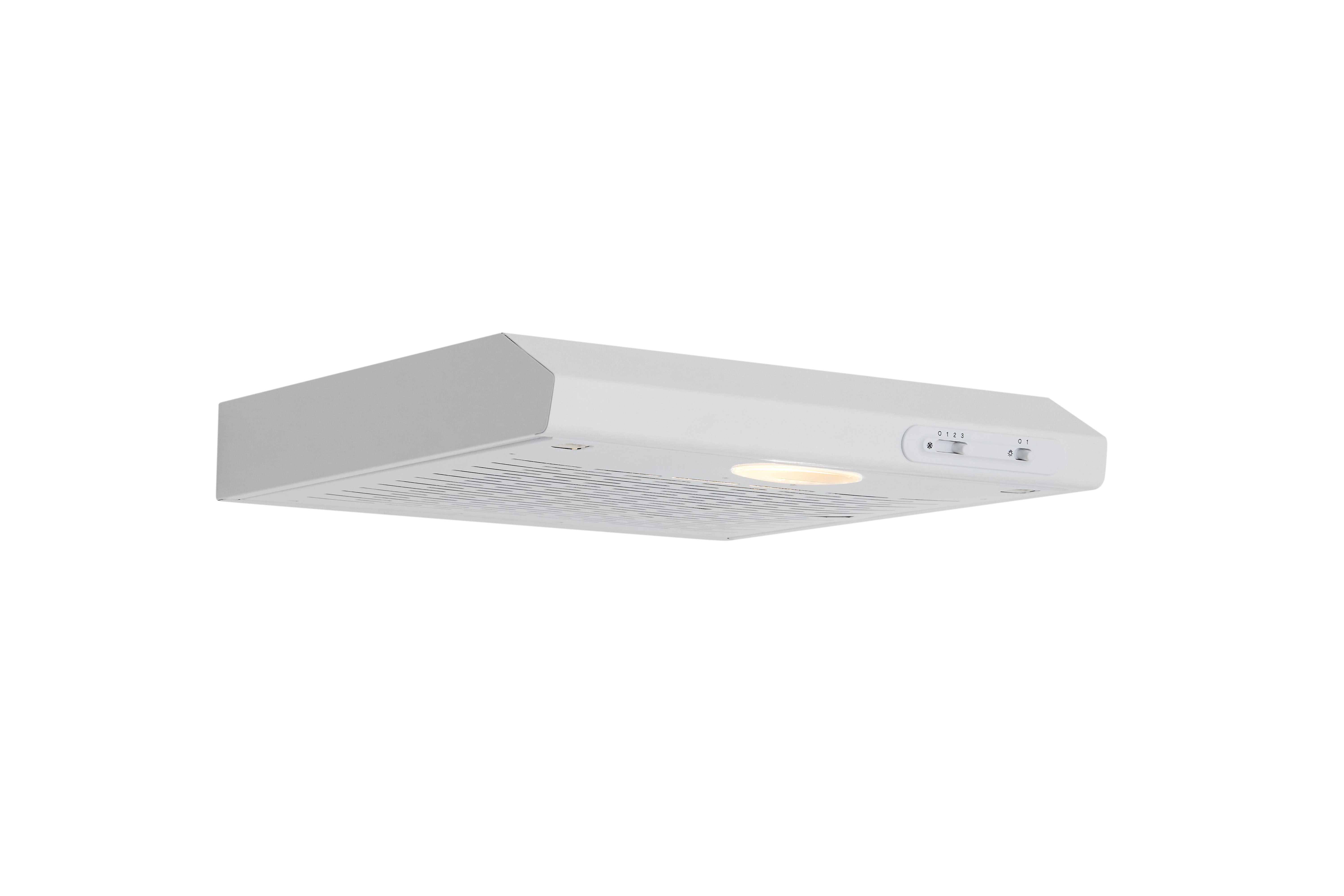

RESPEKTA DH 520 WL base hood - Width 50 cm - 52 dB(A)
RESPEKTA
Art.-Nr. 94586518
Delivery 23-06-2026 - 24-06-2026
+ € 0,–
Operating characteristics/technical data
Annual energy consumption: 35 kWh / year Energy efficiency class: C Fluid dynamic efficiency: E Lighting efficiency: B Grease separation efficiency: E Airflow at min/max speed: 110 m³/h - 205 m³/h A-weighted airborne noise emission at min/max speed: 52 / 68 dBEquipment features

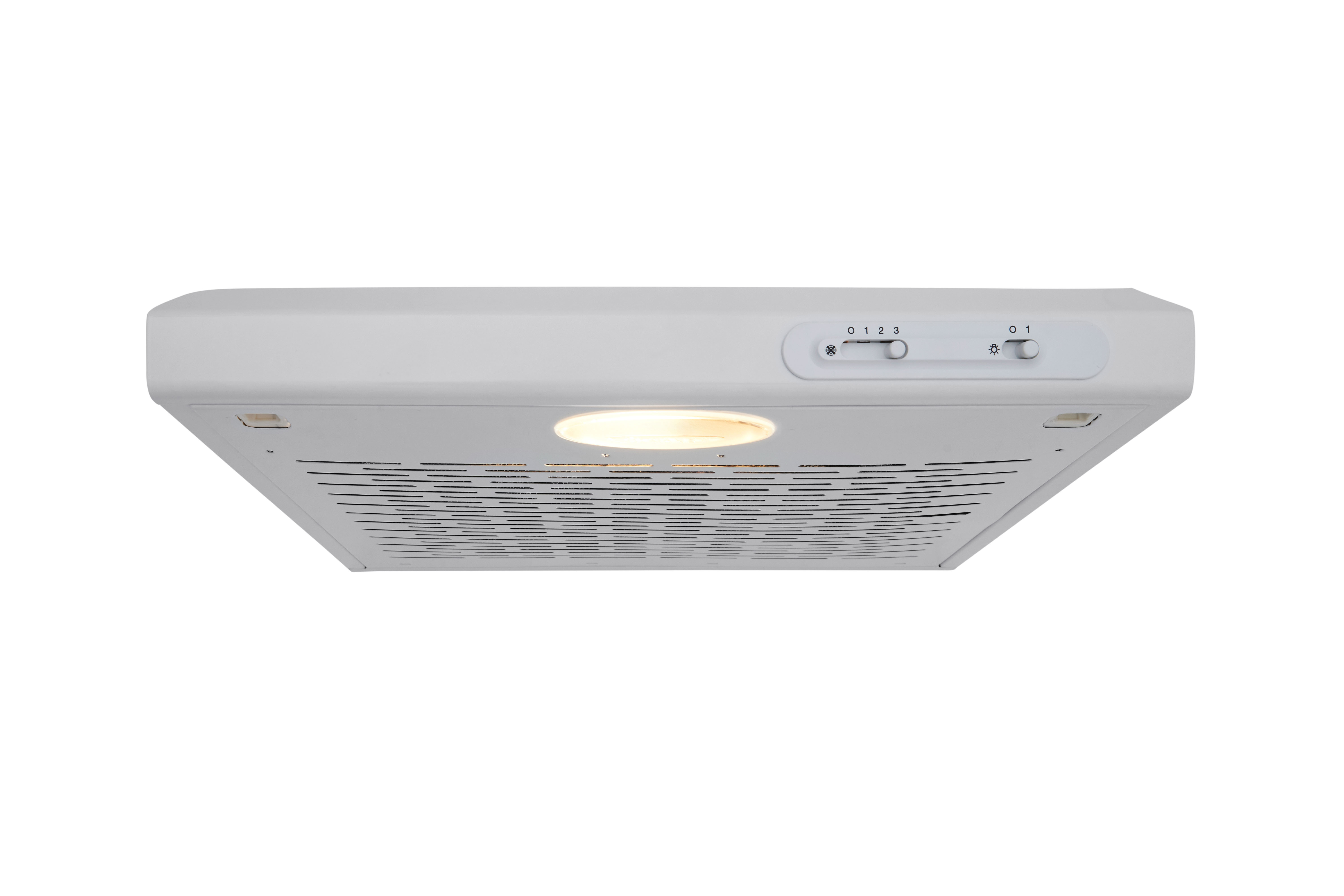

Control with slide switch Material: Painted sheet steel Speed levels: 3 Lighting max: 1 x 3 W LED Tube connection (diameter): 125 mm Voltage / frequency: 230 V / 50 Hz Connected load: 53 watt incl. grease filter mat 1 x Active carbon filter mat for recirculation mode 1 x optionally availableDevice dimensions

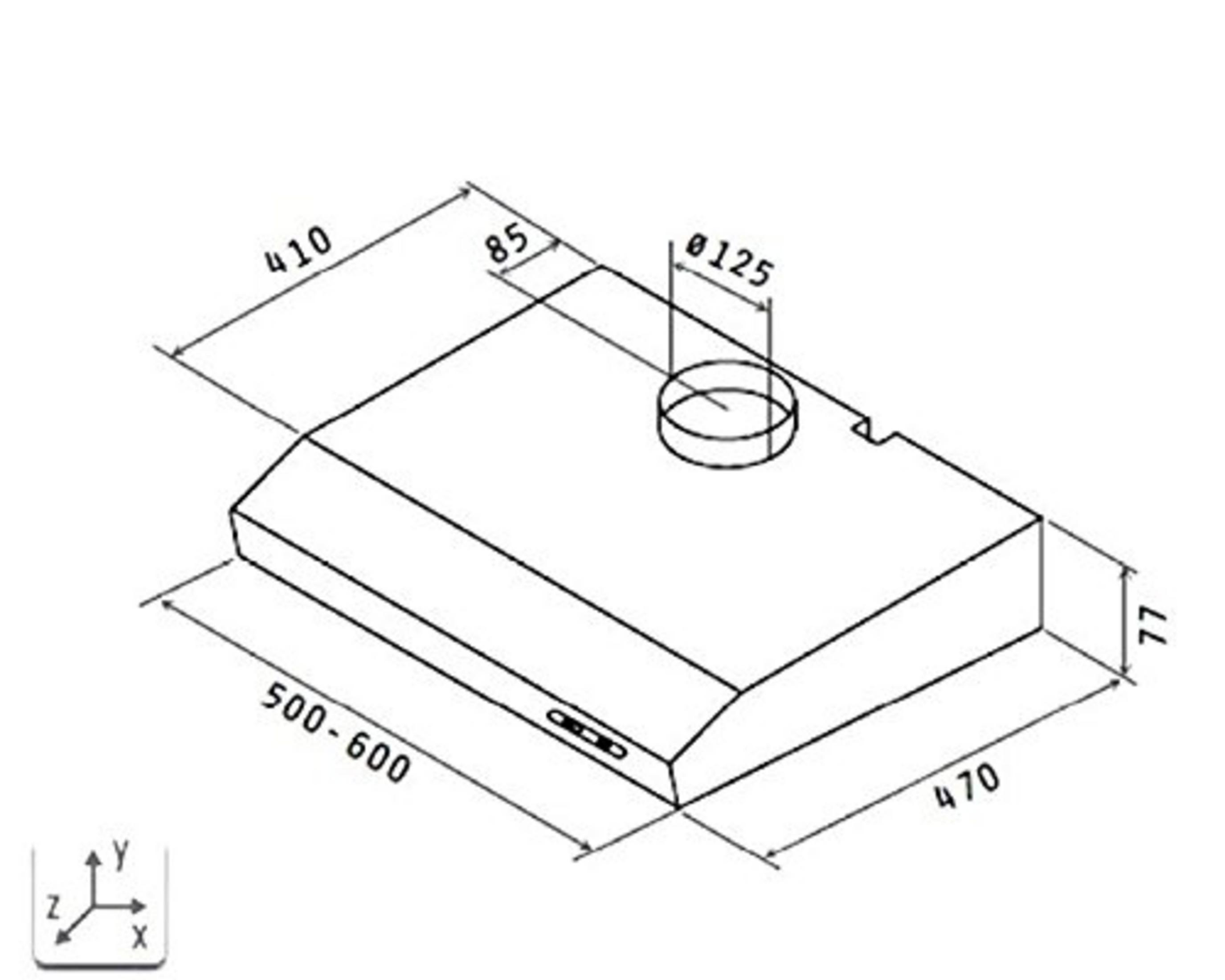

Device dimensions (H x W x D) / weight: 7.6 x 50 x 47 cm / 4.05 kg With packaging (H x W x D) / Weight: 12.5 x 55 x 53 cm / 4.65 kgTechnical features | |
|---|---|
Product type | Under-cabinet exhaust hood |
Construction shape | base hood |
Discharge system | Exhaust/Convection convertable (material for converting not in scope of delivery) |
Fan levels | 3 |
Intensity level | Yes |
Equipment | |
|---|---|
Filter system | Exhaust and recirculation system |
Light | |
|---|---|
Lamp type | LED lights |
Total lamp power | 3 W |
Power supply | |
|---|---|
Input voltage | 230 V |
Frequency | 50 Hz |
General features | |
|---|---|
Case material | Stainless Steel |
Diameter of outgoing air hose | 150 mm |
Width | 50 cm |
Depth | 470 mm |
Color (by manufacturer) | White |
Weight | 4.05 kg |
Power cable included | Yes |
Packsize | 550 mm / 125 mm / 530 mm |
Manufacturer guarantee | 0 Year |
Energy consumption data | |
|---|---|
Energy efficiency class (EU 2010/30) | C |
Annual energy consumption | 42 kWh/a |
Fluid dynamic Efficiency | 5.5 |
Fluid dynamic Efficiency class | F |
Lightning Efficiency | 28.1 lm/W |
Lightning Efficiency class | A |
Grease filtering | 76 % |
Grease filtering Efficiency class | C |
Air flow at minimum speed in normal use | 95 m³/h |
Air flow at maximum speed in normal use | 165 m³/h |
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 52 dB(A) |
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 68 dB(A) |
Generic Energy Class EU | 6 |
EU Color Code Energy Class | RGB - 255 237 0 |
EU Energy Efficiency Scale | A+ to F |
General Product Safety |
|---|
GTIN 4260515334472 |
Product type Under-cabinet exhaust hood |
Manufacturer |
|---|
Manufacturer NEG Novex GmbH |
Contact NEG Novex GmbH |
Website www.respekta.de |
EU established Yes |
Address Chenover Straße 5 |
City Limburgerhof |
Postcode 67117 |
Country Germany |
Address suffix Chenover Straße 5 |
