RESPEKTA DH 640 IXL base hood - Width 600 mm - 52 dB(A)
RESPEKTA
Art.-Nr. 94948015
Delivery to your home
Delivery 12-06-2026 - 13-06-2026
+ € 0,–
Operating characteristics/technical data
Annual energy consumption: 35 kWh / year Energy efficiency class: C Fluid dynamic efficiency: E Lighting efficiency: B Grease separation efficiency: E Airflow at min/max speed: 110 m³/h - 205 m³/h A-weighted airborne noise emission at min/max speed: 52 dB / 68 dBEquipment features
Control with slide switch Material: Painted sheet steel Speed levels: 3 Lighting max: 1 x 3 W LED Tube connection (diameter): 125 mm Voltage / frequency: 230 V / 50 Hz Connected load: 53 watt incl. grease filter mat 1x Active carbon filter mat for recirculation mode optionally availableDevice dimensions

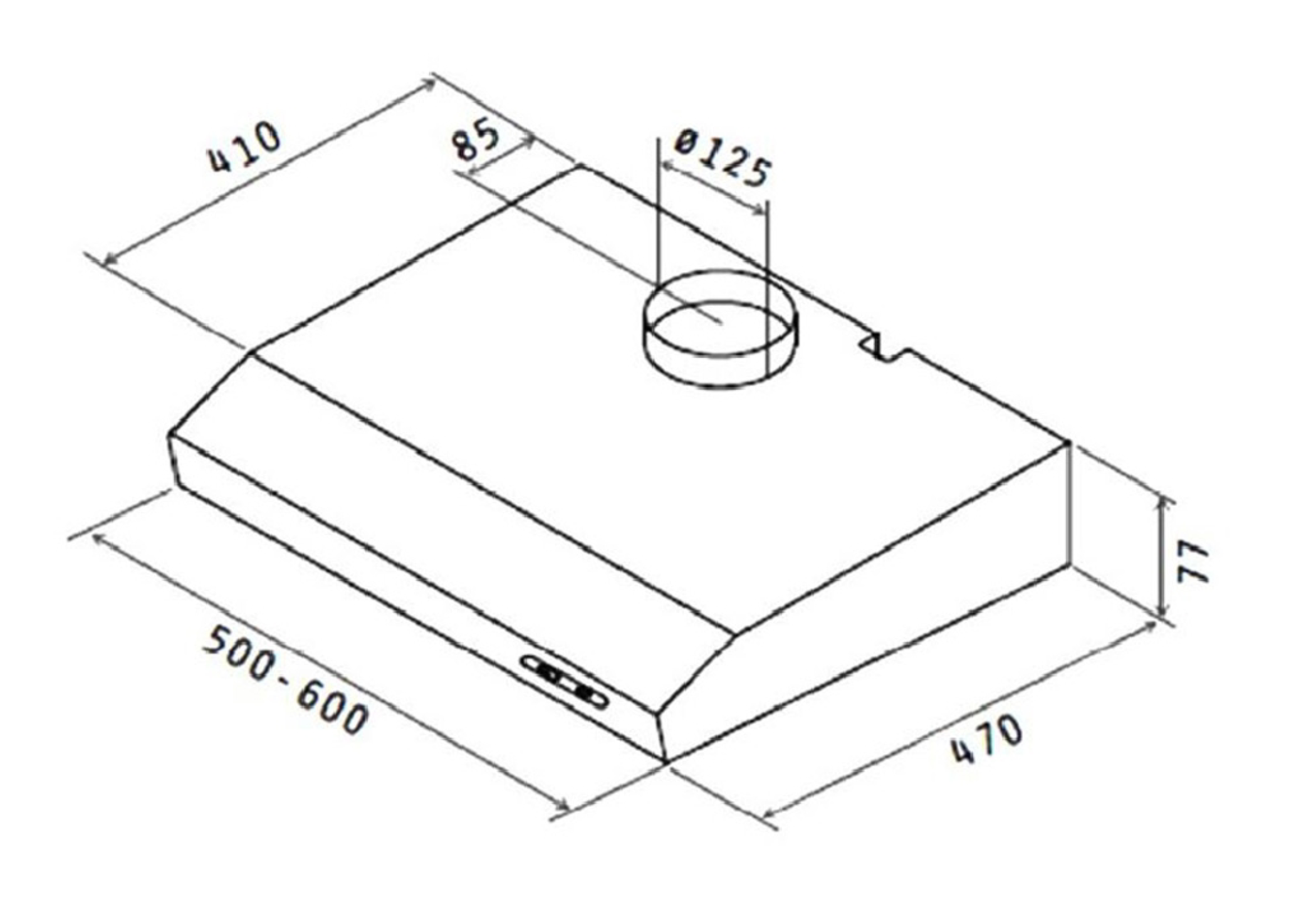

Device dimensions (H x W x D) / Weight: 7.6 x 60 x 47 cm / 4.6 kg With packaging (H x W x D) / Weight: 12.5 x 65 x 53 cm / 5.1 kgTechnical features | |
|---|---|
Product type | Under-cabinet exhaust hood |
Construction shape | base hood |
Discharge system | Exhaust/Convection convertable (material for converting not in scope of delivery) |
Number of motors | 1 |
Fan levels | 3 |
Intensity level | No |
AI Functions | None |
Artificial Intelligence | None |
Equipment | |
|---|---|
Filter system | Exhaust and recirculation system |
Backflow flap | Yes |
Indication replace grease filter | No |
Light | |
|---|---|
Lamp type | LED lights |
Total lamp power | 3 W |
Power supply | |
|---|---|
Input voltage | 230 V |
Frequency | 50 Hz |
General features | |
|---|---|
Case material | Stainless Steel |
Diameter of outgoing air hose | 125 mm |
Length of power cable | 1200 mm |
Width | 600 mm |
Depth | 470 mm |
Color (by manufacturer) | silver |
Weight | 4.6 kg |
Power cable included | Yes |
Packsize | 65 cm / 12.5 cm / 53 cm |
Manufacturer guarantee | 0 Year |
General Product Safety |
|---|
GTIN 4260515334526 |
Product type Under-cabinet exhaust hood |
Manufacturer |
|---|
Manufacturer NEG Novex GmbH |
Contact NEG Novex GmbH |
Website www.respekta.de |
EU established Yes |
Address Chenover Straße 5 |
City Limburgerhof |
Postcode 67117 |
Country Germany |
Address suffix Chenover Straße 5 |
