WIGGO WE-C530P(X) wall-mounted hood - Width 496 mm - 280 m³/h
Wiggo WE-D530P – Wall-mounted Hood – 50 cm – 3 Extraction Speeds – LED Lighting
Classic design and practical ventilation for everyday cooking comfort
The Wiggo WE-D530P is a stylish 50 cm wall-mounted hood that combines a timeless pyramid design with practical features and simple operation. With its three extraction speeds, mechanical push buttons, and integrated LED lighting, this hood is an excellent addition to your kitchen.
With a maximum extraction capacity of 280 m³/hour, the WE-D530P helps to remove cooking fumes, grease particles, and unwanted odors during cooking.
Three extraction speeds for different cooking activities
The Wiggo WE-D530P features three ventilation speeds, allowing you to easily adjust the extraction power to your cooking needs.
Speed 1: Suitable for light cooking activities and limited steam production.
Speed 2: Ideal for everyday cooking and preparing multiple dishes.
Speed 3: For more intensive cooking activities where extra ventilation is desired.
With an airflow of 217 m³/hour on the lowest setting and a maximum of 280 m³/hour on the highest setting, this hood offers various ventilation options.

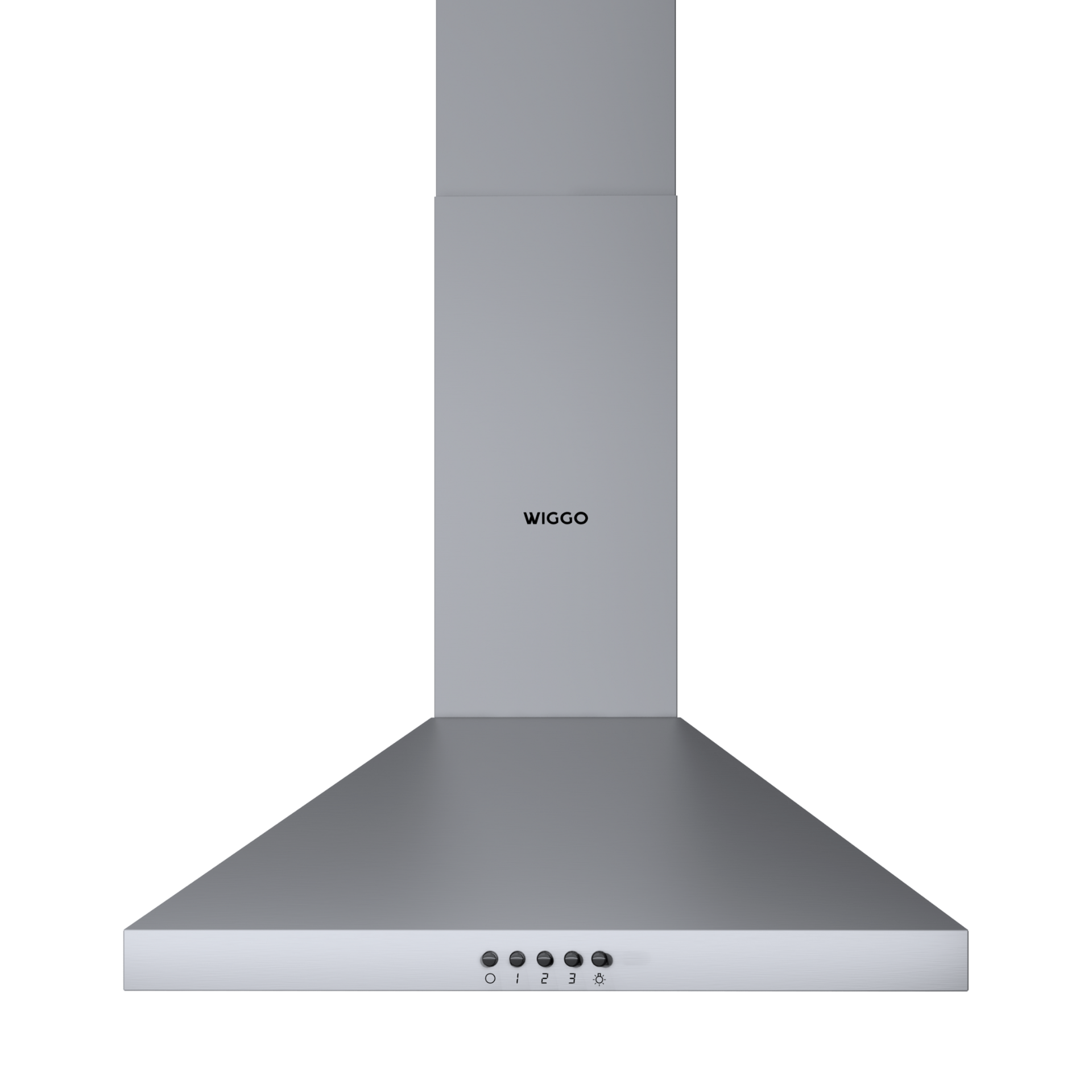

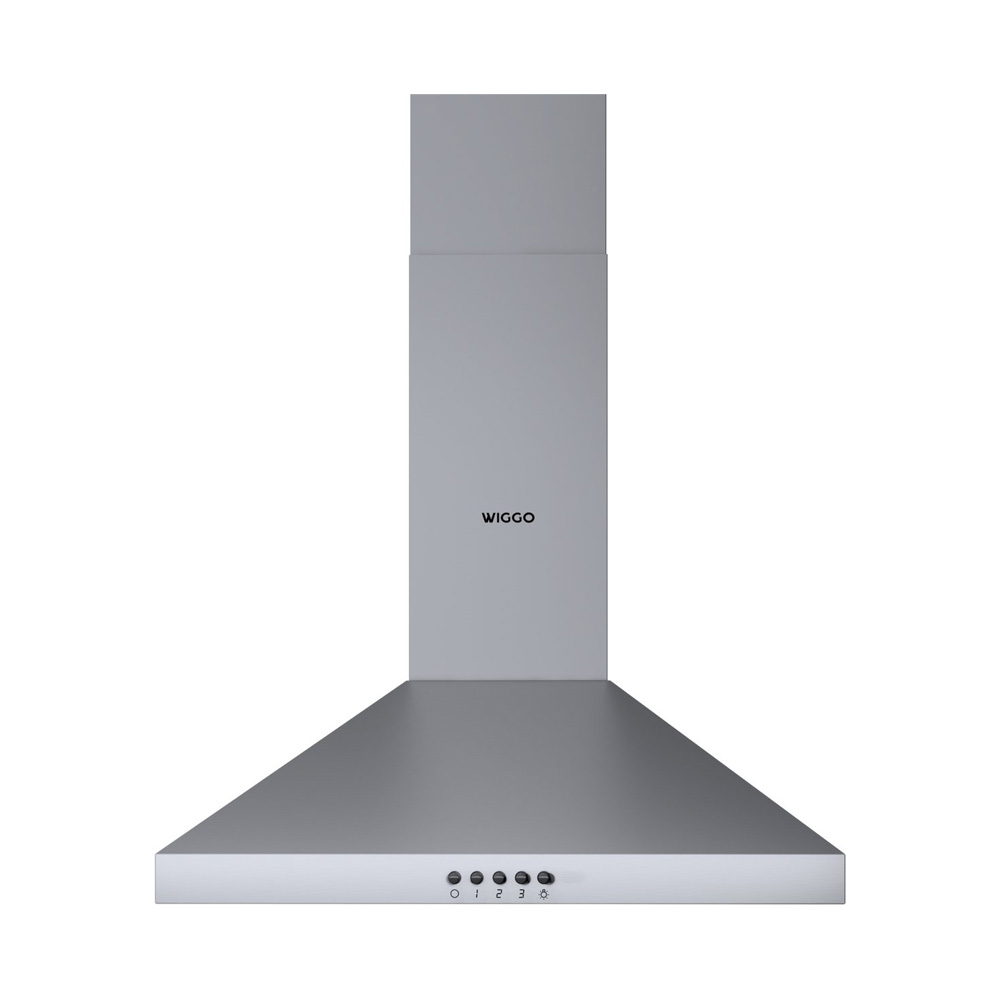

Timeless pyramid design
The WE-D530P has a classic wall-mounted hood design with a wide, pyramid-shaped extractor and a vertical decorative chimney.
With a width of 49.6 cm, this hood is suitable for compact cooking setups and kitchens where a 50 cm wide hood is desired.
The clean lines and functional design ensure that the hood complements both modern and traditional kitchen interiors.

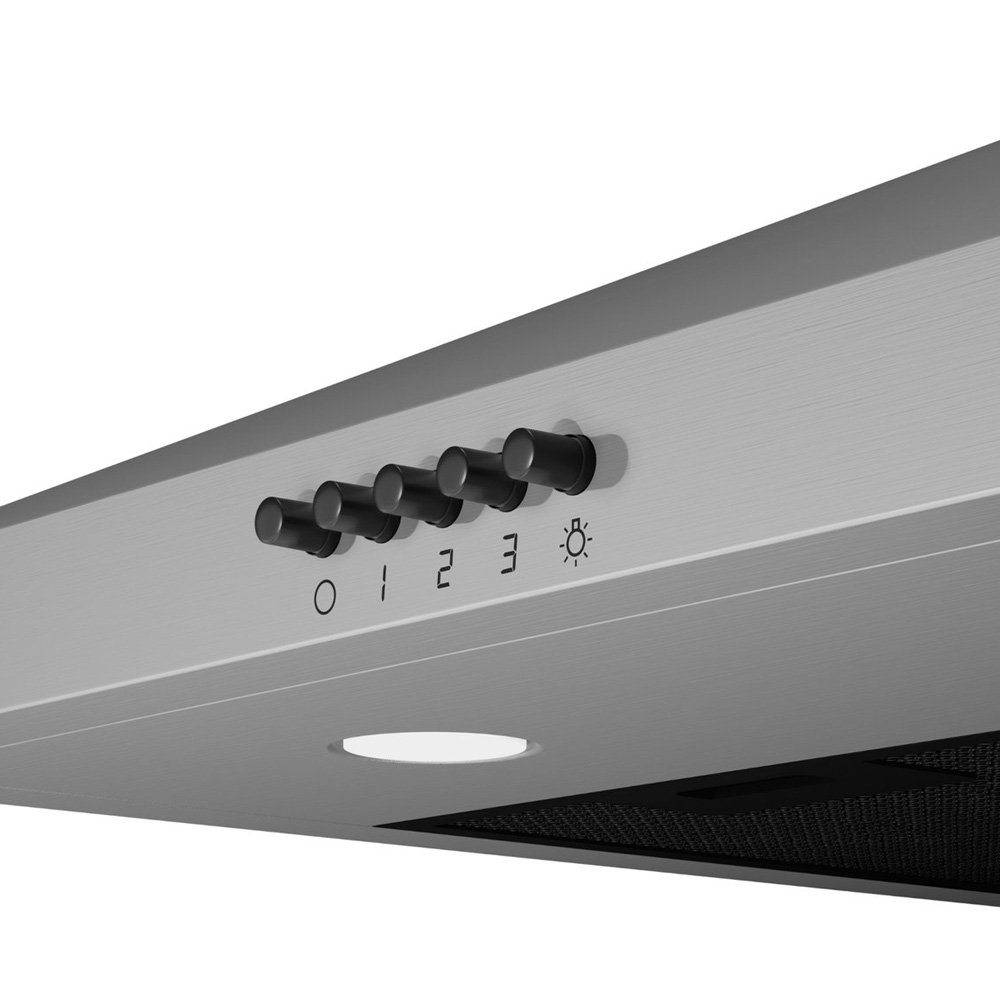

Simple operation with mechanical push buttons
The WE-D530P is equipped with five mechanical push buttons on the front of the hood.
These allow you to easily:
Turn off the hood.
Select from three different extraction speeds.
Turn the integrated lighting on and off.
The clear controls make it possible to quickly select the desired settings, without complicated menus or digital displays.
Integrated LED lighting
The built-in LED lighting provides a well-lit cooking surface, ensuring you have a clear view of your pots and pans while cooking.
With a lighting efficiency of 104.0 lux/W and lighting efficiency class A, the WE-D530P offers energy-efficient lighting for daily use.
The lighting can be operated independently of the ventilation speeds.

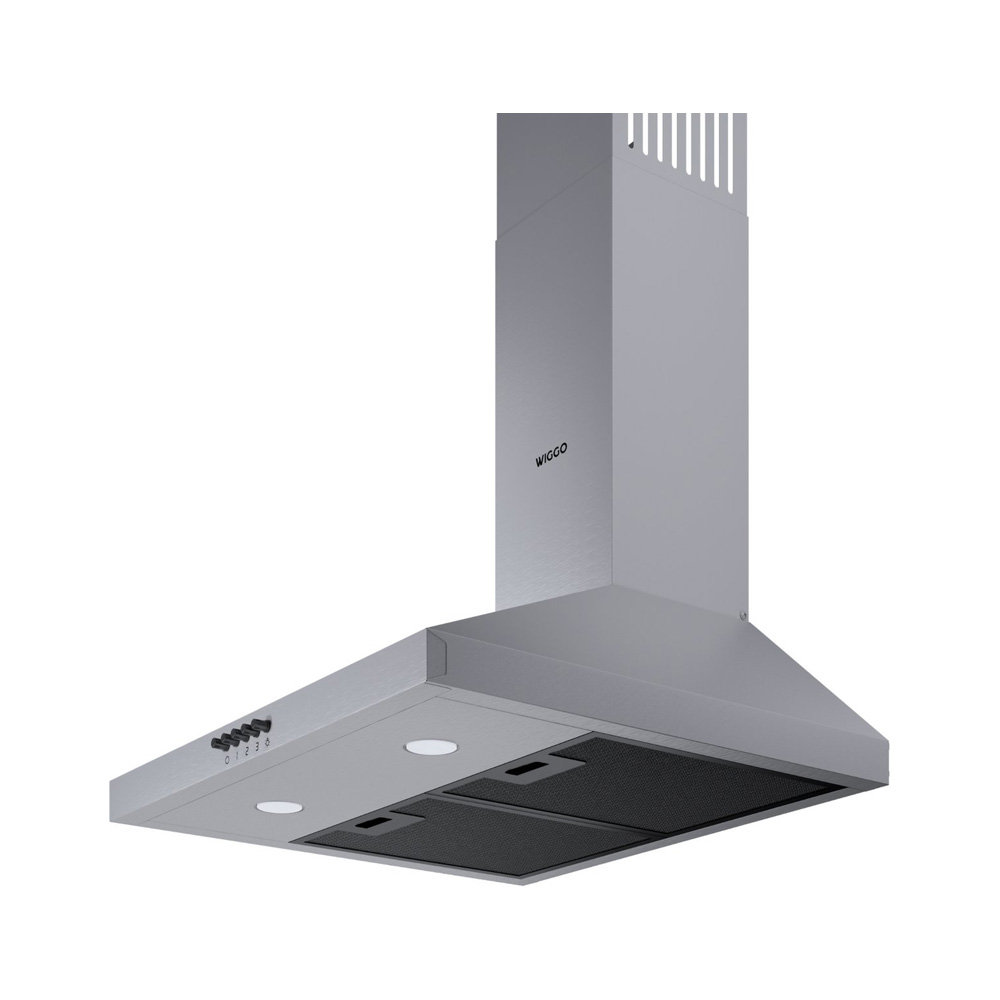

Practical grease filters
Grease filters are located at the bottom of the hood to help capture grease particles from the cooking air.
The WE-D530P has a grease filtering efficiency of 59.4%, corresponding to grease filtering efficiency class E.
Regular maintenance of the filters helps maintain extraction performance and contributes to a clean kitchen environment.
Energy consumption and noise level
The Wiggo WE-D530P has an energy efficiency class D and an annual energy consumption of 55.2 kWh.
According to the product data, the noise level is:
Minimum extraction speed: 69 dB
Maximum extraction speed: 71 dB
Thanks to the three adjustable ventilation speeds, you can tailor the extraction to your cooking activities.
Dimensions and installation
The WE-D530P is designed for wall mounting above a hob and features a decorative, height-adjustable chimney.
Width: 49.6 cm
Depth: 45.25 cm
Minimum total height: 65.7 cm
Maximum total height: 87.1 cm
Pyramid section height: 17.3 cm
Chimney dimensions: 15.3 × 16.4 cm
The adjustable chimney allows the hood to be adapted to different kitchen layouts within the specified installation dimensions.
Always check the available space and the recommended distance between the hob and the hood before installation.
Note: Compatible with WE-CF1 carbon filter - EAN: 8720769321858
Key specifications
Brand: Wiggo
Model: WE-D530P
Type: Wall-mounted hood
Design: Pyramid
Width class: 50 cm
Actual width: 49.6 cm
Depth: 45.25 cm
Total height: 65.7–87.1 cm
Control: Mechanical push buttons
Number of extraction speeds: 3
Minimum airflow: 217 m³/hour
Maximum airflow: 280 m³/hour
Lighting: LED
Lighting efficiency: 104.0 lux/W
Lighting efficiency class: A
Grease filtering efficiency: 59.4%
Grease filtering efficiency class: E
Energy efficiency class: D
Annual energy consumption: 55.2 kWh
Noise level according to product card: 69–71 dB
Mounting: Wall mounting
