WIGGO WE-D630P(W) wall-mounted hood - Width 596 mm - 293 m³/h - 56.2 dB(A)

Wiggo WE-D630P – Wall Hood Extractor – 60 cm – 3 Extraction Speeds – LED Lighting

Timeless design, effective extraction, and optimal cooking comfort

The Wiggo WE-D630P is a stylish 60 cm wall hood extractor that combines a classic pyramid design with practical features and user-friendly operation. With three adjustable extraction speeds, integrated LED lighting, and a maximum extraction capacity of 293 m³/hour, this extractor offers a practical solution for removing cooking fumes, grease particles, and unwanted odors.

Thanks to the clear mechanical push buttons and timeless design, the WE-D630P is an excellent choice for daily cooking convenience. The extractor is designed for wall mounting and fits well in both modern and traditional kitchens.

Three extraction speeds for optimal ventilation

Cooking produces fumes and odors that can spread throughout the kitchen. The Wiggo WE-D630P features three ventilation speeds that allow you to easily adjust the extraction power to your cooking activities.

• Speed 1 – Light Ventilation: Suitable for warming up dishes and cooking with limited steam production.

• Speed 2 – Daily Cooking: Ideal for normal cooking activities where constant extraction is desired.

• Speed 3 – Maximum Extraction: For more intensive cooking activities where more fumes and odors are released.

The extractor delivers an airflow of 221 m³/hour at the lowest setting and a maximum of 293 m³/hour at the highest setting.

This allows you to easily adjust the ventilation to the amount of cooking steam.

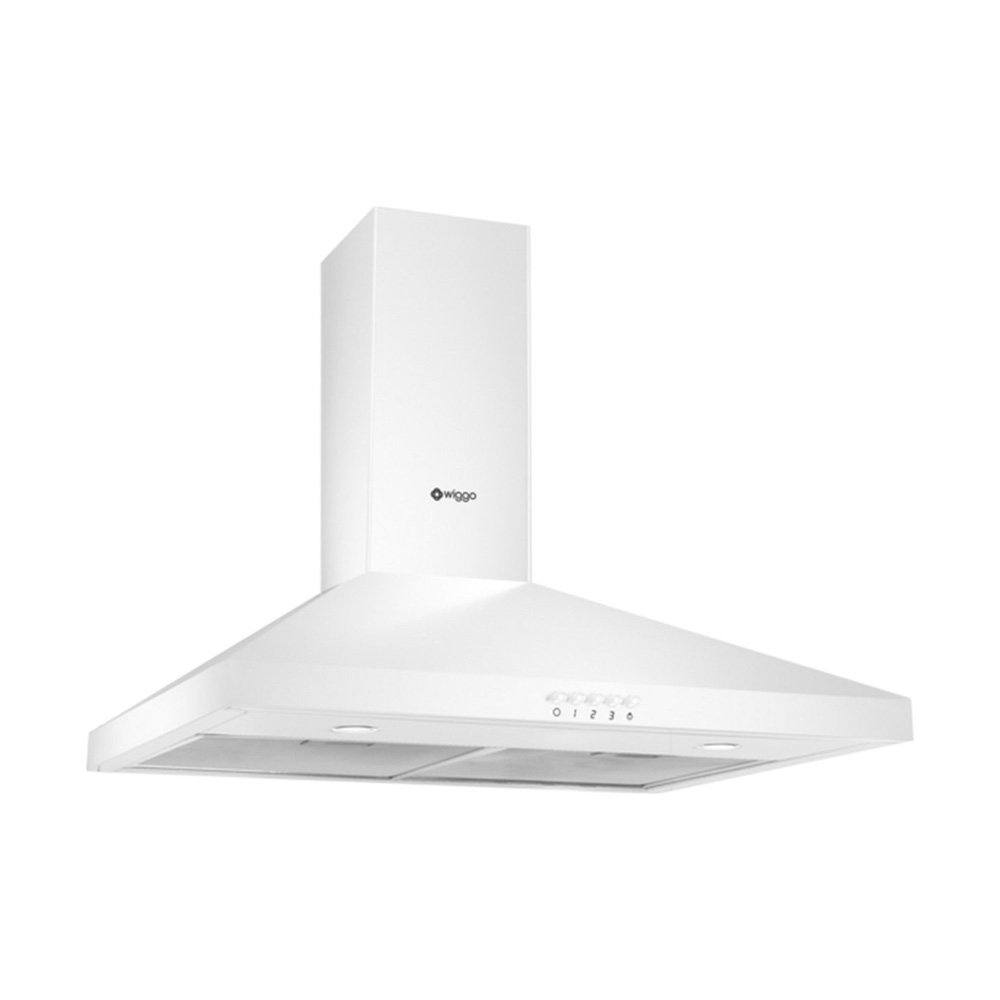

Classic pyramid design

The WE-D630P features a characteristic pyramid design with a wide extractor and a vertical decorative chimney.

With an actual width of 59.6 cm, this extractor matches the standard 60 cm width for hobs and kitchen appliances.

The sleek finish and simple design ensure a timeless look. This makes the extractor a practical and stylish addition to various kitchen interiors.

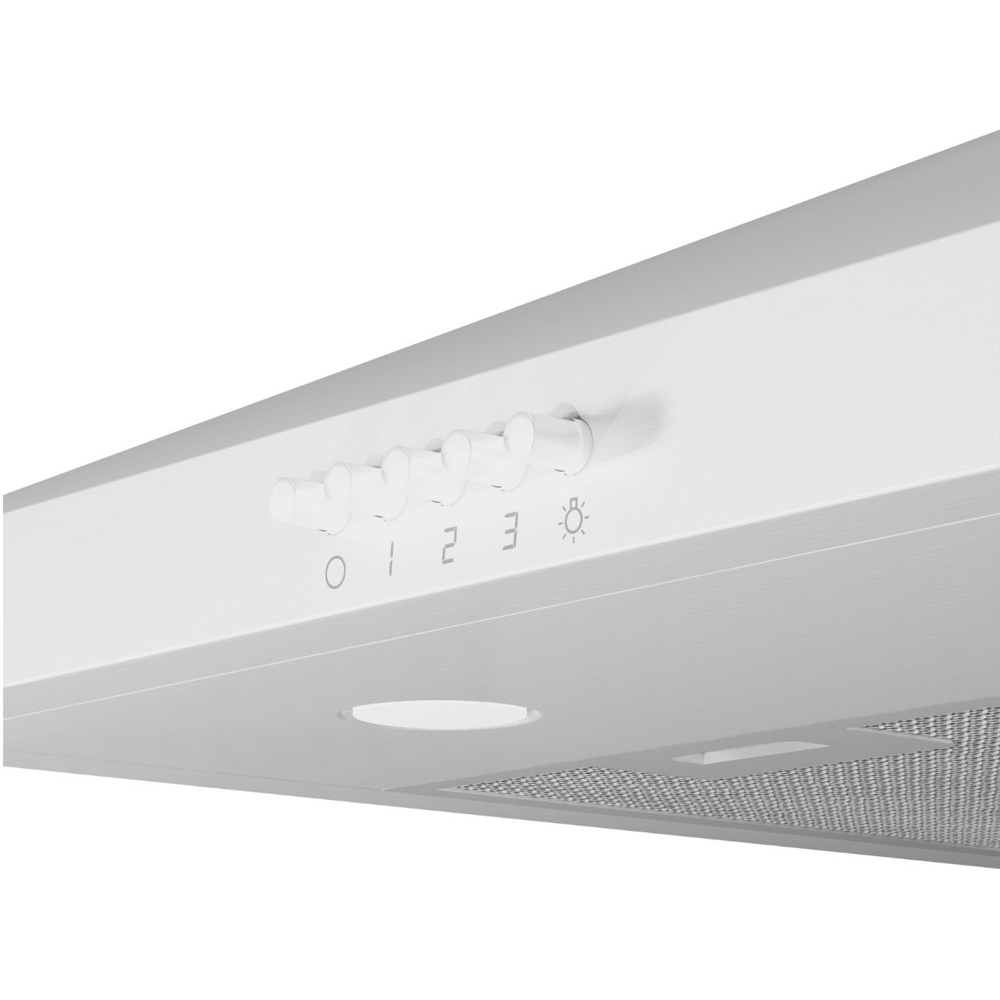

User-friendly operation with push buttons

The Wiggo WE-D630P is equipped with five mechanical push buttons on the front of the extractor.

With these buttons, you can easily:

• Turn off the extractor.

• Select from three different extraction speeds.

• Turn the lighting on and off separately.

The operation is clear and directly accessible, allowing you to quickly select the desired settings while cooking.

Integrated LED lighting for good visibility

The WE-D630P features two integrated LED light points at the bottom of the extractor.

These provide additional lighting above the cooking surface, so you can clearly see your pots and dishes while cooking.

The lighting has an efficiency of 60.6 lux/W and belongs to lighting efficiency class A.

Thanks to the separate light button, you can use the lighting without needing to turn on the extraction.

Grease filters for capturing grease particles

At the bottom of the extractor are grease filters that help capture grease particles from the cooking air.

The Wiggo WE-D630P has a grease filtering efficiency of 68.2%, corresponding to grease filtering efficiency class D.

The filters contribute to limiting grease buildup in the extractor and the kitchen environment.

Regular cleaning and maintenance of the filters help maintain extraction performance.

Adjustable ventilation and noise level

Thanks to the three ventilation speeds, you can determine how much extraction power is needed during cooking.

The noise level varies depending on the selected speed:

• Lowest extraction speed: 56 dB

• Highest extraction speed: 63 dB

For light cooking activities, you can use a lower ventilation speed, while the highest speed offers extra extraction capacity when needed.

Energy consumption and efficiency

The Wiggo WE-D630P has energy efficiency class D and an annual energy consumption of 57.7 kWh.

The various efficiency values are:

• Energy efficiency class: D

• Fluid dynamic efficiency class: E

• Lighting efficiency class: A

• Grease filtering efficiency class: D

• Electricity consumption in standby: 0.49 W

The LED lighting provides an energy-efficient way to illuminate the cooking surface.

Practical dimensions and wall mounting

The WE-D630P is designed for wall mounting above a hob.

The extractor features a decorative chimney whose height can be adjusted within the specified range.

Dimensions:

• Width: 59.6 cm

• Depth: 45.25 cm

• Minimum total height: 69.5 cm

• Maximum total height: 88 cm

• Height of pyramid-shaped section: 24 cm

• Dimensions of chimney cross-section: 17.8 × 18.8 cm

Thanks to the adjustable chimney, the extractor is suitable for various kitchen layouts, provided the available mounting space and prescribed installation distances are observed.

Note: Compatible with WE-CF1 carbon filter - EAN: 8720769321858

Key specifications

• Brand: Wiggo

• Model: WE-D630P

• Product type: Wall hood extractor

• Design: Pyramid

• Width class: 60 cm

• Actual width: 59.6 cm

• Depth: 45.25 cm

• Height: 69.5–88 cm

• Mounting: Wall mounting

• Control: Mechanical push buttons

• Number of extraction speeds: 3

• Minimum airflow: 221 m³/hour

• Maximum airflow: 293 m³/hour

• Lighting: 2 integrated LED light points

• Lighting efficiency: 60.6 lux/W

• Lighting efficiency class: A

• Grease filtering efficiency: 68.2%

• Grease filtering efficiency class: D

• Fluid dynamic efficiency class: E

• Energy efficiency class: D

• Annual energy consumption: 57.7 kWh

• Noise level: 56–63 dB

• Standby consumption: 0.49 W
