WIGGO WE-D631B(B) Cooker Hood - Width 530 mm - 300 m³/h - 60 dB(A)

Wiggo WE-D631B – Built-in Cooker Hood – 53 cm – 3 Extraction Speeds – LED Lighting

Compact, Powerful, and Stylishly Integrated into Your Kitchen

The Wiggo WE-D631B is a modern built-in cooker hood that combines powerful ventilation with a compact and space-saving design. Its integrated mounting in an upper cabinet keeps your kitchen sleek and uncluttered.

With a maximum extraction capacity of 300 m³/hour, three extraction speeds, mechanical push-button controls, and energy-efficient LED lighting, this cooker hood offers optimal ease of use while cooking.

Powerful Extraction with 3 Speeds

The Wiggo WE-D631B features a 100-watt motor and three adjustable extraction speeds. This allows you to easily adapt the ventilation to your cooking activities.

• Speed 1: For light cooking activities and limited steam formation.

• Speed 2: Suitable for daily cooking and normal steam formation.

• Speed 3: For intensive cooking with more steam and odors.

The extraction capacity ranges from 200 m³/hour to a maximum of 300 m³/hour, effectively removing cooking fumes and unwanted odors.

Compact and Space-Saving Design

Thanks to its integrated design, the cooker hood is largely concealed within a kitchen cabinet. Only the underside with the controls, lighting, and grease filters remains visible.

With a width of approximately 53 cm, this cooker hood is suitable for installation in a matching upper cabinet. This makes the WE-D631B ideal for modern kitchens where functionality and a minimalist look are paramount.

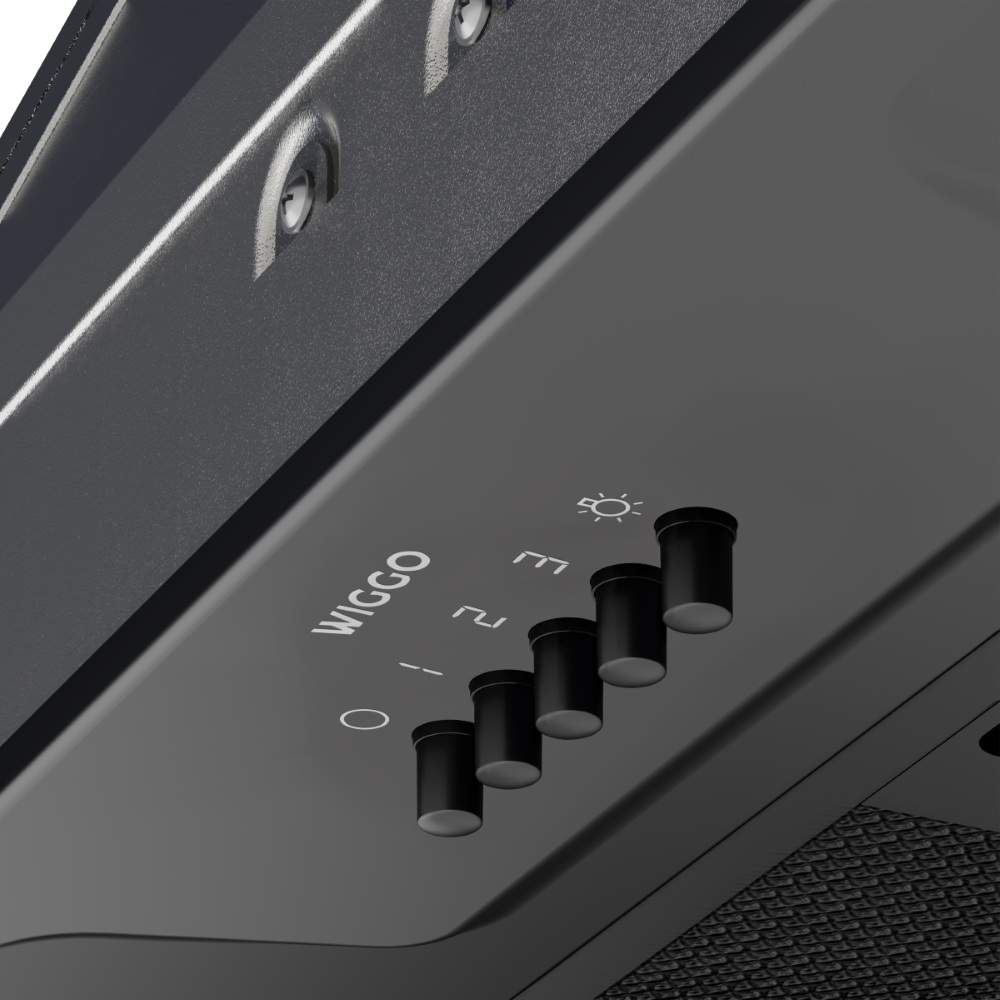

Simple Mechanical Controls

The cooker hood is equipped with five clear push buttons that allow you to easily:

• Turn off the extraction.

• Select one of three extraction speeds.

• Turn the LED lighting on and off independently.

The practical controls ensure that you can quickly select the desired settings.

Energy-Efficient LED Lighting

The Wiggo WE-D631B features two integrated LED lights, each of 1 watt. These illuminate the cooking surface and provide good visibility while preparing meals.

With a lighting efficiency of 56.6 lux/W and an energy efficiency class A for lighting, the cooker hood combines bright illumination with low energy consumption.

Suitable for Ducted Extraction and Recirculation

The WE-D631B offers two ventilation options:

• Ducted Extraction to the Outside: Cooking fumes and odors are vented outside through an exhaust duct. The duct connection has a diameter of 120 mm.

• Recirculation: With suitable active carbon filters, cooking odors are filtered, and the air is blown back into the kitchen.

Two carbon filters are required for recirculation. These are sold separately and need to be replaced regularly.

Washable Aluminum Grease Filters

The cooker hood is equipped with removable aluminum grease filters that capture grease particles from the cooking air.

• Easy to remove and reinsert.

• Cleanable with warm water and a mild detergent.

• Dishwasher safe up to 60 °C.

• Regular maintenance helps maintain extraction performance.

The grease filtering efficiency is 68%, corresponding to grease filtering efficiency class D.

Energy Consumption and Noise Level

The Wiggo WE-D631B has an energy efficiency class D and an annual energy consumption of 58.5 kWh.

The noise level is 60 dB on the lowest setting and 70 dB on the highest setting. Thanks to the three speed settings, you can adjust the ventilation to your needs.

Easy Installation

The cooker hood is designed for integrated installation in a suitable upper cabinet. For safe installation, the following minimum distances apply:

• Electric Hob: 60 cm.

• Gas Hob: 65 cm.

The cooker hood operates on 220–240 V / 50 Hz and has a 120 mm exhaust duct connection.

Key Specifications

• Brand: Wiggo

• Model: WE-D631B

• EAN: 8720769322640

• Type: Integrated built-in cooker hood

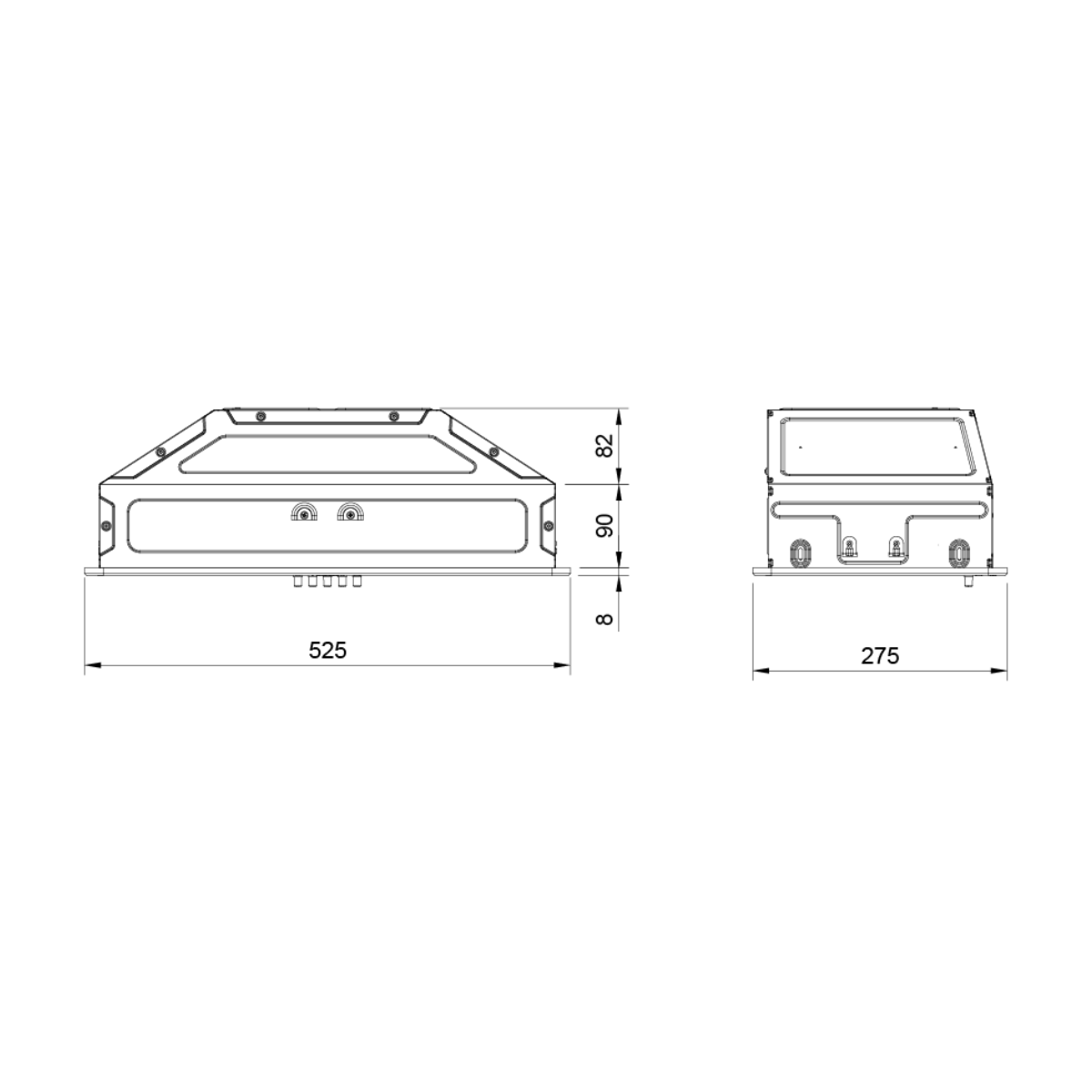

• Width: Approximately 53 cm

• Depth: 27.5 cm

• Height: Approximately 20.3–20.6 cm

• Number of extraction speeds: 3

• Extraction capacity: 200–300 m³/hour

• Motor power: 100 W

• Maximum total power: 102 W

• Controls: Mechanical push buttons

• Lighting: 2 × 1 W LED

• Grease filter: Washable aluminum

• Grease filtering efficiency: 68%

• Exhaust: Ducted to the outside or recirculation

• Duct connection: 120 mm

• Noise level: 60–70 dB

• Energy class: D

• Annual energy consumption: 58.5 kWh

• Voltage: 220–240 V / 50 Hz
