WIGGO WE-E523G(B) wall-mounted hood - Width 495 mm - 265 m³/h - 55 dB(A)

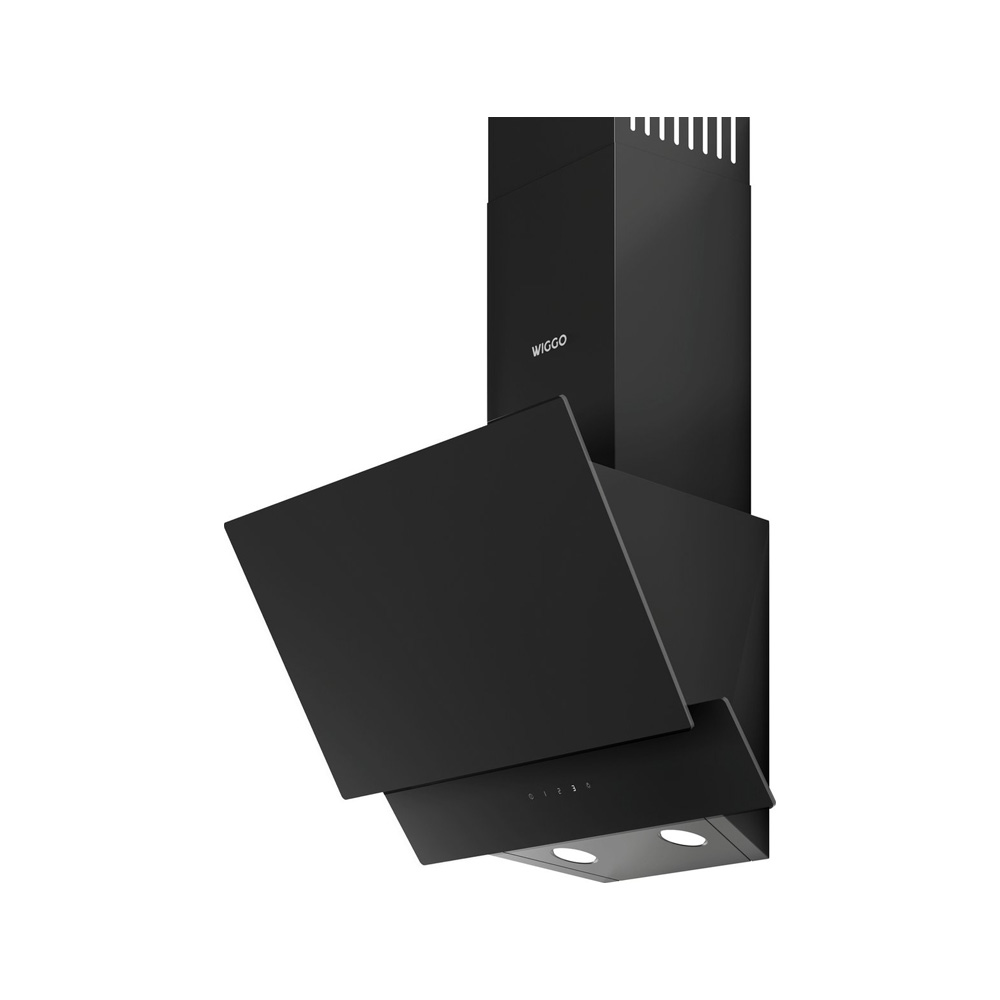

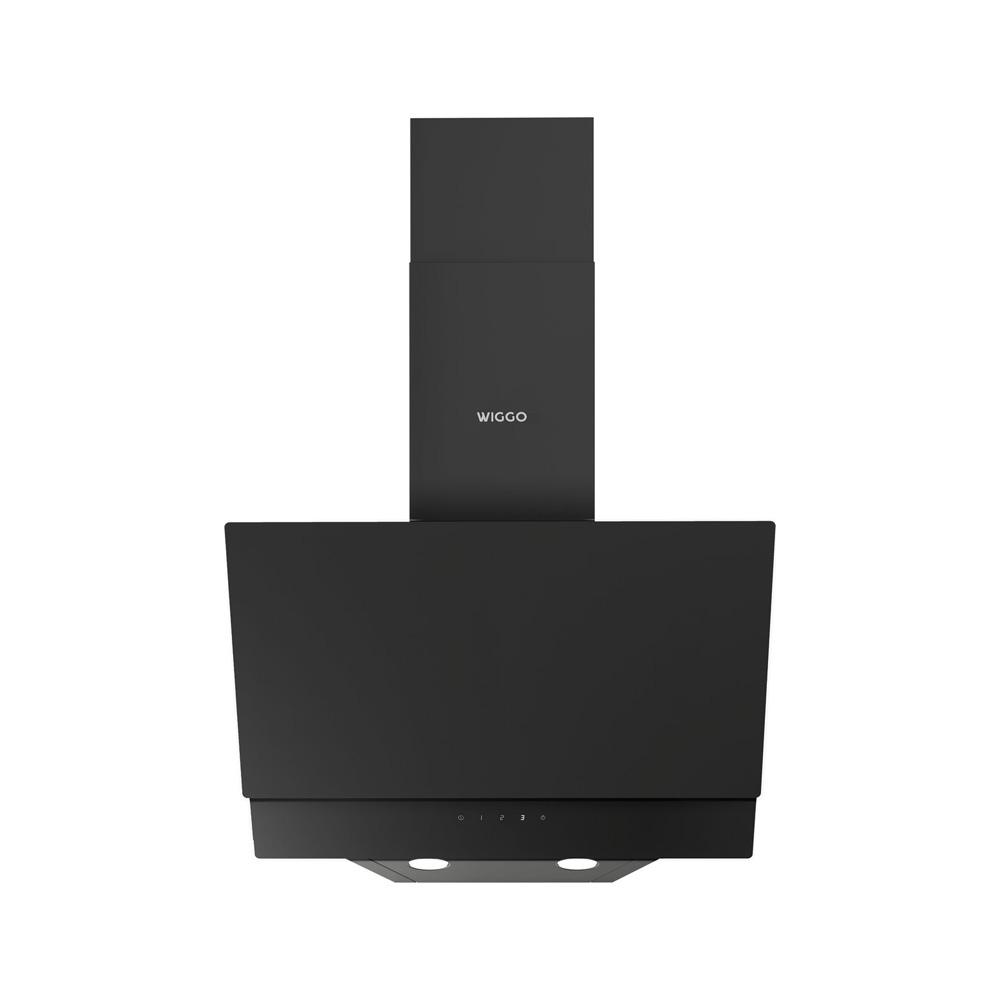

Wiggo WE-E523G – Slanted Wall Hood – 50 cm – Touch Control – LED Lighting

Modern design and practical extraction for any kitchen

The Wiggo WE-E523G is a compact 50 cm slanted wall hood that combines stylish design with ease of use and efficient ventilation. Thanks to its modern glass front panel, intuitive touch controls, and integrated LED lighting, this hood is a practical addition to your kitchen.

With three extraction speeds and a maximum extraction capacity of 265 m³/hour, the WE-E523G helps to remove cooking fumes, grease particles, and unwanted odors.

Three extraction speeds for optimal cooking comfort

The Wiggo WE-E523G features three adjustable ventilation speeds to adjust the extraction power to your cooking activities.

• Speed 1: Suitable for light cooking.

• Speed 2: Ideal for everyday cooking.

• Speed 3: For more intensive cooking with increased steam.

The airflow ranges from 190 m³/hour to 265 m³/hour, allowing you to easily select the desired ventilation.

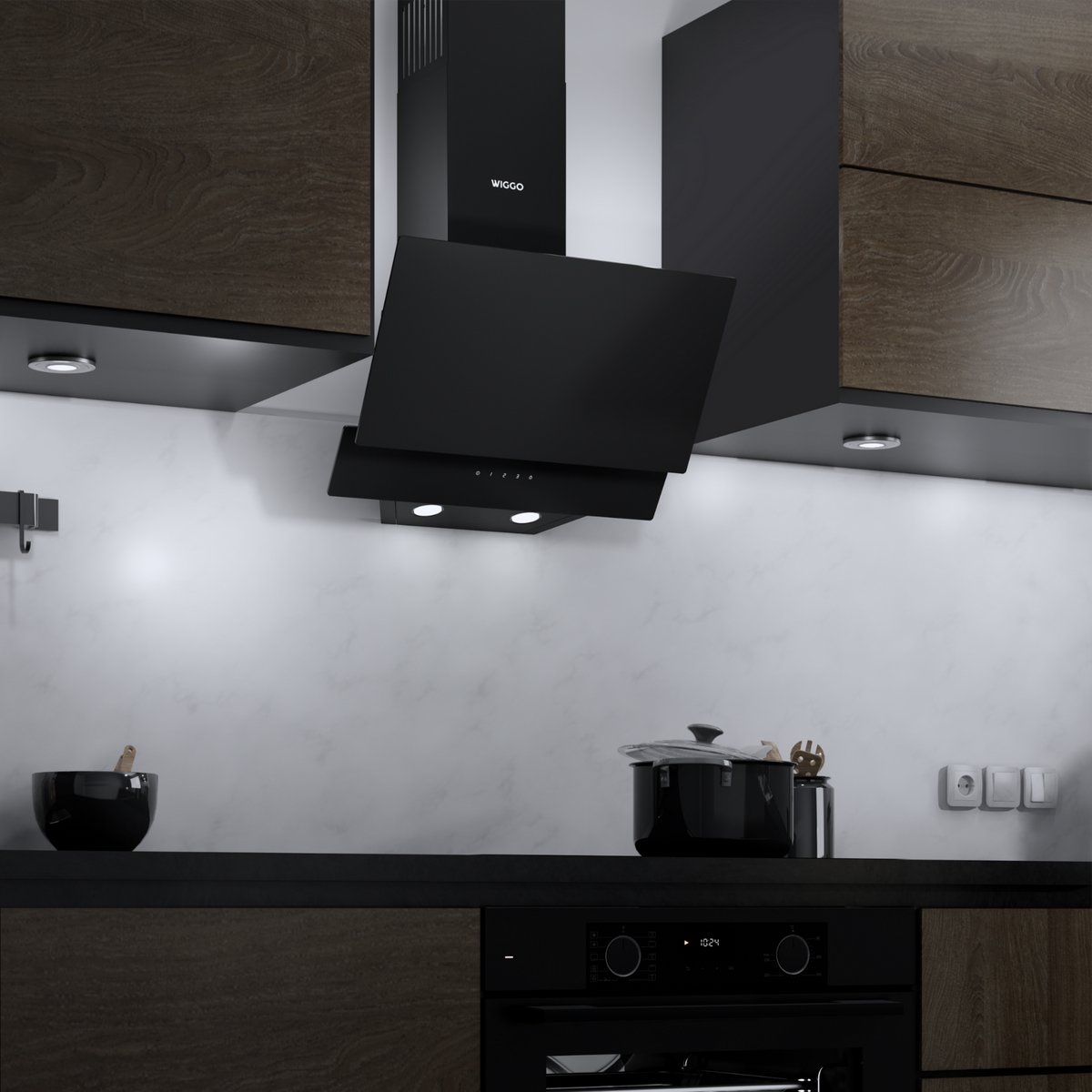

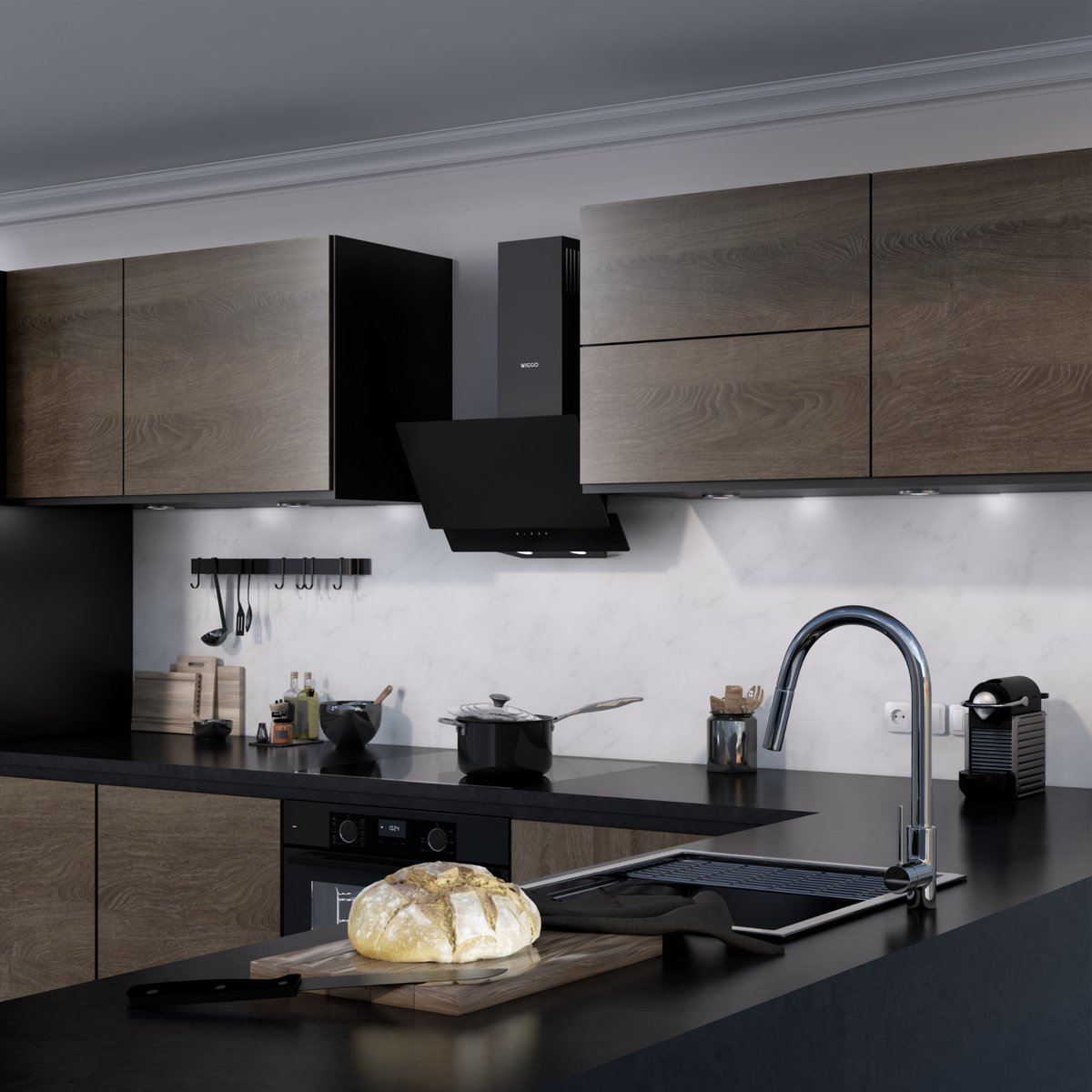

Compact and space-saving design

With a width of 49.5 cm, the WE-E523G is particularly suitable for smaller kitchens and cooking setups.

The slanted front panel provides extra headroom above the hob, while the decorative chimney ensures a neat finish.

Thanks to its modern design, the hood is a stylish addition to various kitchen interiors.

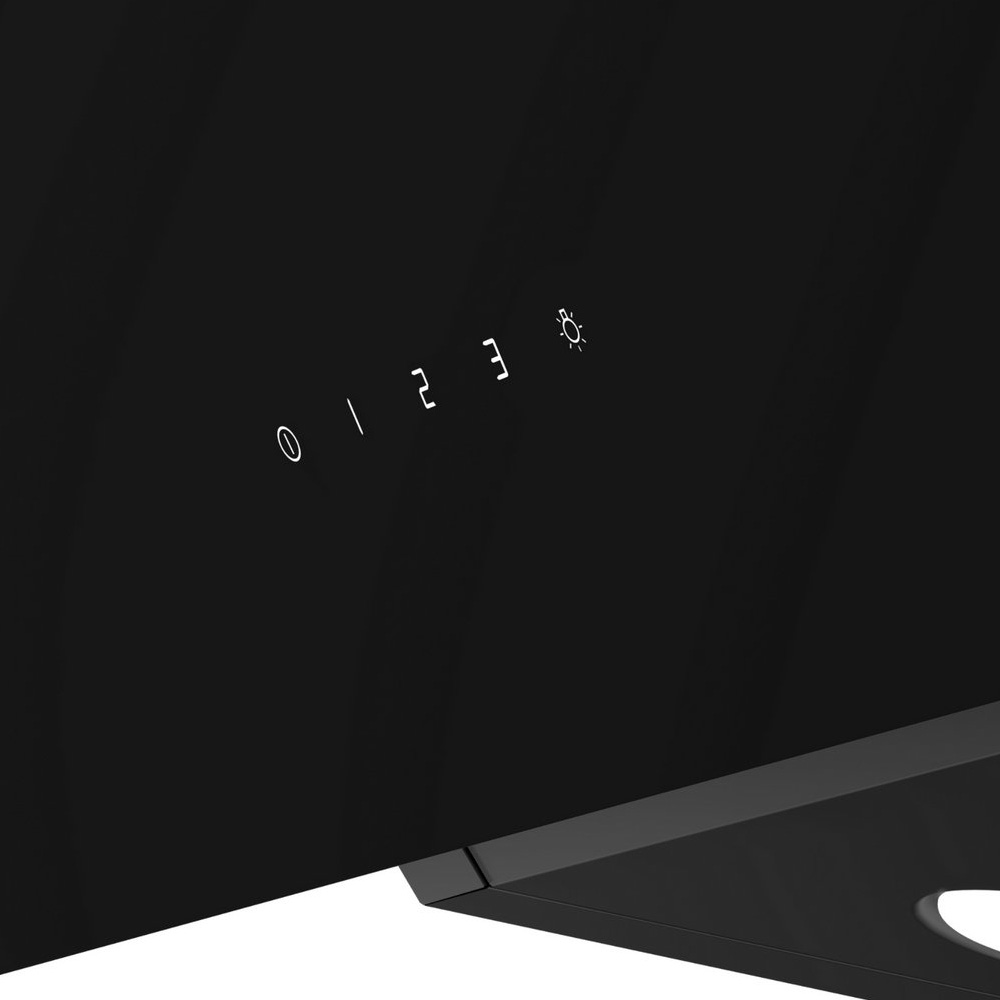

Intuitive Touch Control operation

The integrated touch control panel makes operating the hood simple and comfortable.

With the touch-sensitive controls, you can:

• Turn the hood on and off.

• Select from three ventilation speeds.

• Control the lighting separately.

The smooth control surface without protruding buttons contributes to the sleek appearance and is easy to clean.

Integrated LED lighting

The built-in LED lighting illuminates the cooking surface, providing good visibility while preparing meals.

With a lighting efficiency of 46.0 lux/W and lighting efficiency class A, the hood combines functional lighting with efficient energy use.

Hinged front panel

The WE-E523G features a hinged glass front panel that provides access to the filter compartment behind it.

This practical design makes periodic maintenance easier and helps keep the hood in good condition.

Grease filtering and maintenance

The hood has a grease filtering efficiency of 67.6%, corresponding to grease filtering efficiency class D.

The filter system helps to capture grease particles from the cooking air.

Regular cleaning of the filters supports proper functioning and contributes to a hygienic kitchen environment.

Energy consumption and noise level

The Wiggo WE-E523G has energy efficiency class D and an annual energy consumption of 57.7 kWh.

The noise level depends on the selected ventilation speed:

• Minimum speed: 55 dB

• Maximum speed: 63 dB

Thanks to the different extraction speeds, you can adjust the ventilation to your needs.

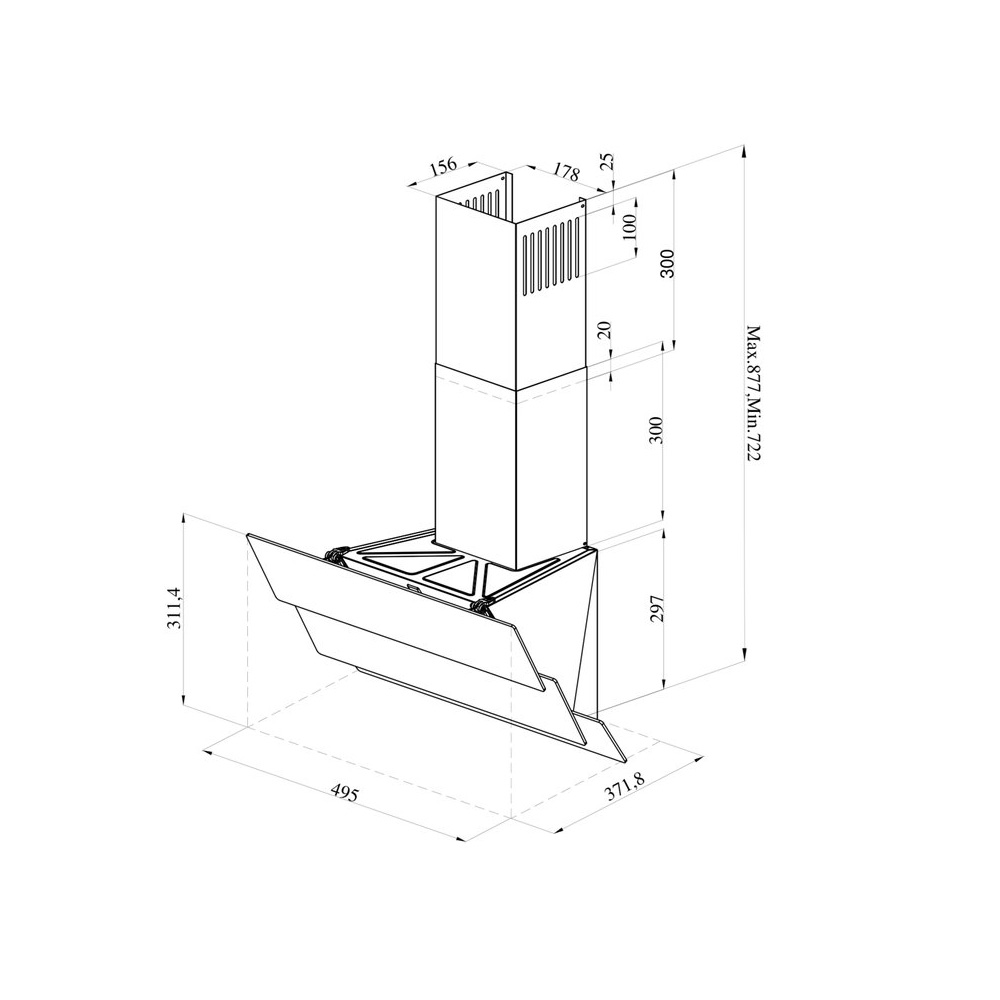

Dimensions and installation

The WE-E523G is designed for wall mounting and features an adjustable decorative chimney.

• Width: 49.5 cm

• Depth: 37.18 cm

• Height of hood section: 29.7 cm

• Total adjustable height: 72.2–87.7 cm

• Chimney cross-section: 15.6 × 17.8 cm

Before installation, check the available space and the prescribed mounting distances to the hob.

Key specifications

• Brand: Wiggo

• Model: WE-E523G

• Type: Slanted wall hood

• Width class: 50 cm

• Actual width: 49.5 cm

• Depth: 37.18 cm

• Height: 72.2–87.7 cm

• Control: Touch Control

• Number of extraction speeds: 3

• Maximum airflow: 265 m³/hour

• Lighting: LED

• Lighting efficiency: 46.0 lux/W

• Lighting efficiency class: A

• Grease filtering efficiency: 67.6%

• Grease filtering efficiency class: D

• Noise level: 55–63 dB

• Energy efficiency class: D

• Annual energy consumption: 57.7 kWh

• Stand-by consumption: 0.38 W
